Before Driving Your Mazda
To w i n g
Form No. 8Q44-EA-01K

Trailer Hitch
Use only a hitch ball recommended by the trailer manufacturer that conforms to the gross
trailer weight requirement.
When not towing a trailer, remove the trailer hitch (if detachable) to reduce the possibility
of damage as a result of the vehicle being rear-ended.
When the trailer load is more than 907 kg (2,000 lb), use a frame-mounted weight-
distributing hitch.
Tow Loads:
Attempting to tow loads greater than those specified is dangerous as it may cause
serious handling and performance problems that could result in personal injury or
vehicle damage, or both. Always keep tow loads within specified limits in the Trailer
To w i n g - L o a d Ta b l e .
Trailer Loading:
Loading the trailer with more weight in the rear than in the front is dangerous. Doing
so could cause you to lose control. The trailer tongue load must be 10%-15% of the
total trailer load (sum of the weights of the trailer and cargo). Try to load the trailer
with the weight about 60% toward the front and 40% toward the rear.
Determining Total Trailer Weight and Tongue Load:
Attempting to tow loads without determining the total trailer weight and tongue load is
dangerous. Trailer sway from crosswinds, rough roads or other causes could result in
loss of control and a serious accident. Always have the total trailer weight and tongue
load determined prior to departure.
The total trailer weight and tongue load can be determined by weighing the trailer on
platform scales at a highway weight station or a trucking company.
WARNING
CAUTION
J16L_EA.book Page 14 Friday, February 22, 2002 11:34 AM

4-15
Before Driving Your Mazda
To w i n g
Form No. 8Q44-EA-01K

Tires
When towing a trailer, make sure all tires are inflated to the recommended cold-tire
pressure, as indicated on the tire pressure chart on the driver’s door. Trailer tire size, load
rating, and inflation pressures should conform to tire manufacturer specifications.
Unsecured Hitch:
An unsecured trailer hitch is dangerous as it causes greater trailer sway from
crosswinds, rough roads or other causes, resulting in loss of control and a serious
accident.
Examine all trailer-hitch mounting bolts regularly and tighten any that are loose. If
the hitch is removed, seal any open mounting holes to prevent exhaust, dust, water,
dirt and other foreign elements from filtering in, possibly endangering personal safety
and damaging your vehicle.
Don’t install a hitch that stiffens the bumper as it will reduce the bumper’s
performance. Always make sure the hitch is securely attached before departure.
Exhaust System Modifications:
Modifying your vehicle exhaust system is dangerous. Exhaust gas entering the vehicle
could kill you.
When mounting the trailer hitch, make no modifications to the vehicle exhaust
system. Make sure there are no exhaust gas leaks into the passenger compartment if
any mounting bolts are connected to the body.
•Make all hitch adjustments with actual loads. Don’t load and unload vehicle while
adjusting hitch. This action will change the vehicle height.
•Don’t use an axle-mounted hitch. This may damage the axle and related parts.
Using a Temporary Spare Tire when Towing:
Using a temporary spare tire on your vehicle when towing a trailer is dangerous as it
could result in tire failure, loss of control, and injury to vehicle occupants. Never use
a temporary spare when towing.
WARNING
CAUTION
WARNING
J16L_EA.book Page 15 Friday, February 22, 2002 11:34 AM

4-16
Before Driving Your Mazda
To w i n g
Form No. 8Q44-EA-01K

Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.

Trailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.

Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
Towing Without Safety Chain:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision. Make sure the safety
chain is securely attached to both the trailer and the vehicle prior to departure.
Don’t connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle’s electrical system and lighting systems. Have a
recreational vehicle dealer or trailer rental agency connect the system, and inspect the
brake lights and turn signals each time before driving.
Hydraulic Trailer-Brake System:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury. Don’t connect a
hydraulic trailer-brake system to your vehicle’s brake system.
WARNING
CAUTION
WARNING
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

4-17
Before Driving Your Mazda
To w i n g
Form No. 8Q44-EA-01K

Trailer Towing Tips
•Verify that your Mazda maintains a near-normal attitude when a loaded or unloaded
trailer is connected. Don’t drive if it has an abnormal front-up or front-down position.
Inspect for incorrect tongue load, worn suspension parts, and trailer overloading.
•Make sure the trailer is properly loaded and the cargo is secure to prevent it from
shifting.
•Make sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
Before driving
•Have your cooling and braking system checked by an Authorized Mazda Dealer.
•Before starting out, inspect the operation of all vehicle and trailer lights and all vehicle-
to-trailer connections. Stop and re-inspect all lights and connections after driving a short
distance.
Driving
•Your Mazda will handle differently with a trailer in tow, so practice turning, backing,
and stopping in a traffic-free area.
•Take time to get accustomed to the extra weight and length.
•Allow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
•Avoid jerky starts or sudden acceleration.
•Avoid sudden braking. It may cause loss of control and result in jackknifing, especially
so on wet or slippery roads.
•Use the following positions when towing a trailer in hilly terrain or when heavily
loaded.
OD (overdrive) off
Shift lever in D
These positions will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to avoid
the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that
are larger than normal.
J16L_EA.book Page 17 Friday, February 22, 2002 11:34 AM

4-19
Before Driving Your Mazda
To w i n g
Form No. 8Q44-EA-01K
Parking
Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.
Avoid parking on an incline, but if you must, follow these instructions:
1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.
If the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.
If it is uphill, face the rear of the front tires against the curb.
4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.
To restart after parking on an incline:
1. With the transaxle in P, start the engine. (Be sure to depress and hold the brake pedal.)
2. Shift into gear.
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.
Stop; apply the parking brake and shift into P.
4. Have a helper retrieve the wheel blocks.
Fuel consumption
Trailer towing causes higher fuel consumption.
Maintenance
If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 8-3).
J16L_EA.book Page 19 Friday, February 22, 2002 11:34 AM

5-6
Driving Your Mazda
Starting and Driving
Form No. 8Q44-EA-01K

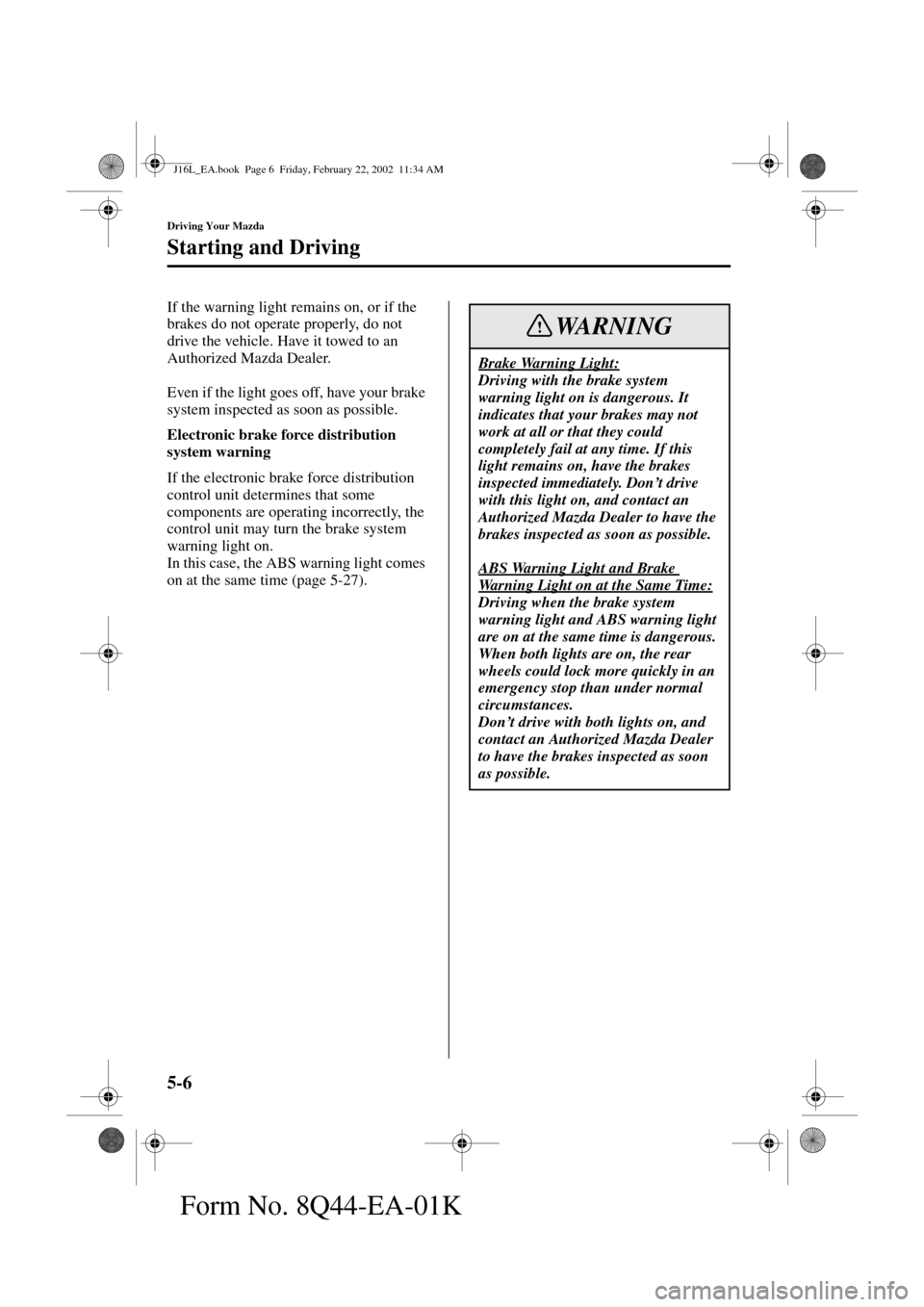

If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-27).
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J16L_EA.book Page 6 Friday, February 22, 2002 11:34 AM

5-8
Driving Your Mazda
Starting and Driving
Form No. 8Q44-EA-01K

Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.Various Lockouts:
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Driving with Worn Disc Pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
an Authorized Mazda Dealer.
WARNING
Automatic Transaxle
Controls
Indicates that you must depress the
brake pedal and pull the shift lever
toward you to shift (The ignition
switch must be in the ON position).
Indicates the shift lever can be shifted
freely into any position.
Indicates that you must pull the shift
lever toward you to shift.
Overdrive button
For gear selection
with either a four-
speed or five-speed
transaxle
J16L_EA.book Page 8 Friday, February 22, 2002 11:34 AM

5-16
Driving Your Mazda
Starting and Driving
Form No. 8Q44-EA-01K

To Cancel
To turn off the system, use one
of these
methods:
•Press the CRUISE MAIN switch.
•Slightly depress the brake pedal.
•Pull the lever toward you.
The system is off when the ignition is off.The Traction Control System (TCS)
enhances traction and safety by regulating
engine torque. When the TCS detects
driving wheel slippage, it lowers engine
torque to prevent loss of traction.
This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels
without causing them to spin and lose
traction.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed
or below 40 km/h (25 mph).
Traction Control System
(TCS)
TCS and Unsafe Driving:
The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don’t rely on the traction
control system as a substitute for safe
driving.
TCS and Snow and Ice:
Driving without proper traction
devices on snow and ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident. Use snow
tires or tire chains and drive at
reduced speeds when roads are
covered with ice and snow.
WARNING
J16L_EA.book Page 16 Friday, February 22, 2002 11:34 AM

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q44-EA-01K
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and in to compute fuel
consumption.

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when
the vehicle is driven over 999.9 km
(mile).
Don’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Red zone
CAUTION
Driving with an overheated engine can
cause serious engine damage
(page 7-15).
CAUTION
J16L_EA.book Page 21 Friday, February 22, 2002 11:34 AM

5-25
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q44-EA-01K

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-13).
2. After adding fluid, check the light
again.If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-27).
J16L_EA.book Page 25 Friday, February 22, 2002 11:34 AM
