2-41
Essential Safety Equipment
Child Restraint
Form No. 8Q44-EA-01K

Third-Row Outboard Seats
Child-Restraint System
Installation
Follow these instructions when using a
child-restraint system.
1. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.2. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
3. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in the
automatic locking mode. If the belt
does not lock the seat down tight,
repeat this step.
Child-Restraint Tether Usage:
Using the tether to secure anything
but a child-restraint system is
dangerous. This could weaken or
damage the tether or tether anchor
and result in injury. Use the tether
and tether anchor only for a child-
restraint system.
NOTE
Follow the child-restraint system
manufacturer’s instructions carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
WARNING
J16L_EA.book Page 41 Friday, February 22, 2002 11:34 AM

2-43
Essential Safety Equipment
Child Restraint
Form No. 8Q44-EA-01K

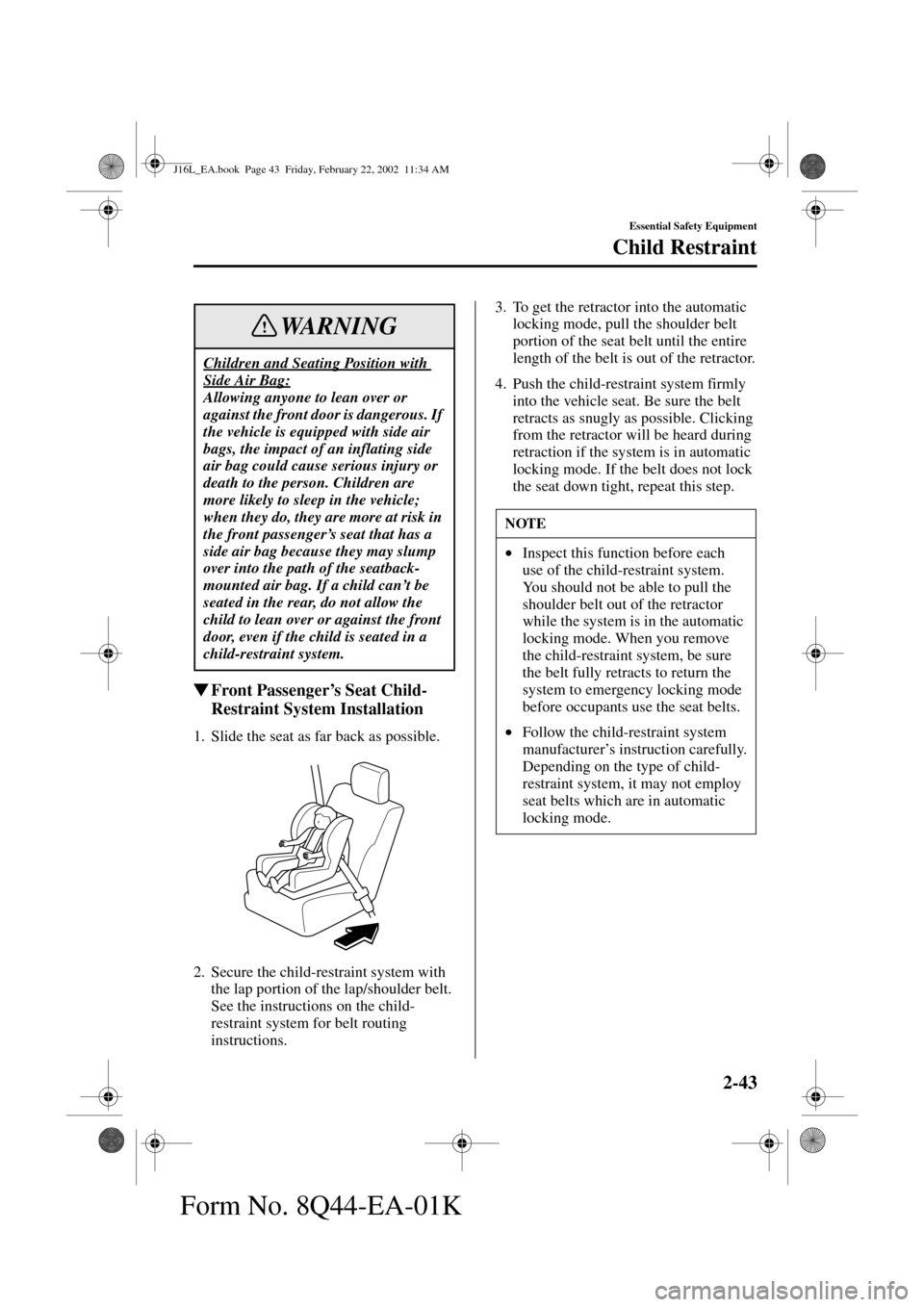

Front Passenger’s Seat Child-
Restraint System Installation
1. Slide the seat as far back as possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.3. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
4. Push the child-restraint system firmly
into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
Children and Seating Position with
Side Air Bag:
Allowing anyone to lean over or
against the front door is dangerous. If
the vehicle is equipped with side air
bags, the impact of an inflating side
air bag could cause serious injury or
death to the person. Children are
more likely to sleep in the vehicle;
when they do, they are more at risk in
the front passenger’s seat that has a
side air bag because they may slump
over into the path of the seatback-
mounted air bag. If a child can’t be
seated in the rear, do not allow the
child to lean over or against the front
door, even if the child is seated in a
child-restraint system.
WARNING
NOTE
•Inspect this function before each
use of the child-restraint system.
You should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove
the child-restraint system, be sure
the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
•Follow the child-restraint system
manufacturer’s instruction carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
J16L_EA.book Page 43 Friday, February 22, 2002 11:34 AM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8Q44-EA-01K
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•Have the proper ratio of antifreeze in
the radiator.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use only cold-weather engine oil
(page 8-9).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-16).
•Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P and block the
rear wheels.

Snow Tires
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Use snow tires on all four wheels
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 28 kPa (0.3 kgf/cm2, 4
psi) more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J16L_EA.book Page 9 Friday, February 22, 2002 11:34 AM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8Q44-EA-01K

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air cleaner elements cannot be cleaned using the air-blow method.)
R
: Replace L
: Lubricate
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability.
*
2If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000
km(60,000 miles) or shorter.
a) Repeated short-distance driving
b) Extended periods of idling or low-speed operation
c) Driving for long periods in cold temperatures or extremely humid climates
d) Towing a trailer Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve*
1I
Hoses and tubes for emission (Puerto Rico)I
Spark plugs (Platinum
tipped type)USAReplace every 96,000 km (60,000 miles)
Others*
2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoI R I R
OthersIR I
Fuel lines and hoses*
1I I
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake fluidRR
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM

8-23
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

Tire Inflation Pressure
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures
for the best ride, top handling, and
minimum tire wear.
Refer to the specification charts
(page 10-6).
Tires
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except when using the temporary
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all
four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-6)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
WARNING
Incorrect Tire Inflation:
Overinflation or underinflation of
tires is dangerous. Adverse handling
or unexpected tire failure could result
in a serious accident. Always inflate
the tires to the correct pressure (page
10-6).
WARNING
J16L_EA.book Page 23 Friday, February 22, 2002 11:34 AM

8-25
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K

Replacing a Tire
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
You may need to replace it before the
band is across the entire tread.

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it’s properly
inflated and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (60 psi).
Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.
WARNING
New tread Worn treadTread wear indicator
•Don’t use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
•The temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
•When the tread wear solid-band
indicator appears, replace the tire
with the same type of temporary
spare.
CAUTION
J16L_EA.book Page 25 Friday, February 22, 2002 11:34 AM

11-5
Index
Form No. 8Q44-EA-01K
P
Paint Damage ................................... 8-38
Parking Brake
..................................... 5-5
Parking in an Emergency
................... 7-2
Power Door Locks
........................... 3-10
Power Sliding Doors
........................ 3-12
Power Steering
................................. 5-12
Fluid
.......................................... 8-14
Power Windows
............................... 3-19
Push-Starting
.................................... 7-19
R
Rear Console .................................... 6-50
Rear Door Child Safety Locks
......... 3-11
Rear Quarter Windows
.................... 3-22
Rear Window Defroster
................... 5-36
Rear Window Washer
...................... 5-36
Rear Window Wiper
........................ 5-36
Rearview Mirror
............................... 3-32
Recreational Towing
........................ 7-21
Registering Your Vehicle in A
Foreign Country
............................... 9-10
Rocking the Vehicle
........................... 4-8
S
Safety Defects, Reporting ................ 9-15
Seat Belt System
2-point type
............................... 2-31
3-point type
............................... 2-27
Automatic locking
.................... 2-26
Emergency locking
................... 2-26
Extender
.................................... 2-33
Pregnant women
....................... 2-26
Pretensioner and load limiting
.. 2-29
Seat belt precautions
................. 2-25
Warning beep
............................ 2-34
Warning light
............................ 2-34
S
Seats
Flat folding
................................2-24
Front seat
.....................................2-3
Second-row seats
.........................2-9
Third-Row Seat
.........................2-16
Second-row seats
................................2-9
Security System
Immobilizer system
...................3-27
Theft-deterrent system
..............3-29
Service Publications
.........................9-16
Shopping Bag Hooks
........................6-51
Spare Tire and Tool Storage
...............7-3
Specifications
...................................10-4
Speedometer
.....................................5-20
SRS Air Bags
Air bag system description
........2-51
Supplemental restraint systems
precautions
................................2-47
Warning light
............................2-56
Starting the Engine
.............................5-3
Steering Wheel
.................................3-31
Horn
..........................................5-37
Storage Box
......................................6-49
Storage Compartments
.....................6-48
Sunroof
.............................................3-25
Sunshade
...........................................3-26
Sunvisors
..........................................6-41
T
Tachometer .......................................5-21
Temporary Spare Tire
......................8-25
Theft-Deterrent System
....................3-29
Third-row seat
..................................2-16
Tiedown
............................................7-21
Hook
..........................................7-21
Tires
Flat tire
........................................7-3
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM
