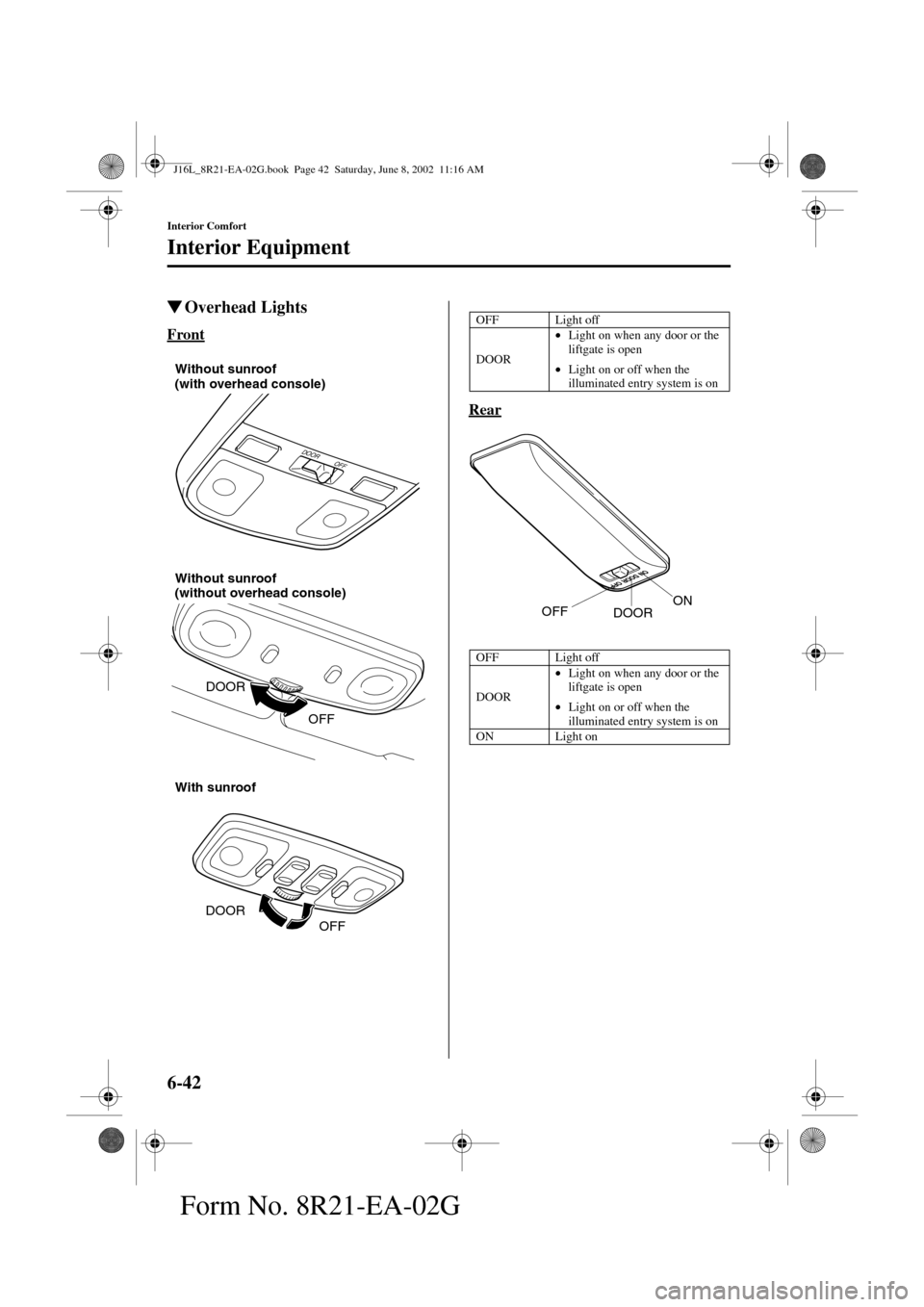

6-42
Interior Comfort
Interior Equipment
Form No. 8R21-EA-02G

Overhead Lights
Front
Rear
DOOR
OFF
Without sunroof
(with overhead console)
DOOR
OFF
Without sunroof
(without overhead console)
DOOR
OFF
With sunroof
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
ON Light on
OFF
DOORON
J16L_8R21-EA-02G.book Page 42 Saturday, June 8, 2002 11:16 AM

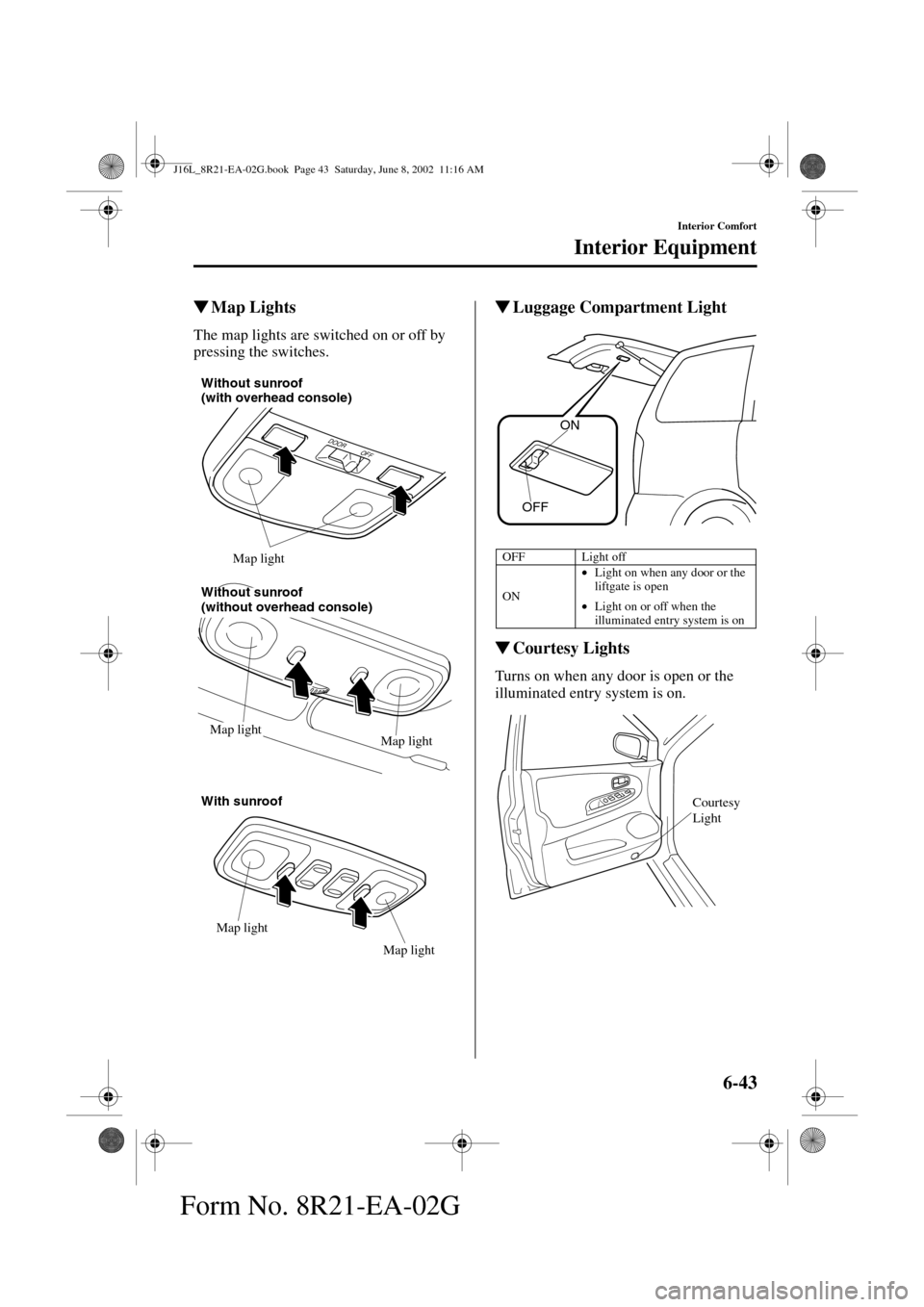

6-43
Interior Comfort
Interior Equipment
Form No. 8R21-EA-02G

Map Lights
The map lights are switched on or off by
pressing the switches.

Luggage Compartment Light

Courtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
DOOR
OFF
Map light
Without sunroof
(with overhead console)
Map light
Map light
Without sunroof
(without overhead console)
Map light
Map light
With sunroof
OFF Light off
ON•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
OFFON
Courtesy
Light
J16L_8R21-EA-02G.book Page 43 Saturday, June 8, 2002 11:16 AM

7-2
In Case of an Emergency
Form No. 8R21-EA-02G
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher switch
J16L_8R21-EA-02G.book Page 2 Saturday, June 8, 2002 11:16 AM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 2
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace L :
Lubricate C :
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your emissions
warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometrage
(mileage) period to ensure long-term reliability.
*
2If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km(60,000 miles) or
shorter.
a)Repeated short-distance driving
b)Extended periods of idling or low-speed operation
c)Driving for long periods in cold temperatures or extremely humid climates
d)Towing a trailerMaintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve
*1I
Hoses and tubes for emission(Puerto Rico)I
Spark plugs (Platinum
tipped type)USAReplace every 96,000 km (60,000 miles)
Others
*2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoCRCR
OthersCR C
Fuel lines and hoses
*1I I
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake fluidRR
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM

8-27
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Light Bulbs
Rear turn signal lights
Reverse lights
TaillightsLicense plate lights
Luggage compartment lightOverhead light
Brake lights/Taillights Headlights
Front turn signal lights/Side-marker lights
High-mount brake lightsCourtesy lights Overhead lights/Map lights
Fog lights
Parking lights
J16L_8R21-EA-02G.book Page 27 Saturday, June 8, 2002 11:16 AM

8-28
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Your Mazda's headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
1. Make sure the headlight switch is off.
2. Lift the hood and find the bulb in the
rear of the headlight body.
3. Detach the electrical connector from
the bulb by squeezing the tabs and
pulling it to the rear.
4. Pull off the sealing cover.
5. Unhook the bulb retaining spring.
6. Swing the retaining spring out and
away to free the headlight bulb.
7. Carefully remove the headlight bulb
from the socket by pulling it straight
back.
8. Replace the bulb.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surfaceSealing cover
J16L_8R21-EA-02G.book Page 28 Saturday, June 8, 2002 11:16 AM

8-30
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Front)
To replace the parking light bulbs, contact an Authorized Mazda Dealer.
Fog lights
Front turn signal lights/
Side-marker lights
J16L_8R21-EA-02G.book Page 30 Saturday, June 8, 2002 11:16 AM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Interior)
O
NO
F
F
Overhead light/Map lights
(Without sunroof, with overhead console)
Overhead light/Map lights
(Without either sunroof or overhead console)Overhead light
Courtesy lights
Luggage compartment light Overhead light/Map lights
(With sunroof)
J16L_8R21-EA-02G.book Page 31 Saturday, June 8, 2002 11:16 AM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Rear)
Brake lights/Taillights
Rear turn signal lights
Reverse lights
TaillightsHigh-mount brake lights
License plate lights
An unsecured high-mount brake lights
will allow water to leak into the vehicle.
Make sure the high-mount brake light is
tightly fastened to the vehicle and if
water still leaks, consult an Authorized
Mazda Dealer.
J16L_8R21-EA-02G.book Page 32 Saturday, June 8, 2002 11:16 AM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn’t work, first
inspect fuses on the driver’s side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it’s blown.
5. Push in a new fuse of the same rating,
and make sure it fits tightly. If it
doesn’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO circuit.
Fuses
Fuse panel cover
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Fuse puller
Normal Blown
CAUTION
