height adjustment MAZDA MODEL MPV 2003 Owners Manual (in English)

2-3
Essential Safety Equipment
Seats
Form No. 8R21-EA-02G
(Manually operated seats)
(Electrically operated seats)
The seat-bottom tilt, seat height, seat
slide, and seat recline can be electrically
adjusted. Move them to the desired
positions by using the switch on the seat’s
lower side.

Seat Slide
(Manually operated seats)
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
Front Seats
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
•The seat-bottom power adjust is
operated by a motor. Avoid
extended operation because
excessive use can damage the
motor.
•To prevent the battery from running
down, avoid using the power adjust
when the engine is stopped. The
adjuster uses a great amount of
electric power.
•Don’t use the switch to make more
than one adjustment at a time.
WARNING
CAUTION
Driver’s Seat Adjustment:
Adjusting the driver’s seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver’s seat only when the vehicle is
stopped.
WARNING
Lever
J16L_8R21-EA-02G.book Page 3 Saturday, June 8, 2002 11:16 AM

2-6
Essential Safety Equipment
Seats
Form No. 8R21-EA-02G

Seat Tilt (Driver’s Seat)
(Manually operated seats)

The seat-bottom angle can be adjusted by
rotating the dial.(Electrically operated seats)

Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Up
Down
Dial
Front of seat bottom
Up
Down
DialRear of seat bottom
J16L_8R21-EA-02G.book Page 6 Saturday, June 8, 2002 11:16 AM

2-7
Essential Safety Equipment
Seats
Form No. 8R21-EA-02G
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.
Lower the seat-bottom by pressing down
on the center of the switch. Release the
switch at the desired position.

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
Stop-catch release
J16L_8R21-EA-02G.book Page 7 Saturday, June 8, 2002 11:16 AM

2-12
Essential Safety Equipment
Seats
Form No. 8R21-EA-02G
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.
Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

Armrest
The armrest can be used or placed
upright.
Stop-catch release
Stop-catch release
Type AArmrest
ArmrestType B
J16L_8R21-EA-02G.book Page 12 Saturday, June 8, 2002 11:16 AM

2-18
Essential Safety Equipment
Seats
Form No. 8R21-EA-02G

Head Restraint
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger’s
ears, never the passenger’s neck.Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

Folding the Third-Row Seat
1. Remove the head restraints from the
third-row seat (page 2-18).
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Always drive with the head restraints
inserted when seats are being used
and make sure they are properly
adjusted.
WARNING
Stop-catch release
Riding on Folded Flat Third-Row
Seat:
Riding on the third-row seat when it’s
folded is dangerous. During sudden
braking or a collision, passenger’s
could be thrown around inside the
vehicle and seriously injured. Always
ride with the third-row seat in the
forward-facing, upright position and
seat belt securely fastened.
Stop-catch release
WARNING
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

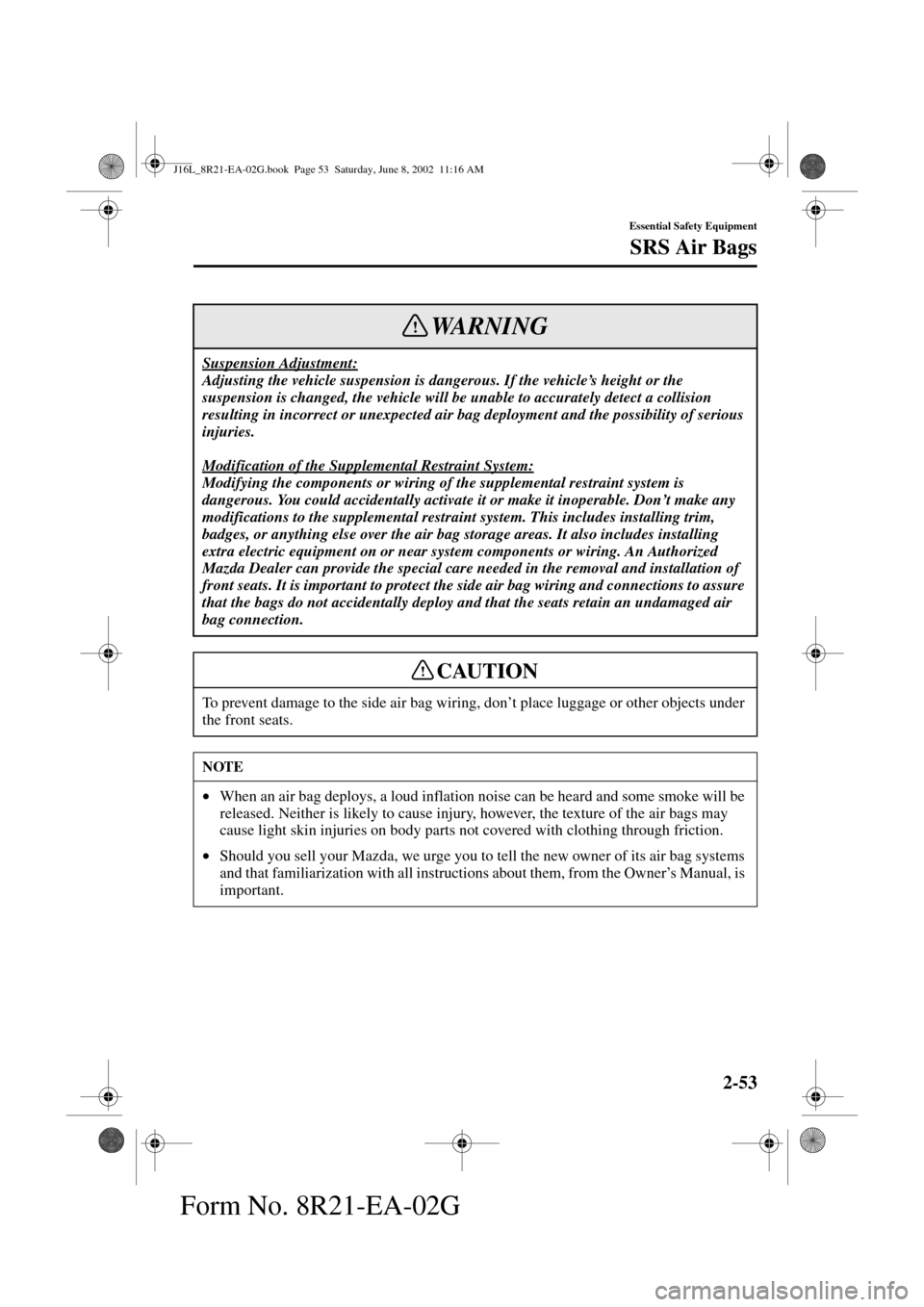

2-53
Essential Safety Equipment
SRS Air Bags
Form No. 8R21-EA-02G
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle’s height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don’t make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag storage areas. It also includes installing
extra electric equipment on or near system components or wiring. An Authorized
Mazda Dealer can provide the special care needed in the removal and installation of
front seats. It is important to protect the side air bag wiring and connections to assure
that the bags do not accidentally deploy and that the seats retain an undamaged air
bag connection.
To prevent damage to the side air bag wiring, don’t place luggage or other objects under
the front seats.
NOTE
•When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may
cause light skin injuries on body parts not covered with clothing through friction.
•Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner’s Manual, is
important.
WARNING
CAUTION
J16L_8R21-EA-02G.book Page 53 Saturday, June 8, 2002 11:16 AM

4-15
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G

Tires
When towing a trailer, make sure all tires are inflated to the recommended cold-tire
pressure, as indicated on the tire pressure chart on the driver’s door. Trailer tire size, load
rating, and inflation pressures should conform to tire manufacturer specifications.
Unsecured Hitch:
An unsecured trailer hitch is dangerous as it causes greater trailer sway from
crosswinds, rough roads or other causes, resulting in loss of control and a serious
accident.
Examine all trailer-hitch mounting bolts regularly and tighten any that are loose. If
the hitch is removed, seal any open mounting holes to prevent exhaust, dust, water,
dirt and other foreign elements from filtering in, possibly endangering personal safety
and damaging your vehicle.
Don’t install a hitch that stiffens the bumper as it will reduce the bumper’s
performance. Always make sure the hitch is securely attached before departure.
Exhaust System Modifications:
Modifying your vehicle exhaust system is dangerous. Exhaust gas entering the vehicle
could kill you.
When mounting the trailer hitch, make no modifications to the vehicle exhaust
system. Make sure there are no exhaust gas leaks into the passenger compartment if
any mounting bolts are connected to the body.
•Make all hitch adjustments with actual loads. Don’t load and unload vehicle while
adjusting hitch. This action will change the vehicle height.
•Don’t use an axle-mounted hitch. This may damage the axle and related parts.
Using a Temporary Spare Tire when Towing:
Using a temporary spare tire on your vehicle when towing a trailer is dangerous as it
could result in tire failure, loss of control, and injury to vehicle occupants. Never use
a temporary spare when towing.
WARNING
CAUTION
WARNING
J16L_8R21-EA-02G.book Page 15 Saturday, June 8, 2002 11:16 AM
