3-6
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

Transmitter MaintenanceReplacing the transmitter battery
1. Insert a small screwdriver into the slot
and gently pry open the transmitter.
2. Remove the battery. •Make sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
•When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could damage it.
•Danger of explosion if battery is
incorrectly replaced.
•Replace only with the same type
battery (CR2025 or the equivalent).
•Dispose of used batteries according
to the following instructions.
Insulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
Never disassemble.
Never throw the battery into fire
and/or water.
Never deform or crush.
CAUTION
Back cover Slot
J16L_8R21-EA-02G.book Page 6 Saturday, June 8, 2002 11:16 AM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8R21-EA-02G
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•Have the proper ratio of antifreeze in
the radiator.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use only cold-weather engine oil
(page 8-9).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-16).
•Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P and block the
rear wheels.

Snow Tires
Use snow tires on all four wheels
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 30 kPa (0.3 kgf/cm
2, 4.3
psi) more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J16L_8R21-EA-02G.book Page 9 Saturday, June 8, 2002 11:16 AM

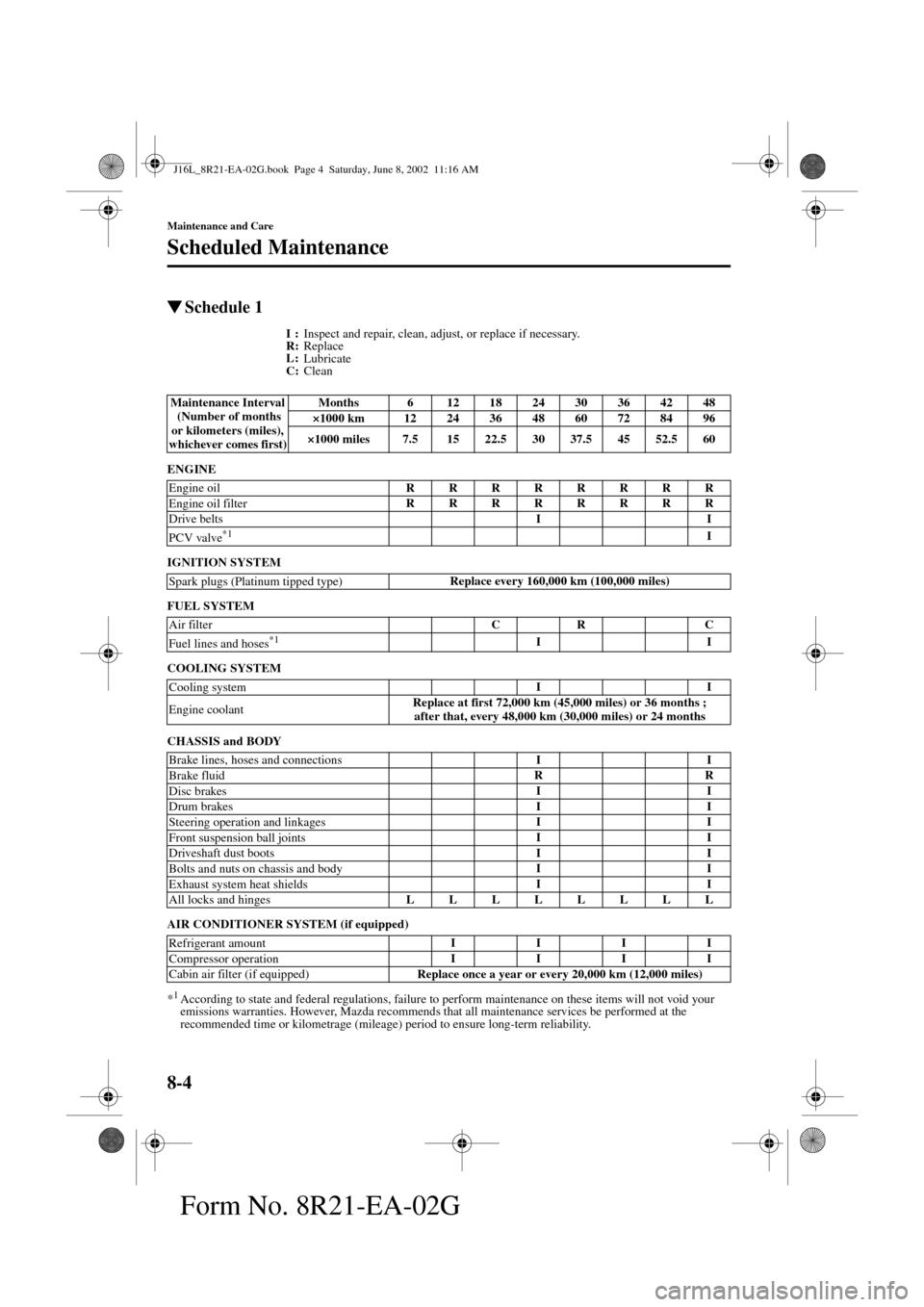

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
C:
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability. Maintenance Interval
(Number of months
or kilometers (miles),
whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterCR C
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Brake lines, hoses and connectionsII
Brake fluidRR
Disc brakesII
Drum brakesII
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8R21-EA-02G

Schedule 2
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace L :
Lubricate C :
Clean
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your emissions
warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometrage
(mileage) period to ensure long-term reliability.
*
2If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km(60,000 miles) or
shorter.
a)Repeated short-distance driving
b)Extended periods of idling or low-speed operation
c)Driving for long periods in cold temperatures or extremely humid climates
d)Towing a trailerMaintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve
*1I
Hoses and tubes for emission(Puerto Rico)I
Spark plugs (Platinum
tipped type)USAReplace every 96,000 km (60,000 miles)
Others
*2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoCRCR
OthersCR C
Fuel lines and hoses
*1I I
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake fluidRR
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM

10-4
Form No. 8R21-EA-02G
Specifications

Engine

Electrical System

Lubricant Quality
* Refer to the recommended SAE viscosity numbers on page 8-9.
Specifications
Item Classification
Type DOHC-24V 60°
V, 6-cylinder
Bore × Stroke 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 10.0
Item Classification
Battery12V-48AH/5HR MF
12V-55AH/5HR MF
Alternator 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number AGSF 32WM
Spark-plug gap 1.32—1.42 mm (0.051—0.057 in)
LubricantClassification
API Service ILSAC
Engine oil* SL GF-III
Lubricant Classification
Automatic transaxle fluid ATF M-III or equivalent (e.g. Dexron® III)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
