roof MAZDA MODEL MPV 2003 Owners Manual (in English)

1-4
Your Vehicle at a Glance
Form No. 8R21-EA-02G
Exterior Overview
Windshield wiper blades
Power windows
Hood
Front fog lights
Front turn signal lights/Side-marker light
Headlights
Fuel-filler lid
Doors and keys
Rear windshield
wiper blades
Liftgate
License plate
lights
Reverse lights
Rear turn signal lights
Tires
Rear window defrosterChild safety lock
Outside mirrors Brake lights/Taillights
Parking lights
Sunroof
High-mount brake light
Power sliding doors
(page 8-32)
(page 8-32)
(page 5-36)
(page 3-11)
(page 8-20)
(page 3-18)
(page 8-32)
(page 8-32)
(page 8-32)
(page 8-18)
(page 3-24)
(page 8-30)
(page 8-30)(page 3-31)
(page 8-23)
(page 3-25)
(page 3-22) (page 3-19)
(page 3-12)
(page 3-2)
(page 8-30)
(page 8-28)
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

3-1
Form No. 8R21-EA-02G
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks
.......................................................................... 3- 2
Keys ......................................................................................... 3- 2
Keyless Entry System .............................................................. 3- 3
Door Locks .............................................................................. 3- 8
Liftgate .................................................................................... 3-18
Power Windows ....................................................................... 3-19
Rear Quarter Windows ............................................................ 3-22
Fuel-Filler Lid and Cap ........................................................... 3-22
Hood ........................................................................................ 3-24
Sunroof .................................................................................... 3-25
Security System
........................................................................... 3-27
Immobilizer System ................................................................ 3-27
Theft-Deterrent System ........................................................... 3-29
Steering Wheel and Mirrors
...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors ..................................................................................... 3-31
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

3-25
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G
The sunroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.
To tilt, push the rear of the tilt switch.
To close, push the front of the tilt switch.
Sunroof
Extending the Head or Arms
Through the Sunroof:
Extending the head, arms, or other
parts of the body through the sunroof
is dangerous. The head or arms could
hit something while the vehicle is
moving. This could cause death or
serious injury. Don’t let passengers
stand up or extend anything through
the open sunroof while the vehicle is
moving.
Closing the Sunroof:
A closing sunroof is dangerous. The
hands, head, or even neck of a person
—especially a child—could be caught
in it as it closes, causing serious
injury or even death. Make sure the
opening is clear before closing the
sunroof.
Slide switch
Tilt switch
WARNING
NOTE
After washing your Mazda or after a
rain, wipe the water off the sunroof
before operating it.
Tilt up
Close
J16L_8R21-EA-02G.book Page 25 Saturday, June 8, 2002 11:16 AM

3-26
Knowing Your Mazda
Doors and Locks
Form No. 8R21-EA-02G

Slide Operation
To open to any position, press the rear of
the slide switch.
To close, press the front of the slide
switch.

Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the sunroof is opened, but must be closed
by hand.
NOTE
For safety reasons, the sunroof stops
moving approximately 20 cm (8 in)
prior to completely closing. After you
are sure it is unobstructed, resume
closing the sunroof by pressing the
switch again.
Open
Close
The sunshade doesn’t tilt. To avoid
damaging the sunshade, don’t push up
on it.
Sunshade
CAUTION
J16L_8R21-EA-02G.book Page 26 Saturday, June 8, 2002 11:16 AM

6-11
Interior Comfort
Climate Control System
Form No. 8R21-EA-02G

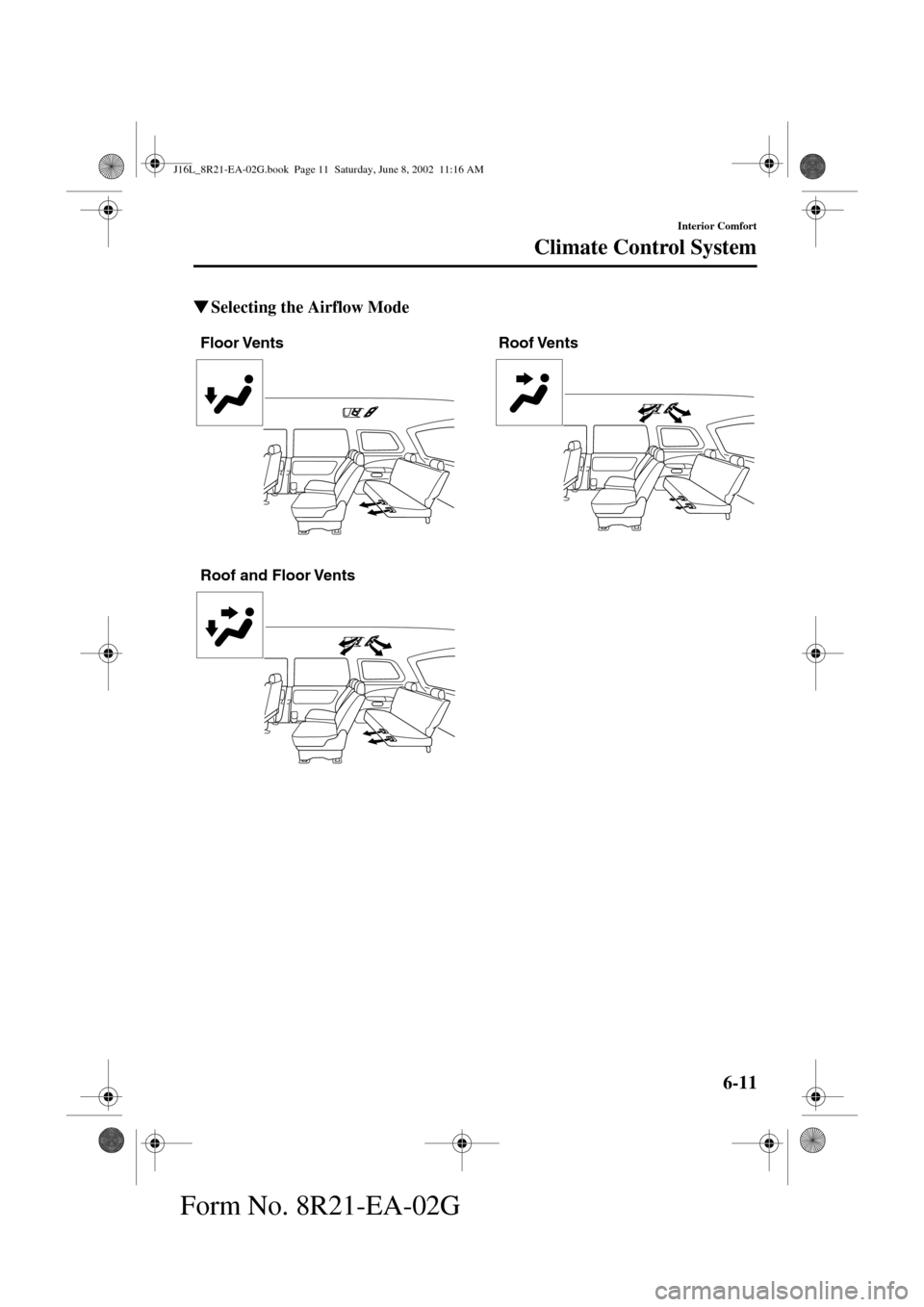

Selecting the Airflow Mode
Roof and Floor Vents Floor Vents Roof Vents
J16L_8R21-EA-02G.book Page 11 Saturday, June 8, 2002 11:16 AM

6-12
Interior Comfort
Climate Control System
Form No. 8R21-EA-02G

Control Switches
Rear air-conditioner main switch
The air conditioner has front and rear
controls. The front air-conditioner
controls override the rear controls.
The rear air-conditioner main switch is
under the front air-conditioner control
panel.This switch allows variable fan speeds for
the rear air-conditioner.
0
—Fan off
REAR
—Select the desired fan speed
with rear air-conditioner
control panel.
1
—Low speed
2
—Medium speed
3
—High speed
Control Panel (Rear)
021
3
021
3
Fan control dial
Fan control dial Temperature control dial Mode selector dial
Type A
NOTE:
(Rear heater type)
(Rear cooler type)
Type BSupplies only hot air
out of floor outlets.
NOTE:
Supplies cold or hot
air out of roof vents
and/or floor outlets. Supplies only cold air
out of roof vents.
0123REAR
J16L_8R21-EA-02G.book Page 12 Saturday, June 8, 2002 11:16 AM

6-42
Interior Comfort
Interior Equipment
Form No. 8R21-EA-02G

Overhead Lights
Front
Rear
DOOR
OFF
Without sunroof
(with overhead console)
DOOR
OFF
Without sunroof
(without overhead console)
DOOR
OFF
With sunroof
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
ON Light on
OFF
DOORON
J16L_8R21-EA-02G.book Page 42 Saturday, June 8, 2002 11:16 AM

6-43
Interior Comfort
Interior Equipment
Form No. 8R21-EA-02G

Map Lights
The map lights are switched on or off by
pressing the switches.

Luggage Compartment Light

Courtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
DOOR
OFF
Map light
Without sunroof
(with overhead console)
Map light
Map light
Without sunroof
(without overhead console)
Map light
Map light
With sunroof
OFF Light off
ON•
Light on when any door or the
liftgate is open
•
Light on or off when the
illuminated entry system is on
OFFON
Courtesy
Light
J16L_8R21-EA-02G.book Page 43 Saturday, June 8, 2002 11:16 AM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Interior)
O
NO
F
F
Overhead light/Map lights
(Without sunroof, with overhead console)
Overhead light/Map lights
(Without either sunroof or overhead console)Overhead light
Courtesy lights
Luggage compartment light Overhead light/Map lights
(With sunroof)
J16L_8R21-EA-02G.book Page 31 Saturday, June 8, 2002 11:16 AM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 DEFOG 40ARear window
defroster
2 BTN 60ASTOP, HAZARD,
ROOM, D.LOCK
and DRL fuses
3 ABS 60AAntilock brake
system,
For protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEATER 30ARear heater,
For protection of
various circuits
8 IG KEY2 40AA/C, P.WIND,
SUN ROOF and
R.WIP fuses
9 A/C 10AAir conditioner,
For protection of
various circuitsDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
10 TAIL 15A Taillights
11
A/C PWR15A Inverter
12
HORN15A Horn
13
FOG 15AFor protection of
various circuits
14
EEC 5AFor protection of
various circuits
15
HEAD L 15AHeadlight-left
16
HEAD R 15AHeadlight-right
17
HID L 20A—
18
HID R 20A—
19 IG KEY1 60AMETER,
ENGINE and
WIPER fuses
20 EGI INJ 30AFor protection of
various circuits
21 FUEL PUMP 20A Fuel pump
22 MAIN 120AFor protection of
all circuits
