weight MAZDA MODEL MPV 2003 Owners Manual (in English)

4-7
Before Driving Your Mazda
Form No. 8R21-EA-02G
Driving Tips
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
•Don’t race the engine.
•Don’t maintain one constant speed for
long.
•Don’t drive constantly at full-throttle or
high engine rpm for extended periods
of time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.
•Don’t tow a trailer.How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Don’t carry unnecessary weight.
•Don’t rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Turning off the engine to coast down
a hill is dangerous. This causes the
loss of power steering and power
brake control. Any loss of steering or
braking control could cause an
accident. Never turn off the engine
and coast down a hill.
WARNING
J16L_8R21-EA-02G.book Page 7 Saturday, June 8, 2002 11:16 AM

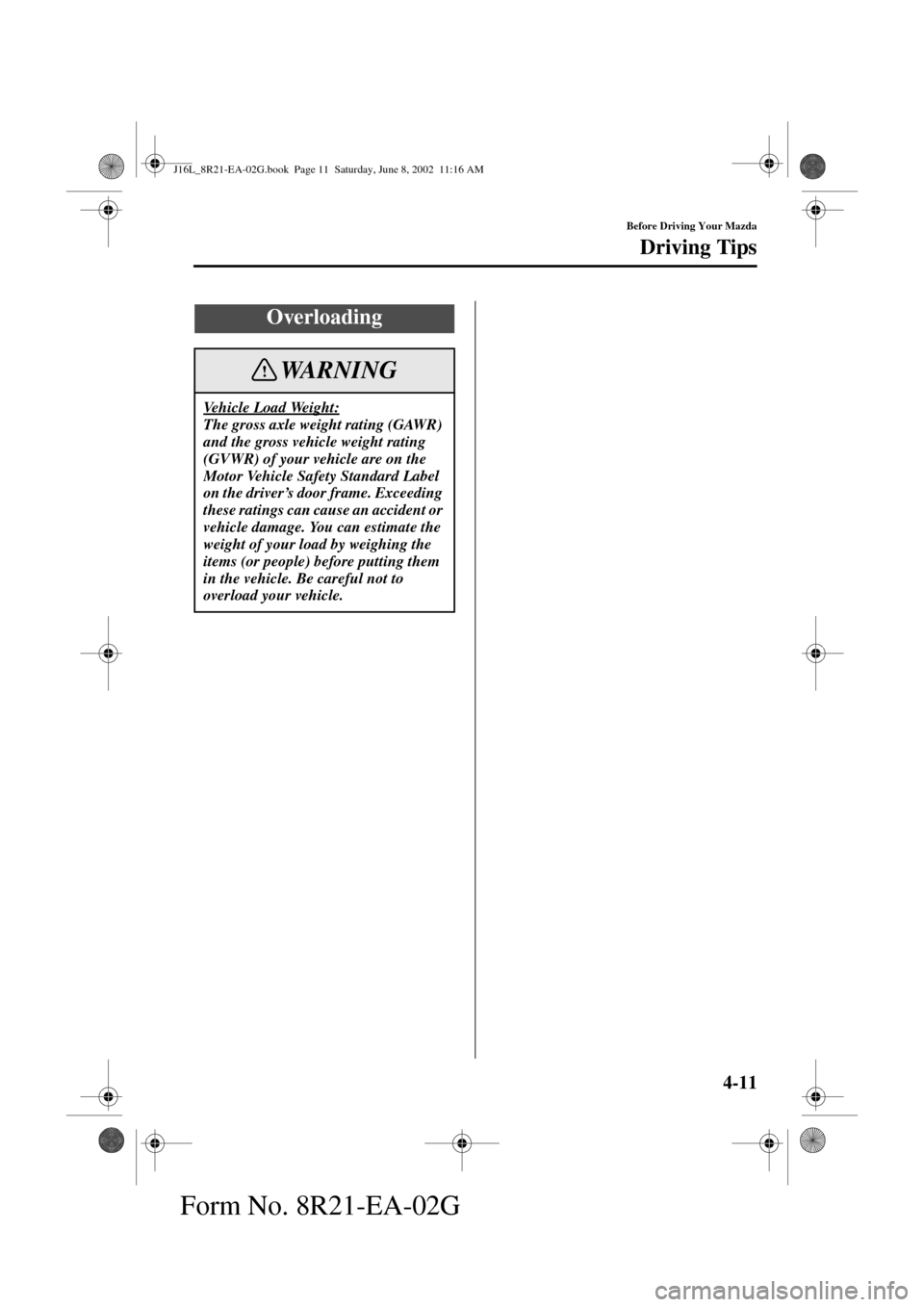

4-11
Before Driving Your Mazda
Driving Tips
Form No. 8R21-EA-02G
Overloading
Vehicle Load Weight:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver’s door frame. Exceeding
these ratings can cause an accident or
vehicle damage. You can estimate the
weight of your load by weighing the
items (or people) before putting them
in the vehicle. Be careful not to
overload your vehicle.
WARNING
J16L_8R21-EA-02G.book Page 11 Saturday, June 8, 2002 11:16 AM

4-12
Before Driving Your Mazda
Form No. 8R21-EA-02G
To w i n g
Your Mazda was designed and built primarily to carry passengers and cargo.
If you must tow a trailer, follow these instructions because driver and passenger safety
depends on proper equipment and safe driving habits. Towing a trailer will affect handling,
braking, durability, performance, and economy.
Never overload vehicle or trailer. Consult an Authorized Mazda Dealer if you need further
details.

Weight Limits
TTW and GCWR
The total trailer weight (TTW), gross combined weight rating (GCWR), gross axle
weight rating (GAWR), trailer load, and trailer tongue load must be within the
prescribed limits.
•The total trailer weight (TTW) is the sum of the weights of the trailer load (trailer
weight plus cargo), trailer hitch, vehicle passengers, and vehicle load. Never allow
the total trailer weight (TTW) to exceed specifications in the Trailer Towing-Load
Ta b l e .
•The maximum GCWR is the combined weight of the trailer and load plus the
towing vehicle (including trailer hitch, vehicle passengers, and load). It must not
exceed specifications in the load table.
GAWR and GVWR
Don’t exceed front and rear GAWR (gross axle weight rating) and GVWR (gross vehicle
weight rating). If you do, vehicle handling, braking, and performance will be affected.
These values are also on the Motor Vehicle Safety Certification Label posted on the
driver’s door.
High-altitude operation
In a high-altitude operating environment, a gasoline engine loses power at a rate of 3% to
4% per 304 m (1,000 ft) of elevation. In these conditions, a reduction in gross vehicle
weight and gross combined weight is recommended.
Trailer Towing
Don’t tow a trailer during the first 1,000 km (600 miles) of your new Mazda. If you do,
you may damage the engine, transaxle, differential, wheel bearings, and other power
train components.
CAUTION
J16L_8R21-EA-02G.book Page 12 Saturday, June 8, 2002 11:16 AM

4-13
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G
TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
kg (lb)
The optional 4-Seasons Package: Including among others, automatic transaxle oil cooler
and large radiator. Vehicles with the 4-Seasons Package can tow a heavier trailer and carry
more cargo weight than standard-equipped vehicles.
GCWR: Gross Combined Weight Rating (sum of TTW, vehicle weights and 2 passengers)
GAWR: Gross Axle Weight Rating
GVWR: Gross Vehicle Weight Rating
Model
With 4-Seasons
PackageWithout 4-Seasons
Package
Item
MAX. FRONTAL
AREA2.97m
2(32 ft2)
MAX. TTWAdd trailer’s weight, load and hitch;
vehicle passengers and vehicle load
*
*
i.e. baggage, food, camp gear
1,361 (3,000) 907 (2,000)
MAX. GCWR
3,324 (7,328) 2,871 (6,329)
MAX. GAWRFront
1,180 (2,601)
Rear
1,214 (2,676)
MAX. GVWR
2,372 (5,229)
TRAILER-
TONGUE LOADTongue load/
Trailer load × 100 = 10% to 15%
DISTRIBUTION
OF TRAILER
LOADFront
60%
Rear
40%
Tongue loadTrailer load
J16L_8R21-EA-02G.book Page 13 Saturday, June 8, 2002 11:16 AM

4-14
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G

Trailer Hitch
Use only a hitch ball recommended by the trailer manufacturer that conforms to the gross
trailer weight requirement.
When not towing a trailer, remove the trailer hitch (if detachable) to reduce the possibility
of damage as a result of the vehicle being rear-ended.
When the trailer load is more than 907 kg (2,000 lb), use a frame-mounted weight-
distributing hitch.
Tow Loads:
Attempting to tow loads greater than those specified is dangerous as it may cause
serious handling and performance problems that could result in personal injury or
vehicle damage, or both. Always keep tow loads within specified limits in the Trailer
To w i n g - L o a d Ta b l e .
Trailer Loading:
Loading the trailer with more weight in the rear than in the front is dangerous. Doing
so could cause you to lose control. The trailer tongue load must be 10%-15% of the
total trailer load (sum of the weights of the trailer and cargo). Try to load the trailer
with the weight about 60% toward the front and 40% toward the rear.
Determining Total Trailer Weight and Tongue Load:
Attempting to tow loads without determining the total trailer weight and tongue load is
dangerous. Trailer sway from crosswinds, rough roads or other causes could result in
loss of control and a serious accident. Always have the total trailer weight and tongue
load determined prior to departure.
The total trailer weight and tongue load can be determined by weighing the trailer on
platform scales at a highway weight station or a trucking company.
WARNING
CAUTION
J16L_8R21-EA-02G.book Page 14 Saturday, June 8, 2002 11:16 AM

4-16
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G

Safety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.

Trailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.

Trailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
Towing Without Safety Chain:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision. Make sure the safety
chain is securely attached to both the trailer and the vehicle prior to departure.
Don’t connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle’s electrical system and lighting systems. Have a
recreational vehicle dealer or trailer rental agency connect the system, and inspect the
brake lights and turn signals each time before driving.
Hydraulic Trailer-Brake System:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury. Don’t connect a
hydraulic trailer-brake system to your vehicle’s brake system.
WARNING
CAUTION
WARNING
J16L_8R21-EA-02G.book Page 16 Saturday, June 8, 2002 11:16 AM

4-17
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G

Trailer Towing Tips
•Verify that your Mazda maintains a near-normal attitude when a loaded or unloaded
trailer is connected. Don’t drive if it has an abnormal front-up or front-down position.
Inspect for incorrect tongue load, worn suspension parts, and trailer overloading.
•Make sure the trailer is properly loaded and the cargo is secure to prevent it from
shifting.
•Make sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
Before driving
•Have your cooling and braking system checked by an Authorized Mazda Dealer.
•Before starting out, inspect the operation of all vehicle and trailer lights and all vehicle-
to-trailer connections. Stop and re-inspect all lights and connections after driving a short
distance.
Driving
•Your Mazda will handle differently with a trailer in tow, so practice turning, backing,
and stopping in a traffic-free area.
•Take time to get accustomed to the extra weight and length.
•Allow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
•Avoid jerky starts or sudden acceleration.
•Avoid sudden braking. It may cause loss of control and result in jackknifing, especially
so on wet or slippery roads.
•Use the following positions when towing a trailer in hilly terrain or when heavily
loaded.
OD (overdrive) off
Shift lever in D
These positions will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to avoid
the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that
are larger than normal.
J16L_8R21-EA-02G.book Page 17 Saturday, June 8, 2002 11:16 AM

4-18
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G
Passing
Plan well ahead to pass other vehicles, and provide plenty of room before changing lanes.
Crosswinds from passing vehicles, especially larger ones, and the effects of rough roads
will affect handling.
If swaying occurs, firmly grip the steering wheel and reduce speed immediately, but
gradually.
Steer straight ahead. If no extreme correction of steering or braking is made, the
combination of less speed and firm steering will result in stability.
Backing up
Backing a vehicle with a trailer requires practice and patience. Back slowly, and have a
helper outside at the rear of the trailer to reduce the risk of an accident.
To turn the trailer, place your hand at the bottom of the steering wheel and turn it in the
direction you want the trailer to go. Make only slight movements to prevent sharp or
prolonged turning.
Ascending a hill
Shift into a lower gear to reduce the possibility of overloading or overheating the engine, or
both.
Descending a hill
Shift into a lower gear and use engine compression as a braking effect.
Overheated engine
The extra weight of the trailer may strain the engine on hot days and on long or steep
upgrades.
If the temperature gauge indicates overheating, turn off the air conditioner, drive safely to
the side of the road, park off the right-of-way and wait for engine to cool. Refer to
Overheating (page 7-15).
Over Use of the Brake Pedal:
Holding the brake pedal down too long or too frequently is dangerous as it could
cause the brakes to overheat and lose power, resulting in loss of control and a serious
accident. Use lower gears (1st and 2nd) to help reduce speed. Pull off the road and
allow brakes to cool down whenever braking performance feels reduced. Always use
lower gears to reduce speed.
WARNING
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

5-11
Driving Your Mazda
Starting and Driving
Form No. 8R21-EA-02G

Overdrive
Overdrive operation
In D, the transaxle automatically shifts to
overdrive, which improves fuel economy
and reduces noise.
To allow engine braking when going
down a steep grade, make sure the
overdrive button is in the off position.
And for a smoother ride with less shifting,
don’t use it when:
•Going up a steep grade.
•Driving in stop-and-go traffic.
•Pulling heavy loads.
To turn off the overdrive, push the
button.
The transaxle will then shift through a 4-
gear sequence in D.
Shift patterns without overdrive:
D = 1st, 2nd, 3rd, 4th
3 = 2nd, 3rd
2 = 2nd
To turn it on, push the button again.
Shift patterns with overdrive:
D = 1st, 2nd, 3rd, 4th, 5th
3 = 2nd, 3rd
2 = 2ndO/D OFF indicator light
This light comes on when the overdrive
has been turned off.

Driving Tips
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or 2, depending on the load
weight and grade steepness.
3. Release all brakes while gradually
accelerating.
Overdrive button
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
CAUTION
J16L_8R21-EA-02G.book Page 11 Saturday, June 8, 2002 11:16 AM

5-12
Driving Your Mazda
Starting and Driving
Form No. 8R21-EA-02G
Descending steep grades
When descending a steep grade, shift to 3
or 2, depending on load weight and grade
steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating.Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.Power Steering
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
CAUTION
J16L_8R21-EA-02G.book Page 12 Saturday, June 8, 2002 11:16 AM
