Page 52 of 341
2-43
Essential Safety Equipment
Child Restraint
Form No. 8S06-EA-03H
Seating Children in a Child-Restraint System on the Front Passenger Seat:
If your vehicle is equipped with front passenger seat weight sensors, a front passenger
air bag deactivation indicator light is also equipped (page 2-51). Even with the front
passenger seat weight sensors, if you must use the front passenger seat for children,
seating a child in a child-restraint system on the front passenger seat under the
following conditions increases the danger of the front passenger air bag deploying
and could result in serious injury or death to the child.
•The total seated weight of the child with the child-restraint system on the front
passenger seat is approximately 30 kg (66 lb) or more.
•Luggage or other items are placed on the seat with the child in the child-restraint
system.
•A rear passenger or luggage push or pull down on the front passenger seatback.
•A rear passenger steps on the front passenger seat rails with the feet.
•Luggage or other items are placed on the seatback or hung on the assist grip, head
restraint or armrest.
•The seat is washed.
•Liquids are spilled on the seat.
•The front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
•The front passenger seatback contacts the second-row seat.
•Luggage or other items are placed between the front passenger seat and front
passenger seat side table.
•Any accessories such as increasing the total seated weight on the front passenger
seat are attached to the front passenger seat.
The designated positions with seat belts on the rear seats are the safest places for
children. Always use seat belts and child restraints.
Children and Seating Position with Side Air Bag:
Allowing anyone to lean over or against the front door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause serious
injury or death to the person. Children are more likely to sleep in the vehicle; when
they do, they are more at risk in the front passenger’s seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. With the front air bag and the
additional side air bag that comes out of the front seat, the rear seat is always a better
location for children who are prone to sleeping. If a child can’t be seated in the rear,
do not allow the child to lean over or against the front door, even if the child is seated
in a child-restraint system.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 43 Wednesday, July 9, 2003 4:19 PM
Page 59 of 341
2-50
Essential Safety Equipment
Child Restraint
Form No. 8S06-EA-03H
NOTE
To check if your Mazda front seats
have side air bags:
Every Mazda side air bag will have a
"SRS-Air Bag" label on the outboard
shoulder of the front seats.
Front Passenger’s Seat Position:
As your vehicle has front air bags and
doubly so if your vehicle has side air
bags, a front-facing child-restraint
system should be put on the front seat
only when it is unavoidable.
Even if the front passenger air bag
deactivation indicator light
illuminates, always move the seat as
far back as possible, because the force
of a deploying air bag could cause
serious injury or death to the child.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems
on the front seat are particularly
dangerous.
The child-restraint system can be hit
by a deploying air bag and moved
violently backward resulting in
serious injury or death to the child.
Even though you may feel assured
that the front passenger air bag will
not deploy based on the fact that the
front passenger air bag deactivation
indicator light illuminates, NEVER
use a rear-facing child-restraint
system in the front seat with an air
bag that could deploy even in a
moderate collision.
WARNING
Children and Seating Position with
Side Air Bag:
Allowing anyone to lean over or
against the front door is dangerous. If
the vehicle is equipped with side air
bags, the impact of an inflating side
air bag could cause serious injury or
death to the person. Children are
more likely to sleep in the vehicle;
when they do, they are more at risk in
the front passenger’s seat that has a
side air bag because they may slump
over into the path of the seatback-
mounted air bag. Furthermore,
leaning over or against the doors
could block the side air bag and
eliminate the advantages of
supplemental protection. With the
front air bag and the additional side
air bag that comes out of the front
seat, the rear seat is always a better
location for children who are prone to
sleeping. If a child can’t be seated in
the rear, do not allow the child to lean
over or against the front door, even if
the child is seated in a child-restraint
system.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 50 Wednesday, July 9, 2003 4:19 PM

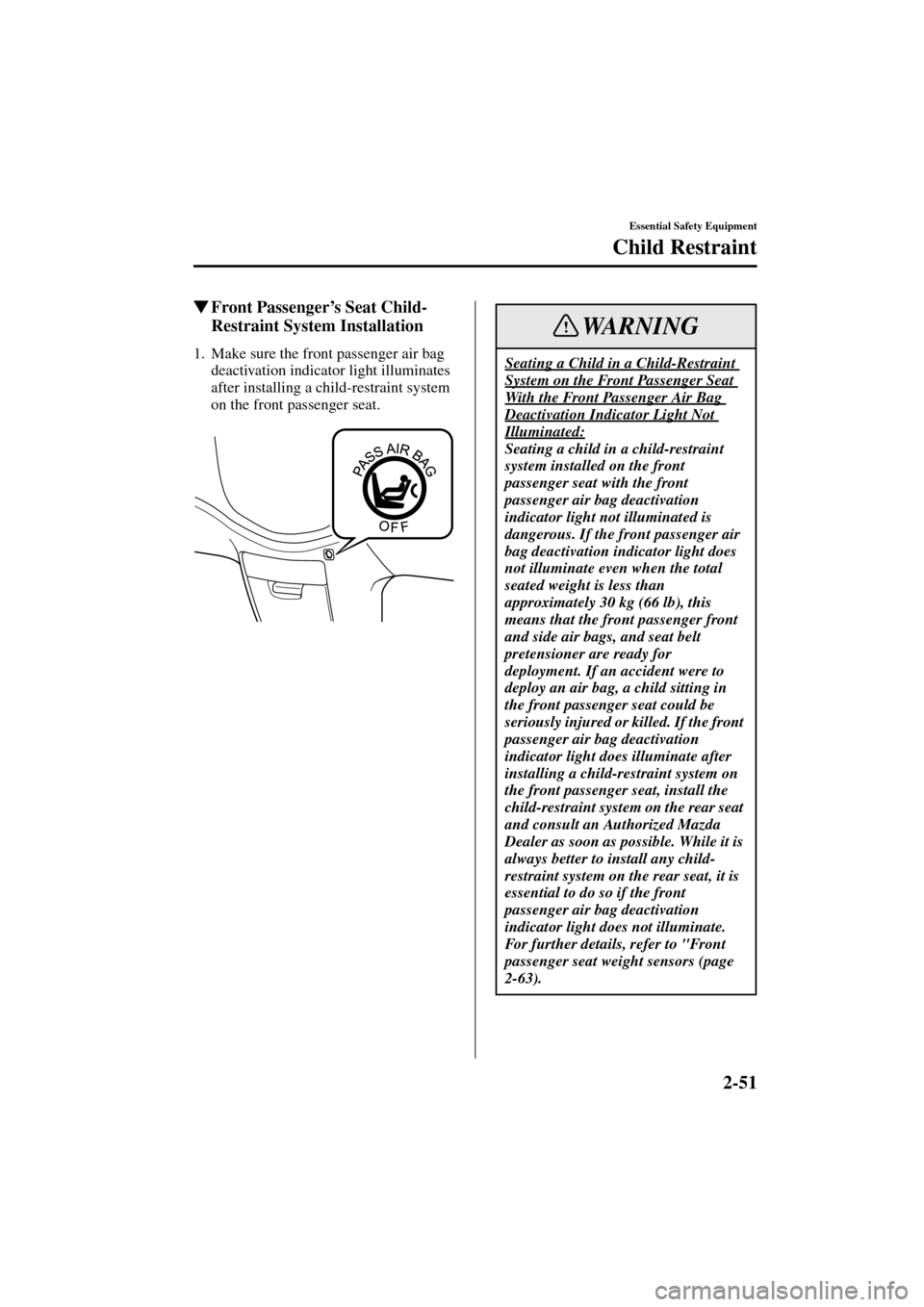

Page 60 of 341
2-51
Essential Safety Equipment
Child Restraint
Form No. 8S06-EA-03H
Front Passenger’s Seat Child-
Restraint System Installation
1. Make sure the front passenger air bag
deactivation indicator light illuminates
after installing a child-restraint system
on the front passenger seat.Seating a Child in a Child-Restraint
System on the Front Passenger Seat
With the Front Passenger Air Bag
Deactivation Indicator Light Not
Illuminated:
Seating a child in a child-restraint
system installed on the front
passenger seat with the front
passenger air bag deactivation
indicator light not illuminated is
dangerous. If the front passenger air
bag deactivation indicator light does
not illuminate even when the total
seated weight is less than
approximately 30 kg (66 lb), this
means that the front passenger front
and side air bags, and seat belt
pretensioner are ready for
deployment. If an accident were to
deploy an air bag, a child sitting in
the front passenger seat could be
seriously injured or killed. If the front
passenger air bag deactivation
indicator light does illuminate after
installing a child-restraint system on
the front passenger seat, install the
child-restraint system on the rear seat
and consult an Authorized Mazda
Dealer as soon as possible. While it is
always better to install any child-
restraint system on the rear seat, it is
essential to do so if the front
passenger air bag deactivation
indicator light does not illuminate.
For further details, refer to "Front
passenger seat weight sensors (page
2-63).
WARNING
J16R_8S06-EA-03H_Edition1.book Page 51 Wednesday, July 9, 2003 4:19 PM
Page 66 of 341
2-57
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
Air Bags without Seat Belts:
Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in collisions with frontal, near frontal or side forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Child in the Front Seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. Even if the front
passenger air bag deactivation indicator light illuminates, always move the front
passenger seat as far back as possible. A sleeping child is more likely to lean against
the door and be hit by the side air bag in a moderate, right-side collision. Whenever
possible, always secure a child 12 years and under on the rear seats with an
appropriate child-restraint system for the child’s age and size.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. Even though you may feel
assured that the front passenger air bag will not deploy based on the fact that the front
passenger air bag deactivation indicator light illuminates, NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy even in a
moderate collision.
Seating Position with Front Air Bags:
Sitting too close to the air bag modules or placing hands or feet on them is extremely
dangerous. Front air bags inflate with great force and speed. Serious injuries could
occur if someone is too close. The driver should always hold onto only the rim of the
steering wheel. The front seat passenger should keep both feet on the floor. Front seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
WARNING
Deploying air bag
J16R_8S06-EA-03H_Edition1.book Page 57 Wednesday, July 9, 2003 4:19 PM

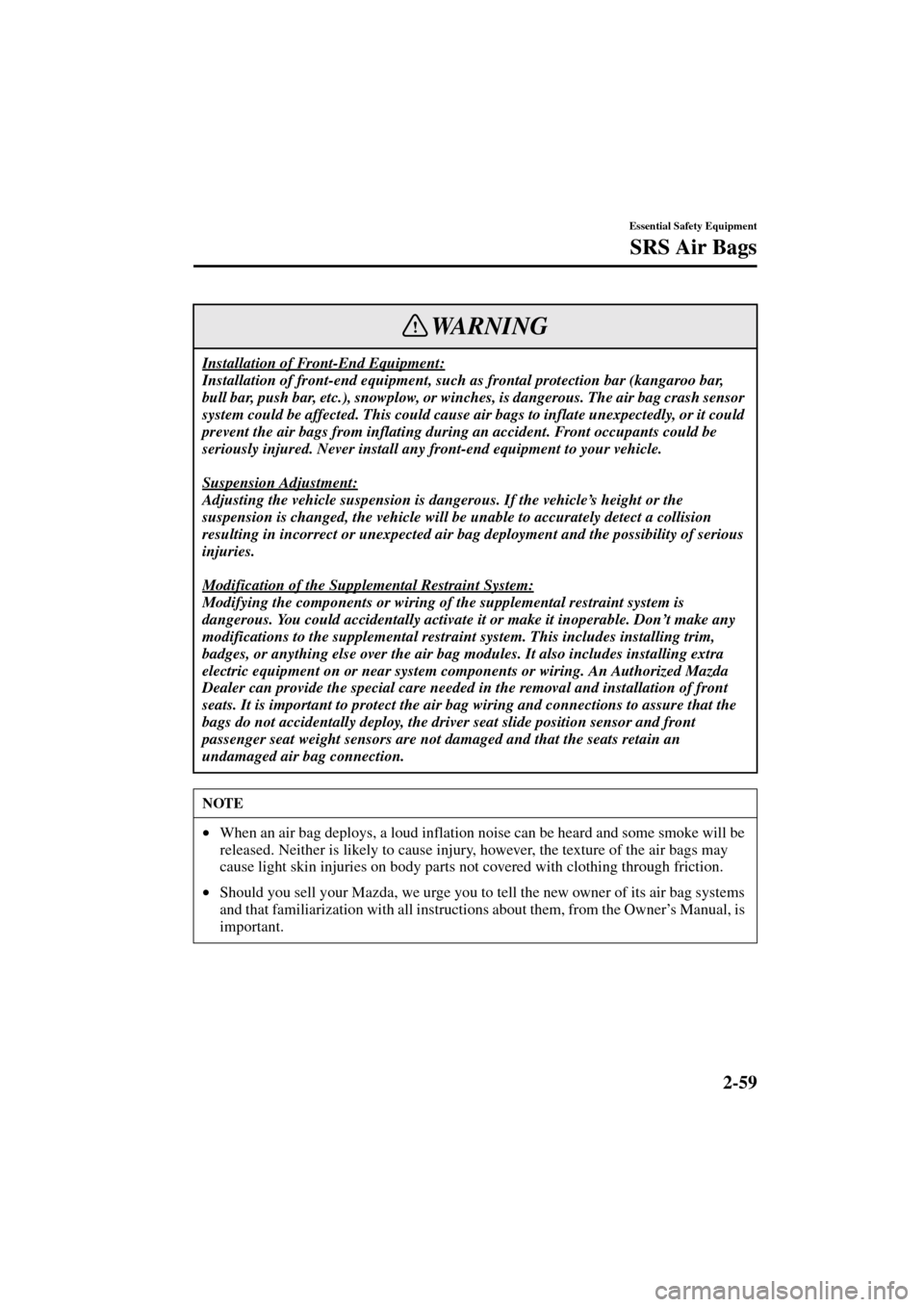

Page 68 of 341
2-59
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Front occupants could be
seriously injured. Never install any front-end equipment to your vehicle.
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle’s height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don’t make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag modules. It also includes installing extra
electric equipment on or near system components or wiring. An Authorized Mazda
Dealer can provide the special care needed in the removal and installation of front
seats. It is important to protect the air bag wiring and connections to assure that the
bags do not accidentally deploy, the driver seat slide position sensor and front
passenger seat weight sensors are not damaged and that the seats retain an
undamaged air bag connection.
NOTE
•When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may
cause light skin injuries on body parts not covered with clothing through friction.
•Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner’s Manual, is
important.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 59 Wednesday, July 9, 2003 4:19 PM
Page 72 of 341
2-63
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
How the Front Air Bags Work
When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the front air bags and after the inflation, the front air bags
quickly deflate.
The front air bags will function only once. After that, the front air bags will not work
again and must be replaced.
Only an Authorized Mazda Dealer can replace the systems.
The front, dual stage air bags control air bag inflation in two energy stages. During an
impact of moderate severity the front air bags deploy with lesser energy, whereas during
more severe impacts, they deploy with more energy. Deployment of the front air bags may
differ between the driver and the front passenger depending on the driver seat position,
front passenger weight and front seat belt usage, which allow for further controlling of the
system.
Driver seat slide position sensor
Your vehicle is equipped with a driver seat slide sensor as a part of the supplemental
restraint system. The sensor is located under the driver seat. The sensor determines whether
the driver seat is fore or aft of a reference position and sends the seat position to the crash
sensors and diagnostic module (SAS unit). The sensor is also designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
The air bag/front seat belt pretensioner system warning light flashes if the sensor has a
possible malfunction (page 2-72).
How the Air Bags Work
The front air bags will deploy only
in a frontal or frontal offset impact.
J16R_8S06-EA-03H_Edition1.book Page 63 Wednesday, July 9, 2003 4:19 PM
Page 73 of 341
2-64
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
Front passenger seat weight sensors
Your vehicle is equipped with front passenger seat weight sensors as a part of the
supplemental restraint system. These sensors are located under both of the front passenger
seat rails. These sensors determine the total seated weight on the front passenger seat. The
sensors are also designed to prevent the front passenger air bag from inflating if the total
seated weight is less than approximately 30 kg (66 lb).
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
system deactivates the front passenger front and side air bags and also the seat belt
pretensioner system when:
•There is no passenger in the front passenger seat. (The front passenger air bag
deactivation indicator light does not illuminate.)
•The total seated weight on the front passenger seat is less than approximately 30 kg (66
lb). (The front passenger air bag deactivation indicator light illuminates.)
This system shuts off the front passenger front and side air bags and seat belt pretensioner
system, so make sure the front passenger air bag deactivation indicator light illuminates
according to the chart below.
The air bag/front seat belt pretensioner system warning light flashes and the front
passenger air bag deactivation indicator light illuminates if the sensors have a possible
malfunction. If this happens, the front passenger front and side air bags and seat belt
pretensioner system will not deploy.
Front passenger air bag deactivation indicator light
This indicator light illuminates to remind you that the front passenger front and side air
bags and seat belt pretensioner will not deploy during a collision.
If the front passenger weight sensors are normal, the indicator light illuminates when the
ignition switch is turned to the ON position. After about 6 seconds it goes out.
J16R_8S06-EA-03H_Edition1.book Page 64 Wednesday, July 9, 2003 4:19 PM
Page 74 of 341
2-65
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
The front passenger air bag deactivation indicator light illuminates or is off under the
following conditions:
*If the front passenger seat belt is buckled, the front passenger air bag deactivation
indicator light illuminates, however this does not indicate a malfunction.
If the front passenger air bag deactivation indicator light does not illuminate when the
ignition switch is turned to the ON position and does not illuminate as indicated in the
above chart, do not allow a child to sit in the front passenger seat and consult an Authorized
Mazda Dealer as soon as possible. The system may not work properly in an accident.
Total seated weight on the
front passenger seatFront passenger air bag
deactivation indicator lightFront passenger front and
side air bagsSeat belt pretensioner
system
Empty (Not occupied)
*OFF OFF OFF
Less than approx. 30 kg
(66 lb)ON OFF OFF
Approx. 42 kg (93 lb) or
moreOFF ON ON
Decreasing the Total Seated Weight on the Front Passenger Seat:
When an adult or large child sits on the front passenger seat, decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) required for air bag deployment is dangerous. The front
passenger seat weight sensors will detect the reduced total seated weight condition and
the front passenger front and side air bags and seat belt pretensioner system will not
deploy during an accident. The front passenger will not have the supplementary
protection of the air bag, which could result in serious injury. Decreasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 42 kg (93 lb) could result in an air bag not deploying under the
following conditions, for example:
•A rear passenger pushes up on the front passenger seat with the feet.
•Luggage or other items placed under the front passenger seat or between the front
passenger seat and front passenger seat side table that push up the front passenger
seat bottom.
•The front passenger seat occupant sits in a manner that does not place the entire
weight of the occupant on the seat such as by sitting too close to the door, grasping
the assist grip or the rim of the sunroof.
•The front passenger seatback contacts the second-row seat.
•Any accessories such as decreasing the total seated weight on the front passenger
seat are attached to the front passenger seat.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 65 Wednesday, July 9, 2003 4:19 PM
Page 81 of 341
2-72
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
Constant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
•SAS unit
•Front air bag sensor
•Air bag modules
•Side crash sensor
*
•Front seat belt pretensioners
•Related wiring
•Driver seat slide position sensor
•Front passenger seat weight sensors
•Driver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system’s readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds it
goes out.
A system malfunction is indicated when
the warning light constantly flashes,
illuminates or doesn’t illuminate at all
when the ignition switch is turned to the
ON position. If any of these occur, do not
allow a person to sit on the front
passenger seat and consult an Authorized
Mazda Dealer as soon as possible. The
system may not work in an accident.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 72 Wednesday, July 9, 2003 4:19 PM
Page 82 of 341
2-73
Essential Safety Equipment
SRS Air Bags
Form No. 8S06-EA-03H
Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
•The air bag system warning light
flashes.
•The air bag system warning light
illuminates.
•The air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
•The air bags inflate.
•Front passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to "Front passenger
seat weight sensors (page 2-63)".
Damaged Air Bag System
Components:
Driving with damaged air bag system
components is dangerous. A collision,
even one not strong enough to inflate
the air bags, could damage the system
components. If there was a
subsequent collision, a damaged
component would not inflate the air
bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front seats (if side air bags are
equipped), front dashboard, the
steering wheel or parts containing air
bag parts or sensors is dangerous.
These parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 73 Wednesday, July 9, 2003 4:19 PM
