7-16
In Case of an Emergency
Overheating
Form No. 8S06-EA-03H
6. When cool, check the coolant level.
If it’s low, look for coolant leaks from
the radiator and hoses.
If you find a leak or other damage,
or if coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required (page
8-12).
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
F
L
Cooling
system cap
Coolant reservoir
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 16 Wednesday, July 9, 2003 4:19 PM

7-17
In Case of an Emergency
Form No. 8S06-EA-03H
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and
hold it there.
2. Turn the ignition switch to the START
position and hold it there—for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it
without using the accelerator—for up
to 10 seconds.
Starting a Flooded Engine
J16R_8S06-EA-03H_Edition1.book Page 17 Wednesday, July 9, 2003 4:19 PM

7-19
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
Keep Flames Away:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive ( ) or negative ( ) terminal of the
battery. Do not allow the positive ( ) terminal to contact the vehicle body.
Battery-Related Explosion:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Don’t jump-start a frozen battery or one with a low fluid level.
Connecting to Negative Terminal:
Connecting the end of the second cable to the negative ( ) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Connect the cable to a point away from the battery.
Connecting Jumper Cable to Moving Parts:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury. Never
connect a jumper cable to or near any part that moves.
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 19 Wednesday, July 9, 2003 4:19 PM

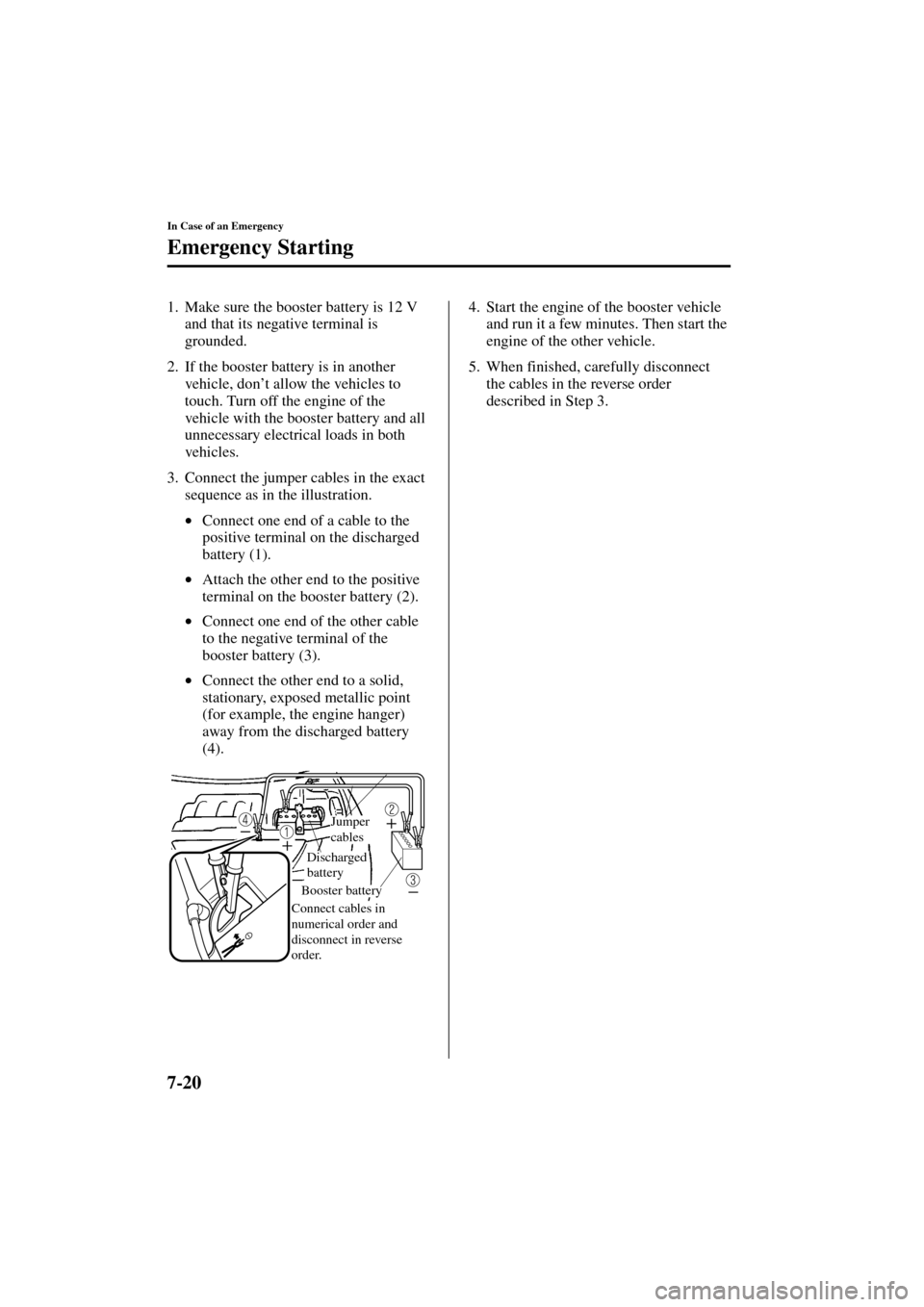

7-20
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
J16R_8S06-EA-03H_Edition1.book Page 20 Wednesday, July 9, 2003 4:19 PM

8-1
Form No. 8S06-EA-03H
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-7
Owner Maintenance Schedule ................................................... 8-7
Owner Maintenance Precautions ............................................... 8-8
Engine Compartment Overview ................................................ 8-9
Engine Oil ................................................................................ 8-10
Engine Coolant ........................................................................ 8-12
Brake Fluid .............................................................................. 8-15
Power Steering Fluid ............................................................... 8-16
Automatic Transaxle Fluid (ATF) ........................................... 8-16
Washer Fluid ............................................................................ 8-18
Body Lubrication ..................................................................... 8-19
Air Filter .................................................................................. 8-19
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-24
Tires ......................................................................................... 8-27
Light Bulbs .............................................................................. 8-31
Fuses ........................................................................................ 8-38
Appearance Care
......................................................................... 8-43
How to Minimize Environmental Paint Damage ..................... 8-43
Exterior Care ........................................................................... 8-45
Interior Care ............................................................................ 8-48
J16R_8S06-EA-03H_Edition1.book Page 1 Wednesday, July 9, 2003 4:19 PM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8S06-EA-03H

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability. Maintenance Interval
(Number of months or kilometers
(miles), whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterR
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Brake lines, hoses and connectionsII
Disc brakesIIII
Drum brakesII
Tire (Rotation)Rotate every 12,000km (7,500miles)
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Exhaust system and heat shieldsInspect every 72,000km (45,000miles) or 60 months
All locks and hingesLLLLLLLL
Cabin air filter (if equipped)Replace every 40,000 km (25,000 miles) or 24 months
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8S06-EA-03H

Schedule 2
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
*2 If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km
(60,000 miles) or shorter.
a)Repeated short-distance driving
b)Extended periods of idling or low-speed operation
c)Driving for long periods in cold temperatures or extremely humid climates
d)Towing a trailerMaintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 1624324048566472808896
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve
*1I
Hoses and tubes for emission(Puerto Rico)I
Spark plugs
(Platinum tipped type)USAReplace every 96,000 km (60,000 miles)
Others
*2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoRR
OthersR
Fuel lines and hoses
*1I I
Cooling systemII
Engine coolantReplace at first 96,000 km (60,000 miles) or 48 months ;
after that, every 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM

8-7
Maintenance and Care
Form No. 8S06-EA-03H
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•Brake fluid level (page 8-15)
•Engine coolant level (page 8-12)
•Engine oil level (page 8-10)
•Washer fluid level (page 8-18)

At Least Monthly
•Tire inflation pressures (page 8-27)

At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transaxle fluid level (page 8-16)
•Power steering fluid level (page 8-16)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•Air filter (page 8-19)
•Engine coolant (page 8-12)
•Engine oil (page 8-11)
Owner Maintenance Schedule
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

8-8
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 8 Wednesday, July 9, 2003 4:19 PM

8-9
Maintenance and Care
Owner Maintenance
Form No. 8S06-EA-03H
Engine Compartment Overview
Automatic transaxle fluid-level dipstick
Cooling system cap
Engine coolant reservoir
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil dipstick Engine oil-filler cap
Engine oil filterBatteryFuse blockAir filter Brake fluid reservoir
J16R_8S06-EA-03H_Edition1.book Page 9 Wednesday, July 9, 2003 4:19 PM
