fuel filter MAZDA MODEL MPV 2004 Owners Manual (in English)

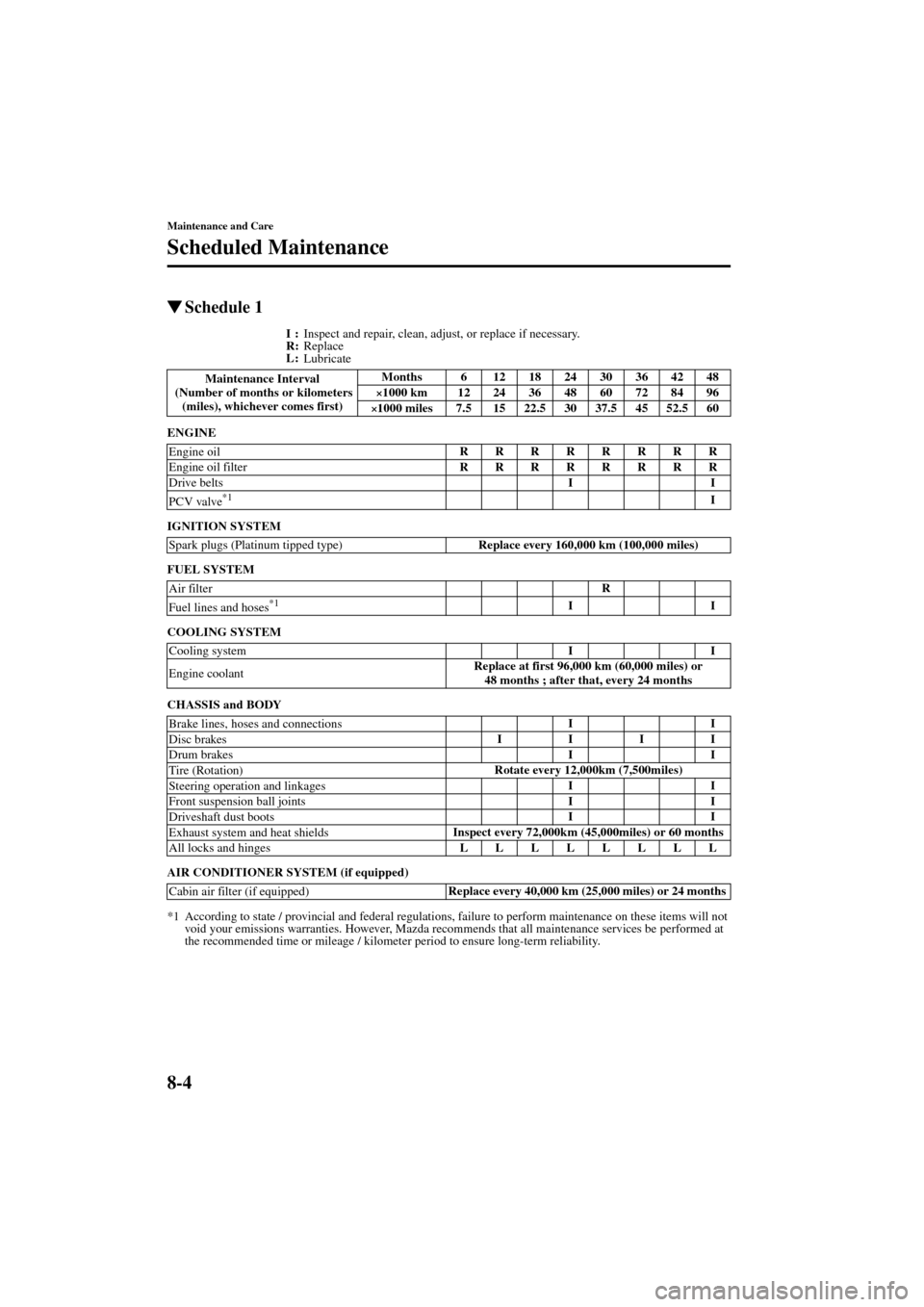

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8S06-EA-03H

Schedule 1
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
L:
Lubricate
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS and BODY
AIR CONDITIONER SYSTEM (if equipped)
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability. Maintenance Interval
(Number of months or kilometers
(miles), whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve
*1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterR
Fuel lines and hoses
*1II
Cooling systemII
Engine coolantReplace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Brake lines, hoses and connectionsII
Disc brakesIIII
Drum brakesII
Tire (Rotation)Rotate every 12,000km (7,500miles)
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Exhaust system and heat shieldsInspect every 72,000km (45,000miles) or 60 months
All locks and hingesLLLLLLLL
Cabin air filter (if equipped)Replace every 40,000 km (25,000 miles) or 24 months
J16R_8S06-EA-03H_Edition1.book Page 4 Wednesday, July 9, 2003 4:19 PM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8S06-EA-03H

Schedule 2
I:
Inspect and repair, clean, adjust, or replace if necessary.
R:
Replace
ENGINE
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
ELECTRICAL SYSTEM
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
*2 If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km
(60,000 miles) or shorter.
a)Repeated short-distance driving
b)Extended periods of idling or low-speed operation
c)Driving for long periods in cold temperatures or extremely humid climates
d)Towing a trailerMaintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 1624324048566472808896
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve
*1I
Hoses and tubes for emission(Puerto Rico)I
Spark plugs
(Platinum tipped type)USAReplace every 96,000 km (60,000 miles)
Others
*2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoRR
OthersR
Fuel lines and hoses
*1I I
Cooling systemII
Engine coolantReplace at first 96,000 km (60,000 miles) or 48 months ;
after that, every 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM

8-7
Maintenance and Care
Form No. 8S06-EA-03H
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•Brake fluid level (page 8-15)
•Engine coolant level (page 8-12)
•Engine oil level (page 8-10)
•Washer fluid level (page 8-18)

At Least Monthly
•Tire inflation pressures (page 8-27)

At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transaxle fluid level (page 8-16)
•Power steering fluid level (page 8-16)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•Air filter (page 8-19)
•Engine coolant (page 8-12)
•Engine oil (page 8-11)
Owner Maintenance Schedule
J16R_8S06-EA-03H_Edition1.book Page 7 Wednesday, July 9, 2003 4:19 PM

10-5
Specifications
Form No. 8S06-EA-03H

Capacities
(Approximate Quantities)
Check oil and fluid levels with dipsticks or reservoir gauges.

Dimensions
*1With license plate holder*217 inch wheel vehicle*3Rear drum brake*4Rear disc brake

We i g h t s

Air Conditioner
ItemUnit
L US qt Imp qt
Engine oilWith oil filter replacement 5.7 6.0 5.0
Without oil filter replacement 5.2 5.5 4.6
CoolantWith rear heater 12.0 12.7 10.6
Without rear heater 10.2 10.8 9.3
Automatic transaxle fluid 9.7 10.3 8.5
Washer fluidWith 4-Seasons package 5.5 5.8 4.8
Without 4-Seasons package 2.2 2.3 1.9
Fuel tank 75 19.8 (US gal) 16.5 (Imp gal)
Item Model
Overall lengthWithout GFX Package
4,807mm (189.3 in), 4,821mm (189.8 in)
*1
With GFX Package
4,813mm (189.5 in), 4,833mm (190.3 in)*1
Overall width 1,830mm (72.1 in)
Overall height
1,745 mm (68.7 in), 1,755 mm (69.1 in)*2
Front tread 1,540mm (60.6 in)
Rear tread
1,545mm (60.8 in)*3, 1,550mm (61.0 in)*4
Wheelbase 2,840mm (111.8 in)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,386kg (5,260 lb)
GAWR (Gross Axle Weight Rating)Front 1,189kg (2,621 lb)
Rear 1,218kg (2,685 lb)
Refrigerant complies with SAE J639 Maximum operating charge
HFC134a (R-134a)Front air-conditioner 0.6 kg (21.2 oz)
Front and rear air-conditioner 0.8 kg (28.2 oz)
J16R_8S06-EA-03H_Edition1.book Page 5 Wednesday, July 9, 2003 4:19 PM
