qPower/Volume/Sound Controls
Display
Audio control dial Power/Volume dial
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time
when the engine is not running.
Volume adjustment
To adjust the volume, turn the power/
volume dial.Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio sound adjustment
1. Press the audio control dial to select the
function. The selected function will be
indicated.
6-22
Interior Comfort
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page196
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (197,1)
2. Turn the audio control dial to adjust the
selected functions as follows:
*
* Depending on the mode selected, the
indication changes.
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-rangeIncrease
mid-range
Decrease
trebleIncrease
treble
Shift the sound
to the frontShift the sound
to the rear
Shift the sound
to the leftShift the sound
to the right
OFF ON
NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade and balance,
press the audio control dial for 2
seconds. The unit will beep and
“CLEAR”will be displayed.
BEEP setting
The beep-sound when operating the audio
system can be set on or off.
Interior Comfort
Audio System
6-23
Mazda MPV_8T50-EA-04G_Edition1 Page197
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (198,1)
qClock
Display
Clock button
Hour set
button
Minute set
button
Setting the time
The clock can be set at any time when the
ignition switch is in the ACC or ON
position.
1. To adjust the time, press the clock
button (
) for about 2 seconds
until a beep is heard.
The clock's current time will flash.
NOTE
To select 12-hour or 24-hour clock
time, turn the audio control dial while
the clock display is flashing. After
selecting the desired display, press the
audio control dial to return to the
flashing clock display.2. To advance the hours, press the hour
set button (
). To advance the
minutes, press the minute set button
(
) while the time is flashing.
3. Press the clock button (
) again
to start the clock.
Exact hour adjustment
1. To set the exact hour, press the clock
button (
) for about 2 seconds
until a beep is heard.
The clock's current time will flash.
2. Press the clock button (
) again
and the time will be adjusted as
follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
6-24
Interior Comfort
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page198
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (199,1)
NOTE
lWhen the clock button ()is
released, the seconds are reset to
“00”.
lIf the power supply to the unit is
interrupted (if the fuse blows or the
vehicle's battery is disconnected), the
clock will need to be reset.
Changing the display mode
The display on the unit can be changed by
pressing the clock button (
). This
alternates the display between clock mode
and normal mode. When the clock mode
has been selected, the time will be
displayed.
NOTE
The displays when using the audio
differ in clock mode and normal mode.
Interior Comfort
Audio System
6-25
Mazda MPV_8T50-EA-04G_Edition1 Page199
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (200,1)
qOperating the Radio
Band selector button Display
Channel preset buttons Manual tuning dialScan buttonSatellite button*
*For reception of optional SIRIUS digital satellite radio.
Used on vehicles equipped with the separately sold SIRIUS digital satellite radio unit.
For information on use, read the manual accompanying the SIRIUS unit.
Subscription of SIRIUS digital satellite radio service is available in the U.S. (Except Alaska and Hawaii). Seek tuning
button
Auto memory
button/Electric
serial number
button*
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1→FM2→AM.
The selected mode will be indicated. If
FM stereo is being received,“ST”will be
displayed.
NOTE
If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the“ST”indicator will go
out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Manual tuning
Turning the manual tuning dial will
change the frequency higher or lower.
6-26
Interior Comfort
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page200
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (201,1)
Seek tuning
Pressing the seek tuning button (
,)
will cause the tuner to seek a higher or
lower frequency automatically.
NOTE
If you continue to press and hold the
button, the frequency will continue
changing without stopping.
Scan tuning
Press the scan button (
)to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button (
) again during this
interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the station you want.
2. Depress a channel preset button for
about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.
NOTE
When the clock is displayed, the preset
channel number will not be displayed.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.
Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.
Press and hold the auto memory button
(
) for about 2 seconds until a beep
is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
lWhen the clock is displayed, the
preset channel number will not be
displayed.
lIf no stations can be tuned after
scanning operations,“A”will be
displayed.
Interior Comfort
Audio System
6-27
Mazda MPV_8T50-EA-04G_Edition1 Page201
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (202,1)
qOperating the Cassette Tape Playerí
DisplayCassette tape play button
Cassette tape eject buttonFast-forward button
Program button
Dolby NR buttonRewind
button
Repeat button
APC button:
(next program)
(one being
played)
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and“TAPE”will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When
is lit, the cassette tape's top
side is playing. When
is lit, the
bottom side is on.
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it.
Playing
Press the cassette tape play button
(
) to start playing when a
cassette tape is in the unit. If there isn't a
cassette tape in the unit when the cassette
tape play button (
) is pressed,
“No TAPE”will flash on and off in
sequence.
6-28
Interior Comfort
íSome models.
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page202
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (203,1)
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button (
). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button (
)to
eject the cassette tape.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
Fast-forward/Rewind
Press the fast-forward button (
)to
fast-forward.
Press the rewind button (
) to rewind.
To stop this operation and play the
cassette tape, press the button again.
NOTE
When the cassette tape ends during fast-
forward or rewind, it automatically
stops and starts playing.
Reversing
Press the program button (
)to
change cassette tape-playing direction.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button (
) to the
beginning of the next selection.
Press the APC button (
) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.
If APC detects 4 seconds of blank space it
will automatically advance the tape to the
next selection.
NOTE
APC may not operate properly if
lA tape was recorded at a low level.
lA tape has long, silent intervals.
lA tape is a live recording.
lA tape has very short intervals of
less than 3 seconds.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button (
) during play.
The current selection playing will be
repeated (“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Interior Comfort
Audio System
6-29
Mazda MPV_8T50-EA-04G_Edition1 Page203
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (204,1)

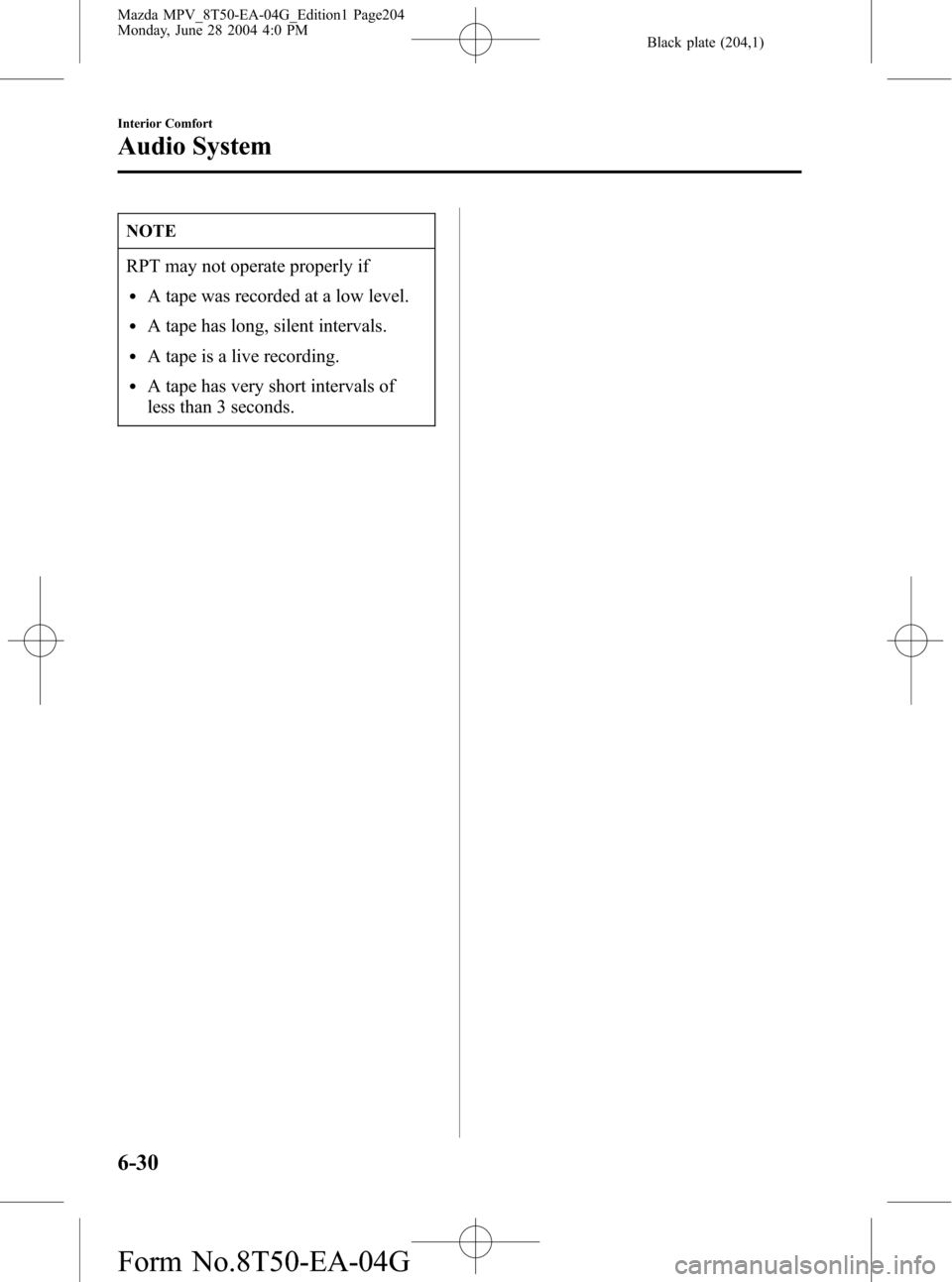

NOTE
RPT may not operate properly if
lA tape was recorded at a low level.
lA tape has long, silent intervals.
lA tape is a live recording.
lA tape has very short intervals of
less than 3 seconds.
6-30
Interior Comfort
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page204
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G
