Black plate (218,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
6-44
Interior Comfort
Audio System
Mazda MPV_8T50-EA-04G_Edition1 Page218
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (248,1)
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
WARNING
Cooling Fan and Engine
Inspection:
Inspecting the engine with the ignition
switch in the ON position is
dangerous. The cooling fan could turn
on unexpectedly even when the engine
isn't running. You could be seriously
injured by the fan. Turn the ignition
switch off and remove the key from the
ignition switch when you inspect the
engine.
Cooling System Cap:
When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove the cooling
system cap when the engine and
radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.If the temperature gauge indicates
overheating:
1. Drive safely to the side of the road and
park off the right-of-way.
2. Shift into park (P).
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is
escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don't go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
5. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
6. When cool, check the coolant level.
If it's low, look for coolant leaks from
the radiator and hoses.
7-16
In Case of an Emergency
Overheating
Mazda MPV_8T50-EA-04G_Edition1 Page248
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (257,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-7
Owner Maintenance Schedule .................................................. 8-7
Owner Maintenance Precautions ............................................... 8-8
Engine Compartment Overview ................................................ 8-9
Engine Oil ............................................................................... 8-10
Engine Coolant ....................................................................... 8-13
Brake Fluid ............................................................................. 8-15
Power Steering Fluid ............................................................... 8-16
Automatic Transaxle Fluid (ATF) ........................................... 8-17
Washer Fluid ........................................................................... 8-18
Body Lubrication .................................................................... 8-19
Air Filter .................................................................................. 8-20
Wiper Blades ........................................................................... 8-21
Battery ..................................................................................... 8-24
Tires ........................................................................................ 8-26
Light Bulbs ............................................................................. 8-30
Fuses ....................................................................................... 8-36
Appearance Care ........................................................................ 8-42
How to Minimize Environmental Paint Damage .................... 8-42
Exterior Care ........................................................................... 8-44
Interior Care ............................................................................ 8-47
8-1
Mazda MPV_8T50-EA-04G_Edition1 Page257
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (260,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine oil R R R R R R R R
Engine oil filter R R R R R R R R
Drive belts I I
PCV valve
*1I
IGNITION SYSTEM
Spark plugs (Platinum tipped type) Replace every 160,000 km (100,000 miles)
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*1II
COOLING SYSTEM
Cooling system I I
Engine coolantReplace at first 96,000 km (60,000 miles) or
48 months; after that, every 24 months
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakes I I I I
Drum brakes I I
Tire (Rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front suspension ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L L L L
AIR CONDITIONER SYSTEM (if equipped)
Cabin air filter (if equipped) Replace every 40,000 km (25,000 miles) or 24 months
Chart symbols
I:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
L:Lubricate
Remarks
*1 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
8-4
Maintenance and Care
Scheduled Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page260
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (262,1)
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000
miles5 1015202530354045505560
CHASSIS and BODY
Brake lines, hoses and connections I I
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire (rotation) Rotate every 8,000 km (5,000 miles)
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Front suspension ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hinges L L L L L L L L L L L L
Washer fluid level IIIIIIIIIIII
AIR CONDITIONER SYSTEM (if equipped)
Cabin air filter (if equipped) Replace every 40,000 km (25,000 miles) or 24 months
Chart symbols
I:Inspect and repair, clean, adjust, or replace if necessary.
R:Replace
L:Lubricate
Remarks
*1 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*2 If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000 km
(60,000 miles) or shorter.
a) Repeated short-distance driving
b) Extended periods of idling or low-speed operation
c) Driving for long periods in cold temperatures or extremely humid climates
d) Towing a trailer
8-6
Maintenance and Care
Scheduled Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page262
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (276,1)

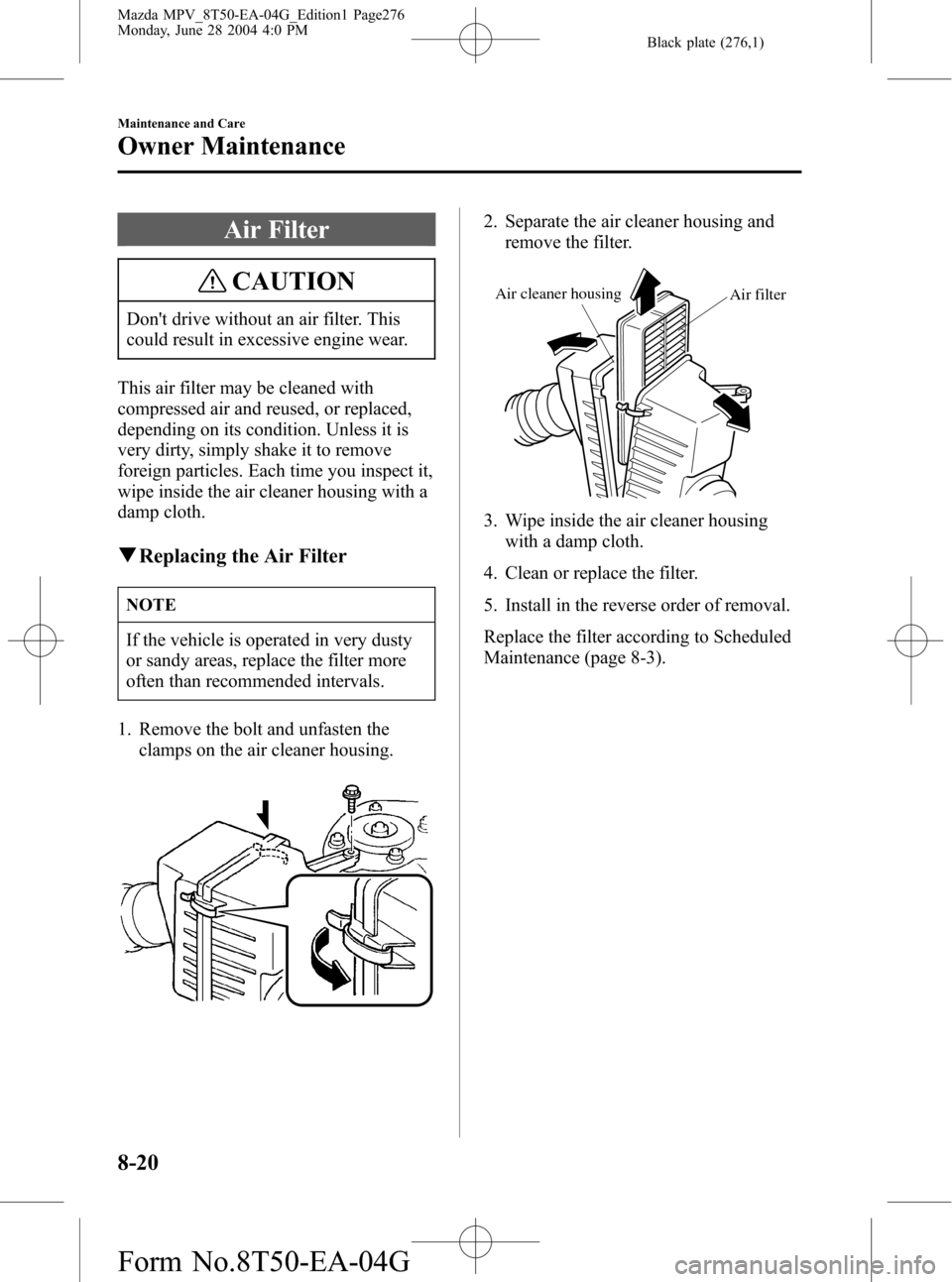

Air Filter
CAUTION
Don't drive without an air filter. This
could result in excessive engine wear.
This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.
qReplacing the Air Filter
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
1. Remove the bolt and unfasten the
clamps on the air cleaner housing.
2. Separate the air cleaner housing and
remove the filter.
Air filterAir cleaner housing
3. Wipe inside the air cleaner housing
with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
8-20
Maintenance and Care
Owner Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page276
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (283,1)
qTire Inflation Pressure
WARNING
Incorrect Tire Inflation:
Overinflation or underinflation of tires
is dangerous. Adverse handling or
unexpected tire failure could result in
a serious accident. Always inflate the
tires to the correct pressure (page
10-6).
Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures
for the best ride, top handling, and
minimum tire wear.
Refer to the specification charts (page
10-6).
NOTE
lAlways check tire pressure when
tires are cold.
lWarm tires normally exceed
recommended pressures. Don't
release air from warm tires to adjust
the pressure.
lUnderinflation can cause reduced
fuel economy and poor sealing of the
tire bead, which will deform the
wheel and cause separation of tire
from rim.
lOverinflation can produce a harsh
ride and a greater possibility of
damage from road hazards.
Keep your tire pressure at the correct
levels. If one frequently needs
inflating, have it inspected.
qTire Rotation
To equalize tread wear, rotate the tires
every 12,000 km (7,500 miles)/8,000
km
*(5,000 miles) or sooner if irregular
wear develops. During rotation, inspect
them for correct balance.
* Unique driving conditions for U.S.A.,
Canada and Puerto Rico
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Maintenance and Care
Owner Maintenance
8-27
Mazda MPV_8T50-EA-04G_Edition1 Page283
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (284,1)
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
lIncorrect tire pressure
lImproper wheel alignment
lOut-of-balance wheel
lSevere braking
After rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be weakened if rotated from side to
side.
qReplacing a Tire
WARNING
Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace it before the band is
across the entire tread.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2 kgf/
cm
2or bar, 60 psi).
8-28
Maintenance and Care
Owner Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page284
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (294,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 DEFOG 40ARear window
defroster
2 BTN 60ASTOP,
HAZARD,
ROOM,
D.LOCK and
DRL fuses
3 ABS 60AAntilock brake
system
í, For
protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEAT 30ARear heater
í,
For protection of
various circuitsDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
8 IG KEY2 40AA/C, P.WIND
í,
MOONROOFí
and R.WIP fuses
9 A/C 10AAir conditioner,
For protection of
various circuits
10 TAIL 15A Taillights
11 AC PWR 15A Inverter
12 HORN 15A Horn
13 FOG 15AFor protection of
various circuits
14 EEC 5AFor protection of
various circuits
15 HEAD L 15A Headlight-left
16 HEAD R 15A Headlight-right
17 HID L 20A―
18 HID R 20A―
8-38
Maintenance and Care
íSome models.
Owner Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page294
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (296,1)
Fuse block (Driver's side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 P.WIND 30APower
windows
í, For
protection of
various circuits
2 WIPER 20AWindshield
wipers and
washer
3 SUN ROOF 15A
Moonroofí, For protec-
tion of various circuits
4 R.WIP 10ARear window
wiper and washer
5 SEAT 20AFor protection of
various circuits
6 M.DEF 10AMirror
defroster
í, For
protection of
various circuits
7 A/C 10AAir conditioner,
For protection of
various circuitsDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
8 DRL 10AFor protection of
various circuits
9―――
10 H/CLEAN 20AFor protection of
various circuits
11―――
12 HAZARD 10AHazard warning
flashers
13 ROOM 15AOverhead lights,
Map lights,
Luggage
compartment
light
14 AUX POWER 25A Accessory socket
15 CLOSER LH 20AFor protection of
various circuits
16 AUDIO 10AAudio system,
For protection of
various circuits
8-40
Maintenance and Care
íSome models.
Owner Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page296
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G
