2. Depress the mirror switch in the
appropriate direction.
Mirror switch Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-37).
qRearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
3-32
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazda MPV_8T50-EA-04G_Edition1 Page116
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (166,1)
qImmobilizer System Warning/
Security Indicator Lightí
Immobilizer system warning light
When the key is in the ignition switch,
this light serves as the immobilizer system
warning light.
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
Security indicator light
When there is no key in the ignition
switch, and the theft-deterrent system has
been armed, the light will flash once every
3 seconds. This indicates that the system
is working properly.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qO/D OFF Indicator Light
This light comes on when the overdrive
has been turned off.
CAUTION
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
5-30
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda MPV_8T50-EA-04G_Edition1 Page166
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (169,1)
Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when the driver's door is
opened.
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Driving Your Mazda
Switches and Controls
5-33
Mazda MPV_8T50-EA-04G_Edition1 Page169
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (170,1)
qDaytime Running Lights (Canada
Model)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
5-34
Driving Your Mazda
Switches and Controls
Mazda MPV_8T50-EA-04G_Edition1 Page170
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (171,1)
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Frozen Washer Fluid:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don't use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible.
Driving Your Mazda
Switches and Controls
5-35íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page171
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (286,1)
Light Bulbs
Some models.
Overhead light Overhead lights/Map lights
Parking lights
Headlights
Fog lights
Brake lights/Taillights
Rear turn signal lights
Reverse lights
Taillights/Rear side-marker lightsLuggage compartment lightLicense plate lights High-mount brake light Front turn signal lights/Front side-marker lightsSide turn signal lightsCourtesy lights
8-30
Maintenance and Care
Owner Maintenance
Mazda MPV_8T50-EA-04G_Edition1 Page286
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (287,1)
Your Mazda's headlights and fog lights
have replaceable halogen bulbs.
WARNING
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the bulb in the
rear of the headlight unit.3. Detach the electrical connector from
the bulb by squeezing the tabs and
pulling it to the rear.
4. Pull off the sealing cover.
5. Unhook the bulb retaining spring.
6. Swing the retaining spring out and
away to free the headlight bulb.
7. Carefully remove the headlight bulb
from the socket by pulling it straight
back.
8. Replace the bulb.
9. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-31
Mazda MPV_8T50-EA-04G_Edition1 Page287
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (293,1)

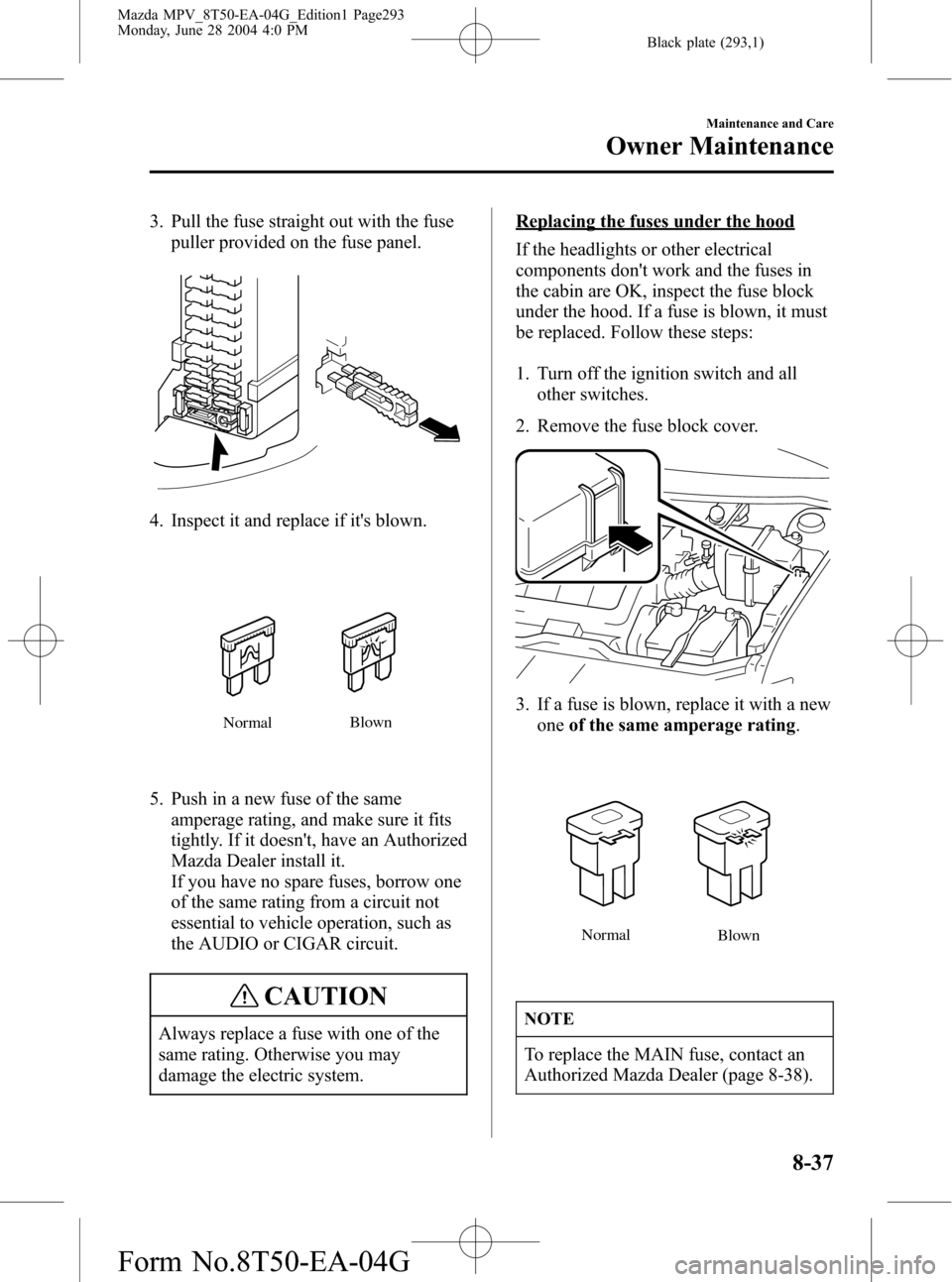

3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it's blown.
NormalBlown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components don't work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
oneof the same amperage rating.
Normal
Blown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-38).
Maintenance and Care
Owner Maintenance
8-37
Mazda MPV_8T50-EA-04G_Edition1 Page293
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (328,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R SAE
Headlights 60/55 HB2―
Front turn signal lights/Front side-marker lights 21/5―#1157NA
Fog lights
í55 H11―
Parking lights 5 W5W #168
Side turn signal lights
*15 WY5W―
Rear turn signal lights 21 WY21W―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights/Rear side-marker lights 5 W5W #168
High-mount brake light 5 W5W #168
Reverse lights 16 W16W #921
License plate lights 5 W5W―
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulbCategory
Wattage ECE R
Overhead lights/Map lights 5 W5W
Overhead light 8―
Luggage compartment light 8―
Courtesy lights 5 W5W
Vanity mirror lights
í3―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-27.
10-6íSome models.
Specifications
Mazda MPV_8T50-EA-04G_Edition1 Page328
Monday, June 28 2004 4:1 PM
Form No.8T50-EA-04G

Black plate (333,1)
D
Daytime Running Lights ................... 5-34
Defroster
Rear window .............................. 5-37
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-12
Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Winter driving .............................. 4-9
E
Easy Closure ..................................... 3-12
Emergency Starting ........................... 7-18
Flooded engine ........................... 7-18
Jump-starting .............................. 7-19
Push-starting .............................. 7-22
Emergency Towing ........................... 7-23
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-13
Exhaust gas .................................. 4-5
Hood release .............................. 3-23
Oil .............................................. 8-10
Overheating ................................ 7-16
Starting ......................................... 5-3
Engine Compartment Overview .......... 8-9
Engine Coolant
Overheating ................................ 7-16
Engine Coolant Temperature
Gauge ................................................ 5-22
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-44
E
Eyeglass Holder ................................ 6-54
F
Flasher
Hazard warning .......................... 5-38
Headlights .................................. 5-33
Flat Tire ............................................... 7-3
Changing ...................................... 7-9
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ..................... 8-7
Fog Lights ......................................... 5-35
Foot Brake .......................................... 5-4
Front Console ................................... 6-54
Front Seats
(Electrically Operated Seats) ............... 2-8
Front Seats
(Manually Operated Seats) ................. 2-3
Fuel
Filler lid and cap ........................ 3-22
Gauge ......................................... 5-23
Requirements ............................... 4-2
Tank capacity ............................. 10-4
Fuses ................................................. 8-36
Panel description ........................ 8-38
Replacement ............................... 8-36
G
Glove Box ......................................... 6-54
H
Hazard Warning Flasher .................... 5-38
Hazardous Driving .............................. 4-8
Index
11-3
Mazda MPV_8T50-EA-04G_Edition1 Page333
Monday, June 28 2004 4:1 PM
Form No.8T50-EA-04G
