keyless MAZDA MODEL MPV 2005 Owners Manual (in English)

Black plate (85,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-8
Liftgate .................................................................................... 3-17
Power Windows
í................................................................... 3-18
Rear Quarter Windows ............................................................ 3-21
Fuel-Filler Lid and Cap ........................................................... 3-22
Hood ....................................................................................... 3-23
Moonroof
í............................................................................. 3-24
Security System ........................................................................... 3-27
Immobilizer System
í............................................................. 3-27
Theft-Deterrent Systemí........................................................ 3-29
Steering Wheel and Mirrors ...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors .................................................................................... 3-31
3-1íSome models.
Mazda MPV_8T50-EA-04G_Edition1 Page85
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (87,1)
Key unfold/fold method (Retractable
type key)
To unfold the key, press the release
button.
To fold the key, press the release button
and rotate the key into the holder.Keyless Entry Systemí
This system locks and unlocks the doors
and the liftgate.
It can also help you signal for attention in
an emergency.
Opening and closing of the power sliding
doors with the keyless entry system
transmitter is also possible on power
sliding door-equipped vehicles.
Press the button slowly and accurately.
CAUTION
To avoid damage to the transmitter, do
not:
lDrop it.
lGet it wet.
lDisassemble it.
lExpose it to heat or sunlight.
Knowing Your Mazda
Doors and Locks
3-3íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page87
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (88,1)
NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system doesn't operate when the
ignition switch is in the ON position.
lIf the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
lAdditional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be reset.
qTransmitter
With power sliding doors
Lock button Unlock button
Right sliding door button Left sliding
door button
Panic button
Without power sliding doors
Lock button
Unlock button
Panic button
NOTE
l(U.S.A.)
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
If the lock and unlock buttons are
pressed sequentially, the hazard
warning lights may not flash correctly.
3-4
Knowing Your Mazda
Doors and Locks
Mazda MPV_8T50-EA-04G_Edition1 Page88
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (89,1)
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all the doors and the
liftgate have been locked, press the lock
button again within 5 seconds. If they are
closed and locked, the horn will sound
and the hazard warning lights will flash
once.
NOTE
Confirm that all the doors and the
liftgate are locked visually or audibly
by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all the doors and the liftgate,
press the unlock button again within 5
seconds and the hazard warning lights
will flash twice.
NOTE
After unlocking with the transmitter, all
doors and the liftgate will automatically
lock if one of the doors or the liftgate is
not opened within about 30 seconds.
Sliding door transmitter buttons
If your Mazda has power sliding doors
(page 3-12), the transmitter can open/
close the sliding doors.
WARNING
Operating Power Sliding Doors with
Transmitter:
Opening or closing the power sliding
doors with the keyless entry system
transmitter while not watching the
doors move is dangerous. People or
animals could be injured when the
doors open along the rear sides and
back to the rear fender, or in closing.
Allowing children to use the
transmitter could result in serious
injuries despite the jam-safe feature.
Always be sure that the doorway and
rear fender area are clear before
activating the power sliding doors and
be particularly careful when using the
keyless entry system transmitter. Be
sure to view the doors opening or
closing and do not operate a door on
either side if you can't fully see it.
Always make sure that you watch the
power sliding doors close completely
and be sure your children do not have
access to the transmitter.
When a power sliding door is completely
closed/opened and a power sliding door
open/close transmitter button is pressed
for 1 second or more, the door opens/
closes after the beep sounds.
Knowing Your Mazda
Doors and Locks
3-5
Mazda MPV_8T50-EA-04G_Edition1 Page89
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (91,1)

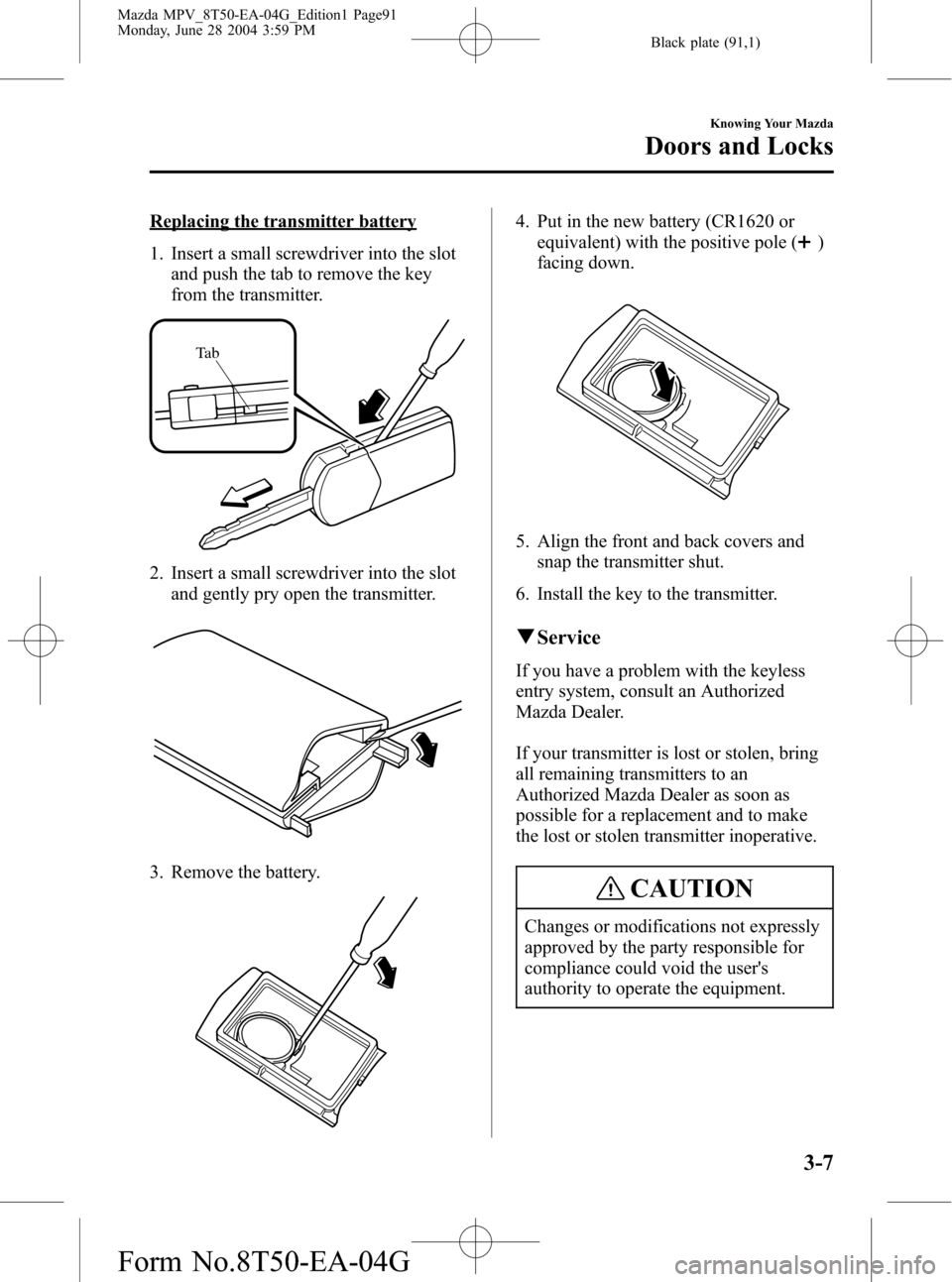

Replacing the transmitter battery
1. Insert a small screwdriver into the slot
and push the tab to remove the key
from the transmitter.
Ta b
2. Insert a small screwdriver into the slot
and gently pry open the transmitter.
3. Remove the battery.
4. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
5. Align the front and back covers and
snap the transmitter shut.
6. Install the key to the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
Knowing Your Mazda
Doors and Locks
3-7
Mazda MPV_8T50-EA-04G_Edition1 Page91
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (92,1)
Door Locks
WARNING
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors and the liftgate when
leaving your vehicle unattended. This
discourages intruders and thieves.
qLocking, Unlocking with Key
Either front door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with
Transmitterí
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to keyless entry system
(page 3-3).
3-8
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda MPV_8T50-EA-04G_Edition1 Page92
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (96,1)
qEasy Closure (With Power
Sliding Doors)
The Easy Closure system automatically
closes the doors completely from the near-
shut position.
This system also operates when the doors
are closed manually.
WARNING
Hands and Fingers Pinched in
Closing Sliding Doors:
Placing hands or fingers around a
sliding door is dangerous because the
door closes automatically from the
near-shut position, hands and fingers
could get pinched and injured. When
closing a sliding door, always keep
hands and fingers away from the door.
CAUTION
When closing a door, do not use
excessive force as it may damage the
system.
qPower Sliding Doorsí
The power sliding doors open/close
electrically by operating switches in the
vehicle or on the keyless entry system
transmitter.
To operate the power sliding doors with
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).Electric power to the power sliding doors
can be switched on and off with the power
sliding doors main switch.
Power sliding
doors main switch
ON: Switches on electric power to power
sliding doors.
OFF: Switches off electric power to
power sliding doors.
WARNING
Operating Power Sliding Doors:
Opening or closing the power sliding
doors while not watching the doors
move is dangerous. People or animals
could be injured when the doors open
along the rear sides and back to the
rear fender, or in closing. Because of
unseen obstacles and the jam-safe
feature a door may not close
completely and, if left unnoticed, could
result in serious injury or death if an
occupant were to fall out of the
vehicle.
Always be sure that the doorway and
rear fender area is clear before
activating the power sliding doors. Be
sure to view the power sliding doors
opening or closing and make sure that
you watch them close completely.
3-12
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda MPV_8T50-EA-04G_Edition1 Page96
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (97,1)
WARNING
Moving the Vehicle while Closing
Power Sliding Doors:
Shifting out of Park (P) while the
doors are moving is dangerous. The
doors will not close completely and
this could result in serious injury or
death if an occupant were to fall out of
the vehicle. Occupants in the vehicle
will also not have full protection in a
collision. Always be sure the doors
completely close before you shift into
gear and move the vehicle.
Children and the Power Sliding Door
Switches:
Allowing children to operate the
power sliding door switches and the
keyless entry system is dangerous.
Children are not aware of the dangers
of people getting fingers and hands
caught in moving doors. Never allow
children to operate the power sliding
door system.
Open Windows and Power Sliding
Doors:
It is dangerous to stick your head or
hands out the power sliding door
windows while the doors are opening/
closing. A head or hands could be
caught resulting in serious injury.
Never stick your head or hands out the
power sliding door windows.
WARNING
Entering or Exiting the Vehicle
Parked on a Steep Downward Slope:
Entering or exiting a vehicle parked
on a steep downward slope before the
door has completely opened is
dangerous. The door could
unexpectedly move down resulting in
serious injury. Make sure that the
door has completely opened before
exiting or entering the vehicle on a
steep downward slope.
NOTE
lDo not apply unnecessary force to
the doors when they are opening/
closing electrically. Unnecessary
force on the doors may cause them to
reverse direction of movement
automatically.
lWhen the vehicle is parked on a
slope, electrical opening/closing of
the doors may not operate. When the
doors cannot be opened/closed
electrically, press the power sliding
doors main switch to the OFF
position and open/close the doors
manually.
lIf there is a malfunction in the power
sliding door system, a beep sound
will be heard continuously. If this
happens, press the power sliding
doors main switch to the OFF
position and the beep sound will
stop. Consult an Authorized Mazda
Dealer to have the power sliding
doors checked.
Knowing Your Mazda
Doors and Locks
3-13
Mazda MPV_8T50-EA-04G_Edition1 Page97
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (102,1)
qLocking, Unlocking with
Transmitterí
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switchí
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-10).
qOpening and Closing the Liftgate
Opening the liftgate
Pull up on the handle.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
secure.
Power Windowsí
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window. Always lock all passenger
power windows with the power
window lock switch on the driver's
side while children are in the vehicle,
and never allow children to play with
power window switches.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
don't open or close more than three
windows at once.
3-18
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda MPV_8T50-EA-04G_Edition1 Page102
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (113,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
Theft-Deterrent Systemí
The optional theft-deterrent system is
designed to prevent your vehicle or its
contents from being stolen when all the
doors, hood, and liftgate are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all the windows are completely
closed and all doors and the liftgate
are locked before leaving the vehicle.
Make sure the security indicator light
is flashing. Remember to take your
key and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
liftgate.
lOpening a door or the hood by
operating an inside door-lock knob or
the hood release handle.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.
Knowing Your Mazda
Security System
3-29íSome models. Mazda MPV_8T50-EA-04G_Edition1 Page113
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G
