Black plate (118,1)
Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qTilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, pull the tilt wheel release
lever under the steering column down,
adjust the wheel, then push the release
lever up to lock the column.
Lock release lever
After adjusting, push the wheel up and
down to be certain it's locked before
driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Convex Mirror:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
3-32
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda MPV_8U61-EA-05G_Edition1 Page118
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

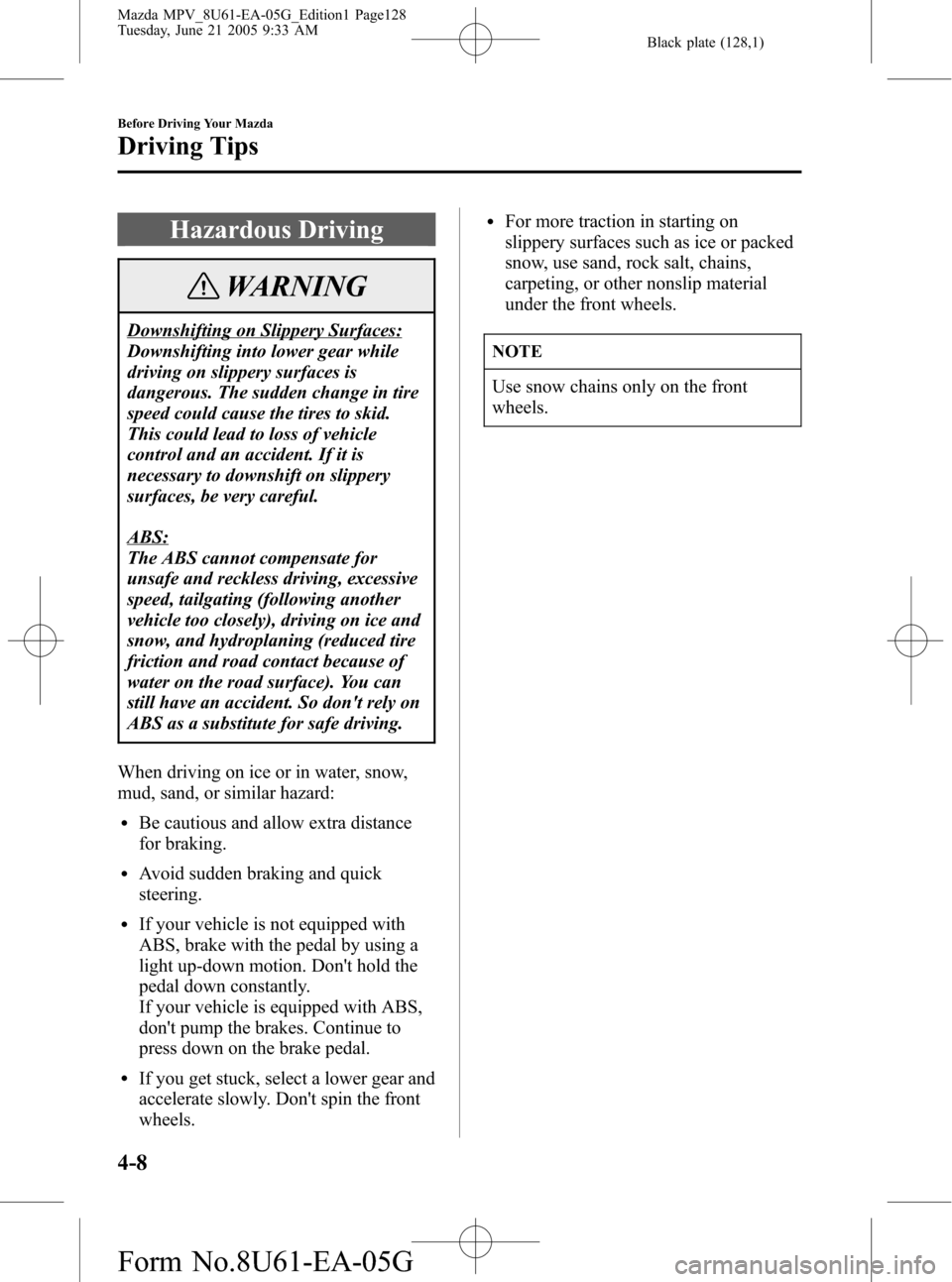

Black plate (128,1)
Hazardous Driving
WARNING
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident. So don't rely on
ABS as a substitute for safe driving.
When driving on ice or in water, snow,
mud, sand, or similar hazard:
lBe cautious and allow extra distance
for braking.
lAvoid sudden braking and quick
steering.
lIf your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don't hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don't pump the brakes. Continue to
press down on the brake pedal.
lIf you get stuck, select a lower gear and
accelerate slowly. Don't spin the front
wheels.
lFor more traction in starting on
slippery surfaces such as ice or packed
snow, use sand, rock salt, chains,
carpeting, or other nonslip material
under the front wheels.
NOTE
Use snow chains only on the front
wheels.
4-8
Before Driving Your Mazda
Driving Tips
Mazda MPV_8U61-EA-05G_Edition1 Page128
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (150,1)
CAUTION
lShifting into P, N or R while the
vehicle is moving can damage your
transaxle.
lShifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 4-9).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
Shifting from N or P:
It's dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
If the engine is running faster than
idle, don't shift from N or P into a
driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 5-gear sequence.
3 (Third)
The 3 position is helpful when driving in
heavy, slow-moving traffic and climbing
hills, for engine braking assist when going
down hills, or for starting on slick
surfaces and other situations where gentle
acceleration may be necessary.
Do not exceed 141 km/h (87 mph) in the
3 position.
2 (Second)
Use the 2 position for maximum power in
hard-pulling situations, or for climbing
and descending very steep grades.
Do not exceed 93 km/h (57 mph) in the 2
position.
WARNING
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed could
cause the tires to skid. This could lead
to loss of vehicle control and an
accident. Do not use sudden engine
braking on slippery road surfaces or at
high speeds.
5-10
Driving Your Mazda
Starting and Driving
Mazda MPV_8U61-EA-05G_Edition1 Page150
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (220,1)
Audio Control Switch
Operation (Steering Wheel)
í
NOTE
Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.
qAdjusting the Volume
To increase the volume, press the volume
button (
).
To decrease the volume, press the volume
button (
).
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
SIRIUS1> SIRIUS2> SIRIUS3> Cassette
tape player or MD player> cyclical).
NOTE
Cassette tape, MD, CD, CD changer
and SIRIUS digital satellite radio
modes cannot be selected in the
following cases:
lA cassette deck, MD, CD, CD
changer, or SIRIUS digital satellite
radio unit is not equipped on the
audio system.
lA cassette tape, MD, or CD has not
been inserted.
6-42
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page220
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (245,1)
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.
lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
NOTE
Make sure the jack is well lubricated
before using it.1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool bag, and spare
tire (page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
CAUTION
If the jack leans towards the front or the
rear when jacking up, lower the vehicle
until the wheels are firmly on the
ground. Then confirm that the parking
brake is set, the shift lever is in Park
(P), then push the blocks firmly under
the blocked tire.
In Case of an Emergency
Flat Tire
7-9
Mazda MPV_8U61-EA-05G_Edition1 Page245
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (246,1)
qRemoving a Flat Tire
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the beveled end of the jack lever.
NOTE
Force the end of the jack lever firmly
between wheel and cover, or removal
will be difficult.
CAUTION
Align the notch on the wheel cover
with the valve stem when installing it.
Tire valve
Notch
Damage could occur during installation
if the wheel cover is not properly
aligned.2. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any lug nuts until the tire
has been raised off the ground.
3. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
7-10
In Case of an Emergency
Flat Tire
Mazda MPV_8U61-EA-05G_Edition1 Page246
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (364,1)
T
Tachometer ........................................ 5-22
Temporary Spare Tire ....................... 8-31
Theft-Deterrent System ..................... 3-30
Third-row seat ................................... 2-20
Tiedown
Hook .......................................... 7-24
Tire Information ................................ 9-17
Tires
Flat tire ......................................... 7-3
Inflation pressure ........................ 8-29
Replacement ............................... 8-30
Rotation ...................................... 8-30
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-6
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-15
Tool ..................................................... 7-3
Towing
Description ................................. 7-23
Emergency towing ..................... 7-23
Recreational towing ................... 7-24
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-17
TCS indicator light ..................... 5-18
TCS OFF indicator light ............ 5-18
TCS OFF switch ........................ 5-18
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-21
Turn and Lane-Change Signals ......... 5-34
U
Under Seat Tray ................................ 6-55
V
Vanity Mirrors ................................... 6-45
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-24
ABS ............................................ 5-26
Air bag system ........................... 5-29
Brake system .............................. 5-26
Charging system ......................... 5-27
Check engine .............................. 5-28
Door-ajar .................................... 5-29
Engine oil pressure ..................... 5-28
Front seat belt pretensioner
system ........................................ 5-29
Immobilizer system .................... 5-30
Low fuel ..................................... 5-29
Seat belt ...................................... 5-29
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-20
Weights ............................................. 10-5
Wheel Replacement .......................... 8-32
Windows
Power windows .......................... 3-19
Rear quarter windows ................ 3-22
Windshield Washer ........................... 5-36
Windshield Wipers ............................ 5-36
Blades replacement .................... 8-22
Winter Driving .................................... 4-9
11-6
Index
Mazda MPV_8U61-EA-05G_Edition1 Page364
Tuesday, June 21 2005 9:38 AM
Form No.8U61-EA-05G
