NOTE
lThe keyless entry system is designed
to operate up to about 2.5 m (8 ft)
from the center of the vehicle, but
this may vary due to local
conditions.
lThe system doesn't operate when the
ignition switch is in the ON position.
lIf the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-6).
lAdditional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be reset.
qTransmitter
With power sliding doors
Lock button
Unlock button
Right sliding door button Left sliding
door button
Panic button
Operation
indicator light
Without power sliding doors
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
l(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
3-4
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page90
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (91,1)
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
once to indicate that all doors and the
liftgate are locked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed, refer to the theft-deterrent
system (page 3-30).
NOTE
Confirm that all doors and the liftgate
are locked visually or audibly by use of
the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 5 seconds.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that all doors and the
liftgate are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
turned off, refer to the theft-deterrent
system (page 3-30).
NOTE
After unlocking with the transmitter, all
doors and the liftgate will automatically
lock if one of the doors or the liftgate is
not opened within about 30 seconds.
Sliding door transmitter buttons
If your Mazda has power sliding doors
(page 3-12), the transmitter can open/
close the sliding doors.
Knowing Your Mazda
Doors and Locks
3-5
Mazda MPV_8U61-EA-05G_Edition1 Page91
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (92,1)

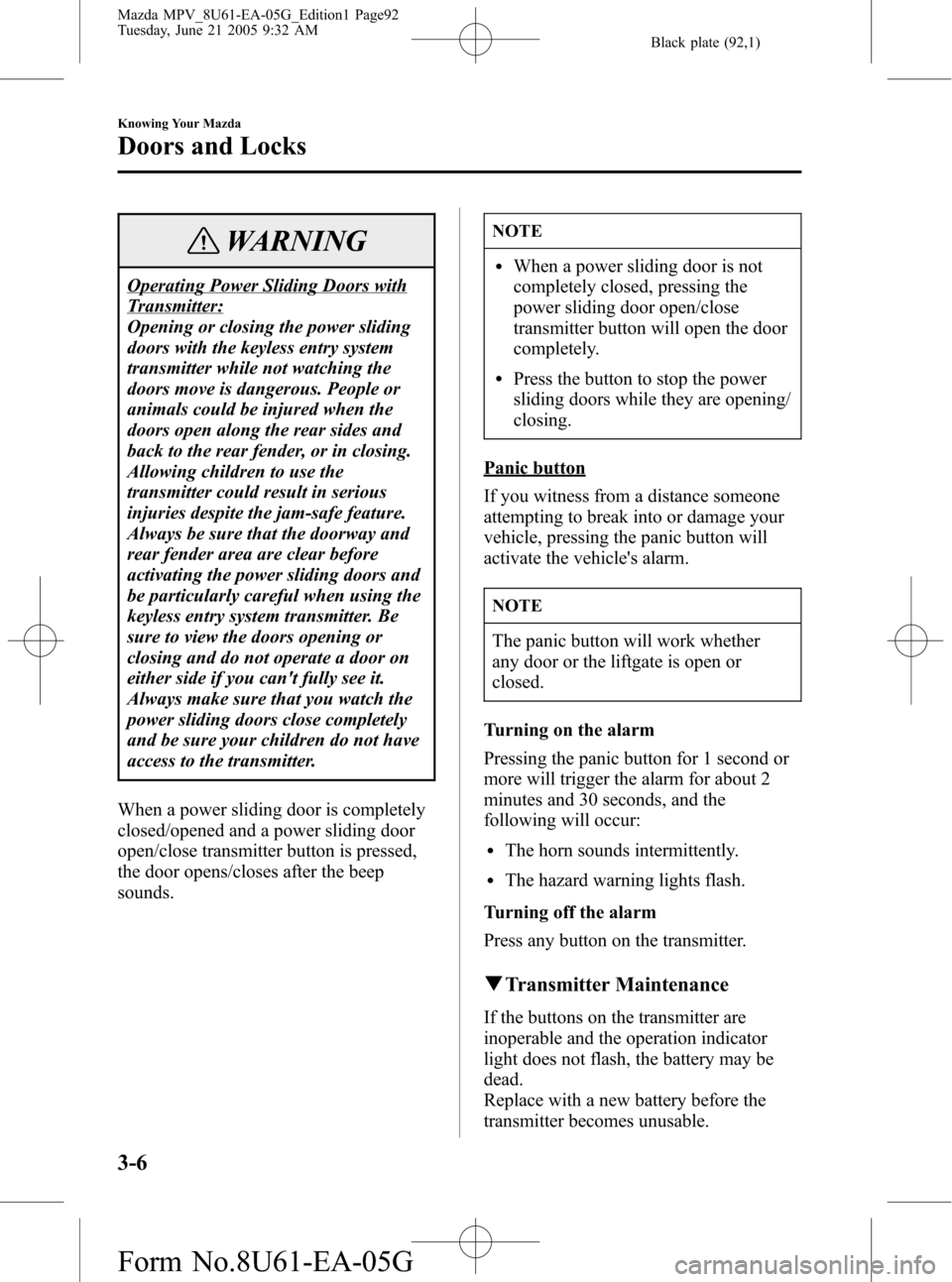

WARNING
Operating Power Sliding Doors with
Transmitter:
Opening or closing the power sliding
doors with the keyless entry system
transmitter while not watching the
doors move is dangerous. People or
animals could be injured when the
doors open along the rear sides and
back to the rear fender, or in closing.
Allowing children to use the
transmitter could result in serious
injuries despite the jam-safe feature.
Always be sure that the doorway and
rear fender area are clear before
activating the power sliding doors and
be particularly careful when using the
keyless entry system transmitter. Be
sure to view the doors opening or
closing and do not operate a door on
either side if you can't fully see it.
Always make sure that you watch the
power sliding doors close completely
and be sure your children do not have
access to the transmitter.
When a power sliding door is completely
closed/opened and a power sliding door
open/close transmitter button is pressed,
the door opens/closes after the beep
sounds.
NOTE
lWhen a power sliding door is not
completely closed, pressing the
power sliding door open/close
transmitter button will open the door
completely.
lPress the button to stop the power
sliding doors while they are opening/
closing.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether
any door or the liftgate is open or
closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.
lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
3-6
Knowing Your Mazda
Doors and Locks
Mazda MPV_8U61-EA-05G_Edition1 Page92
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (116,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Theft-Deterrent Systemí
The theft-deterrent system is designed to
prevent your vehicle or its contents from
being stolen when all doors, hood, and
liftgate are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights.
NOTE
lThe theft-deterrent system operates
with the key or the keyless entry
system transmitter.
lThe system will not function unless
it is properly armed. To properly
secure the vehicle, always make sure
all windows are completely closed
and all doors and the liftgate are
locked before leaving the vehicle.
Make sure the security indicator light
is flashing. Remember to take your
key and transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 3
minutes when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
liftgate.
lOpening a door or the hood by
operating an inside door-lock knob or
the hood release handle.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.
3-30
Knowing Your Mazda
íSome models.
Security System
Mazda MPV_8U61-EA-05G_Edition1 Page116
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (117,1)
qHow to Arm the System
1. Remove the key from the ignition
switch.
2. Make sure the hood is closed. Close
and lock all doors and the liftgate from
the outside using the key. If you have
the keyless entry system, press the lock
button on the transmitter.
The hazard warning lights will flash
once to indicate that the system is
armed.
The following method will also arm the
theft-deterrent system:
Close the hood and the liftgate . Press
the area on the door-lock switch
marked“LOCK”once. Close all doors.
NOTE
Locking the doors with the inside door-
lock knob will not arm the system.
3. The indicator light flashes once every 3
seconds to indicate that the system is
fully armed. It continues to flash until
the theft-deterrent system is turned off.
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door or the liftgate with the
key.
lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and turn it to the ON position.
The hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door or the liftgate with the
key.
lPress the unlock button on the keyless
entry system transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-31
Mazda MPV_8U61-EA-05G_Edition1 Page117
Tuesday, June 21 2005 9:32 AM
Form No.8U61-EA-05G

Black plate (119,1)
2. Depress the mirror switch in the
appropriate direction.
Mirror switch Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Manual control mirror
Adjust by hand.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-37).
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Do this with the day/night lever in the day
position.
Knowing Your Mazda
Steering Wheel and Mirrors
3-33íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page119
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (120,1)
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
3-34
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda MPV_8U61-EA-05G_Edition1 Page120
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (126,1)
Before Getting In
lBe sure the windows, outside mirrors,
and outside lights are clean.
lInspect inflation pressures and
condition of tires.
lLook under the vehicle for any sign of
a leak.
lIf you plan to back up, make sure
nothing is in your way.
NOTE
Engine oil, engine coolant, brake fluid,
washer fluid, and other fluid levels
should be inspected. See Maintenance,
Section 8.
After Getting In
lAre all doors closed and locked?
lIs the seat adjusted properly?
lAre the inside and outside mirrors
adjusted?
lIs everyone's seat belt fastened?
lCheck all gauges.
lCheck all warning lights when the
ignition switch is turned to the ON
position.
lRelease the parking brake and make
sure the parking brake warning light
goes off.
Always be thoroughly familiar with your
Mazda.
4-6
Before Driving Your Mazda
Before Starting the Engine
Mazda MPV_8U61-EA-05G_Edition1 Page126
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (136,1)
qSafety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.
WARNING
Towing Without Safety Chain:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision. Make sure the safety
chain is securely attached to both the trailer and the vehicle prior to departure.
qTrailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.
CAUTION
Don't connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle's electrical system and lighting systems. Have a
recreational vehicle dealer or trailer rental agency connect the system, and inspect the
brake lights and turn signals yourself before each trip.
qTrailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
WARNING
Hydraulic Trailer-Brake System:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury. Don't connect a
hydraulic trailer-brake system to your vehicle's brake system.
4-16
Before Driving Your Mazda
Towing
Mazda MPV_8U61-EA-05G_Edition1 Page136
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (141,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-3
Brake System ............................................................................ 5-4
Automatic Transaxle Controls .................................................. 5-9
Power Steering ........................................................................ 5-13
Cruise Control
í...................................................................... 5-13
Traction Control System (TCS)í........................................... 5-17
Instrument Cluster and Indicators ............................................ 5-20
Meters and Gauges .................................................................. 5-20
Warning/Indicator Lights and Beep Sounds ............................ 5-24
Warning/Indicator Lights ........................................................ 5-24
Beep Sounds ........................................................................... 5-32
Switches and Controls ................................................................ 5-33
Lighting Control ..................................................................... 5-33
Turn and Lane-Change Signals ............................................... 5-34
Fog Lights
í............................................................................ 5-35
Windshield Wipers and Washer .............................................. 5-35
Rear Window Wiper and Washer ............................................ 5-37
Rear Window Defroster ........................................................... 5-37
Horn ........................................................................................ 5-38
Hazard Warning Flasher .......................................................... 5-38
5-1íSome models.
Mazda MPV_8U61-EA-05G_Edition1 Page141
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G
