qOperating the Mini Disc (MD) Playerí
DisplayMD play button
Reverse button Repeat button MD displayMD slot
Random buttonFast-forward button
MD eject
button
Display
button Track up
button
Track down
button Scan
button
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
Playing
Press the MD play button (
)to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button (
) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
6-58
Interior Comfort
íSome models.
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page184
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (185,1)

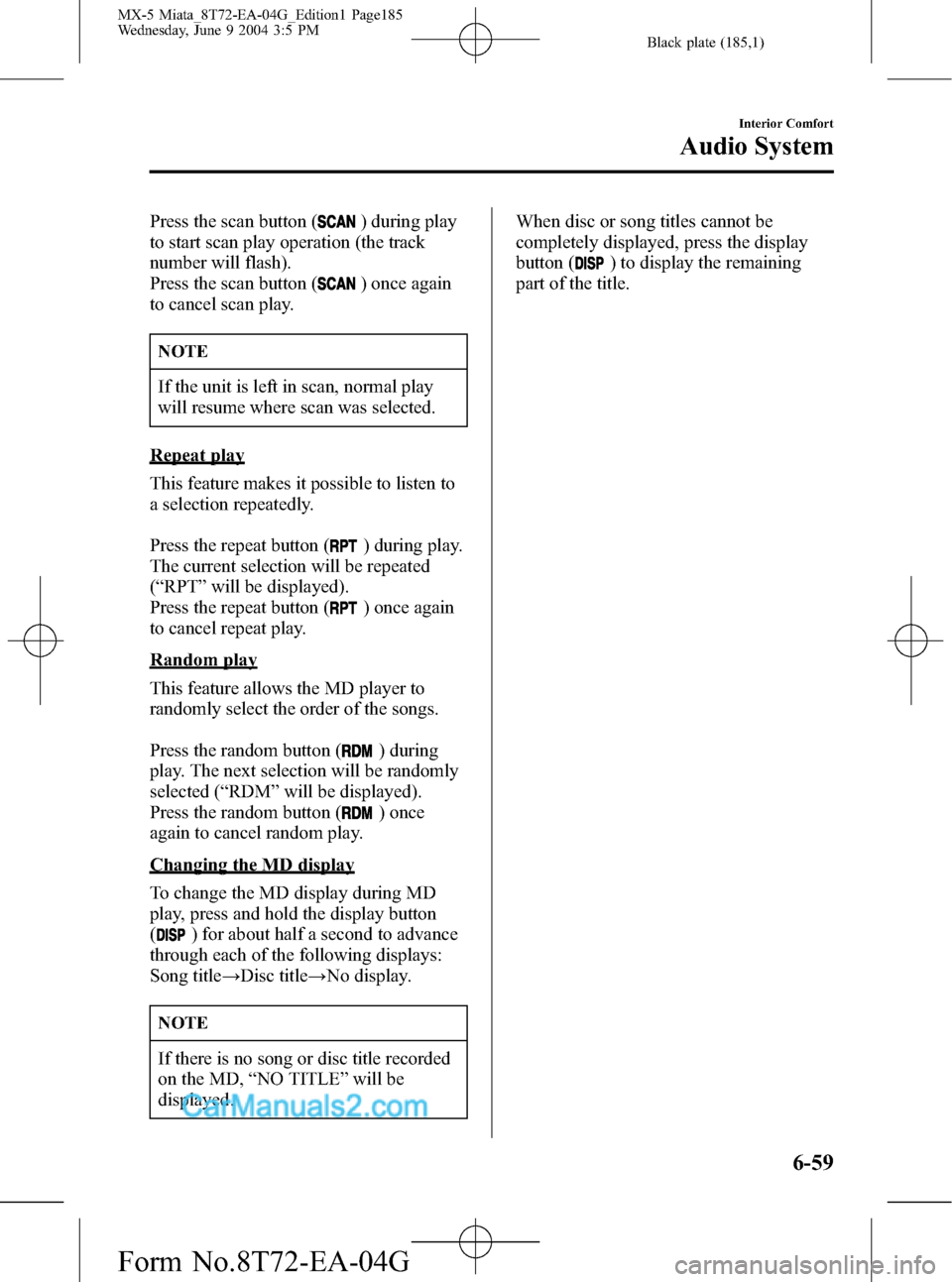

Press the scan button () during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Changing the MD display
To change the MD display during MD
play, press and hold the display button
(
) for about half a second to advance
through each of the following displays:
Song title→Disc title→No display.
NOTE
If there is no song or disc title recorded
on the MD,“NO TITLE”will be
displayed.When disc or song titles cannot be
completely displayed, press the display
button (
) to display the remaining
part of the title.
Interior Comfort
Audio System
6-59
MX-5 Miata_8T72-EA-04G_Edition1 Page185
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (186,1)
qOperating the Compact Disc (CD) Playerí
Display CD slot
Disc-in indicatorCD play button
Random button
Repeat buttonFast-forward button
CD eject
button
Scan button
Reverse
button Track up
button
Track down
button
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate and
the track number will be displayed.
Playing
Press the CD play button (
) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
6-60
Interior Comfort
íSome models.
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page186
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (187,1)
Press the scan button () during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Interior Comfort
Audio System
6-61
MX-5 Miata_8T72-EA-04G_Edition1 Page187
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (188,1)
qOperating the In-Dash CD Changerí
Disc-in indicator
Load button
Random button Repeat button
Disc up buttonReverse button
Channel preset buttons
DisplayCD slot
CD play button
CD eject
button
Scan button
Fast-forward
button Track up
button
Track down
button
Disc down
button
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.
NOTE
A CD cannot be inserted while the
display reads“WAIT”. A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume dial and the load button
(
) for about 2 seconds will turn
this beeping sound ON or OFF.Normal insertion
1. Press the load button (
).
2. When“In”is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button (
)
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 3 seconds
after the beep is heard.
3. When“In”is displayed, insert the CD.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
6-62
Interior Comfort
íSome models.
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page188
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (189,1)
Multiple insertion
1. Press and hold the load button (
)
for about 2 seconds until a beep is
heard.
2. When“In”is displayed, insert the CD.
3. When“In”is displayed again, insert
the next CD.
NOTE
The first-inserted CD will be played
automatically when:
lNo other CD is inserted within 15
seconds after“In”is displayed.
lThe CD trays are full.
Ejecting the CD
Normal ejection
1. Press the CD eject button (
). The
disc number and“OUT”will be
displayed.
2. Pull out the CD.
NOTE
When the CD is ejected during play, the
next CD will be played automatically.
Ejecting CDs from desired tray number
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired CD number within 3 seconds
after the beep is heard.
3. Pull out the CD.Multiple ejection
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep is
heard.
2. Wait 3 seconds or press the CD eject
button (
) again within 3 seconds
after the beep is heard.
3. Pull out the CD, then the next CD will
be ejected.
NOTE
lCDs will be ejected starting with the
one with the lowest number.
lAll CDs in the tray will be ejected
continuously.
lCDs can be ejected when the ignition
switch is off. Press and hold the CD
eject button (
) for about 2 seconds
and all CDs will eject.
Playing
Press the CD play button (
) to start
playing when a CD is in the unit.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Interior Comfort
Audio System
6-63
MX-5 Miata_8T72-EA-04G_Edition1 Page189
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (190,1)
Disc search
Press the disc up button (
) to skip
forward to the beginning of the next CD.
Press the disc down button (
)to
skip back to the beginning of the previous
CD.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
) during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
6-64
Interior Comfort
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page190
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (191,1)
