Black plate (71,1)
5. Align the rear deck latches with the
rear deck studs and set the hardtop
squarely onto the body.
Rear deck stud
Hardtop
Rear deck latch
Rear deck latch
6. Slide the hardtop forward while
pressing down on the rear deck latches
to lock the latches, and then verify that
they are secure by attempting to lift the
rear of the hardtop.
Rear deck latch
CAUTION
lBe careful not to strike the body with
any of the protruding hardtop
latches.
lThe rear defogger grid and the
defogger cord could be damaged
when removing or installing the top.
Make sure the rear defogger grid
isn't folded and the defogger cord
isn't caught between the vehicle's
body and the top.
7. Push each top latch up with the palm of
your hand until the lock buttons click
and the latches are locked.
Knowing Your Mazda
Doors and Locks
3-29
MX-5 Miata_8T72-EA-04G_Edition1 Page71
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (72,1)
8. Push each side latch down with the
palm of your hand until the lock
buttons click and the latches are
locked.
Side latch
CAUTION
After installation, verify that all latches
are secure. Operating the vehicle with
unlocked latches may cause hardtop
damage or loss.
9. Reconnect the rear window defroster
coupler.
Rear window defroster coupler
NOTE
If the top rattles even when all latches
are secure, drive slowly and contact an
Authorized Mazda Dealer for
inspection.
qDetachable Hardtop Appearance
Care
Refer to detachable hardtop maintenance
(page 8-46) for information on detachable
hardtop appearance care.
3-30
Knowing Your Mazda
Doors and Locks
MX-5 Miata_8T72-EA-04G_Edition1 Page72
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (73,1)
Immobilizer Systemí
The optional immobilizer system allows
the engine to start only with a key the
system recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
lChanges or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
lTo avoid damage to the key, do not:
lDrop the key.lGet the key wet.lExpose the key to any kind of
magnetic field.
lExpose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.
CAUTION
When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.
lA key ring rests on the key grip.
lMetal parts of other keys or metal
objects touch the key grip.
lSpare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key
grip.
lDevices for electronic purchases, or
security passage touch or come near
the key.
Knowing Your Mazda
Security System
3-31íSome models. MX-5 Miata_8T72-EA-04G_Edition1 Page73
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (74,1)
NOTE
l(U.S.A.)
This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
l(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
qImmobilizer System Warning
Light
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.
NOTE
lIf the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the engine
will not start.
lSignals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the warning light. If it
is flashing, remove the ignition key
and wait 2 seconds or more, then
reinsert it and try starting the engine
again. If it doesn't start after 3 or
more tries, contact an Authorized
Mazda Dealer.
lIf the warning light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.
lSince the electronic codes are reset
when repairing the immobilizer
system, the keys are needed. Bring
all the existing keys to an Authorized
Mazda Dealer.
3-32
Knowing Your Mazda
Security System
MX-5 Miata_8T72-EA-04G_Edition1 Page74
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (75,1)
qMaintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
lThe keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining replacement
key requires some waiting time.
They are only available through an
Authorized Mazda Dealer.
lAlways keep a spare key, in case one
is lost. If a key is lost, contact an
Authorized Mazda Dealer as soon as
possible.
lIf you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to it.
Knowing Your Mazda
Security System
3-33
MX-5 Miata_8T72-EA-04G_Edition1 Page75
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (76,1)
Mirrors
qOutside Mirrors
Check the mirrors' angles before driving.
WARNING
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
2. Depress the mirror switch in the
appropriate direction.
Outside mirrorSelector switch
Mirror switch
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
qRearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
3-34
Knowing Your Mazda
Mirrors
MX-5 Miata_8T72-EA-04G_Edition1 Page76
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (77,1)
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
Objects in the Storage Area:
Putting heavy or sharp objects in the
top storage area is dangerous.
During a sudden stop or collision, they
can become projectiles that might hit
and injure passengers.
Don't place heavy or sharp objects in
the top storage area.
WARNING
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when it's moving is a
dangerous way to ride. During a
sudden maneuver or collision you
could be seriously injured or even
killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
Knowing Your Mazda
Mirrors
3-35
MX-5 Miata_8T72-EA-04G_Edition1 Page77
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

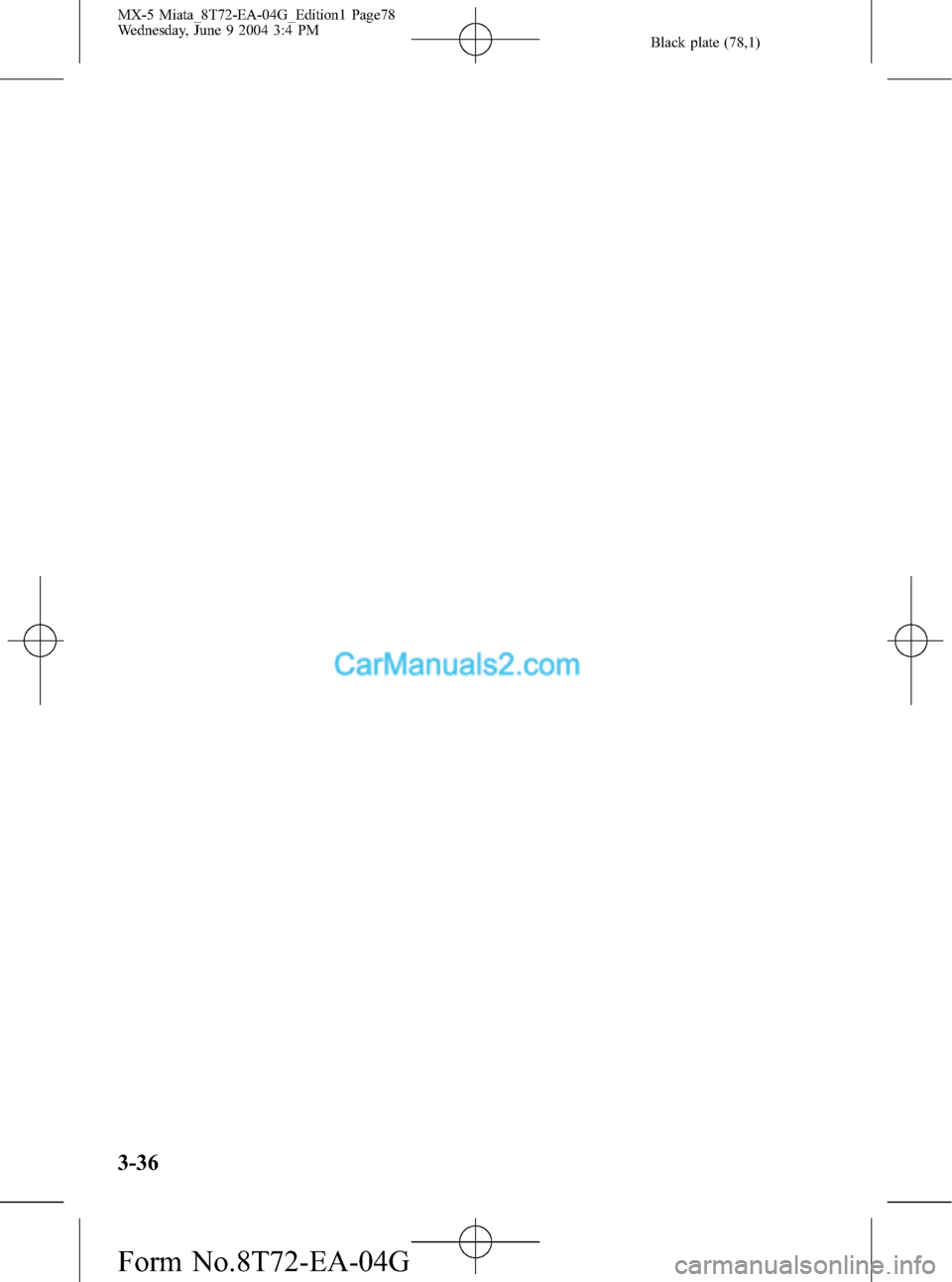

Black plate (78,1)
3-36
MX-5 Miata_8T72-EA-04G_Edition1 Page78
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (79,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-4
Engine Exhaust (Carbon Monoxide) ......................................... 4-6
Before Starting the Engine ........................................................... 4-7
Before Getting In ...................................................................... 4-7
After Getting In ......................................................................... 4-7
Driving Tips ................................................................................... 4-8
Break-In Period ......................................................................... 4-8
Money-Saving Suggestions ...................................................... 4-8
Hazardous Driving .................................................................... 4-9
Rocking the Vehicle .................................................................. 4-9
Winter Driving ........................................................................ 4-10
Driving In Flooded Area ......................................................... 4-12
Overloading ............................................................................ 4-12
Turbocharger Information (MAZDASPEED MX-5) .............. 4-13
Towing ......................................................................................... 4-14
Trailer Towing ......................................................................... 4-14
4-1
MX-5 Miata_8T72-EA-04G_Edition1 Page79
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G

Black plate (80,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
MX-5/Miata
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
You may use a regular unleaded fuel with an Octane Rating from 87 to 90 (91 to 95 RON)
but this will slightly reduce performance.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
MAZDASPEED MX-5
Fuel Octane Rating*(Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
CAUTION
lUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter or the oxygen sensor. The lead will
accumulate on the oxygen sensor and the catalyst inside the converter. This will result
in a malfunction of the emission control system, causing poor performance.
lYour vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
lNever add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
l(MAZDASPEED MX-5)
Never use fuel other than premium unleaded fuel for your vehicle. Use of other fuel
could cause poor engine performance and serious engine knocking.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
MX-5 Miata_8T72-EA-04G_Edition1 Page80
Wednesday, June 9 2004 3:4 PM
Form No.8T72-EA-04G
