The switch is mounted inside the trunk.
OFF position
ON position
With advanced key
With the switch in the ON position, the
remote trunk lid release button can be
operated.
With the switch in the OFF position, the
remote release button cannot be operated.
To open the trunk lid when the switch is
in the OFF position, do one of the
following:
lPress the request switch on the trunk
lid.
lPress the trunk button on the
transmitter.
lOpen the trunk with the auxiliary key.
Without advanced key
With the switch in the ON position, the
remote trunk lid release button and the
trunk button on the transmitter can be
operated.
With the switch in the OFF position, the
remote release button or the trunk button
on the transmitter cannot be operated.To open the trunk lid when the switch is
in the OFF position, open the trunk with
the key.
Knowing Your Mazda
Doors and Locks
3-33
MX-5_8U35-EA-05F_Edition1 Page91
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 92 of 366

Black plate (92,1)
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car or the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won't
play with them.
3-34
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition1 Page92
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 93 of 366

Black plate (93,1)
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release slide lever is
located on the inside of the trunk end trim.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don't leave the
keys in your vehicle with children and
keep them in a place where your
children will not find or play with
them.
Knowing Your Mazda
Doors and Locks
3-35
MX-5_8U35-EA-05F_Edition1 Page93
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 94 of 366

Black plate (94,1)
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Close
Open
Left window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
qOperating the Passenger Power
Window
To open the window to the desired
position, hold down the switch.
To close the window to the desired
position, pull up the switch.
Close
Open
Right window
3-36
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition1 Page94
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 95 of 366

Black plate (95,1)
Fuel-Filler Lid and Cap
WARNING
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.
When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck. Additionally, use of the
incorrect fuel filler cap or not using a
fuel filler cap may result in fuel leak,
which could result in serious burns or
death in an accident.
CAUTION
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
qFuel-Filler Lid
The remote fuel-filler lid release is
mounted in the seat side box.
To open the seat side box, unlock it and
pull the release catch.
To open the fuel-filler lid, pull on the
remote fuel-filler lid release.
Knowing Your Mazda
Doors and Locks
3-37
MX-5_8U35-EA-05F_Edition1 Page95
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 96 of 366

Black plate (96,1)
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close
Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Hood
WARNING
Closed and Securely Locked Hood:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident. Always
check that the hood is closed and
securely locked.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
3-38
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition1 Page96
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 97 of 366

Black plate (97,1)
2. Slide the hood latch to the right and lift
the hood.
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Clip
Support rod
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Insert the support rod in its clip while
holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.
3. Close the hood so that it locks securely.
Knowing Your Mazda
Doors and Locks
3-39
MX-5_8U35-EA-05F_Edition1 Page97
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 98 of 366

Black plate (98,1)
Convertible Top
Windshield header
Top latch assembly
Top storage area
The convertible
top's handles
qConvertible Top Precautions
WARNING
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when the vehicle is
moving is a dangerous way to ride.
During a sudden maneuver or
collision you could be seriously
injured or even killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
WARNING
Fastening Mechanisms:
It is dangerous to place your hands or
fingers near the fastening
mechanisms. Your hands or fingers
could be caught and injured by the
mechanism. Always keep your hands
and fingers away from the fastening
mechanisms when moving the top.
CAUTION
Remove leaves that accumulate on and
around the convertible top. If the leaves
are not removed, they may block the
water drainage outlets.
3-40
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition1 Page98
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 99 of 366

Black plate (99,1)
lBefore lowering or raising the top, stop
in a safe place off the right-of-way and
park on a level surface.
lMake sure nothing is on the top or near
the back window when raising or
lowering the top.
Even small objects may interfere and
cause damage.
lWhen lowering the top, make sure
objects inside the vehicle aren't blown
away by the wind.
lSecure all loose objects inside before
driving with the top down.
lTo help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the top
securely and lock both doors when
leaving the vehicle.
lDon't drive through an automatic car
wash; it may damage the top.
lDon't raise or lower the top when the
temperature is below 5 °C (41 °F) ; this
will damage the top material.
lDon't lower the top when it's wet. If the
top dries while folded, it will
deteriorate and shrink.
lLowering the top while it's wet can
also cause water to drip into the
passenger compartment.
lDon't raise or lower the top when the
wind is strong; the wind could damage
the top.
qLowering the Convertible Top
1. Park the vehicle on a level surface and
firmly set the parking brake.
2. Lower the side windows, then turn off
the ignition.3. Remove all objects in the top storage
area.
WARNING
Objects in the Storage Area:
Putting heavy or sharp objects in the
top storage area is dangerous.
During a sudden stop or collision, they
can become projectiles that might hit
and injure passengers.
Don't place heavy or sharp objects in
the top storage area.

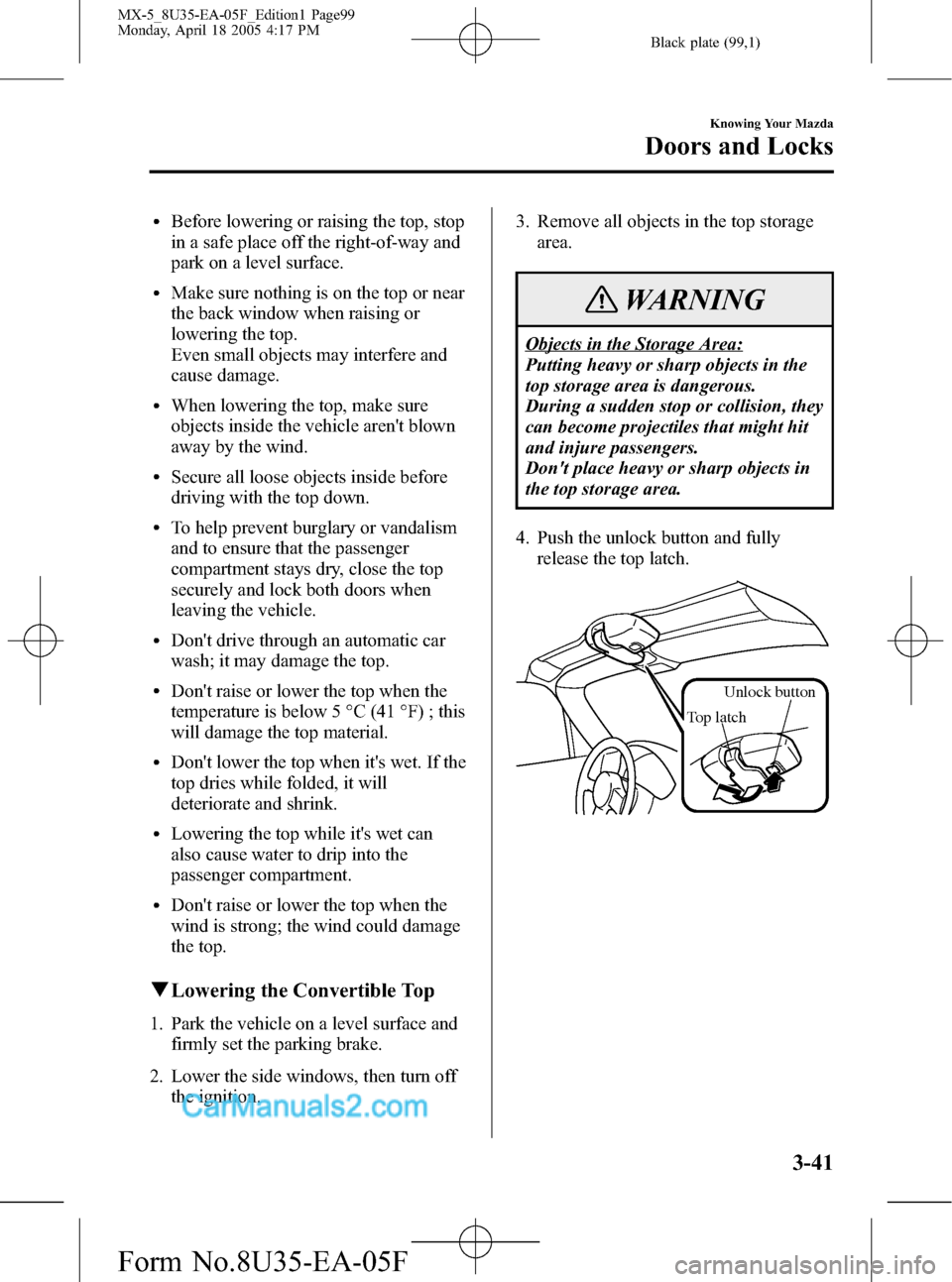

4. Push the unlock button and fully
release the top latch.
Unlock button
Top latch
Knowing Your Mazda
Doors and Locks
3-41
MX-5_8U35-EA-05F_Edition1 Page99
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
Page 100 of 366

Black plate (100,1)
5. Pull the top rearward on the front
section of the top to release it from the
windshield header.
Windshield header
NOTE
To lower the convertible top from inside
the vehicle, use the convertible top's
handles.
The convertible
top's handles
6. Fold back the front and carefully lower
it to the storage area.
7. Press down the top so that it locks
securely.
8. If a windblocker is necessary, raise a
windblocker.
NOTE
The windblocker reduces the amount of
wind coming into the cabin from behind
when driving with the top opened.
Refer to Windblocker on page 6-43.
3-42
Knowing Your Mazda
Doors and Locks
MX-5_8U35-EA-05F_Edition1 Page100
Monday, April 18 2005 4:17 PM
Form No.8U35-EA-05F
