flat tire MAZDA MODEL MX-5 2014 (in English) Owner's Manual

Black plate (310,1)
10. Hold the bottom of the bottle upright,squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
NOTE
The tire sealant cannot be reused. Purchase a
new tire sealant kit at an Authorized Mazda
Dealer.
11. Pull out the injection hose from thevalve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates completion of the tire repair on a flat
outer surface of the repaired tire.
NOTE
Do not throw away the empty tire sealant
bottle after use. Return the empty tire sealant
bottle to an Authorized Mazda Dealer when
replacing the tire. The empty tire sealant bottle
will need to be used to extract and dispose of
the used sealant from the tire.
13. Attach the vehicle speed restrictionsticker in a place where the driver can
easily see it.
WARNING
Attach the speed restriction sticker in a
place where it can be viewed easily by
the driver:ØApplying the speed restriction
sticker to the steering wheel is
dangerous as it could interfere
with the air bag deployment and
result in serious injury.
Ø Do not apply the sticker to any
position other than the position
indicated in the illustration.
7-10
In Case of an Emergency
Flat Tire
MX-5_8DG6-EA-13F_Edition1 Page310
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (311,1)

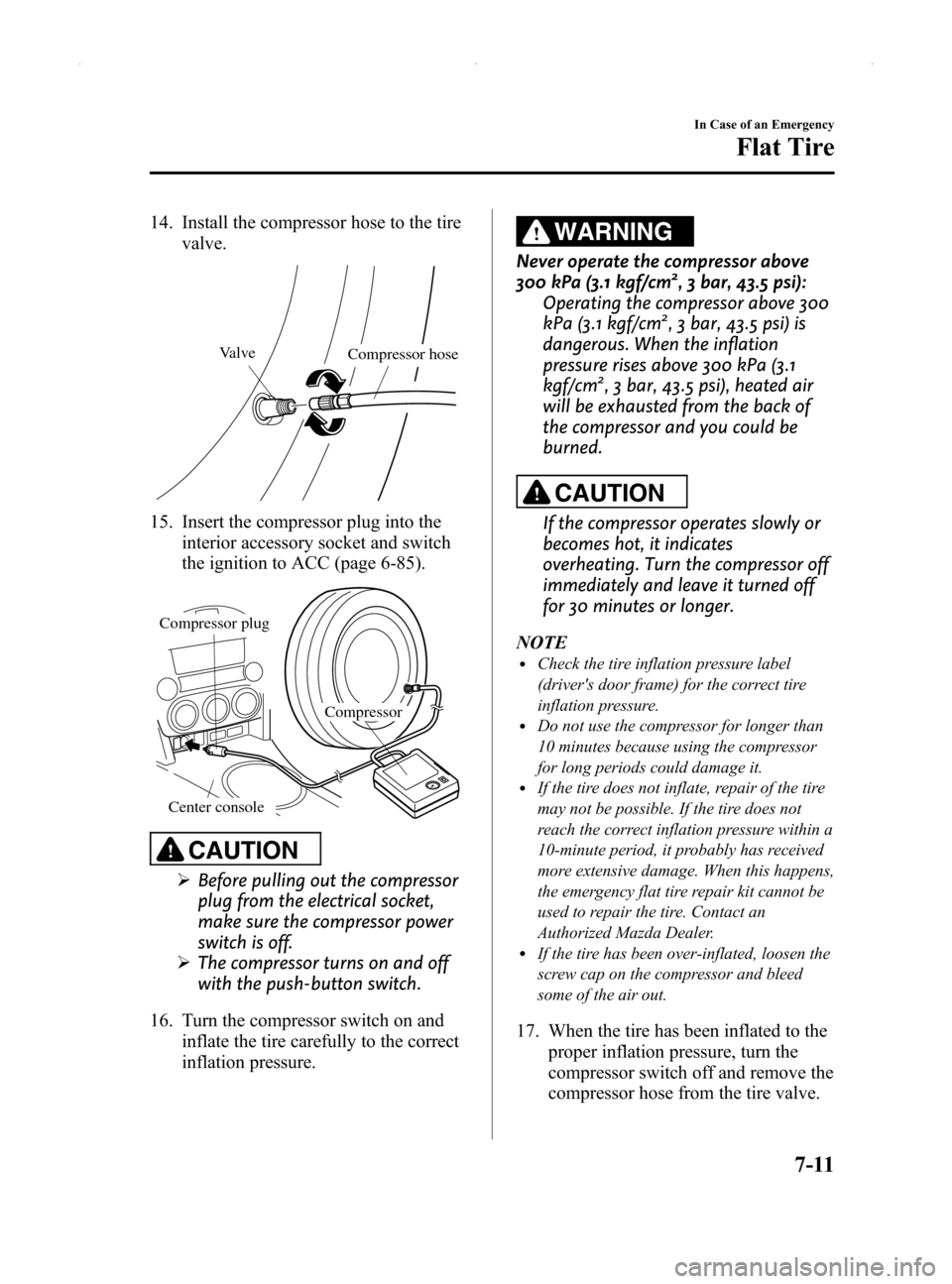

14. Install the compressor hose to the tirevalve.
Valve Compressor hose
15. Insert the compressor plug into the
interior accessory socket and switch
the ignition to ACC (page 6-85).
Compressor plug
Center console
Compressor
CAUTION
ØBefore pulling out the compressor
plug from the electrical socket,
make sure the compressor power
switch is off.
Ø The compressor turns on and off
with the push-button switch.
16. Turn the compressor switch on and inflate the tire carefully to the correct
inflation pressure.
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi):
Operating the compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi) is
dangerous. When the inflation
pressure rises above 300 kPa (3.1
kgf/cm
2, 3 bar, 43.5 psi), heated air
will be exhausted from the back of
the compressor and you could be
burned.
CAUTION
If the compressor operates slowly or
becomes hot, it indicates
overheating. Turn the compressor off
immediately and leave it turned off
for 30 minutes or longer.
NOTE
lCheck the tire inflation pressure label
(driver's door frame) for the correct tire
inflation pressure.
lDo not use the compressor for longer than
10 minutes because using the compressor
for long periods could damage it.
lIf the tire does not inflate, repair of the tire
may not be possible. If the tire does not
reach the correct inflation pressure within a
10-minute period, it probably has received
more extensive damage. When this happens,
the emergency flat tire repair kit cannot be
used to repair the tire. Contact an
Authorized Mazda Dealer.
lIf the tire has been over-inflated, loosen the
screw cap on the compressor and bleed
some of the air out.
17. When the tire has been inflated to the proper inflation pressure, turn the
compressor switch off and remove the
compressor hose from the tire valve.
In Case of an Emergency
Flat Tire
7-11
MX-5_8DG6-EA-13F_Edition1 Page311
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (312,1)
18. Install the tire valve cap.
19. Put the emergency flat tire repair kitin the trunk and continue driving.
CAUTION
ØDrive carefully to an Authorized
Mazda Dealer and keep the
vehicle speed below 80 km/h (50
mph).
Ø If the vehicle is driven 80 km/h (50
mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With Tire Pressure Monitoring System)
If the tire is not properly inflated, the tire
pressure monitoring system warning light will
illuminate (page 5-32).
20. After driving the vehicle for 10 minutes or 5 km (3 miles), check the
tire pressure with the tire pressure
gauge equipped with the compressor.
If the tire pressure has fallen below
the correct tire pressure, inflate the
tire to the correct pressure again
following the steps from number 15.
CAUTION
ØIf the tire inflation pressure falls
below 130 kPa (1.3 kgf/cm2or bar,
18.9 psi), repair cannot be done
with the repair kit. Park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer.
Ø If the tire inflation pressure
continues to remain low after
repeating steps 14 to 21, park the
vehicle on a level surface off the
right-of-way and contact an
Authorized Mazda Dealer. NOTE
When checking the tire inflation pressure with
the tire pressure gauge on the compressor unit,
make sure the compressor switch is turned off.
21. The emergency flat tire repair is
completed if the tire air pressure does
not decrease. Drive the vehicle
carefully to the nearest Authorized
Mazda Dealer promptly and have the
tire replaced. Mazda recommends that
the tire be replaced with a new one. If
the tire is to be repaired and reused,
consult an Authorized Mazda Dealer.
CAUTION
ØFor a tire which has undergone an
emergency flat tire repair using
the emergency flat tire repair kit,
Mazda recommends that the tire
be replaced with a new one as
soon as possible. If the tire is to be
repaired and reused, consult an
Authorized Mazda Dealer.
Ø The wheel can be reused after any
sealant adhering to it is wiped off
and carefully inspected. However,
replace the tire valve with a new
one.
qInspecting the IMS Emergency
Flat Tire Repair Kit
Inspect the emergency tire repair kit at
regular intervals.
lCheck the tire sealant period of
effective use.
lCheck the operation of the tire
compressor.
7-12
In Case of an Emergency
Flat Tire
MX-5_8DG6-EA-13F_Edition1 Page312
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (313,1)
NOTE
The tire sealant has a period of effective use.
Check the period of effective use indicated on
the bottle label and do not use it if it has
expired. Have the tire sealant replaced at an
Authorized Mazda Dealer before the period of
effective use has expired.Changing a Tire
WARNING
Be sure to follow the directions for
changing a tire:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
NOTE
lMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-35).
In Case of an Emergency
Flat Tire
7-13
MX-5_8DG6-EA-13F_Edition1 Page313
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (314,1)
1. Park on a level surface off the right-of-way and firmly set the parking brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, and tool (page 7-5).
6. Block the wheel diagonally opposite the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
qRemoving a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any until the tire has been
raised off the ground.
2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
7-14
In Case of an Emergency
Flat Tire
MX-5_8DG6-EA-13F_Edition1 Page314
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (315,1)
4. Place the jack under the jack-upposition closest to the tire being
changed with the jack head squarely
under the jack-up point.
Jacking position
5. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.
Jacking position
Tire blocks
WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack: Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or the
vehicle could fall off the jack
resulting in an accident.
Use only the jack provided with your
Mazda: Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.
Never place objects under the jack: Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.
In Case of an Emergency
Flat Tire
7-15
MX-5_8DG6-EA-13F_Edition1 Page315
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (316,1)
6. Insert the jack handle into the jack.
7. Turn the jack handle clockwise andraise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.
Do not start the engine or shake the
vehicle while it is jacked up: Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting in
an accident.
Never go under the vehicle while it is
jacked up: Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
8. Remove the lug nuts by turning them counterclockwise, then remove the
wheel.
7-16
In Case of an Emergency
Flat Tire
MX-5_8DG6-EA-13F_Edition1 Page316
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (317,1)
qLocking Lug Nutsí
If your vehicle has Mazda optional
antitheft wheel lug nuts, one on each
wheel will lock the tires and you must use
a special key to unlock them. This key
will attach to the lug wrench. Register
them with the lock manufacturer by filling
out the card provided in the glove
compartment and mailing it in the
accompanying envelope. If you lose this
key, consult an Authorized Mazda Dealer
or use the lock manufacturer's order form,
which is with the registration card.
Special key
Antitheft lug nut
To remove an antitheft lug nut
1. Obtain the special key for the antitheft
lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the nut,and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.
2. Place the lug wrench on top of the special key, apply pressure, and turn it
clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88 ―118 (9 ―12, 65 ―87)
q Mounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Make sure the mounting surfaces of
the wheel, hub and lug nuts are clean
before changing or replacing tires:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.
In Case of an Emergency
Flat Tire
7-17íSome models.
MX-5_8DG6-EA-13F_Edition1 Page317
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (318,1)
2. Mount the tire.
3. Install the lug nuts with the bevelededge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. 4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88
―118
(9 ― 12, 65 ―87)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration: Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
7-18
In Case of an Emergency
Flat Tire
MX-5_8DG6-EA-13F_Edition1 Page318
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F

Black plate (319,1)
5. Remove the tire blocks and store thetools, jack, and damaged tire.
6. Check the inflation pressure. Refer to Tires on page 10-7.
7. Have the flat tire repaired or replaced as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure: Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
NOTE
To prevent the jack and tool from rattling, store
them properly.
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-32).
In Case of an Emergency
Flat Tire
7-19
MX-5_8DG6-EA-13F_Edition1 Page319
Thursday, May 30 2013 10:52 AM
Form No.8DG6-EA-13F
