MAZDA MODEL MX-5 2014 Owners Manual (in English)

Black plate (291,1)
4.Say: [Beep] “Passcode ”
5. Prompt: “Passcode is enabled. Would
you like to disable it? ”
6. Say: [Beep] “Ye s ”
7. Prompt: “Passcode is disabled,
returning to main menu. ”
Confirmation Prompts
The confirmation prompt confirms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned on,
the system reads out the voice input
command previously received and
confirms whether the command is correct
before advancing to the command
execution.
When the confirmation prompt function is
turned on:
(Ex.“Calling John's phone. Is this
correct? ”)
When the confirmation prompt function is
turned off:
(Ex. “Calling John's phone. ”)
NOTE
If the confirmation prompt function is turned
off when making an emergency call, the system
reads out and confirms the command before
executing it.
1. Press the voice recognition/hands-free switch with a short press.
2. Say: [Beep] “Setup ”
3. Prompt: “Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say “cancel ”to return to main
menu. ”
4. Say: [Beep] “Confirmation prompts” 5.
Prompt: “Confirmation prompts are
on/off. Would you like to turn
confirmation prompts off/on? ”
6. Say: [Beep] “Ye s ”
7. Prompt: “Confirmation prompts are
off/on, returning to main menu. ”
qVoice recognition learning
function (Speaker enrollment)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice.
If the recognition of the voice input
commands to the system is not adequate,
this function can largely improve the
system's voice recognition of the user. If
your voice can be recognized sufficiently
without using this function, you may not
realize the added benefit of the function.
To register your voice, the voice input
command list must be read out. Read out
the list when the vehicle is parked.
Perform the registration in as quiet a place
as possible (page 6-64).
The registration must be performed
completely. The required time is a few
minutes. The user needs to be seated in
the driver's seat with the voice input
command list for voice recognition
learning open to the page indicated below.
1. Press the voice recognition/hands-free
switch with a short press.
2. Say: [Beep] “Voice training ”
3. Prompt: “This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the phone
button when you are ready to begin.
Press and hold the phone button to
cancel at any time. ”
Interior Comfort
Bluetooth® Hands-Free
6-77
MX-5_8DG6-EA-13F_Edition1 Page291
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (292,1)
4. Press the voice recognition/hands-freeswitch with a short press.
5. The voice guidance reads out the voice input command number (refer to the
voice input command list for voice
recognition learning). (Ex. “Please read
phrase 1 ”)
6. Say: [Beep] “0123456789 ”(Say the
voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
7. Prompt: “Speaker enrollment is
complete, returning to main menu. ”
Voice input command list for voice
recognition learning
When reading out, the following points
must be observed:
lRead out the numbers one at a time
correctly and naturally.
(For example, “1234 ”must be read out
“ one, two, three, four ”, not “twelve, thirty
four ”.)
lDo not read out parentheses. “(” and
hyphens “-” are used for separating
numbers in a phone number.
Ex.
“ (888) 555-1212 ”must be spoken “Eight, eight,
eight, five, five, five, one, two, one, two. ”
Phrase Command 1 0123456789
2 (888) 555-1212
3 Call
4 Dial
5 Setup
6 Cancel
7 Continue
8 Help
NOTE
After user voice registration is completed,
voice guidance “Speaker enrollment is
complete, returning to main menu ”is
announced.
q DTMF (dual tone multi-
frequency signal) transmission
This function is used when transmitting
DTMF via the user's voice. The receiver
of a DTMF transmission is generally a
home telephone answering machine or a
company's automated guidance call center
(When you send tone signals back
according to the voice guidance
recording).
1. Press the voice recognition/hands-free
switch with a short press.
2. Say: [Beep] “XXXX... send ”(Say
DTMF code)
3. Prompt: “Sending XXXX... (DTMF
code) ”
6-78
Interior Comfort
Bluetooth® Hands-Free
MX-5_8DG6-EA-13F_Edition1 Page292
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (293,1)
When Bluetooth® Hands-
Free cannot be used
Bluetooth®Hands-Free cannot be used
under the following conditions:
lThe mobile telephone is outside of the
communication area.
lThe mobile telephone has a
malfunction.
lThe mobile telephone is not connected
to the hands-free unit equipped on the
vehicle.
lThe mobile telephone battery is weak.lThe mobile telephone is turned off.lThe mobile telephone is placed where
radio reception is difficult.
Safety Certification
FCC ID: CB2MBLUEC07 IC:279B-
MBLUEC07
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
The term “IC: ”before the radio
certification number only signifies that
Industry Canada technical specifications
were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. End-users and installers must
be provided with installation instructions
and transmitter operating conditions for
satisfying RF exposure compliance.
Interior Comfort
Bluetooth® Hands-Free
6-79
MX-5_8DG6-EA-13F_Edition1 Page293
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (294,1)

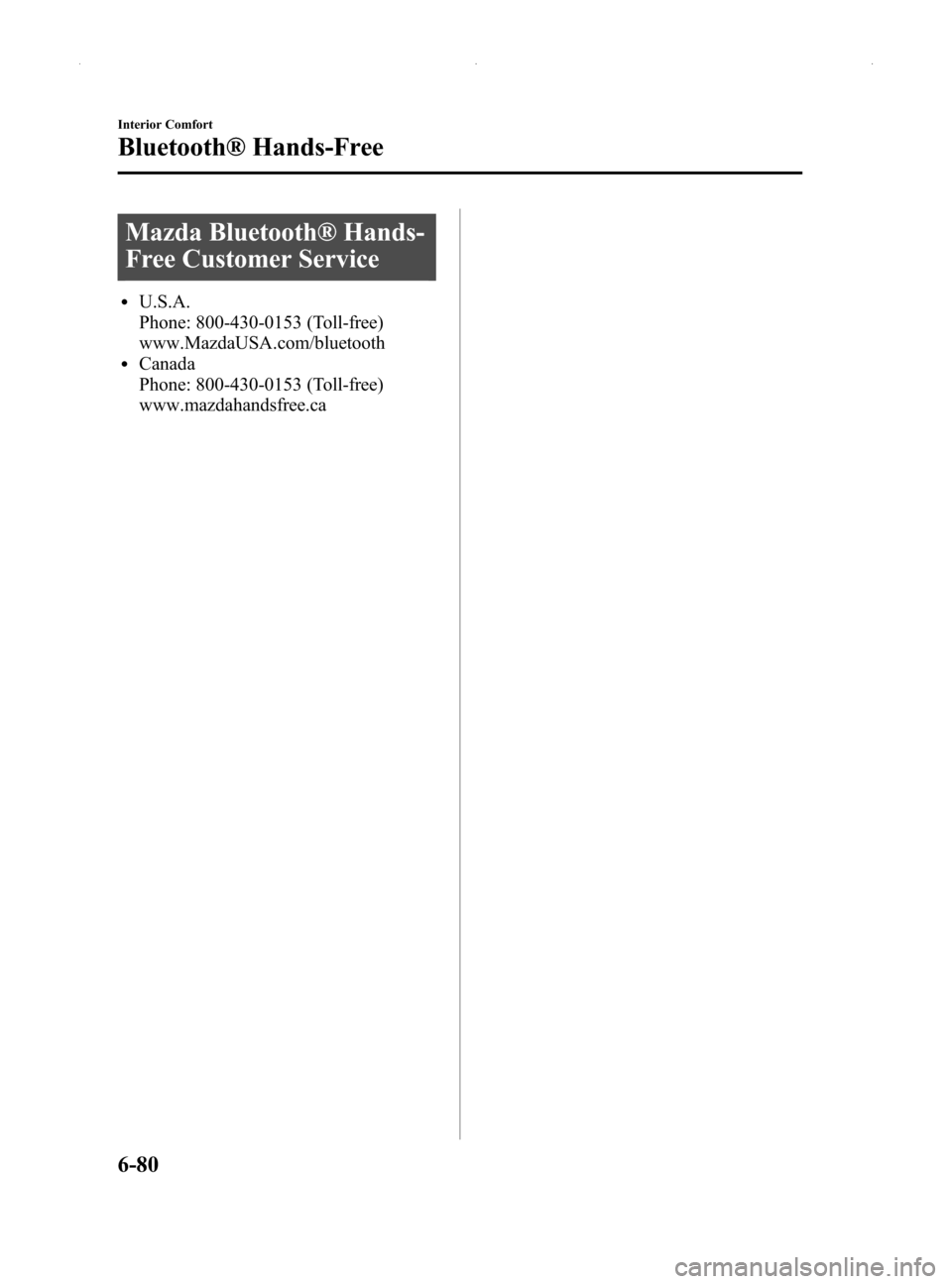

Mazda Bluetooth® Hands-
Free Customer Service
lU.S.A.
Phone: 800-430-0153 (Toll-free)
www.MazdaUSA.com/bluetooth
lCanada
Phone: 800-430-0153 (Toll-free)
www.mazdahandsfree.ca
6-80
Interior Comfort
Bluetooth® Hands-Free
MX-5_8DG6-EA-13F_Edition1 Page294
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (295,1)
Sunvisors
When you need a sunvisor, lower it for
use in front.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qOverhead Light
Switch
Position Overhead Light
Light off
Light is on when any door is open
Light on
q
Trunk Light
Switch
Position Trunk Light
Light off
Light on when the trunk is open
Interior Comfort
Interior Equipment
6-81
MX-5_8DG6-EA-13F_Edition1 Page295
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (296,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
To open the cup holder lid, press the
switch rearward and slide the lid open.
Switch
Multi-Pocket
Multi-pockets are on the inside of the
doors.
Multi-pocket
CAUTION
Do not use the multi-pockets for
containers without caps. The
contents may spill when the door is
opened or closed.
6-82
Interior Comfort
Interior Equipment
MX-5_8DG6-EA-13F_Edition1 Page296
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (297,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
Do not put articles in storage spaces
with no lid: Putting articles in storage spaces
with no lid is dangerous as they
could be thrown around the cabin if
the vehicle is suddenly accelerated
and cause injury depending on how
the article is stored.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
q Seat Side Box
To open, pull the release catch.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
Interior Comfort
Interior Equipment
6-83
MX-5_8DG6-EA-13F_Edition1 Page297
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (298,1)
qBack Trim Storage Boxí
Small items can be stored in the back trim
storage box.
To use the back trim storage box
1. To use the desired storage box, slide
the seat in front of it all the way
forward.
Refer to Seat Slide on page 2-2.
2. Fold the seatback forward all the way down.
Refer to Seat Recline on page 2-3.
3. If your vehicle has a lid, pull the latch to open.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward.
CAUTION
Do not store excessive weight in the
back trim storage box as it could be
damaged.
q Mesh Pocket
Maps or pamphlets can be placed in the
mesh pocket.
Mesh pocket
CAUTION
Do not place thick objects in the
mesh pocket as they could damage
the pocket.
6-84
Interior Comfort
íSome models.
Interior Equipment
MX-5_8DG6-EA-13F_Edition1 Page298
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (299,1)
Accessory Socket
Switch the ignition to ACC or ON.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
Ø Depending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-85
MX-5_8DG6-EA-13F_Edition1 Page299
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F

Black plate (300,1)
Windblocker
This windblocker reduces rear wind blast
into the cabin when driving with the
convertible top down.
To use the windblocker, lift it upright.
6-86
Interior Comfort
Interior Equipment
MX-5_8DG6-EA-13F_Edition1 Page300
Thursday, May 30 2013 10:51 AM
Form No.8DG6-EA-13F
