2. Insert a screwdriver into the slot andpush the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot andgently pry open the transmitter.
4. Remove the battery.
5. Put in the new battery (CR1620 orequivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and snap the transmitter shut.
7. Align the key with the transmitter as shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
Knowing Your Mazda
Doors and Locks
3-27
MX-5_8DG6-EA-13F_Edition1 Page81
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (82,1)
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-28
Knowing Your Mazda
Doors and Locks
MX-5_8DG6-EA-13F_Edition1 Page82
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (83,1)
qDeclaration of Conformity
Keyless entry system
Knowing Your Mazda
Doors and Locks
3-29
MX-5_8DG6-EA-13F_Edition1 Page83
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (84,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them: Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep both doors locked when driving: Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended: Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
After closing the doors, always verify
that they are securely closed: Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident. Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
Either door can be locked/unlocked with
the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-15).
3-30
Knowing Your Mazda
Doors and Locks
MX-5_8DG6-EA-13F_Edition1 Page84
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (85,1)
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-24).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.
Lock
Unlock
To lock any door with the door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTElWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
l(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(With retractable type key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
lThe red indication can be seen when the
door-lock knob is unlocked.
Red indication
Knowing Your Mazda
Doors and Locks
3-31
MX-5_8DG6-EA-13F_Edition1 Page85
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (86,1)
qPower Door Locksí
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. Both doors will automatically
unlock if they are locked using the power
door locks with any door open.
(With retractable type key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, both doors will automatically
unlock if they are locked using the power
door locks with any door open.
Locking, unlocking with key
Both doors lock automatically when the
driver's door is locked with the key.
Both doors unlock when the driver's door
is unlocked and the key is held in the
unlock position for one second or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
both doors. To unlock only the driver's door,
insert the key into the driver's door lock and
turn the key briefly to the unlock position and
then immediately return it to the center
position.
Locking, unlocking with door-lock
switch
Both doors lock automatically when
LOCK is pressed. They all unlock when
the unmarked part of the door-lock switch
is pressed.
Lock
Unlock
Locking, unlocking with request switch
(with advanced key)
Both doors can be locked/unlocked by
operating the request switch on the front
doors while carrying the advanced key
outside the vehicle, refer to Operations
Using Advanced Keyless Functions (page
3-7).
Locking, unlocking with transmitter
(with advanced key)
Both doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-15).
Locking, unlocking with transmitter
(with retractable type key)
Both doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-24).
3-32
Knowing Your Mazda
íSome models.
Doors and Locks
MX-5_8DG6-EA-13F_Edition1 Page86
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (87,1)
Trunk Lid
WARNING
Never allow a person to ride in the
trunk:Allowing a person to ride in the trunk
is dangerous. In addition, the person
in the trunk could be seriously
injured or killed during sudden
braking or a collision.
Keep the trunk closed when driving: Exhaust gas entering the cabin of a
vehicle through an open trunk is
dangerous. This gas contains CO
(carbon monoxide), which is
colorless, odorless, and highly
poisonous. If inhaled, it can cause
loss of consciousness and death.
CAUTION
When loading or unloading luggage
in the luggage compartment, turn off
the engine. Otherwise, you could get
burned by the heat of the exhaust
gas.
qOpening and Closing the Trunk Lid
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
doors and the trunk, and keeping the
keys where children can not play with
them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Knowing Your Mazda
Doors and Locks
3-33
MX-5_8DG6-EA-13F_Edition1 Page87
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (88,1)
CAUTION
Do not open the trunk while the
power retractable hardtop is
opening/closing. The power
retractable hardtop and trunk lid
mechanisms could be damaged.
Opening the trunk lid with the request
switch (with advanced key)
The trunk lid can be opened by operating
the request switch on the trunk lid while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Opening the trunk lid with the
transmitter (with advanced key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-15).
Opening the trunk lid with the
transmitter (with retractable type key)
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-24).
Opening the trunk lid with the remote
release button
Push the release button.
NOTE
(With power retractable hardtop)
The trunk lid can only be opened when the
power retractable hardtop is fully opened/
closed. Open/close the power retractable
hardtop completely before opening the trunk
lid.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qRemote Trunk Lid Release Lock-Out
The remote release may be canceled using
the trunk lid release lock-out button to
prevent anyone in the vehicle from
opening the trunk.
NOTE
You cannot prevent another person from
getting access to your trunk if you give the
person your key.
The switch is mounted inside the trunk.
OFF position
ON position
With advanced key
With the switch in the ON position, the
remote trunk lid release button can be
operated.
3-34
Knowing Your Mazda
Doors and Locks
MX-5_8DG6-EA-13F_Edition1 Page88
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (89,1)

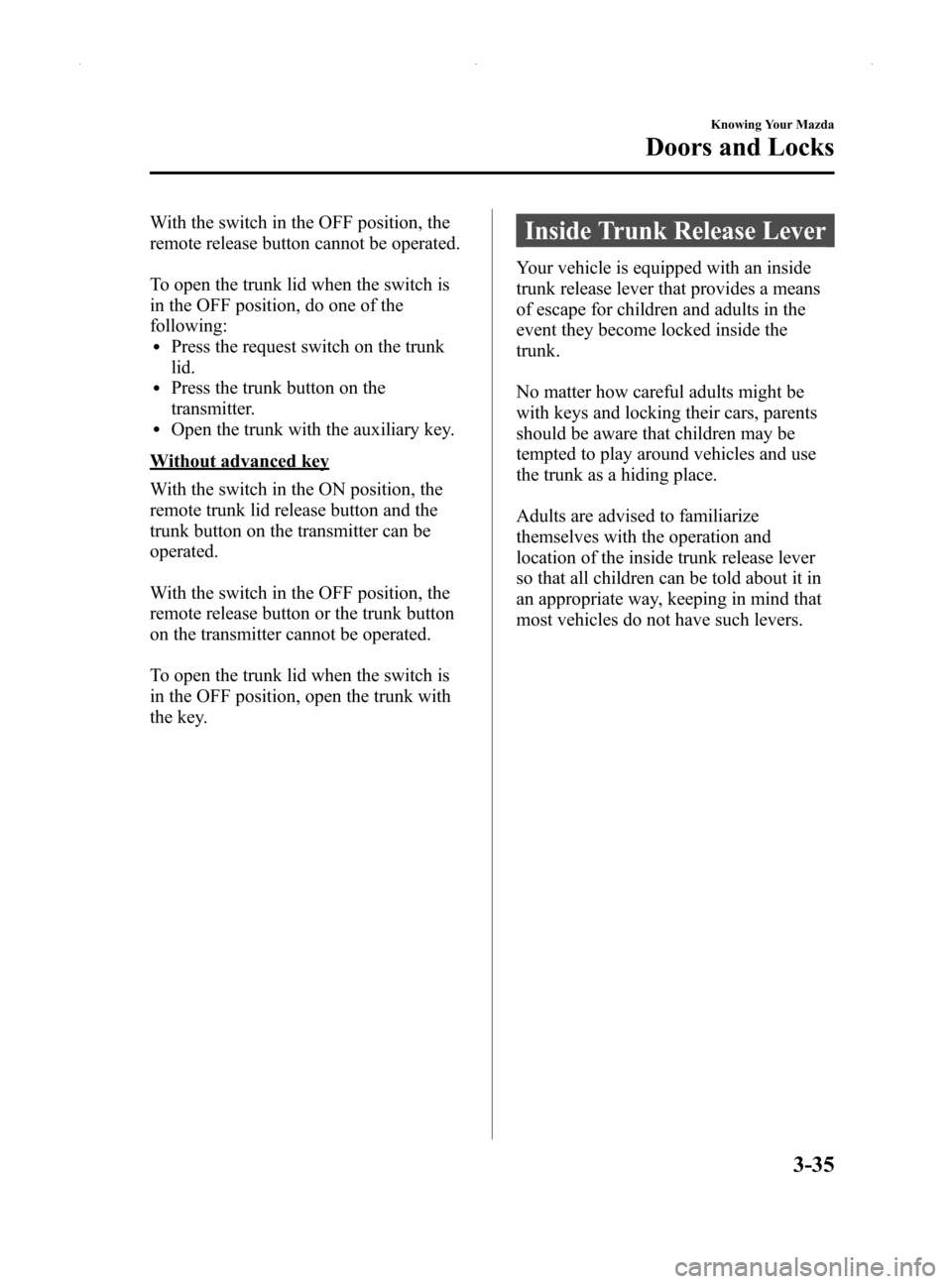

With the switch in the OFF position, the
remote release button cannot be operated.
To open the trunk lid when the switch is
in the OFF position, do one of the
following:
lPress the request switch on the trunk
lid.
lPress the trunk button on the
transmitter.
lOpen the trunk with the auxiliary key.
Without advanced key
With the switch in the ON position, the
remote trunk lid release button and the
trunk button on the transmitter can be
operated.
With the switch in the OFF position, the
remote release button or the trunk button
on the transmitter cannot be operated.
To open the trunk lid when the switch is
in the OFF position, open the trunk with
the key.
Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles do not have such levers.
Knowing Your Mazda
Doors and Locks
3-35
MX-5_8DG6-EA-13F_Edition1 Page89
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F

Black plate (90,1)
WARNING
Close the trunk lid and do not allow
children to play inside the vehicle:Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Always keep the car from being a
tempting place to play by latching the
doors and the trunk, and keeping the
keys where children can not play with
them: Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars
or trunks can die very quickly from
heat prostration. Do not leave your
children or pets alone in a car at any
time. Do not leave the car or the
trunk unlocked.
qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk end trim.
3-36
Knowing Your Mazda
Doors and Locks
MX-5_8DG6-EA-13F_Edition1 Page90
Thursday, May 30 2013 10:50 AM
Form No.8DG6-EA-13F
