If Trouble Arises
Flat Tire
Changing a Tire
WARNING
Be sure to follow the directions for
changing a tire:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack and tool (page
7-3).
6. Block the wheel diagonally opposite
the tire to be changed. When blocking
a wheel, place a tire block both in front
and behind the tire.
NOTE
When blocking a tire, use rocks or wood
blocks of sufficient size if possible to hold
the tire in place.
Removing a Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
MX-5_8EU4-EA-15D_Edition1.indb 162015/03/10 9:56:25

7–33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes
If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not turn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
(Vehicles with type B audio)
The warning contents can be verified on the audio.
1. If the warning light is turned on, select icon on the home screen to display the
application screen.
2. Select “Warning Guidance” to display the current warnings.
3. Select the applicable warning to view the warning details.
Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on, the system may have a m\
alfunction. Stop the
vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
SignalWarning
Brake System Warning Light
This warning has the following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with the ignitio\
n switched to START or ON. It turns off when the parking brake is fully released.
Low brake fluid level warning
If the brake warning light remains illuminated even though the parking b\
rake is released, the brake fluid may be low or there could be a problem with the brake system. Park the vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
WARNING
Do not drive with the brake system warning light illuminated. Contact an Authorized Mazda Dealer to have the brakes inspected as soon as possible:Driving with the brake system warning light illuminated is dangerous. It indicates that your brakes may not work at all or that they could completely fail at any time. If this light remains illuminated, after checking that the parking brake is fully released, have the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the braking may diminish so you may need to depress the brake pedal more strongly than normal to stop the vehicle.
MX-5_8EU4-EA-15D_Edition1.indb 332015/03/10 9:56:30

7–34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
SignalWarning
Electronic Brake Force Distribution System Warning
If the electronic brake force distribution control unit determines that \
some components are operating incorrectly, the control unit may illuminate the brake system warning light and the ABS warning light simultaneously. The problem is likely to be the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible:Driving when the brake system warning light and ABS warning light are illuminated simultaneously is dangerous.When both lights are illuminated, the rear wheels could lock more quickly in an emergency stop than under normal circumstances.
Charging System Warning Light
If the warning light illuminates while driving, it indicates a malfuncti\
on of the alternator or of the charging system.Drive to the side of the road and park off the right-of-way. Consult an Authorized Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated because the engine could stop unexpectedly.
Engine Oil Warning Light
This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive engine damage.If the light illuminates or the warning indication is displayed while dr\
iving:
1.Drive to the side of the road and park off the right-of-way on level ground.2.Turn off the engine and wait 5 minutes for the oil to drain back into the oil p\
an.3.Inspect the engine oil level 6-28. If it's low, add the appropriate amount of engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive engine damage.4.Start the engine and check the warning light.
If the light remains illuminated even though the oil level is normal or \
after adding oil, stop the engine immediately and have your vehicle towed to an Authorized Mazda Dealer.
MX-5_8EU4-EA-15D_Edition1.indb 342015/03/10 9:56:30

7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
Electric Vacuum Pump Warning Light
The light turns on if the electric vacuum pump system has a problem. Hav\
e your vehicle inspected at an Authorized Mazda Dealer.
ABS Warning Light
If the ABS warning light stays on while you're driving, the ABS control unit has detected a system malfunction. If this occurs, your brakes will function normally a\
s if the vehicle had no ABS.Should this happen, consult an Authorized Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS warning light may illuminate. If this occurs, it is the result of the weak battery and does not indicate an ABS malfunction.Recharge the battery.The brake assist system does not operate while the ABS warning light is illuminated.
Check Engine Light
If this light illuminates while driving, the vehicle may have a problem.\
It is important to note the driving conditions when the light illuminated and consult an Authorized Mazda Dealer.The check engine light may illuminate in the following cases:
The fuel tank level being very low or approaching empty.The engine's electrical system has a problem.The emission control system has a problem.The fuel-filler cap is missing or not tightened securely.If the check engine light remains on, or it flashes continuously , do not drive at high speeds and consult an Authorized Mazda Dealer as soon as possible.
Automatic Transmission Warning Light*
The light illuminates when the transmission has a problem.
CAUTION
If the automatic transmission warning light illuminates, the transmission has an electrical problem. Continuing to drive your Mazda in this condition could cause damage to your transmission. Consult an Authorized Mazda Dealer as soon as possible.
Air Bag/Seat Belt Pretensioner System Warning Light
A system malfunction is indicated if the warning light constantly flashes, constantly illuminates or does not illuminate at all when the ignition is switched ON. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate in an accident.
WARNING
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda Dealer perform all servicing and repairs:Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could accidentally activate or become disabled causing serious injury or death.
MX-5_8EU4-EA-15D_Edition1.indb 362015/03/10 9:56:31

7–38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarning
(Illuminate)Lane Departure Warning System (LDWS) Warning Light*
The warning light remains turned on if there is a problem with the syste\
m. Have your vehicle inspected at an Authorized Mazda Dealer.The LDWS does not operate when the warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your vehicle inspected at an Authorized Mazda Dealer.
When the light remains turned on while driving the vehicle.When the system is canceled automatically, the light turns on. Normally, the system restores automatically and the light turns off, however, if the light remains turned on, there may be a problem with the system.The light does not illuminate when the ignition is switched ON.Always use tires for all wheels that are of the specified size, and the same manufacture, brand, and tread pattern. In addition, do not use tires with significantly different wear patterns on the same vehicle. If such improper tires are used, the LDWS may not operate normally.When an emergency spare tire is used, the system may not operate normally.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
(Amber)High Beam Control System (HBC) Warning Light*
The light remains turned on if there is a problem with the system. Have \
your vehicle inspected at an Authorized Mazda Dealer.
NOTE
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or obstructed, the light turns on temporarily. If the light remains turned on, there may be a problem with the system.
LED Headlight Warning Light
This light illuminates if there is a malfunction in the LED headlight. Have your vehicle inspected by an Authorized Mazda Dealer.
Blind Spot Monitoring (BSM) OFF Indicator Light*
A problem in the system may be indicated under the following conditions.Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.The light remains turned on even if the Blind Spot Monitoring (BSM) switch is operated.It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF\
indicator light in the instrument cluster illuminates). However, it does not indicate a malfunction.
MX-5_8EU4-EA-15D_Edition1.indb 382015/03/10 9:56:32

7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Taking Action
Take the appropriate action and verify that the warning light turns off.
SignalWarningAction to be taken
Low Fuel Warning Light
The light turns on when the remaining fuel is about 9.0 L (2.3 US gal, 1.9 Imp gal).
NOTE
The light illumination timing may vary because fuel inside the fuel tank moves around according to the driving conditions and the vehicle posture.
Add fuel.
Check Fuel Cap Warning Light
If the check fuel cap warning light illuminates while driving, the fuel-filler cap may not be installed properly.
Stop the engine and reinstall the fuel-filler cap.Refer to Fuel-Filler Cap on page 3-26
MX-5_8EU4-EA-15D_Edition1.indb 392015/03/10 9:56:32

7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
SignalWarningAction to be taken

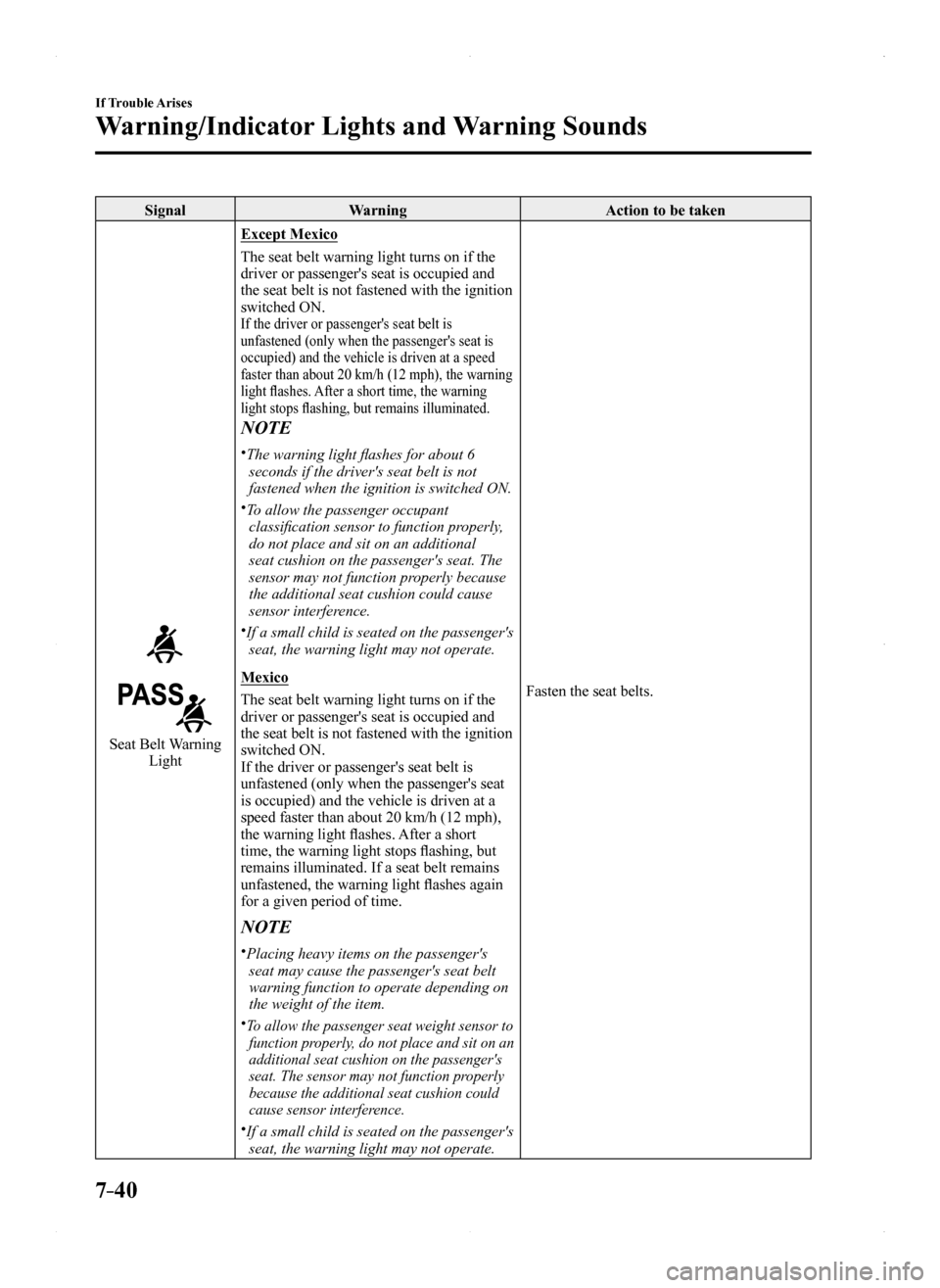

Seat Belt Warning Light
Except Mexico
The seat belt warning light turns on if the driver or passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.If the driver or passenger's seat belt is unfastened (only when the passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated.
NOTE
The warning light flashes for about 6 seconds if the driver's seat belt is not fastened when the ignition is switched ON.To allow the passenger occupant classification sensor to function properly, do not place and sit on an additional seat cushion on the passenger's seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.If a small child is seated on the passenger's seat, the warning light may not operate.
Mexico
The seat belt warning light turns on if the driver or passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.If the driver or passenger's seat belt is unfastened (only when the passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated. If a seat belt remains unfastened, the warning light flashes again for a given period of time.
NOTE
Placing heavy items on the passenger's seat may cause the passenger's seat belt warning function to operate depending on the weight of the item.To allow the passenger seat weight sensor to function properly, do not place and sit on an additional seat cushion on the passenger's seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.If a small child is seated on the passenger's seat, the warning light may not operate.
Fasten the seat belts.
MX-5_8EU4-EA-15D_Edition1.indb 402015/03/10 9:56:32

7–41
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
SignalWarningAction to be taken
Door-Ajar Warning Light
The light turns on if any door is not closed securely.Close the door securely.
Low Washer Fluid Level Warning Light*
This warning light indicates that little washer fluid remains.Add washer fluid (page 6-31).
(Illuminate)Tire Pressure Monitoring System Warning Light*
When the warning light illuminates, and the warning beep sound is heard (about 3 seconds), tire pressure is too low in one or more tires.
WARNING
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden maneuvering and braking:If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an accident.To determine if you have a slow leak or a flat, pull over to a safe position where you can check the visual condition of the tire and determine if you have enough air to proceed to a place where air may be added and the system monitored again by an Authorized Mazda Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have the problem taken care of as soon as possible before it develops into a more serious situation that could lead to tire failure and a dangerous accident.
Inspect the tires and adjust to the specified inflation pressure (page 6-41).
NOTE
Perform tire pressure adjustment when the tires are cold. Tire pressure will vary according to the tire temperature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the tire pressures. When pressure is adjusted on hot tires to the cold inflation pressure, the TPMS warning light/beep may turn on after the tires cool and pressure drops below specification.Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient temperature will remain illuminated even if the ambient temperature rises. In this case, it will also be necessary to adjust the tire air pressures. If the TPMS warning light illuminates due to a drop in tire air pressure, make sure to check and adjust the tire air pressures.Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over time or you have a flat. However, when you find one low tire in a set of four-that is an indication of trouble; you should have someone drive the vehicle slowly forward so you can inspect any low tire for cuts and any metal objects sticking through tread or sidewall. Put a few drops of water in the valve stem to see if it bubbles indicating a bad valve. Leaks need to be addressed by more than simply reinflating the tire as leaks are dangerous — take it to an Authorized Mazda Dealer.
MX-5_8EU4-EA-15D_Edition1.indb 412015/03/10 9:56:32

7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Except Mexico
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the passenger's seat belt is
not fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
a beep sound will be heard again for a
specified period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 To allow the passenger occupant
classification sensor to function
properly, do not place and sit on
an additional seat cushion on the
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20 km/h
(12 mph) with the driver or passenger's
seat belt unfastened, a warning beep
sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
NOTE
 Placing heavy items on the passenger's
seat may cause the passenger's seat belt
warning function to operate depending
on the weight of the item. To allow the passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion
on the passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference. If a small child is seated on the
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened while
the ignition is switched to ACC, a
continuous beep sound will be heard to
notify the driver that the ignition has not
been switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
Key Removed from Vehicle
Warning Beep
A beep sound will be heard 6 times and
the KEY warning light (red) will flash
continuously if the ignition has not been
switched off, all the doors are closed, and
the key is removed from the vehicle. This
is to notify the driver that the key has been
removed from the vehicle and the ignition
has not been switched off.
MX-5_8EU4-EA-15D_Edition1.indb 462015/03/10 9:56:34

8–1
8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance ...........................8-2
Customer Assistance (U.S.A.) .......8-2
Customer Assistance (Canada) ......8-6
Customer Assistance (Puerto
Rico) ...............................................8-9
Customer Assistance (Mexico) ....8-10
Mazda Importer/Distributors ..........8-12
Importer/Distributor .....................8-12
Reporting Safety Defects ..................8-13
Reporting Safety Defects
(U.S.A.) ........................................8-13
Reporting Safety Defects
(Canada) .......................................8-14
Warranty ............................................8-15
Warranties for Your Mazda ..........8-15
Outside the United States/
Canada ..........................................8-16
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ........................................8-17
Add-On Non-Genuine Parts and
Accessories ..................................8-18
Cell Phones ........................................8-19
Cell Phones Warning ....................8-19
Event Data Recorder ........................8-20
Event Data Recorder (U.S.A. and
Canada) ........................................8-20
Recording of Vehicle Data ................8-21
Recording of Vehicle Data ...........8-21
Uniform Tire Quality Grading System
(UTQGS) ............................................8-22
Uniform Tire Quality Grading System
(UTQGS) ......................................8-22
Tire Information (U.S.A.) .................8-24
Tire Labeling ................................8-24
Location of the Tire Label
(Placard) .......................................8-30
Tire Maintenance .........................8-33
Vehicle Loading ...........................8-36
Steps for Determining the Correct
Load Limit ...................................8-42
Declaration of Conformity ...............8-43
Declaration of Conformity ...........8-43
Service Publications ..........................8-49
Service Publications .....................8-49
MX-5_8EU4-EA-15D_Edition1.indb 12015/03/10 9:56:35
