Customer Information and Reporting Safety Defects
Customer Assistance
Customer Assistance (Canada)
Satisfaction Review Process
Your complete and permanent satisfaction is of primary concern to Mazda. \
All Authorized
Mazda Dealers have both the knowledge and tools to keep your Mazda in to\
p condition.
In our experience, any questions, problems, or complaints regarding the \
operation of your
Mazda or any other general service transactions are most effectively resolved by your dealer.
If the cause of your dissatisfaction cannot adequately be addressed by n\
ormal dealership
procedures, we recommend that you take the following steps:
STEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If the Servic\
e Manager has
already reviewed your concerns, contact the owner of the dealership or its General Manager.
STEP 2: Contact the Mazda Regional Office
If you feel that you still require assistance, ask the dealer Service Ma\
nager to arrange for
you to meet the local Mazda Service Representative. If more expedient, c\
ontact Mazda
Canada Inc. Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 8-8).
STEP 3: Contact the Mazda Customer Relations Department
If still not substantially satisfied, contact the Customer Relations Department, Mazda
Canada Inc., 55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Canada TEL: 1 (800) 263-
4680.
Provide the Department with the following information:
1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (VIN). Refer to the “Vehicle Identification Labels” page
of section 9 of this manual for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction
The Department, in cooperation with the local Mazda Service Representati\
ve, will review
the case to determine if everything possible has been done to ensure you\
r satisfaction.
MX-5_8EU4-EA-15D_Edition1.indb 62015/03/10 9:56:35

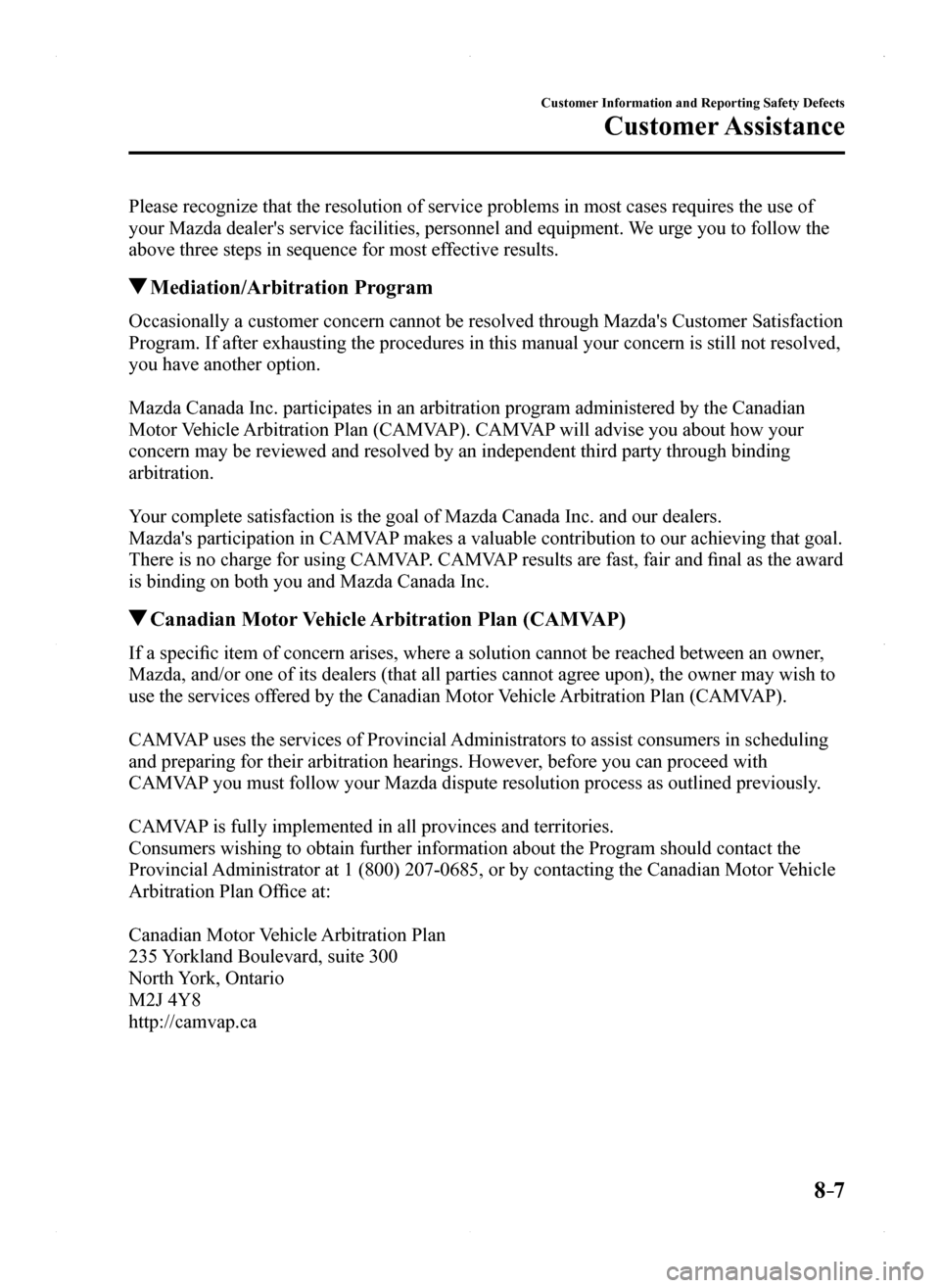

8–7
Customer Information and Reporting Safety Defects
Customer Assistance
Please recognize that the resolution of service problems in most cases r\
equires the use of
your Mazda dealer's service facilities, personnel and equipment. We urge you to follow the
above three steps in sequence for most effective results.
Mediation/Arbitration Program
Occasionally a customer concern cannot be resolved through Mazda's Custo\
mer Satisfaction
Program. If after exhausting the procedures in this manual your concern \
is still not resolved,
you have another option.
Mazda Canada Inc. participates in an arbitration program administered by\
the Canadian
Motor Vehicle Arbitration Plan (CAMVAP). CAMVAP will advise you about how your
concern may be reviewed and resolved by an independent third party throu\
gh binding
arbitration.
Your complete satisfaction is the goal of Mazda Canada Inc. and our deale\
rs.
Mazda's participation in CAMVAP makes a valuable contribution to our achieving that goal.
There is no charge for using CAMVAP. CAMVAP results are fast, fair and final as the award
is binding on both you and Mazda Canada Inc.
Canadian Motor Vehicle Arbitration Plan (CAMVAP)
If a specific item of concern arises, where a solution cannot be reached between an owner,
Mazda, and/or one of its dealers (that all parties cannot agree upon),\
the owner may wish to
use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
CAMVAP uses the services of Provincial Administrators to assist consumers in scheduling
and preparing for their arbitration hearings. However, before you can proceed with
CAMVAP you must follow your Mazda dispute resolution process as outlined previously.
CAMVAP is fully implemented in all provinces and territories.
Consumers wishing to obtain further information about the Program should\
contact the
Provincial Administrator at 1 (800) 207-0685, or by contacting the Canadian Motor Vehicle
Arbitration Plan Office at:
Canadian Motor Vehicle Arbitration Plan
235 Yorkland Boulevard, suite 300
North York, Ontario
M2J 4Y8
http://camvap.ca
MX-5_8EU4-EA-15D_Edition1.indb 72015/03/10 9:56:35

8–9
Customer Information and Reporting Safety Defects
Customer Assistance
Customer Assistance (Puerto Rico)
Your complete and permanent satisfaction is our business. That is why all Authorized Mazda
Dealers have the knowledge and the tools to keep your Mazda vehicle in t\
op condition.
If you have any questions or recommendations for improvement regarding t\
he service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend \
that you take
the following steps:
STEP 1
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
STEP 2
If, after following STEP 1, you feel the need for further assistance, please contact your
area's Mazda representative (Indicated on the next page).
Please help us by providing the following information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
MX-5_8EU4-EA-15D_Edition1.indb 92015/03/10 9:56:35

8–10
Customer Information and Reporting Safety Defects
Customer Assistance

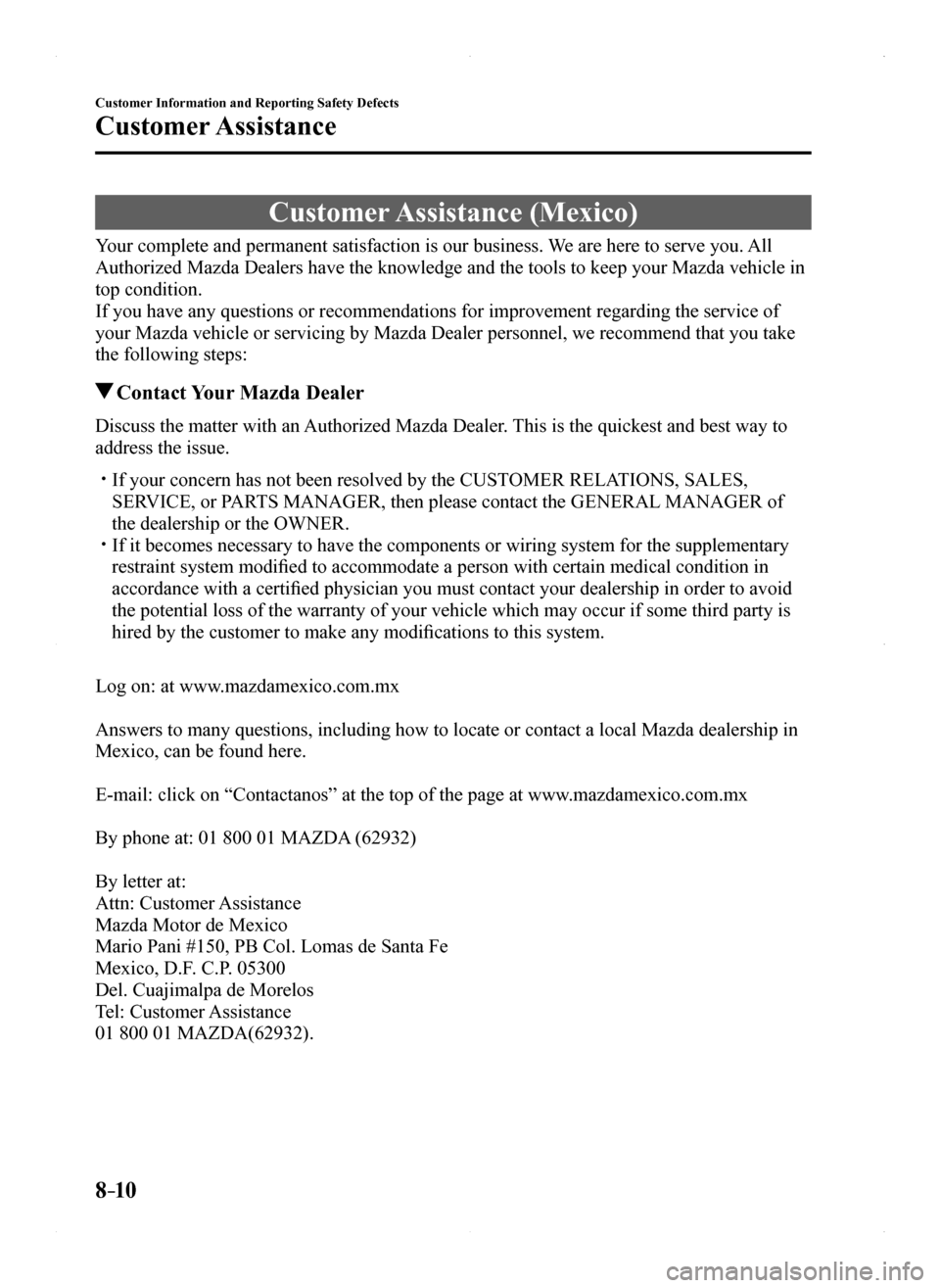

Customer Assistance (Mexico)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your M\
azda vehicle in
top condition.
If you have any questions or recommendations for improvement regarding t\
he service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend \
that you take
the following steps:
Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue.
 If your concern has not been resolved by the CUSTOMER RELATIONS, SALES,
SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of
the dealership or the OWNER. If it becomes necessary to have the components or wiring system for the \
supplementary
restraint system modified to accommodate a person with certain medical condition in
accordance with a certified physician you must contact your dealership in order to avoid
the potential loss of the warranty of your vehicle which may occur if so\
me third party is
hired by the customer to make any modifications to this system.
Log on: at www.mazdamexico.com.mx
Answers to many questions, including how to locate or contact a local Ma\
zda dealership in
Mexico, can be found here.
E-mail: click on “Contactanos” at the top of the page at www.mazdamexico.com.mx
By phone at: 01 800 01 MAZDA (62932)
By letter at:
Attn: Customer Assistance
Mazda Motor de Mexico
Mario Pani #150, PB Col. Lomas de Santa Fe
Mexico, D.F. C.P. 05300
Del. Cuajimalpa de Morelos
Tel: Customer Assistance
01 800 01 MAZDA(62932).
MX-5_8EU4-EA-15D_Edition1.indb 102015/03/10 9:56:35

8–22
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National Highway
Traffic Safety Administration for grading tires by tread wear, traction, and temperature
performance.
Tread Wear
The tread wear grade is a comparative rating based on the wear rate of t\
he tire when tested
under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one-and-a-half times as well o\
n the government
course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of \
their use, however,
and may depart significantly from the norm because of variations in driving habits, service
practices and differences in road characteristics and climate.
Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent the
tire's ability to stop on wet pavement as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based on braking (straight ahead) traction tests
and does not include acceleration cornering (turning), hydroplaning, or peak traction
characteristics.
Temperature-A, B, C
The temperature grades A (the highest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under c\
ontrolled conditions on
a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degener\
ate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.
Grade C corresponds to a level of performance which all passenger vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the minimum requ\
ired by law.
MX-5_8EU4-EA-15D_Edition1.indb 222015/03/10 9:56:36

8–33
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnor\
mally. Here are
some important maintenance points:
Tire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires\
are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire \
wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
Tire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) at the latest or soon\
er
if irregular wear develops. Mazda recommends to rotate every 8,000 km (\
5,000 miles) to
help increase tire life and distribute wear more evenly.
Do not include (TEMPORARY USE ONL Y) spare tire in rotation.
Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
 Incorrect tire pressure Improper wheel alignment Out-of-balance wheel Severe braking
After rotation, inflate all tire pressures to specification (page 9-8) and inspect the lug
nuts for tightness.
(With tire pressure monitoring system)
After adjusting the tire pressure, initialization of the tire pressure m\
onitoring system is
necessary to make the system operate normally.
Refer to Tire Pressure Monitoring System Initialization on page 4-96.
MX-5_8EU4-EA-15D_Edition1.indb 332015/03/10 9:56:38

8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
The term “IC: ” before the radio certification number only signifies that Industry Canada
technical specifications were met.
The antenna used for this transmitter must not be co-located or operatin\
g in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satis\
fying RF exposure
compliance.
Mazda Bluetooth® Hands-Free Customer Service
 U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
Mexico
 Brief description: Bluetooth module for Hands-free telephone and streaming audio Name and address of the importer: Refer to "MEXICO" (page 8-12) in Importer/
Distributor section. Brand name of the product: Johnson Controls Inc. Model name of the product: MAZ Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-12) in Importer/Distributor section. Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-12) in Importer/Distributor section. Warranty period, items covered by the warranty and its possible limitatio\
ns or exceptions:
Refer to the Warranty Booklet for detailed warranty information.  Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx Electrical specifications:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
MX-5_8EU4-EA-15D_Edition1.indb 462015/03/10 9:56:42

8–49
Customer Information and Reporting Safety Defects
Service Publications
Service Publications
Factory-authorized Mazda service publications are available for owners w\
ho wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-042B-162016 WORKSHOP MANUAL (English)
9999-MX-042B-162016 WORKSHOP MANUAL (Spanish)
9999-95-026G-162016 WIRING DIAGRAM (English)
9999-MX-026G-162016 WIRING DIAGRAM (Spanish)
9999-95-031C-162016 OWNER'S MANUAL (English)
9999-FC-031C-162016 OWNER'S MANUAL (French)
9999-PR-031C-162016 OWNER'S MANUAL (Spanish)
9999-95-072F-162016 SERVICE HIGHLIGHTS
9999-95-NAVI-16R2016 NAVIGATION SYSTEM OWNER'S MANUAL (English)
9999-EC-NAVI-16R2016 NAVIGATION SYSTEM OWNER'S MANUAL (English and French)
9999-PR-NAVI-16R2016 NAVIGATION SYSTEM OWNER'S MANUAL (Spanish)
WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train,\
body and
chassis.
WIRING DIAGRAM:
Provides electrical schematics as well as component location for the ent\
ire electrical system.
OWNER'S MANUAL:
This booklet contains information regarding the proper care and operatio\
n of your vehicle.
This is not a technician's manual.
SERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
MX-5_8EU4-EA-15D_Edition1.indb 492015/03/10 9:56:43

8–50
Customer Information and Reporting Safety Defects
Service Publications
NAVIGATION SYSTEM OWNER'S MANUAL:
This booklet contains information regarding the proper operation and use\
of the navigation
system. This is not a technician's manual.
MX-5_8EU4-EA-15D_Edition1.indb 502015/03/10 9:56:43

9–4
Specifications
Specifications
Specifications
Engine
ItemSpecification
TypeDOHC-16V in-line, 4-cylinder
Bore × Stroke83.5 × 91.2 mm (3.29 × 3.59 in)
Displacement1,997.6 ml (1,997.6 cc)
Compression ratio13.0
Electrical System
ItemClassification
Battery12V-45Ah/20HR
Spark-plug numberMazda Genuine spark plug*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
Lubricant Quality
LubricantClassification
Engine oilRefer to Recommended Oil on page 6-27.
CoolantFL-22 type
Manual transmission oilMazda Original Long Life Gear Oil IS*1
Automatic transmission fluidMazda Genuine JWS3309
Rear differential oilMazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
*1 Mazda Original Long Life Gear Oil IS is superior oil for optimum shift-feel. Using Mazda Original Long Life Gear Oil IS is recommended. If Mazda Original Long Life Gear Oil IS cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-90)). However, shifting in very low temperatures may become difficult.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
MX-5_8EU4-EA-15D_Edition1.indb 42015/03/10 9:56:45
