Before Driving
Steering Wheel
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control or
an accident.
Steering Wheel Adjustment
To change the angle of the steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the steering
column.

Lock release le ver
2. Tilt the steering wheel to the desired
positions, then push the lever up to lock
the column.
3. Attempt to push the steering wheel
up and down to make sure it's locked
before driving.
MX-5_8EU4-EA-15D_Edition1.indb 272015/03/10 9:54:41

3–28
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left or
right to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Center position
Mirror switch
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
MX-5_8EU4-EA-15D_Edition1.indb 282015/03/10 9:54:42

3–29
Before Driving
Mirrors
*Some models.
Driver's side auto-dimming door
mirror*
The movement of the auto-dimming
door mirror is interlocked with the auto-
dimming rearview mirror in the interior
to automatically reduce glare from rear
on-coming vehicles.
Refer to Rearview Mirror on page 3-29.
NOTE
The passenger-side door mirror does not
have the auto-dimming feature.
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Day/Night lever
Day
Night
Auto-dimming mirror
The auto-dimming mirror automatically
reduces glare of headlights from vehicles
at the rear when the ignition is switched
ON.
Press the OFF button () to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON button (). The
indicator light will illuminate.
Indicator lightOFF b utton
ON button
MX-5_8EU4-EA-15D_Edition1.indb 292015/03/10 9:54:42

3–30
Before Driving
Mirrors
NOTE
 Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.

Light sensor
 For information regarding the 3 buttons
(,,) on the auto-dimming
mirror.
Refer to HomeLink Wireless Control
System on page 4-47. The auto-dimmer function is canceled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
MX-5_8EU4-EA-15D_Edition1.indb 302015/03/10 9:54:43

3–31
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with power
window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close both windows at
once.
NOTE
A power window may no longer open/close
if you continue to press the switch after
opening/closing the power window. If the
power window does not open/close, wait a
moment and then operate the switch again.
Operating the Power Windows
NOTE
 The passenger window can be operated
with each door switch when the power
window lock switch on the driver's door
is in the unlocked position (page
3-33). The passenger window can also be
operated using the master control
switches on the driver's door.
Master contr ol switches
Driver's windo w
Passenger's windo w
MX-5_8EU4-EA-15D_Edition1.indb 312015/03/10 9:54:43

3–32
Before Driving
Windows
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Master control switches
Driver's windo w
Open
Close
OpenClose
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
NOTE
The power window cannot be fully closed
while the door is open.
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is open/closed), the
window will not open automatically.
Resetting of the automatic function can
be performed using the master control
switches or each passenger door switch.
The power window auto function reset
procedure can be done on both door
switches. The power window auto function
will only resume on the power window
that has been reset.
1.
Close the doors and the convertible top.
2. Switch the ignition ON.
3. Make sure that the power window lock
switch located on the driver's door is
not depressed.
4. Press the switch and fully open the
window.
5. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
6. Repeat Steps 4-5 for the passenger
power window while seated in the
passenger seat.
7. Make sure that the power windows
operate correctly using the door
switches.
After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches.
If the automatic power window operation
does not operate normally while the doors
or convertible top are opened/closed, reset
it using the above procedures.
MX-5_8EU4-EA-15D_Edition1.indb 322015/03/10 9:54:43

3–33
Before Driving
Windows
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with both doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
Power Window Lock Switch
This feature prevents the passenger's
power window from operating. Keep
this switch in the locked position while
children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
Both power windows on each door can be
operated.
Lock position
Unlock position
NOTE
When the power window lock switch is
in the locked position, the light on the
passenger power window switch turns off.
The light may be difficult to see depending
on the surrounding brightness.
MX-5_8EU4-EA-15D_Edition1.indb 332015/03/10 9:54:44

3–34
Before Driving

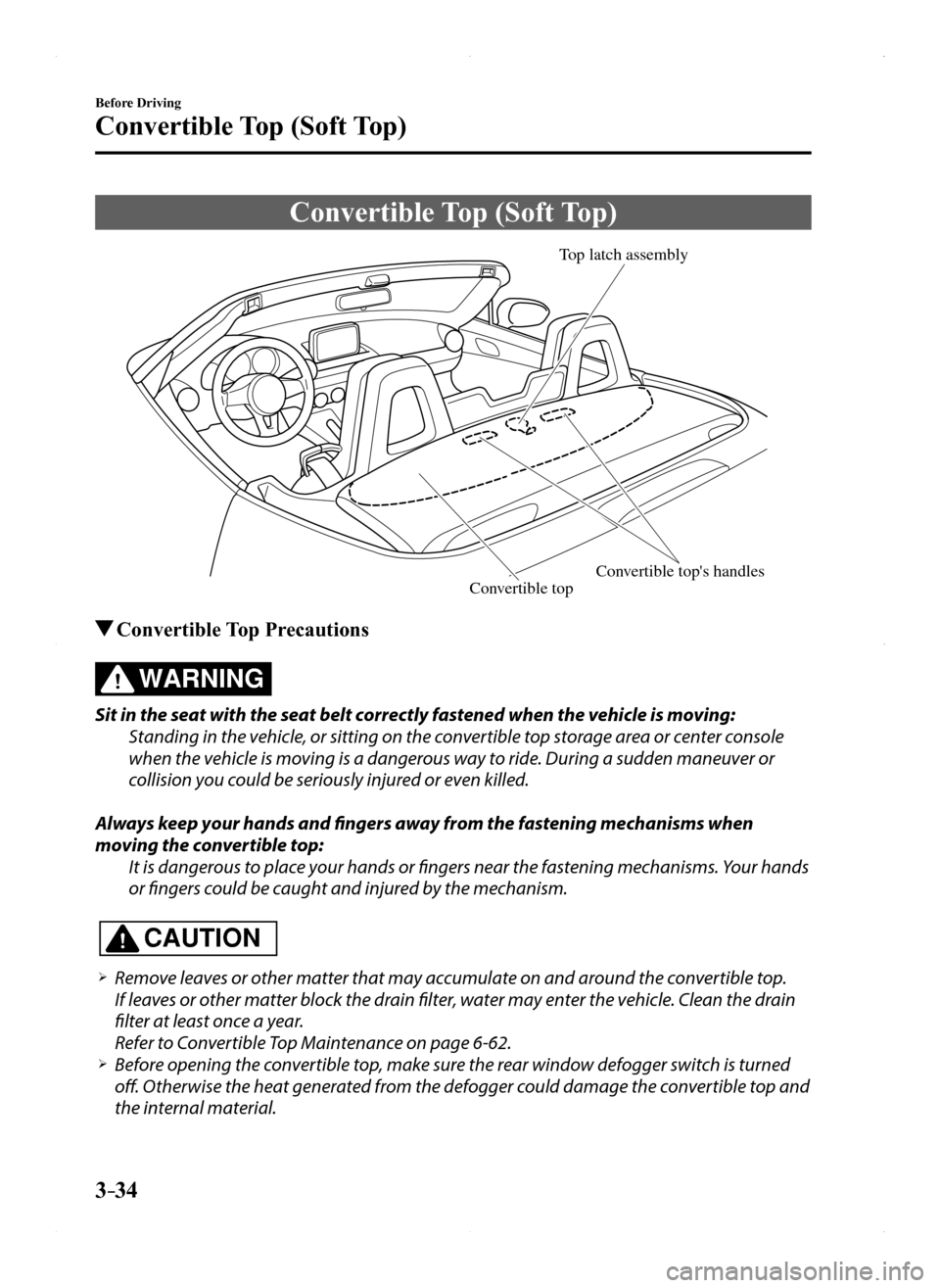

Convertible Top (Soft Top)
Convertible Top (Soft Top)
Top latch assembly
Con vertible top's handlesCon vertible top
Convertible Top Precautions
WARNING
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the convertible top storage area or center console
when the vehicle is moving is a dangerous way to ride. During a sudden maneuver or
collision you could be seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when
moving the convertible top:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands
or fingers could be caught and injured by the mechanism.
CAUTION
 Remove leaves or other matter that may accumulate on and around the convertible top.
If leaves or other matter block the drain filter, water may enter the vehicle. Clean the drain
filter at least once a year.
Refer to Convertible Top Maintenance on page 6-62. Before opening the convertible top, make sure the rear window defogger switch is turned
off. Otherwise the heat generated from the defogger could damage the convertible top and
the internal material.
MX-5_8EU4-EA-15D_Edition1.indb 342015/03/10 9:54:44

3–35
Before Driving
Convertible Top (Soft Top)
 Before lowering or raising the convertible top, stop in a safe place off the right-of-way
and park on a level surface. Make sure nothing is on the convertible top or near the back window when\
raising or
lowering the convertible top.
Even small objects may interfere and cause damage. When lowering the convertible top, make sure objects inside the vehicle \
are not blown
away by the wind. Secure all loose objects inside before driving with the convertible top \
down. To help prevent burglary or vandalism and to ensure that the passenger compartment stays
dry, close the convertible top securely and lock both doors when leaving th\
e vehicle. Do not drive through an automatic car wash; it may damage the convertibl\
e top. Do not raise or lower the convertible top when the temperature is below \
5 °C (41 °F) ; this
will damage the convertible top material. The soft top is made of high quality material and if it is not maintaine\
d correctly, the
material could harden, becomes stained, or have an uneven gloss. Do not lower the convertible top when it's wet. If the convertible top d\
ries while folded, it
will deteriorate and mold. Lowering the convertible top while it's wet can also cause water to drip\
into the passenger
compartment. Do not raise or lower the convertible top in a strong wind as it could d\
amage the
convertible top or cause an unexpected accident.
NOTE
 The power windows go down automatically in conjunction with the converti\
ble top
opening/closing. However, this is a function for improving the operability, and it does not
mean there is a problem. If the vehicle battery is disconnected for vehicle maintenance or\

other reasons, the power windows will not go down automatically. If the power windows
do not go down, the automatic open/close mechanism for the windows must \
be reset.
Refer to Operating the Power Windows on page 3-31. The windblocker reduces the amount of wind coming into the cabin from behind when
driving with the convertible top opened.
Refer to Windblocker on page 5-138.
MX-5_8EU4-EA-15D_Edition1.indb 352015/03/10 9:54:44

3–36
Before Driving
Convertible Top (Soft Top)
Lowering the Convertible Top
CAUTION
Do not seat on the folded convertible
top. Otherwise, the convertible top
could be damaged or you may fall off
and be injured.
1. Make sure the parking brake is applied.
2. If the engine is running, turn it off.
3. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
4. With the lock release button depressed
forward, pull back the top latch lever to
unlock it.

Top latch
Lock release b
utton
5. Remove the striker from the anchor.

Anchor
Striker
NOTE
If the power windows do not go down
automatically, fully open the windows.
6. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it toward the vehicle rear.

Front edge
NOTE
To lower the convertible top from inside
the vehicle, use the convertible top's
handles.
Con vertible top's handles
MX-5_8EU4-EA-15D_Edition1.indb 362015/03/10 9:54:45
