Before Driving
Driving Tips
Driving In Flooded Area
WARNING
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.

CAUTION
Do not drive the vehicle on fl ooded
roads as it could cause short circuiting
of electrical/electronic parts, or
engine damage or stalling from
water absorption. If the vehicle has
been immersed in water, consult an
Authorized Mazda Dealer.

Overloading
WARNING
Be careful not to overload your vehicle:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of the vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident
or vehicle damage. You can estimate
the weight of the load by weighing the
items (or people) before putting them
in the vehicle.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–56
Before Driving
Driving Tips
Driving on Uneven Road
Your vehicle's suspension and underbody can be damaged if driven on rough/uneven roads
or over speed bumps at excessive speeds. Use care and reduce speed when traveling on
rough/uneven roads or over speed bumps.

Use care not to damage the vehicle's underbody, bumpers or mufÀ er(s) when driving under
the following conditions:



y Ascending or descending a slope with a sharp transition angle



y Ascending or descending a driveway or trailer ramp with a sharp transition angle



This vehicle is equipped with low pro¿ le tires allowing class-leading performance and
handling. As a result, the sidewall of the tires are very thin and the tires and wheels can be
damaged if driven through potholes or on rough/uneven roads at excessive speeds. Use care
and reduce speed when traveling on rough/uneven roads or through potholes.
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–57
Before Driving
Towing
Trailer Towing
Your Mazda is not designed for towing.
Never tow a trailer with your Mazda.
Recreational Towing
An example of "recreational towing" is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer
to "Towing Description" (page 7-30 )
and "Tiedown Hooks" (page 7-31 ) and
carefully follow the instructions.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

3–58
MEMO
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

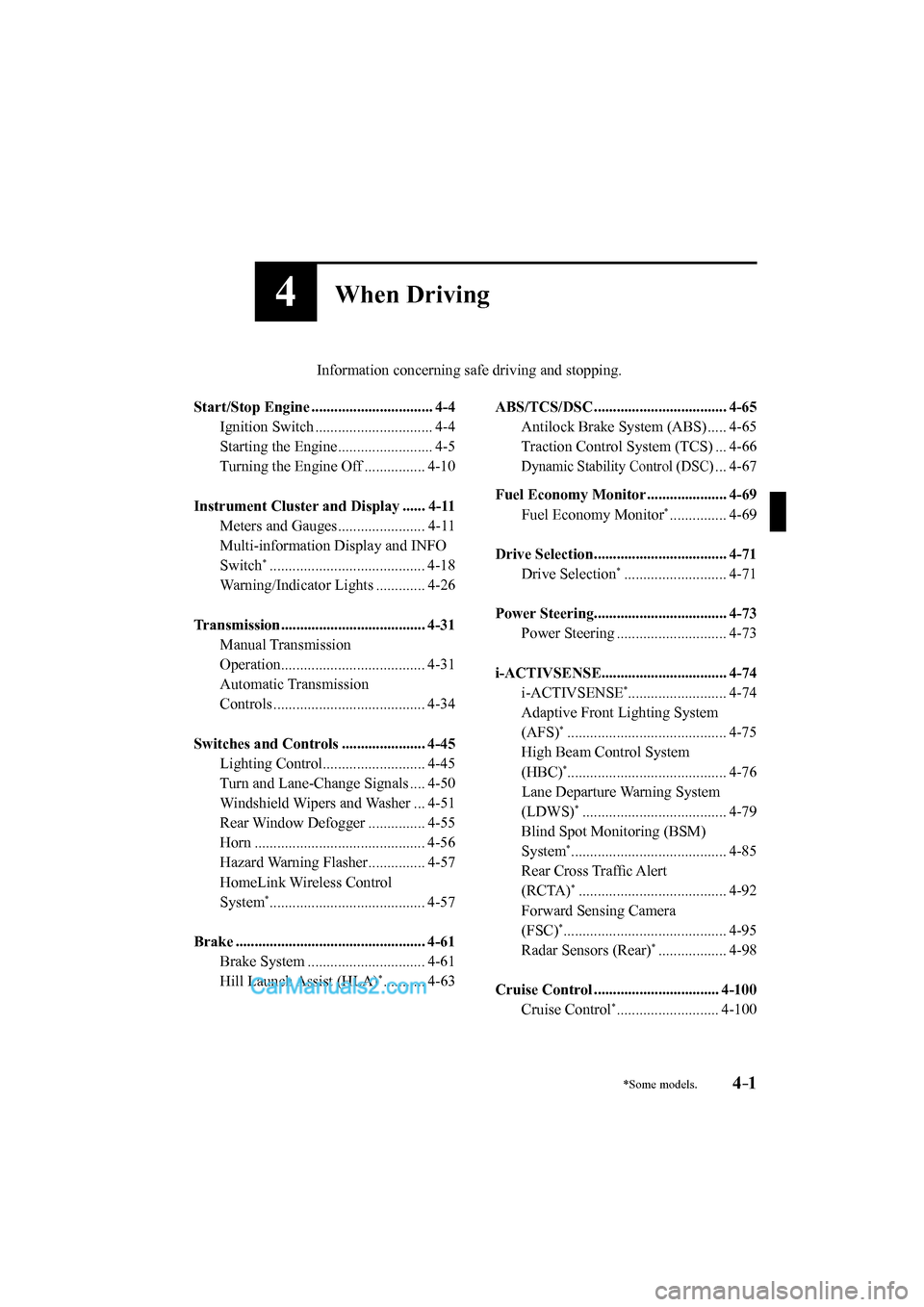

4–1*Some models.
4When Driving
Information concerning safe driving and stopping.

Start/Stop Engine ................................ 4-4
Ignition Switch ............................... 4-4
Starting the Engine ......................... 4-5
Turning the Engine Off ................ 4-10

Instrument Cluster and Display ...... 4-11
Meters and Gauges ....................... 4-11
Multi-information Display and INFO
Switch
* ......................................... 4-18
Warning/Indicator Lights ............. 4-26

Transmission ...................................... 4-31
Manual Transmission
Operation ...................................... 4-31
Automatic Transmission
Controls ........................................ 4-34

Switches and Controls ...................... 4-45
Lighting Control ........................... 4-45
Turn and Lane-Change Signals .... 4-50
Windshield Wipers and Washer ... 4-51
Rear Window Defogger ............... 4-55
Horn ............................................. 4-56
Hazard Warning Flasher ............... 4-57
HomeLink Wireless Control
System
* ......................................... 4-57

Brake .................................................. 4-61
Brake System ............................... 4-61
Hill Launch Assist (HLA)
* ........... 4-63
ABS/TCS/DSC ................................... 4-65
Antilock Brake System (ABS) ..... 4-65
Traction Control System (TCS) ... 4-66

Dynamic Stability Control (DSC) ... 4-67
Fuel Economy Monitor ..................... 4-69
Fuel Economy Monitor * ............... 4-69

Drive Selection ................................... 4-71
Drive Selection
* ........................... 4-71

Power Steering................................... 4-73
Power Steering ............................. 4-73

i-ACTIVSENSE................................. 4-74
i-ACTIVSENSE
* .......................... 4-74
Adaptive Front Lighting System
(AFS)
* .......................................... 4-75
High Beam Control System
(HBC)
* .......................................... 4-76
Lane Departure Warning System
(LDWS)
* ...................................... 4-79
Blind Spot Monitoring (BSM)
System
* ......................................... 4-85
Rear Cross Traf¿ c Alert
(RCTA)
* ....................................... 4-92
Forward Sensing Camera
(FSC)
* ........................................... 4-95
Radar Sensors (Rear) * .................. 4-98

Cruise Control ................................. 4-100
Cruise Control
* ........................... 4-100

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

4–2*Some models.
Tire Pressure Monitoring System ... 4-105
Tire Pressure Monitoring
System
* ....................................... 4-105
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

4–3
MEMO
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

4–4
When Driving
Start/Stop Engine
Ignition Switch
Push Button Start Positions
The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.

Indicator light

N O T E



y The engine starts by pressing the push
button start while depressing the clutch
pedal (manual transmission) or the
brake pedal (automatic transmission).
To switch the ignition position, press the
push button start without depressing the
pedal.



y Do not leave the ignition switched
ON while the engine is not running.
Doing so could result in the battery
going dead. If the ignition is left in
ACC (For automatic transmission, the
selector lever is in the P position, and
the ignition is in ACC), the ignition
switches off automatically after about
25 minutes.

O f f
The power supply to electrical devices
turns off and the push button start indicator
light (amber) also turns off.
In this position the steering wheel is
locked.
WARNING
Before leaving the driver's seat, always
switch the ignition off , set the parking
brake, and make sure the selector lever
is in P (automatic transmission) or in 1st
gear or R (manual transmission):
Leaving the driver's seat without
switching the ignition off , setting the
parking brake, and shifting the selector
lever to P (automatic transmission) or
to 1st gear or R (manual transmission)
is dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to leave
the vehicle for even a short period, it
is important to switch the ignition off ,
as leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.

ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber) illuminates.
N O T E
The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

4–5
When Driving
Start/Stop Engine
O N
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition
is switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-18 ).
N O T E
When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indicate an abnormality.

Starting the Engine
WARNING
Radio waves from the key may aff ect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your physician
if radio waves from the key will aff ect
the device.

N O T E



y The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.



y The engine can be started when the
push button start is pressed from off,
ACC, or ON.



y The push button start system functions
(function which can start the engine
by only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
  Refer to Engine Start Function When
Key Battery is Dead on page 4-8 .
/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD

4–6
When Driving
Start/Stop Engine



y After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.
  This is for improved exhaust gas
puri¿ cation and does not indicate any
parts defect.



y Engine-starting is controlled by the
spark ignition system.
  This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical ¿ eld strength of radio
noise.

1. Make sure you are carrying the key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
¿ rmly until the engine has completely
started.
5. (Manual transmission)
Continue to press the clutch pedal
¿ rmly until the engine has completely
started.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
N O T E
(Manual transmission)
The starter will not operate if the clutch
pedal is not depressed suf¿ ciently.
(Automatic transmission)
The starter will not operate if the selector
lever is not in P or N and the brake pedal
is not depressed suf¿ ciently.

6. Verify that the KEY indicator light
(green) in the instrument cluster and the
push button start indicator light (green)
illuminate.


Indicator light
Push button start


KEY indicator light
(green)/ KEY
warning light (red)

N O T E



y If the push button start indicator light
(green) À ashes, make sure that the key is
being carried.



y If the push button start indicator light
(green) À ashes with the key being
carried, touch the key to the push
button start and start the engine. Refer
to Engine Start Function When Key
Battery is Dead on page 4-8 .

/:A(4'#,A'FKVKQPKPFD/:A(4'#,A'FKVKQPKPFD
