8–41
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.
WARNING
Never Exceed GVWR or GAWR Specifi cations:
Exceeding the GVWR or the GAWR specifi ed on the certifi cation label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires
with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specifi ed on the certifi cation label.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 542 of 568
8–42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never exceed
XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting ¿ gure equals the available amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be ¿ ve 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated in
Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 543 of 568
8–43
Customer Information and Reporting Safety Defects
Declaration of Conformity
Declaration of Conformity
Keyless Entry System/Immobilizer System
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 544 of 568
8–44
Customer Information and Reporting Safety Defects
Declaration of Conformity
Blind Spot Monitoring (BSM) System
(Canada) (U.S.A.)
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 545 of 568
8–45
Customer Information and Reporting Safety Defects
Declaration of Conformity
HomeLink Wireless Control System
CAUTION
HomeLink has been tested and complies with FCC and Industry Canada rules. Changes or
modifi cations not expressly approved by the party responsible for compliance could void
the user's authority to operate the device.
N O T E
FCC ID: NZLMOBHL4
CANADA:4112A-MOBHL4
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause
undesired operation.
Bluetooth ® Hands-Free
T y p e A
U.S.A. and Canada
FCC ID: CB2MBLUEC09 IC:279B-MBLUEC09
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifi cations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 546 of 568
8–46
Customer Information and Reporting Safety Defects
Declaration of Conformity
The term “IC: ” before the radio certi ¿ cation number only signi ¿ es that Industry Canada
technical speci ¿ cations were met.
The antenna used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provided with
installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
Mazda Bluetooth
® Hands-Free Customer Service
y U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect
y Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
Mexico
y Brief description: Bluetooth module for Hands-free telephone and streaming audio
y Name and address of the importer: Refer to "MEXICO" (page 8-12 ) in Importer/
Distributor section.
y Brand name of the product: Johnson Controls Inc.
y Model name of the product: MAZ
y Names and addresses of where the warranty can be served: Refer to "MEXICO" (page
8-12 ) in Importer/Distributor section.
y Names and addresses of where to acquire spare parts, consumables and accessories: Refer
to "MEXICO" (page 8-12 ) in Importer/Distributor section.
y Warranty period, items covered by the warranty and its possible limitations or exceptions:
Refer to the Warranty Booklet for detailed warranty information.
y Warranty procedure:
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
y Electrical speci ¿ cations:
Voltage: 9-16V, Frequency: 2.4Ghz, Current: 270mA(Typ)
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 547 of 568
8–47
Customer Information and Reporting Safety Defects
Declaration of Conformity
T y p e B
U.S.A. and Canada
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 548 of 568
8–48
Customer Information and Reporting Safety Defects
Declaration of Conformity
Mexico
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 549 of 568
9–1
9Speci ¿ cations
Technical information about your Mazda.
Identi ¿ cation Numbers ...................................................................... 9-2
Vehicle Information Labels ........................................................... 9-2
Speci ¿ cations ...................................................................................... 9-4
Speci ¿ cations ................................................................................ 9-4
Personalization Features ................................................................... 9-9
Personalization Features ............................................................... 9-9
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
Page 550 of 568
9–2
Speci ¿ cations
Identi ¿ cation Numbers

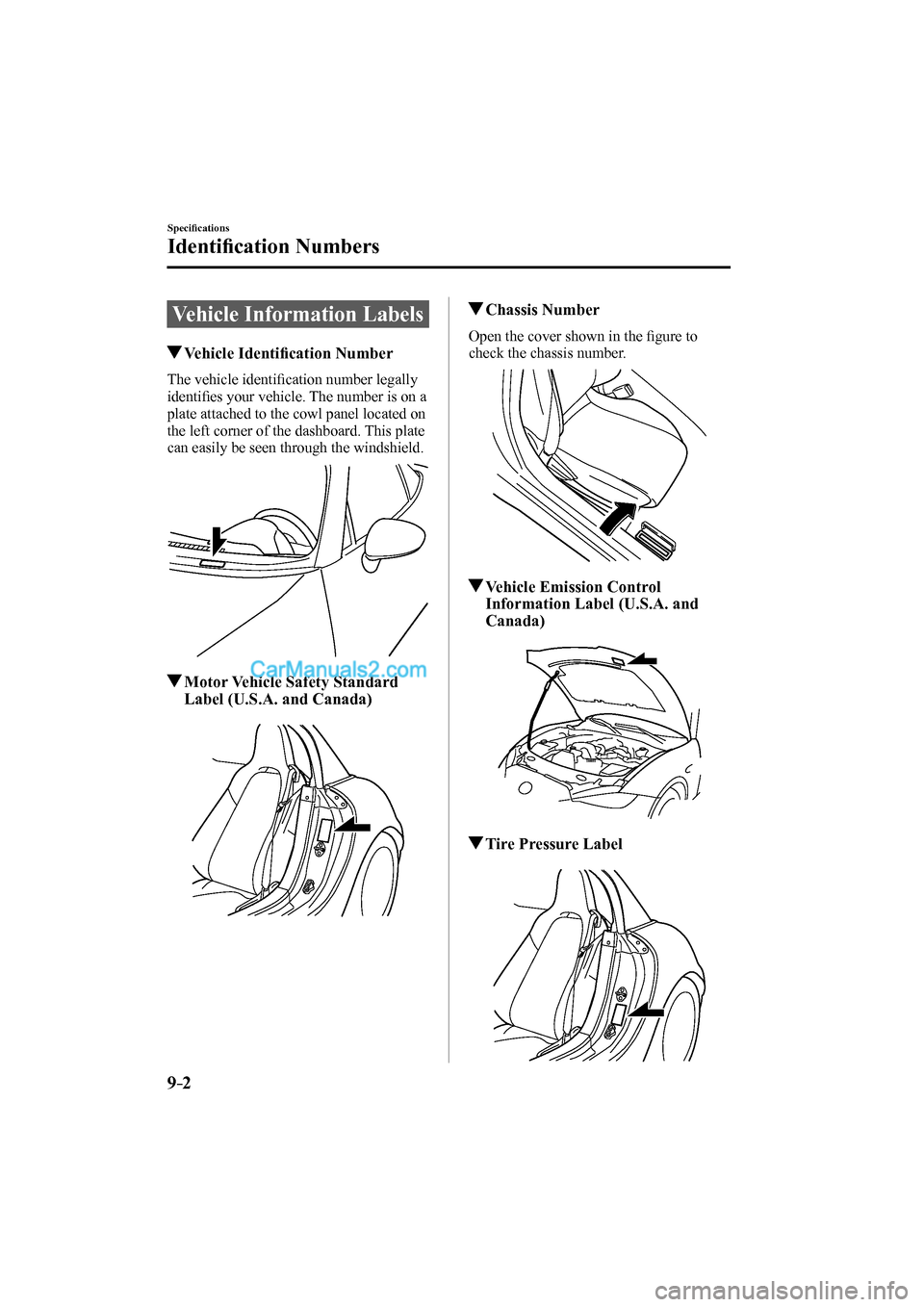

Vehicle Information Labels
Vehicle Identi ¿ cation Number
The vehicle identi ¿ cation number legally
identi ¿ es your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
Chassis Number
Open the cover shown in the ¿ gure to
check the chassis number.
Vehicle Emission Control
Information Label (U.S.A. and
Canada)
Tire Pressure Label
/ : A ( 4 ' # , A ' F K V K Q P K P F D / : A ( 4 ' # , A ' F K V K Q P K P F D
