â–¼Opening/Closing Windows
The window opens while the switch is pressed and it closes whil
e the switch is pulled up
with the ignition switched ON. Do not open or close both window s at the same time.
The passenger window can be opened/closed when the power window lock switch on the
driver's door is in the unlock position. Keep this switch in th e locked position while children
are in the vehicle.

Open Close
Open
Driver's window
Power window
lock switch
Passenger's
window
Close
Unlocked positionLocked position
Master control switch Passenger's window switch
NOTE
ï‚·A power window may no longer open/close if you continue to press the switch after
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.
ï‚·The passenger windows may be opened or closed using the master control switches on the
driver's door.
ï‚·The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power windo
w, the switch must be held up firmly
throughout window closure because the auto -closing function will be inoperable.
ï‚·When the power window lock switch is in the locked position, the light on the passenger
power window switch turns off. The light may be difficult to see depending on the
surrounding brightness.
Before Driving
Windows
3-33
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Auto-opening
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.

To stop the window partway, pull up the
switch and then release it.
NOTE
ï‚·The power window cannot be fully
closed while the door is open.
ï‚·Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other
reasons (such as a switch continues to
be operated after the window is open/
closed), the window will not fully open
automatically.
The power window auto function will
only resume on the power window that
has been reset.
1. Close the doors and the convertible
top/roof.
2. Switch the ignition ON.
3. Make sure that the power window lock switch located on the driver's
door is not depressed.
4. Press the switch and fully open the
window.
5. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
6. Make sure that the power windowsoperate correctly using the door
switches.
After the system has been re-initialized,
passenger window can be fully opened
automatically using the master control
switches.

If the automatic power window
operation does not operate normally
while the doors or convertible top/
retractable hardtop are opened/closed,
reset it using the previous procedures.
Before Driving
Windows
3-34
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

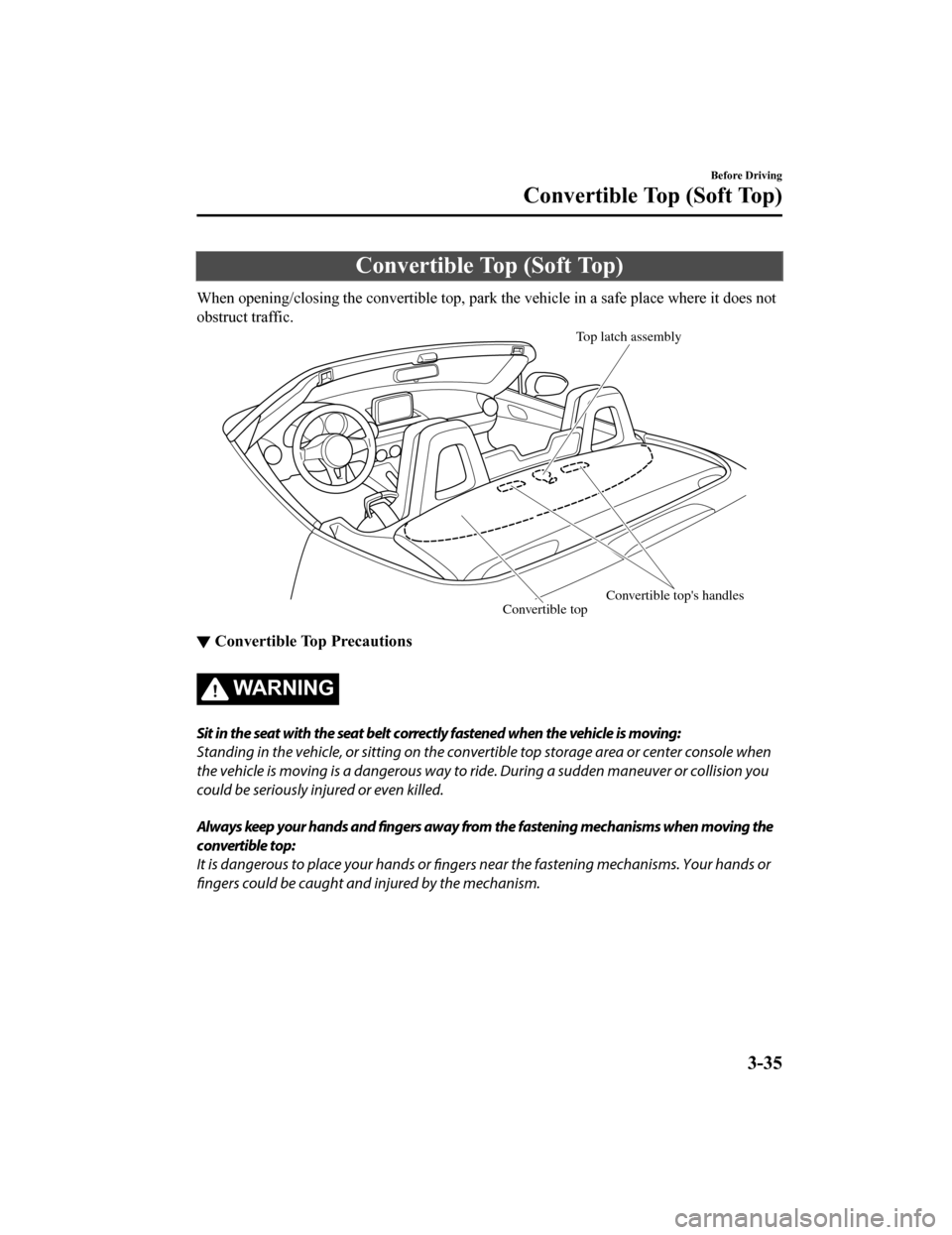

Convertible Top (Soft Top)
When opening/closing the convertible top, park the vehicle in a safe place where it does not
obstruct traffic.
Top latch assembly
Convertible top's handles
Convertible top
â–¼ Convertible Top Precautions
WA R N I N G
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the conv
ertible top storage area or center console when
the vehicle is moving is a dangerous way to ri de. During a sudden maneuver or collision you
could be seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when moving the
convertible top:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.
Before Driving
Convertible Top (Soft Top)
3-35
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

CAUTION
Remove leaves or other matter that may accumulate on and around the convertible top. If
leaves or other matter block the drain filter, water may enter the vehicle. Clean the drain
filter at least once a year.
Refer to Convertible Top Maintenance on page 6-59.
 Before opening the convertible top, make sure the rear window defogger switch is turned
off. Otherwise the heat generated from the defogger could damage the convertible top and
the internal material.
 Before lowering or raising the convert ible top, stop in a safe place
off the right-of-way and
park on a level surface.
 Make sure nothing is on the convertible top or near the back window when raising or
lowering the convertible top.
Even small objects may interfere and cause damage.
 Do not drive through an automatic car wa sh; it may damage the convertible top.
 Do not raise or lower the convertible top when the temperature is below 5 °C (41 °F) ; this
will damage the conv ertible top material.
 Do not lower the convertible top when it's wet. If the convertible top dries while folded, it
will deteriorate and mold.
 Lowering the convertible top while it's wet can also cause water to drip into the passenger
compartment.
 Do not raise or lower the convertible top in a strong wind as it could damage the
convertible top or cause an unexpected accident.
NOTE
ï‚·The power windows go down automatically in conjunction with the convertible top
opening/closing. However, this is a function for improving the operability, and it does not
mean there is a problem. If the vehicle battery is disconnected for vehicle maintenance or
other reasons, the power windows will not go down automatically. If the power windows
do not go down, the automatic open/close mechanism for the windows must be reset.
Refer to Auto-opening on page 3-34.
ï‚·When lowering the convertible top, make sure objects inside the vehicle are not blown
away by the wind.
ï‚·Secure all loose objects inside before driving with the convertible top down.
ï‚·To help prevent burglary or vandalism and to ensure that the passenger compartment
stays dry, close the convertible top and both windows securely and lock both doors when
leaving the vehicle.
ï‚·The soft top is made of high quality material and if it is not maintained correctly, the
material could harden, becomes stained, or have an uneven gloss.
Before Driving
Convertible Top (Soft Top)
3-36
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Lowering the Convertible Top
CAUTION
Do not sit on the folded convertible top.
Otherwise, the convertible top could be
damaged or you may fall off and be
injured.
1. Make sure the parking brake is
applied.
2. If the engine is running, turn it off.
3. Make sure there are no objects which
have been placed in the area where the
convertible top is to be retracted.
4. With the lock release button depressed forward, pull back the top latch lever
to unlock it.

Top latch
Lock release button
5. Remove the striker from the anchor.

Anchor Striker
NOTE
If the power windows do not go down
automatically, fully open the windows
or open the doors.
6. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it toward the vehicle rear.

Front edge
NOTE
To lower the convertible top from
inside the vehicle, use the convertible
top's handles.

Convertible top's handles
Before Driving
Convertible Top (Soft Top)
3-37
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

7. Move the convertible top rearward andfold it while pressing the rear glass
lightly with your hand.

8. With the back end of the convertibletop pressed, press the front end until a
latch sound is heard.
Lightly rock the retracted convertible
top to make sure it is securely locked.

â–¼Raising the Convertible Top
1. Make sure the parking brake is
applied.
2. If the engine is running, turn it off.
3. Pull up the unlock lever to disengage the lock.

Unlock Lever
4. Standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front.

Front edge
NOTE
ï‚·If the power windows do not go
down automatically, fully open the
windows or open the doors.
Before Driving
Convertible Top (Soft Top)
3-38
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

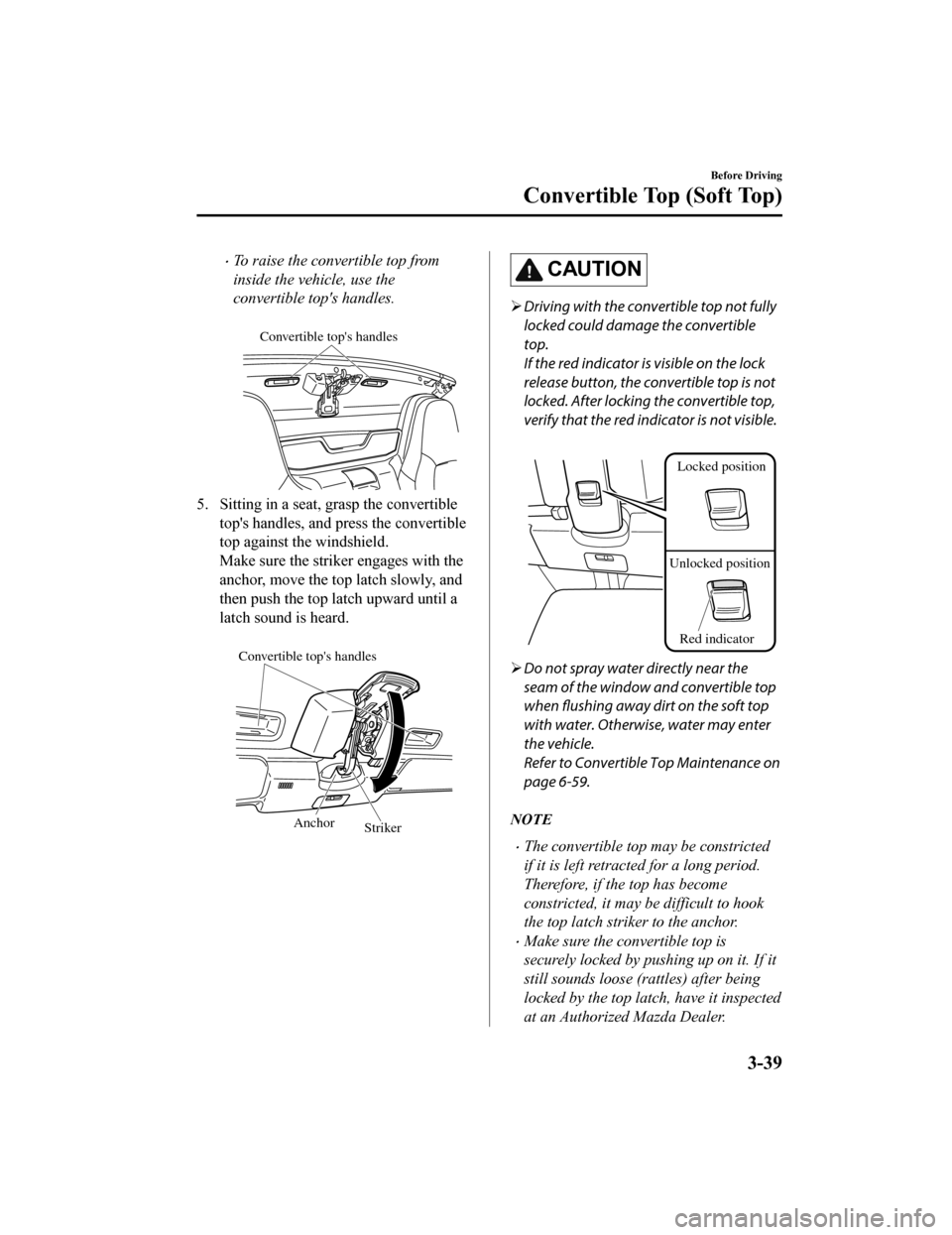

ï‚·To raise the convertible top from
inside the vehicle, use the
convertible top's handles.

Convertible top's handles
5. Sitting in a seat, grasp the convertibletop's handles, and press the convertible
top against the windshield.
Make sure the striker engages with the
anchor, move the top latch slowly, and
then push the top latch upward until a
latch sound is heard.

Convertible top's handles
Striker
Anchor
CAUTION

Driving with the convertible top not fully
locked could damage the convertible
top.
If the red indicator is visible on the lock
release button, the convertible top is not
locked. After locking the convertible top,
verify that the red indicator is not visible.

Locked position
Unlocked position Red indicator
 Do not spray water directly near the
seam of the window and convertible top
when flushing away dirt on the soft top
with water. Otherwise, water may enter
the vehicle.
Refer to Convertible Top Maintenance on
page 6-59.
NOTE
ï‚·The convertible top may be constricted
if it is left retracted for a long period.
Therefore, if the top has become
constricted, it may be difficult to hook
the top latch striker to the anchor.
ï‚·Make sure the convertible top is
securely locked by pushing up on it. If it
still sounds loose (rattles) after being
locked by the top latch, have it inspected
at an Authorized Mazda Dealer.
Before Driving
Convertible Top (Soft Top)
3-39
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

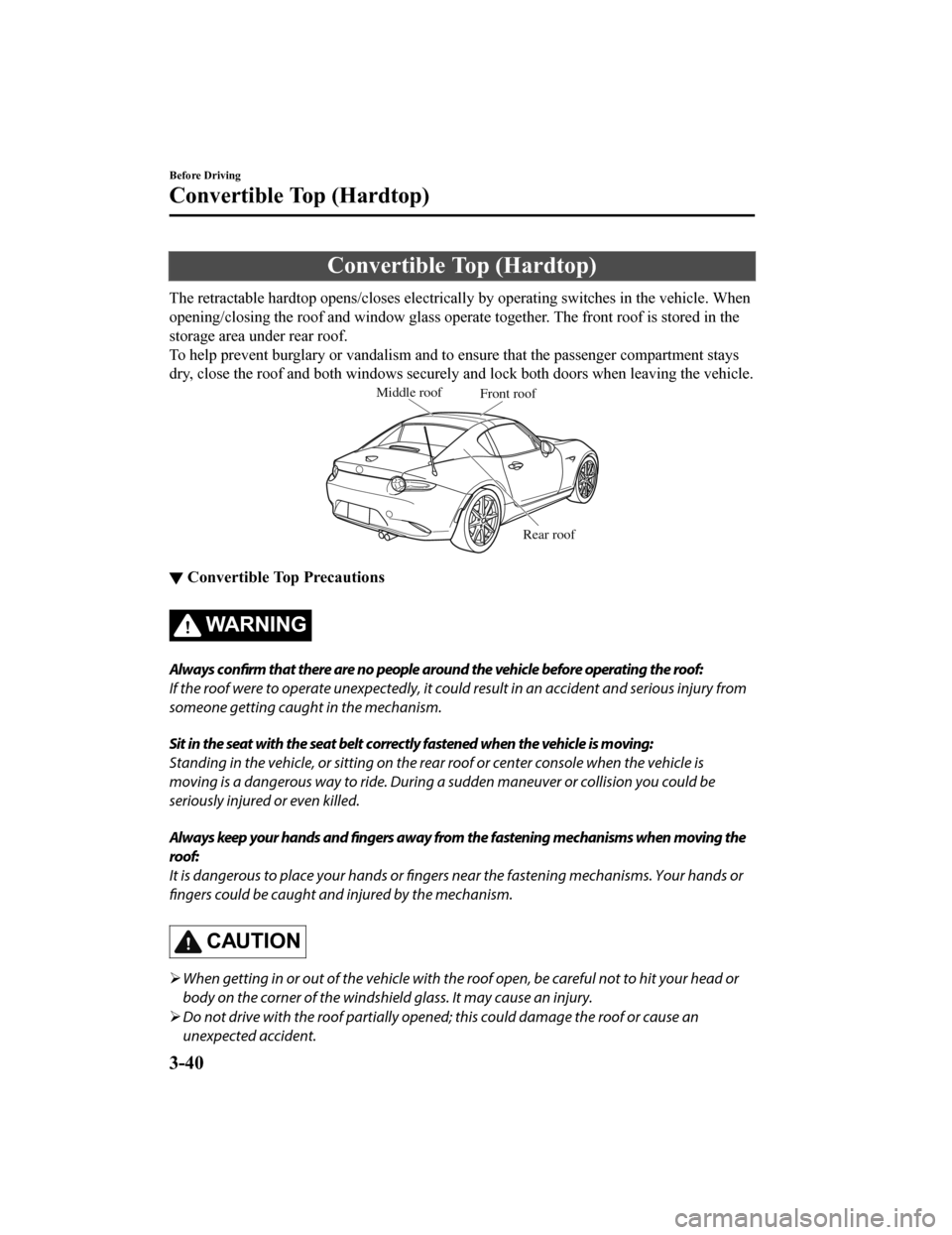

Convertible Top (Hardtop)
The retractable hardtop opens/closes electrically by operating switches in the vehicle. When
opening/closing the roof and windo w glass operate together. The front roof is stored in the
storage area under rear roof.
To help prevent burglary or vanda lism and to ensure that the passenger compartment stays
dry, close the roof and both windows securely and lock both doo rs when leaving the vehicle.
Front roof
Rear roofMiddle roof
â–¼Convertible Top Precautions
WA R N I N G
Always
confirm that there are no people around the vehicle before operating the roof:
If the roof were to operate unexpectedly, it coul d result in an accident and serious injury from
someone getting caught in the mechanism.
Sit in the seat with the seat belt correctly fastened when the vehicle is moving:
Standing in the vehicle, or sitting on the rear roof or center console when the vehicle is
moving is a dangerous way to ride. During a sudden maneuver or collision you could be
seriously injured or even killed.
Always keep your hands and fingers away from the fastening mechanisms when moving the
roof:
It is dangerous to place your hands or fingers near the fastening mechanisms. Your hands or
fingers could be caught and injured by the mechanism.
CAUTION
 When getting in or out of the vehicle with the roof open, be careful not to hit your head or
body on the corner of the windshie ld glass. It may cause an injury.
 Do not drive with the roof partially opened ; this could damage the roof or cause an
unexpected accident.
Before Driving
Convertible Top (Hardtop)
3-40
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

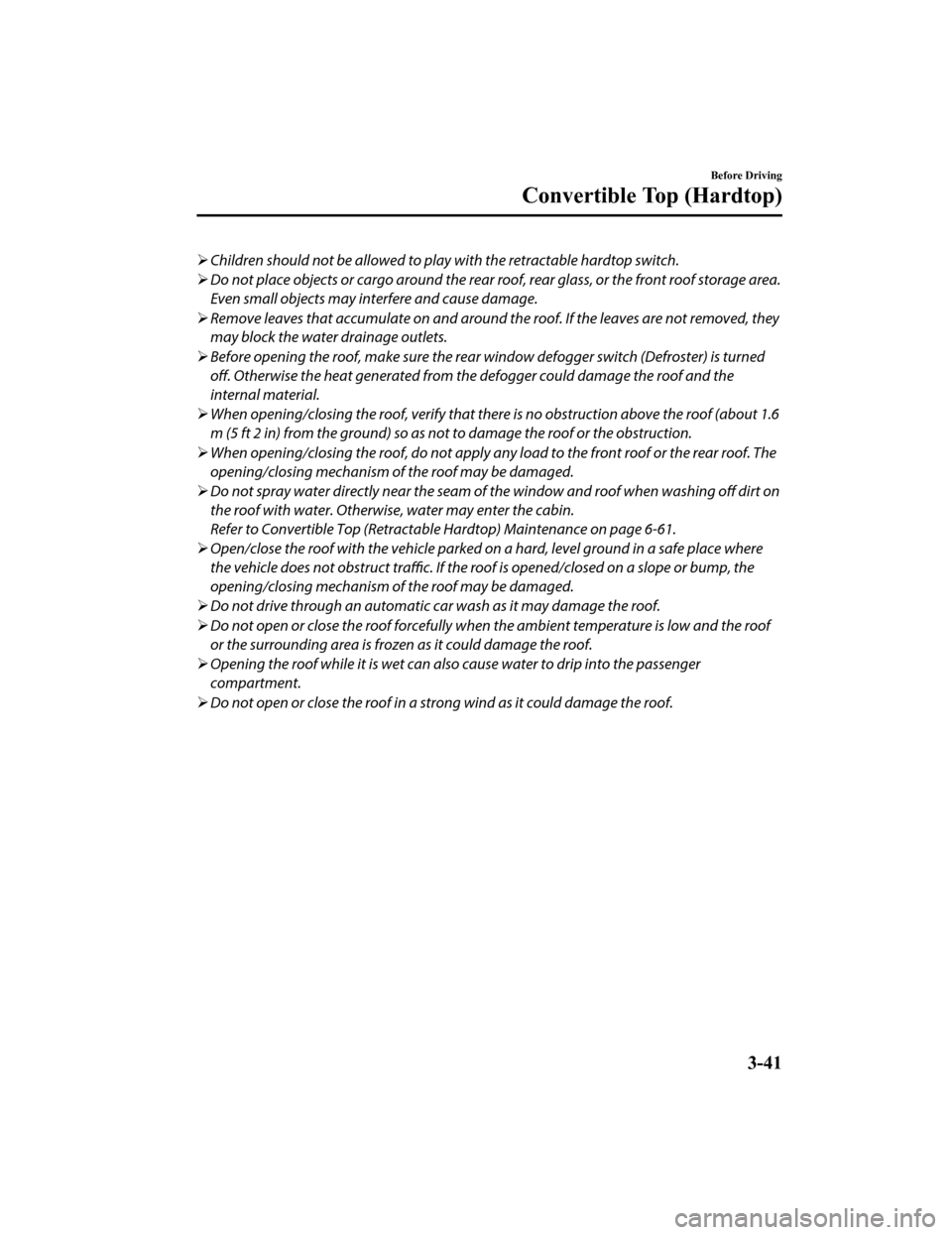

Children should not be allowed to play with the retractable hardtop switch.
 Do not place objects or cargo around the rear r oof, rear glass, or the front roof storage area.
Even small objects may interfere and cause damage.
 Remove leaves that accumulate on and around the roof. If the leaves are not removed, they
may block the water drainage outlets.
 Before opening the roof, make sure the rear window defogger switch (Defroster) is turned
off. Otherwise the heat generated from the defogger could damage the roof and the
internal material.
 When opening/closing the roof, verify that there is no obstruction above the roof (about 1.6
m (5 ft 2 in) from the ground) so as not to damage the roof or the obstruction.
 When opening/closing the roof, do not apply any load to the front roof or the rear roof. The
opening/closing mechanism of the roof may be damaged.
 Do not spray water directly near the seam of the window and roof when washing
off dirt on
the roof with water. Otherwise, water may enter the cabin.
Refer to Convertible Top (Retractable Hardtop) Maintenance on page 6-61.
 Open/close the roof with the vehicle parked on a hard, level ground in a safe place where
the vehicle does not obstruct traffic. If the roof is opened/closed on a slope or bump, the
opening/closing mechanism of the roof may be damaged.
 Do not drive through an automatic car wash as it may damage the roof.
 Do not open or close the roof forcefully when the ambient temperature is low and the roof
or the surrounding area is frozen as it could damage the roof.
 Opening the roof while it is wet can also cause water to drip into the passenger
compartment.
 Do not open or close the roof in a strong wind as it could damage the roof.
Before Driving
Convertible Top (Hardtop)
3-41
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

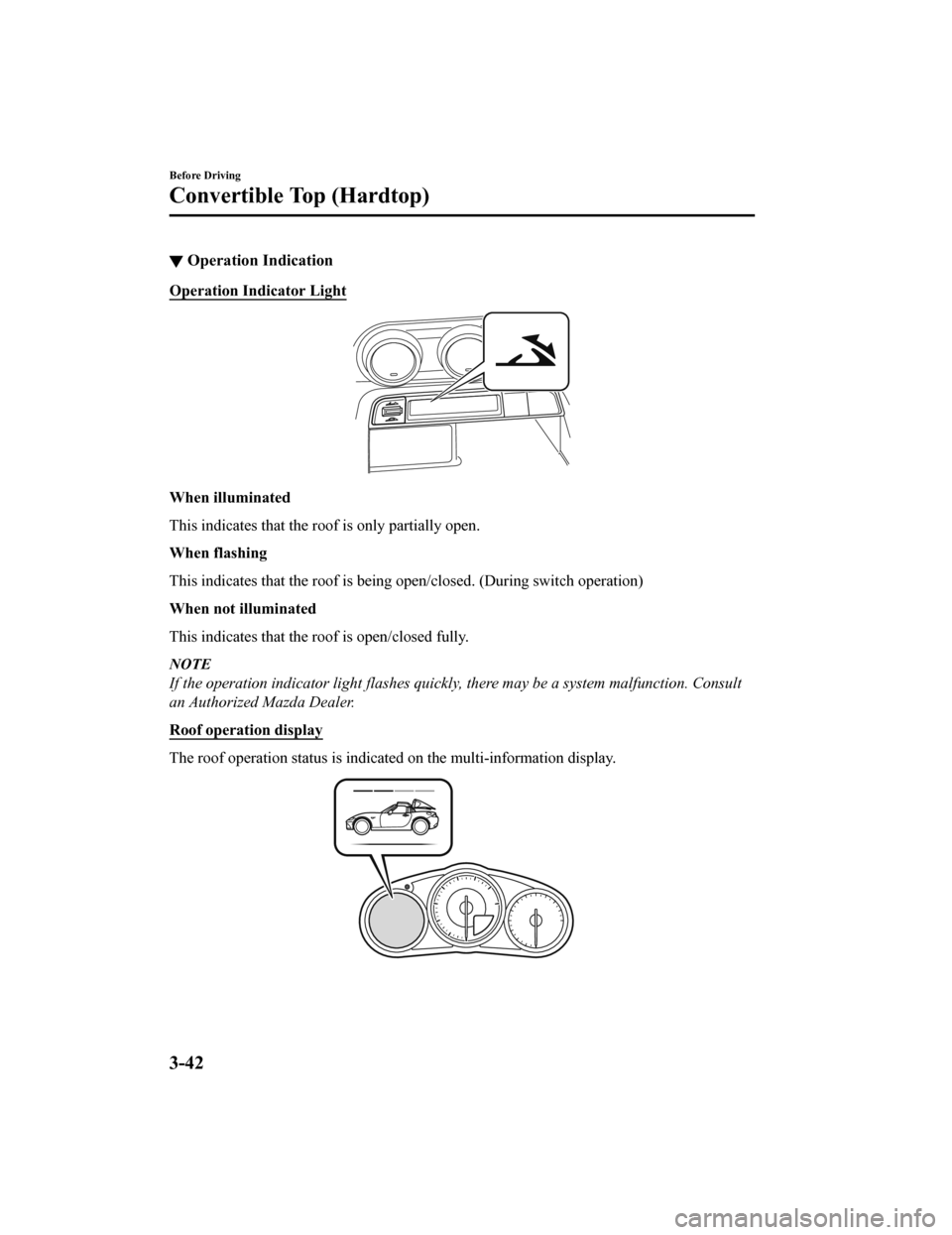

â–¼Operation Indication
Operation Indicator Light
When illuminated
This indicates that the roof is only partially open.
When flashing
This indicates that the roof is being open/closed. (During swit
ch operation)
When not illuminated
This indicates that the roof is open/closed fully.
NOTE
If the operation indicator ligh t flashes quickly, there may be a system malfunction. Consult
an Authorized Mazda Dealer.
Roof operation display
The roof operation status is indi cated on the multi-information display.
Before Driving
Convertible Top (Hardtop)
3-42
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
