ï‚·When there is a difference in the height between your driving lane and the adjacent
lane.
ï‚·Directly after pressing the BSM switch and the system becomes operable.
ï‚·If the road width is extremely narrow, vehicles two lanes over may be detected. The
detection area of the radar sensors (rear) is set according to the road width of
expressways.
ï‚·The BSM warning lights may turn on in reaction to stationary objects on the road or the
roadside such as guardrails, tunnels, sidewalls, and parked vehicles.
Objects such as guardrails and concrete walls
running alongside the vehicle.Places where the width between guardrails or
walls on each side of the vehicle narrows.
The walls at the entrance and exits of tunnels,
turnouts.
ï‚·A BSM warning light may flash or the warning beep may be activated several times when
making a turn at a city intersection.
ï‚·Turn off the BSM while pulling a trailer or wh
ile an accessory such as a bicycle carrier is
installed to the rear of the vehicle. Otherwise, the radar’s radio waves will be blocked
causing the system to not operate normally.
ï‚·In the following cases, it may be difficult to view the illumination/flashing of the BSM
warning lights equipped on the door mirrors.
ï‚·Snow or ice is adhering to the door mirrors.
ï‚·The door glass is fogged or covered in snow, frost or dirt.
ï‚·The system switches to the Rear Cross Traffi c Alert (RCTA) function when the shift lever
(manual transmission) or the selector lever (automatic transmission) is shifted to the
reverse (R) position.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-91.
When Driving
i-ACTIVSENSE
4-87
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

â–¼Blind Spot Monitoring (BSM) Warni
ng Lights/Blind Spot Monitoring (BSM)
Warning Beep
The BSM or Rear Cross Traffic Al ert (RCTA) system notifies the driver of the presence of
vehicles in adjacent lanes to the rear of your vehicle using th e BSM warning lights and the
warning beep while the s ystems are operational.
BSM warning lights
The BSM warning lights are equi pped on the left and right door mirrors. The warning lights
turn on when a vehicle approaching from the rear in an adjacent lane is detected.
When the ignition is switched ON, the malfunction warning light turns on momentarily and
then turns off after a few seconds.
Forward driving (BSM system operation)
The BSM system detects vehicles approaching from the rear and t urns on the BSM warning
lights equipped on the door mirrors according to the conditions . Additionally, while a BSM
warning light is illuminated, if the turn signal lever is operated to signal a turn in the
direction in which the BSM warni ng light is illuminated, the BSM warning light flashes.
Reverse driving (Rear Cross Traf fic Alert (RCTA) system operation)
The Rear Cross Traffic Alert (RCTA) system detects vehicles app roaching from the left and
right of your vehicle and flashes the BSM warning lights.
Function for cancelling illumination dimmer
If the BSM warning lights turn on when the parking lights are turned on, the brightness of
the BSM warning lights is dimmed.
If the BSM warning lights are d ifficult to see due to glare from surrounding brightness when
traveling on snow-covered roads or under foggy conditions, pres s the dimmer cancellation
button to cancel the dimmer and increase the brightness of BSM warning lights when they
turn on.
Refer to Dashboard Illumination on page 4-14.
When Driving
i-ACTIVSENSE
4-88
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

BSM warning beep
The BSM warning beep is activated simultaneously with the flashing of a BSM warning
light.
â–¼ Blind Spot Monitoring (BSM) OFF
Indicator Light
ï‚·When the ignition is switched ON, the
malfunction warning light turns on
momentarily and then turns off after a
few seconds.
ï‚·The BSM OFF indicator light
illuminates when the BSM switch is
pressed to turn off the BSM and Rear
Cross Traffic Alert (RCTA) systems.
ï‚·A malfunction in the system may be
indicated under the following
conditions. Have your vehicle inspected
at an Authorized Mazda Dealer.
ï‚·The light does not turn on when the
ignition is switched ON.
ï‚·The light remains
turned on even if
the BSM switch is operated.
ï‚·It turns on while driving the vehicle.
â–¼ Blind Spot Monitoring (BSM)
Switch
When the BSM switc
h is pressed, the
BSM and Rear Cross Traffic Alert
(RCTA) systems are turned off and the
BSM OFF Indicator Light in the
instrument cluster turns on.
If the switch is pre ssed again, the BSM
and Rear Cross Traffic Alert (RCTA)
systems become operable and the BSM
OFF Indicator Light turns off.
NOTE
ï‚·When the ignition is switched off, the
condition before the system was turned
off is maintained. For example, if the
ignition is switched OFF while the BSM
and Rear Cross Traffic Alert (RCTA)
systems are operational, the BSM and
Rear Cross Traffic Alert (RCTA) systems
remain operational the next time the
ignition is switched ON.
When Driving
i-ACTIVSENSE
4-89
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Rear Cross Traffic Alert (RCTA)*
The RCTA system is designed to assist the driver in checking the area to the rear of the
vehicle on both sides while the vehicle is reversing by alertin g the driver to the presence of
vehicles approaching the rear of the vehicle.
The RCTA system detects vehicles approaching from the left and right sides of the vehicle
while the vehicle is being reversed out of a parking space, and notifies the driver of possible
danger using the Blind Spot Monitoring (BSM) warning lights and the warning buzzer.
Detection areas
Your vehicle
RCTA operation
1. The RCTA system operates when the shift lever (manual transmi ssion) or the selector
lever (automatic transmission) is shifted to the reverse (R) position.
2. If there is the po ssibility of a collision with an approachin g vehicle, the Blind Spot
Monitoring (BSM) warning light flashes and the warning beep is activated
simultaneously.
When Driving
i-ACTIVSENSE
*Some models.4-91
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

WA R N I N G
Always check the surrounding area visually before actually putting the vehicle in reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting the
vehicle in reverse. Due to certain limitations wi th the operation of this system, the Blind Spot
Monitoring (BSM) warning light may not flash or it might be delayed even though a vehicle is
behind your vehicle. Always make it your responsibility as a driver to check the rear.
NOTE
ï‚·In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
ï‚·Some problem with the system including the Blind Spot Monitoring (BSM) warning
lights has occurred.
ï‚·A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
ï‚·There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
ï‚·Driving on snow-covered roads for long periods.
ï‚·The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
ï‚·The battery voltage has decreased.
ï‚·Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
ï‚·The vehicle speed when reversing is about 10 km/h (6.3 mph) or faster.
ï‚·The radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
When Driving
i-ACTIVSENSE
4-92
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

ï‚·A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
ï‚·The vehicle is parked on a slant.
Your vehicle
ï‚·Directly after pressing the Blind Spot Monitoring (BSM) switch and the system becomes
operable.
ï‚·In the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning lights equipped on the door mirrors.
ï‚·Snow or ice adheres to the door mirrors.
ï‚·The door glass is fogged or covered in snow, frost or dirt.
ï‚·Turn off the RCTA system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehic le. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
When Driving
i-ACTIVSENSE
4-93
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Forward Sensing Camera (FSC)*
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near t he rearview mirror and used by the following systems.
ï‚·High Beam Control System (HBC)
ï‚·Lane Departure Warning System (LDWS)
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahea d of the vehicle while
traveling at night and detects traffic lanes. The distance in w hich the Forward Sensing
Camera (FSC) can detect objects v aries depending on the surrounding conditions.
CAUTION
Do not apply accessories, stickers or
film to the windshield near the Forward Sensing
Camera (FSC).
If the area in front of the Forward Sensing Cam era (FSC) lens is obstructed, it will cause the
system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.
 Do not disassemble or modify the Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each sy stem may not operate normally which could
lead to an unexpected accident.
 Heed the following cautions to assure the correct operation of the Forward Sensing Camera
(FSC).
 The direction of the Forward Sensing Camera (FSC) has been
finely adjusted, therefore do
not change the installation position or remove the Forward Sensing Camera (FSC).
 Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get dirty.
 Do not remove the Forward Sensing Camera (FSC) cover.
 Do not place objects on the dashboard which reflect light.
 Always keep the windshield glass around the camera clean by removing dirt or fogging.
Use the windshield defroster to remove fogging on the windshield.
When Driving
i-ACTIVSENSE
4-94*Some models.
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Consult an Authorized Mazda Dealer regardi ng cleaning the interior side of the
windshield around the Forw ard Sensing Camera (FSC).
 Consult an Authorized Mazda Dealer before performing repairs around the Forward
Sensing Camera (FSC).
 The Forward Sensing Camera (FSC) is installe d to the windshield. Consult an Authorized
Mazda Dealer for windshield repair and replacement.
 When performing repairs around the rearvi ew mirror, consult an Authorized Mazda
Dealer.
 Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area around
it. If strong force is applied, stop using the Lane Departure Warning System (LDWS), and
the High Beam Control System (HBC) and consult an Authorized Mazda Dealer.
 The direction in which the Forward Sensing Camera (FSC) is pointed has been finely
adjusted. Do not change the installation position of the Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result in damage or malfunction.
NOTE
ï‚·In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
ï‚·The height of the vehicle ahead is low.
ï‚·You drive your vehicle at the same speed as the vehicle ahead.
ï‚·Headlights are not turned on during the night or when going through a tunnel.
ï‚·In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
ï‚·When driving next to walls with no patterning (including fences and longitudinally
striped walls).
ï‚·The taillights of the vehicle ahead are turned off.
ï‚·A vehicle is outside the illumi nation range of the headlights.
ï‚·The vehicle is making a sharp turn, or ascending or descending a steep slope.
ï‚·Entering or exiting a tunnel.
ï‚·Heavy luggage is loaded causing the vehicle to tilt.
ï‚·Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).
ï‚·There are many light emitters on the vehicle ahead.
ï‚·When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
ï‚·The vehicle ahead has a special shape. For example, a vehicle towing a trailer house or
a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
When Driving
i-ACTIVSENSE
4-95
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

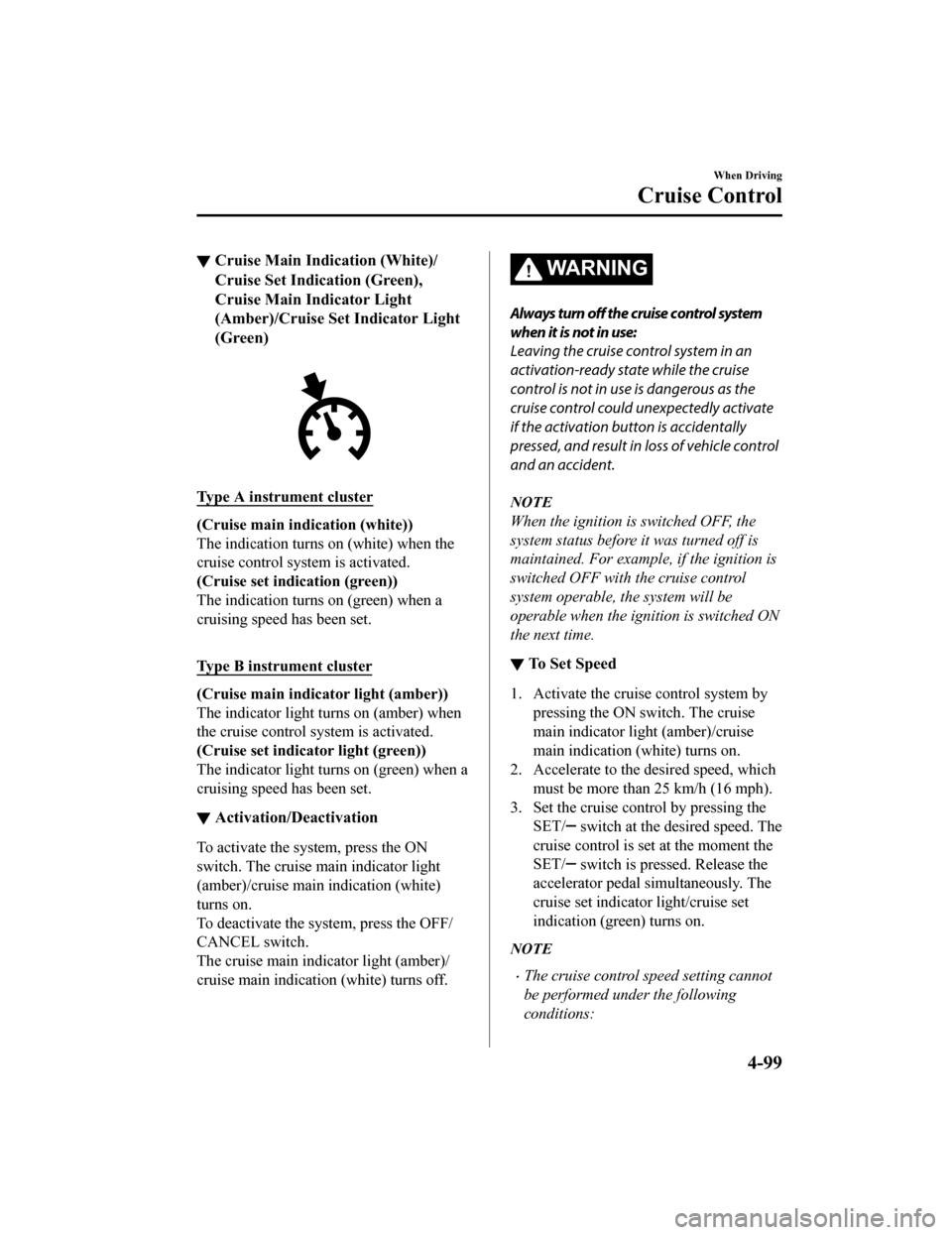

â–¼Cruise Main Indication (White)/
Cruise Set Indication (Green),
Cruise Main Indicator Light
(Amber)/Cruise Set Indicator Light
(Green)
Type A instrument cluster
(Cruise main ind
ication (white))
The indication turns on (white) when the
cruise control system is activated.
(Cruise set indication (green))
The indication turns on (green) when a
cruising speed has been set.

Type B instrument cluster
(Cruise main indicator light (amber))
The indicator light turns on (amber) when
the cruise control system is activated.
(Cruise set indicator light (green))
The indicator light turns on (green) when a
cruising speed has been set.
â–¼ Activation/Deactivation
To activate the system, press the ON
switch. The cruise main indicator light
(amber)/cruise main indication (white)
turns on.
To deactivate the system, press the OFF/
CANCEL switch.
The cruise main indi
cator light (amber)/
cruise main indication (white) turns off.
WA R N I N G
Always turn off the cruise control system
when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
control is not in use is dangerous as the
cruise control could unexpectedly activate
if the activation button is accidentally
pressed, and result in loss of vehicle control
and an accident.
NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For exampl e, if the ignition is
switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched ON
the next time.
â–¼ To Set Speed
1. Activate the cruise control system by
pressing the ON switch. The cruise
main indicator light (amber)/cruise
main indication (white) turns on.
2. Accelerate to the desired speed, which
must be more than 25 km/h (16 mph).
3. Set the cruise control by pressing the SET/
switch at the desired speed. The
cruise control is set at the moment the
SET/
switch is pressed. Release the
accelerator pedal simultaneously. The
cruise set indicato r light/cruise set
indication (green) turns on.
NOTE
ï‚·The cruise control speed setting cannot
be performed under the following
conditions:
When Driving
Cruise Control
4-99
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

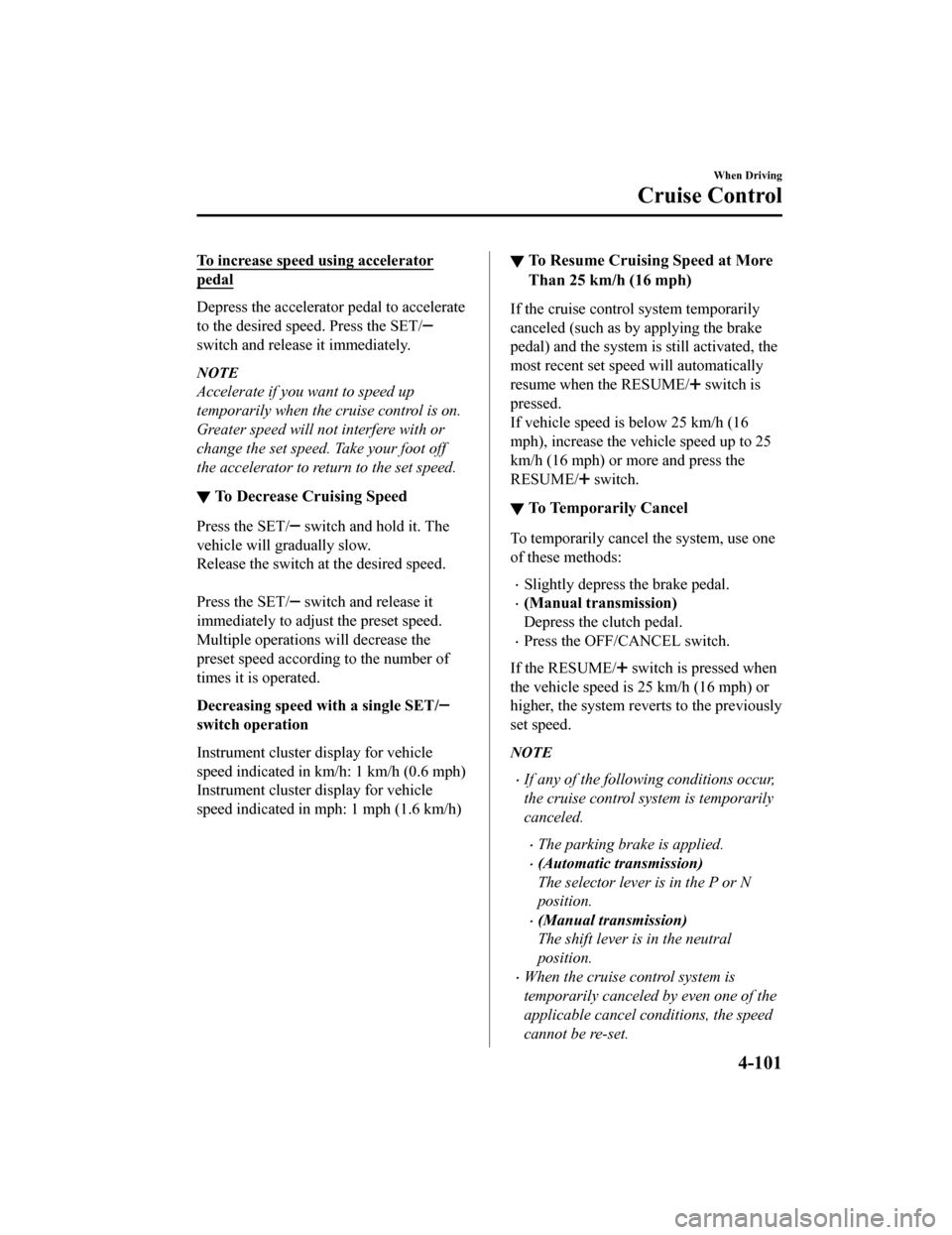

To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET/
switch and release it immediately.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off
the accelerator to return to the set speed.
â–¼To Decrease Cruising Speed
Press the SET/ switch and hold it. The
vehicle will gradually slow.
Release the switch at the desired speed.

Press the SET/
switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.
Decreasing speed w ith a single SET/
switch operation
Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster d isplay for vehicle
speed indicated in mph: 1 mph (1.6 km/h)
â–¼ To Resume Cruising Speed at More
Than 25 km/h (16 mph)
If the cruise control system temporarily
canceled (such as by applying the brake
pedal) and the system is still activated, the
most recent set speed will automatically
resume when the RESUME/
switch is
pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
km/h (16 mph) or more and press the
RESUME/
switch.
â–¼ To Temporarily Cancel
To temporarily cancel the system, use one
of these methods:
ï‚·Slightly depress t
he brake pedal.
ï‚·(Manual transmission)
Depress the clutch pedal.
ï‚·Press the OFF/CANCEL switch.
If the RESUME/
switch is pressed when
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.
NOTE
ï‚·If any of the following conditions occur,
the cruise control system is temporarily
canceled.
ï‚·The parking brake is applied.
ï‚·(Automatic transmission)
The selector lever is in the P or N
position.
ï‚·(Manual transmission)
The shift lever is in the neutral
position.
ï‚·When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
When Driving
Cruise Control
4-101
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
