MAZDA MODEL MX-5 2018 (in English) User Guide

Interior Equipment (View D)
▼Convertible Top (Soft Top)
ƒ
Windblocker........................................................................................................page 5-148
„ Seat side box.................................................. .................................................... page 5-146
… Cup holders.................................................... .....................................................page 5-142
† Console box.................................................... .................................................... page 5-146
‡ Interior light........................................................................................................ page 5-1 39
ˆ Rearview mirror................................................ .................................................... page 3-30
‰ Sunvisor....................................................... ....................................................... page 5-1 39
Š Vanity mirror...................................................................................................... page 5-139
‹ Parking brake.................................................. ...................................................... page 4-61
ΠSeat........................................................... ............................................................... page 2-4
 CD player..................................................................................................... page 5-26, 5-84
Ž SRS air bag............................................................................................................page 2- 26
 Back trim storage boxes........................................ ............................................. page 5-147
 Seat belt...................................................... ............................................................. page 2-7
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-5
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

▼Convertible Top (Hardtop)
ƒ
Windblocker........................................................................................................page 5-148
„ Seat side box.................................................. .................................................... page 5-146
… Cup holders.........................................................................................................page 5-142
† Console box.................................................... .................................................... page 5-146
‡ Interior light........................................................................................................ page 5-1 39
ˆ Rearview mirror.................................................................................................... page 3-30
‰ Sunvisor.............................................................................................................. page 5-1 39
Š Vanity mirror...................................................................................................... page 5-139
‹ Parking brake........................................................................................................ page 4-61
ΠSeat.......................................................................................................................... page 2-4
 CD player..................................................................................................... page 5-26, 5-84
Ž SRS air bag............................................................................................................page 2- 26
 Back trim storage box........................................................................................ page 5-147
 Seat belt...................................................... ............................................................. page 2-7
Pictorial Index
Interior Overview
1-6The equipment and installation position varies by vehicle
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Convertible Top (Soft Top)
ƒHood...................................................................................................................... page 6-19
„ Windshield wiper blades....................................................................................... page 6-28
… Convertible Top (Soft Top)..................................... .............................................. page 3-35
† Doors and keys...................................................................................................... page 3-13
‡ Fuel-filler lid......................................................................................................... page 3 -26
ˆ Wheels and Tires............................................... .................................................... page 6-36
‰ Exterior lights................................................ ........................................................ page 6-40
Š Trunk Lid...............................................................................................................page 3 -19
‹ Antenna................................................................................................................. page 5 -19
ΠOutside mirror....................................................................................................... page 3-29
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-7
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Convertible Top (Hardtop)
ƒHood........................................................... ........................................................... page 6-19
„ Windshield wiper blades........................................ ............................................... page 6-28
… Convertible Top (Hardtop).................................................................................... page 3-40
† Doors and keys................................................. ..................................................... page 3-13
‡ Fuel-filler lid......................................................................................................... page 3 -26
ˆ Wheels and Tires................................................................................................... page 6-36
‰ Exterior lights................................................ ........................................................ page 6-40
Š Trunk Lid...............................................................................................................page 3 -19
‹ Antenna................................................................................................................. page 5 -19
ΠOutside mirror....................................................................................................... page 3-29
Pictorial Index
Exterior Overview
1-8The equipment and installatio n position varies by vehicle
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Seat............................................... 2-4
Head Restraints.............................2-6
Seat Belt Systems..... .......................... 2-7
Seat Belt Precautions... ................. 2-7
Seat Belt......................................2-10
Seat Belt Warning Systems.........2-11
Seat Belt Pretensioner and Load
Limiting Systems........................ 2-11
Seat Belt Extender...................... 2-13
Child Restraint................................ 2-15 Child-Restraint Precautions........ 2-15
Child-Restraint System
Installation.................................. 2-19
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-21
Installing Child-Restraint
Systems....................................... 2-23
SRS Air Bags....................................2-26
Supplemental Restraint System
(SRS) Precautions.......................2-26
Supplemental Restraint System
Components................................ 2-32
How the SRS Air Bags Work..... 2-34
SRS Air Bag Deployment
Criteria........................................ 2-37
Limitations to SRS Air Bag........2-38
Passenger Occupant Classification
System
*.......................................2-40
Constant Monitoring...................2-44
*Some models.2-1
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

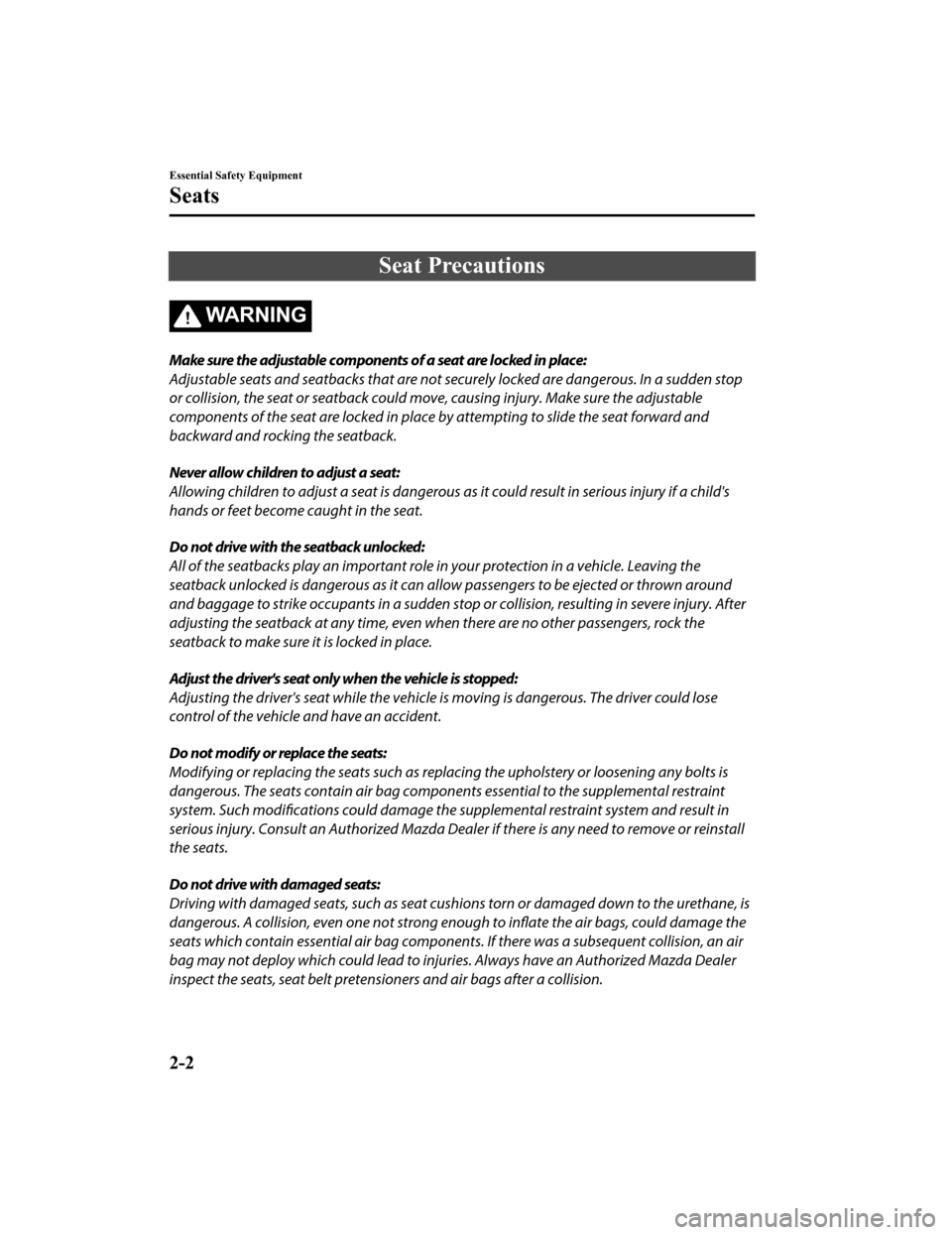

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the seats:
Modifying or replacing the seats such as repl acing the upholstery or loosening any bolts is
dangerous. The seats contain air bag components essential to the supplemental restraint
system. Such modifications could damage the supplemental restraint system and result in
serious injury. Consult an Author ized Mazda Dealer if there is any need to remove or reinstall
the seats.
Do not drive with damaged seats:
Driving with damaged seats, such as seat cushions torn or damaged down to the urethane, is
dangerous. A collision, even one not strong enough to inflate the air bags, could damage the
seats which contain essential air bag components. If there was a subsequent collision, an air
bag may not deploy which could lead to injuri es. Always have an Authorized Mazda Dealer
inspect the seats, seat belt pretensioners and air bags after a collision.
Essential Safety Equipment
Seats
2-2
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Do not drive with either seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuri es. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, wh ich could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Always leave your car locked and keep the car keys safely away from children:
Leaving your car unlocked or the keys in reach of children is dangerous. Children who find
their way into the trunk through an open trunk can become accidentally locked in the trunk.
This could result in death or brain damage from heat prostration, particularly in the summer.
Always lock the doors and the trunk.
CAUTION
 When operating a seat, be careful not to put yo ur hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
 When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
 When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
Essential Safety Equipment
Seats
2-3
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Seat
▼Seat Operation
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to i ts original position and the seat is locked in place by
attempting to push it forward and backward.
Height Adjustment for Front Edg e of Seat Bottom (Driver's Seat)
To adjust the height for front edge of the seat bottom, rotate the dial to the desired position.
Seat Recline
To change the seatback angle, lean forward slightly while raisi ng the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to i ts original position and the seatback is locked in place by
attempting to push it forward and backward.
Essential Safety Equipment
Seats
2-4
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

▼Seat Warmer*
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes a
s follows each time
the seat warmer switch is pressed.
Low Mid
High
OFF
WA R N I N G
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Do not use the seat warmer with anything
having high moisture-retention ability such
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
Essential Safety Equipment
Seats
*Some models.2-5
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

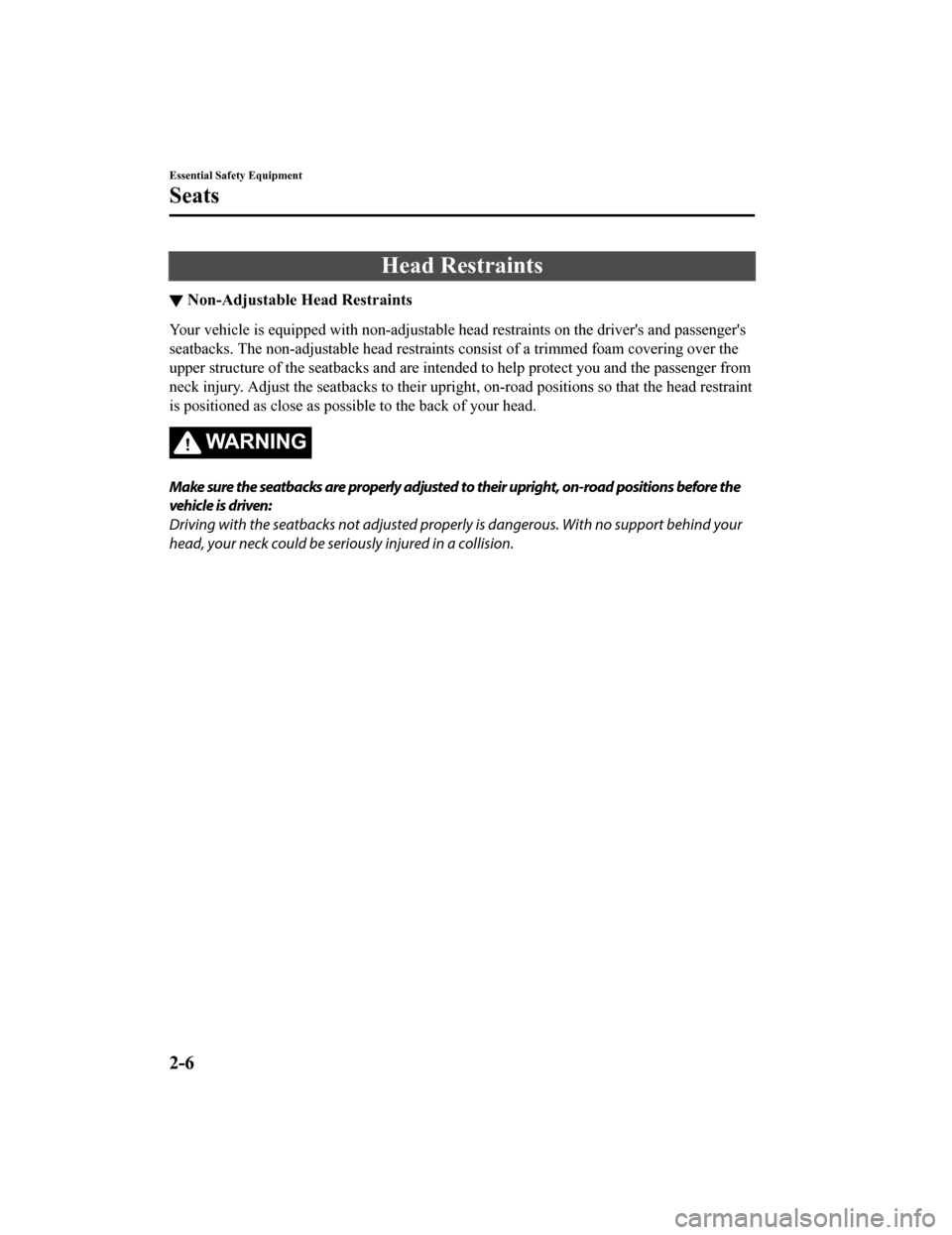

Head Restraints
▼Non-Adjustable Head Restraints
Your vehicle is equipped with non
-adjustable head restraints on the driver's and passenger's
seatbacks. The non-adjustable head restraints consist of a trimmed foam covering over the
upper structure of the seatbacks and are intended to help protect you and the passenger from
neck injury. Adjust the seatback s to their upright, on-road positions so that the head restraint
is positioned as close as possible to the back of your head.
WA R N I N G
Make sure the seatbacks are properly adjusted to their upright, on-road positions before the
vehicle is driven:
Driving with the seatbacks not adjusted properly is dangerous. With no support behind your
head, your neck could be seriously injured in a collision.
Essential Safety Equipment
Seats
2-6
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
