2. Remove the drain filter while pressingthe tab.
3. Remove leaves and other matteraccumulated in the drain filter.
4. Reinstall the drain filter in the reverse order of the removal procedure.
CAUTION
When installing the drain filter, make sure
that the drain filter is securely attached to
its designated position by pushing it until
the tab locks. Water may enter the vehicle if
the drain filter is not secured to its
designated position.
▼ Convertible Top (Retractable
Hardtop) Maintenance
Wa s h i n g
To help protect the retractable hardtop's
finish, use a soft cloth or sponge to wash
it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if
they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
CAUTION
 Do not use an automatic car wash.
 Do not spray water directly on the area
where the window glass and the
retractable hardtop meet. This would
probably cause water to enter the cabin.
 Do not use strong soap, chemical
detergents, or hot water, and do not
wash the retractable hardtop in direct
sunlight or when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Do not allow soap to dry on the
finish.
Waxing
Wax the retractable hardtop when water no
longer beads on the paint. Always wash
and dry it before waxing.
CAUTION
 Wiping off dust or dirt with a dry cloth
will scratch the finish.
 Do not use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas.
Maintenance and Care
Appearance Care
6-61
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Drainage outlet cleaning procedure
There are drainage outlets on the left and
right of the lower side of the rear window.
Rear roofDrainage
outlet
Rear window
NOTE
If leaves or other foreign matter block the
drainage outlets, water may enter the
cabin. Clean the drainage outlets at least
once a year.
1. Continue pressing the retractable
hardtop switch in the open direction
until the rear roof is raised up from the
fully closed position.
Refer to Opening the Roof on page
3-43.
2. Remove your finger from theretractable hardtop switch after the rear
roof is raised up.
3. Make sure the drainage outlets arevisible.

Drainage
outlet
Rear roof links
4. Switch the ignition OFF.
WARNING
Verify that the ignition is switched off:
Closing the roof with the ignition not
switched off is dangerous as the motors
could turn on suddenly and cause
injury resulting from hands or fingers
being pinched in the mechanism.
5. Remove leaves and other foreign matter accumulated in the drainage
outlet.
Maintenance and Care
Appearance Care
6-62
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

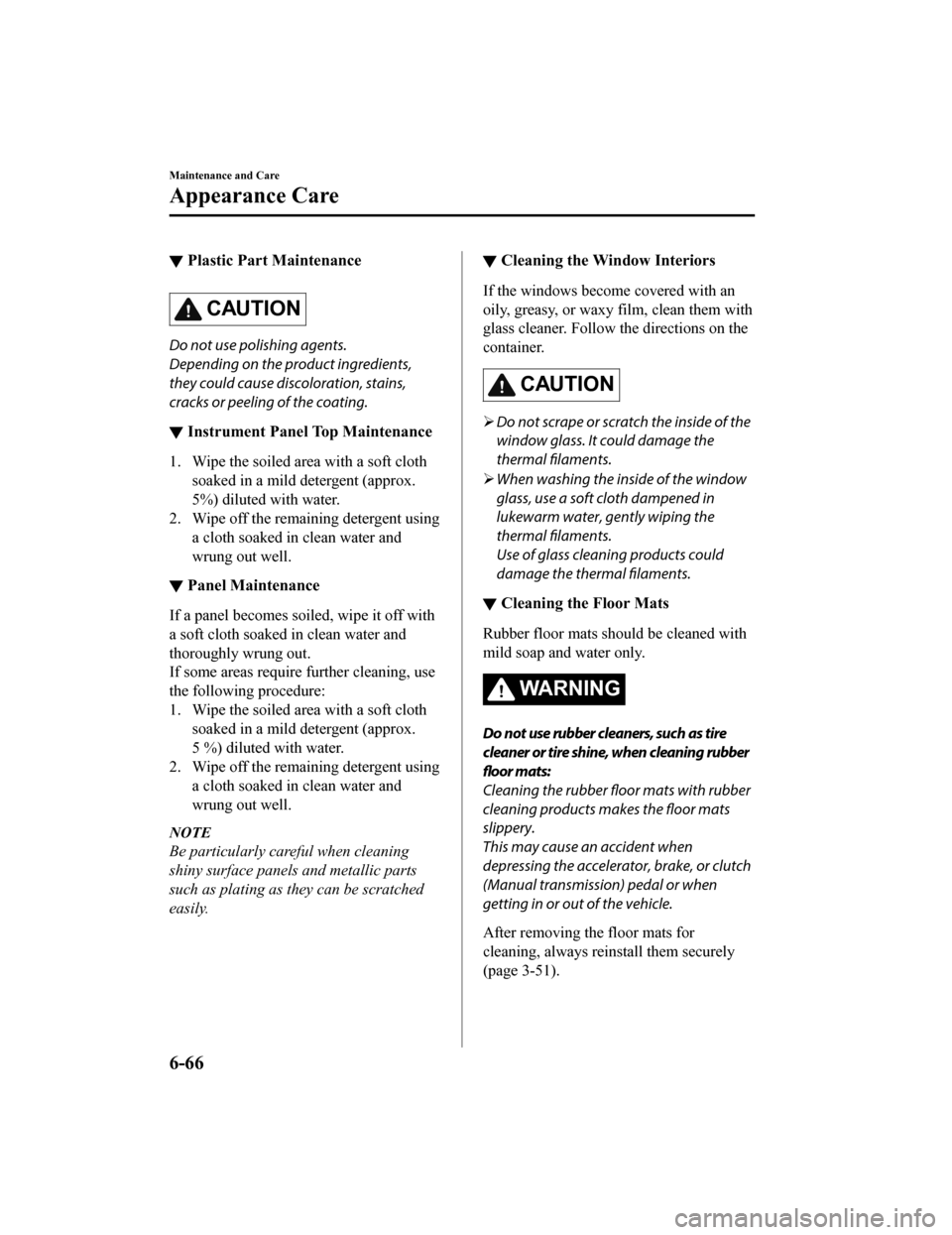

▼Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
▼Instrument Panel Top Maintenance
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow
the directions on the
container.
CAUTION
 Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments.
Use of glass cleaning products could
damage the thermal filaments.
▼ Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor
mats:
Cleaning the rubber floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator, brake, or clutch
(Manual transmission) pedal or when
getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-51).
Maintenance and Care
Appearance Care
6-66
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
