▼Stopping the Smart City Brake
Support (SCBS) System Operation
The SCBS system can be temporarily
deactivated.
Refer to Personalization Features on page
9-9.
When the SCBS system is turned off, the
Smart City Brake Support (SCBS) OFF
indicator light turns on.

When the engine is restarted, the system
becomes operational.
When Driving
i-ACTIVSENSE
4-104
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

CAUTION
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has tires of a
different size than the
size indicated on the vehicle placard or tire inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pre ssure telltale when one or more of your tires is
significantly
under-inflated. Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate them to the proper
pressure. Driving on a significantly under-in flated tire causes the tire to overheat and can
lead to tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle's handli ng and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct ti re pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle th at prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
 To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire
deflation or blow out.
When Driving
Tire Pressure Monitoring System
4-117
MX-5_8JA4-EA-19K_Edition2
_old 2019-8-29 16:18:06

Bluetooth®
▼Introduction
Bluetooth® Hands-Free outline
When a Bluetooth® device (mobile phone) is connected to the vehicle's Bluetooth® unit via
radio wave transmission, a call can be made or received by pres sing the talk button, pick-up
button, or hang-up button on th e audio remote control switch, o r by operating the center
display.
Bluetooth
® audio outline
When a portable audio unit equipped with the Bluetooth® communication function is paired
to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE
For your safety, a device can be paired only when the vehicle is parked. If the vehicle
starts to move, the pairing procedure will en d. Park the vehicle in a safe place before
pairing.
The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or
less.
Basic audio operation is available us ing voice commands even if Bluetooth® is not
connected.
For safety reasons, operation of the center di splay is disabled while the vehicle is being
driven. However, items not displayed in gray can be operated using the commander
switch while the vehicle is being driven.
Interior Features
Audio Set
5-47
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

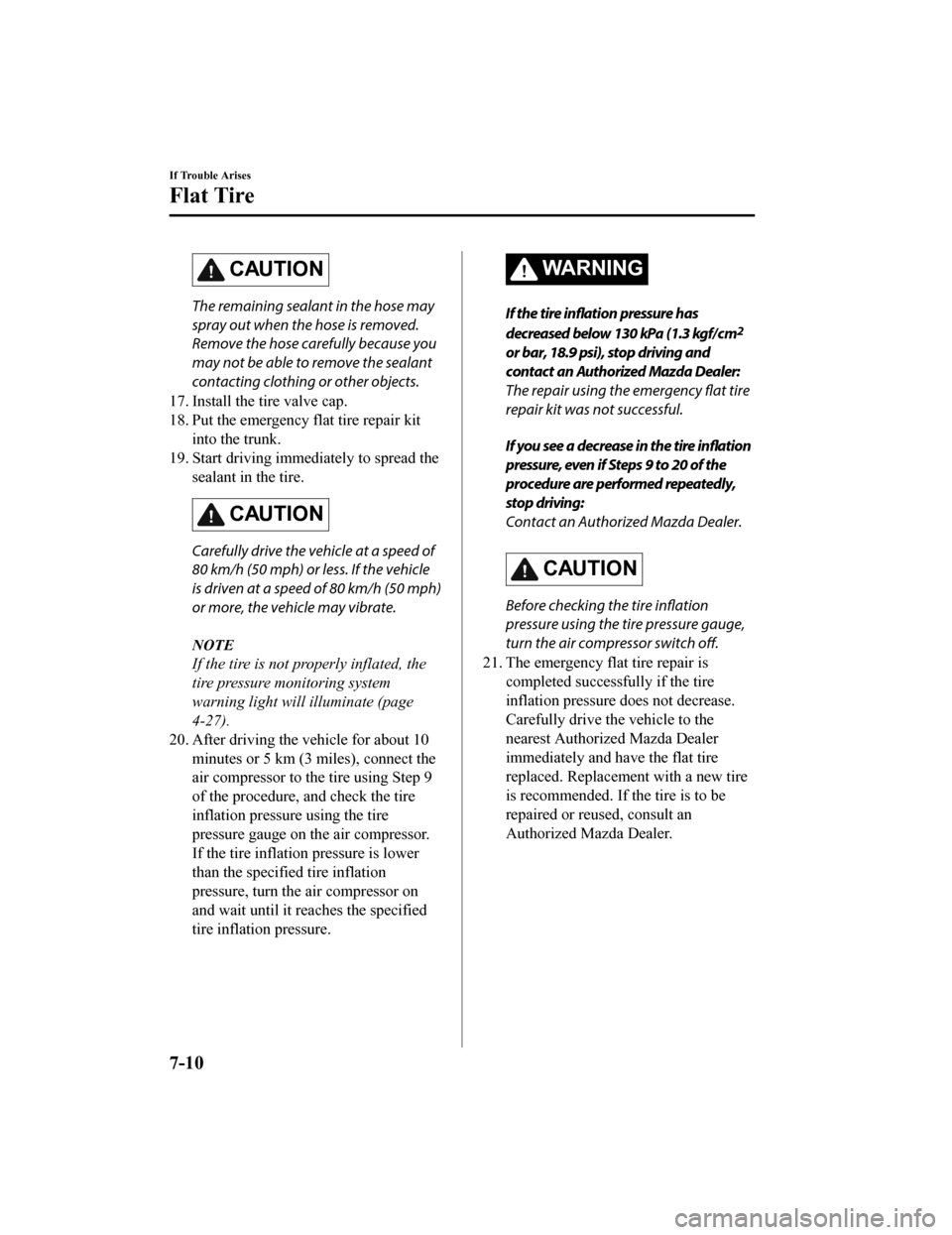

CAUTION
The remaining sealant in the hose may
spray out when the hose is removed.
Remove the hose carefully because you
may not be able to remove the sealant
contacting clothing or other objects.
17. Install the tire valve cap.
18. Put the emergency flat tire repair kit into the trunk.
19. Start driving immediately to spread the sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50 mph)
or more, the vehicle may vibrate.
NOTE
If the tire is not properly inflated, the
tire pressure monitoring system
warning light will illuminate (page
4-27).
20. After driving the vehicle for about 10 minutes or 5 km (3 miles), connect the
air compressor to the tire using Step 9
of the procedure, and check the tire
inflation pressure using the tire
pressure gauge on th e air compressor.
If the tire inflation pressure is lower
than the specified tire inflation
pressure, turn the air compressor on
and wait until it reaches the specified
tire inflation pressure.
WARNING
If the tire inflation pressure has
decreased below 130 kPa (1.3 kgf/cm
2
or bar, 18.9 psi), stop driving and
contact an Authorized Mazda Dealer:
The repair using the emergency flat tire
repair kit was not successful.
If you see a decrease in the tire inflation
pressure, even if Steps 9 to 20 of the
procedure are performed repeatedly,
stop driving:
Contact an Authorized Mazda Dealer.
CAUTION
Before checking the tire inflation
pressure using the tire pressure gauge,
turn the air compressor switch off.
21. The emergency flat tire repair is completed successfully if the tire
inflation pressure does not decrease.
Carefully drive the vehicle to the
nearest Authorized Mazda Dealer
immediately and have the flat tire
replaced. Replacement with a new tire
is recommended. If the tire is to be
repaired or reused, consult an
Authorized Mazda Dealer.
If Trouble Arises
Flat Tire
7-10
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

If the tire inflation pressure does not
increase, repair of the tire is not
possible. If the tire does not reach
the specified tire inflation pressure
within 10 minutes, it may have
received extensive damage. In this
case, the repair using the emergency
flat tire repair kit was not successful.
Contact an Authorized Mazda
Dealer.
If the tire has been over-inflated,
loosen the screw cap on the air
compressor and bleed some of the
air out.
20. When the tire inflates to the specified tire inflation pressure, turn the air
compressor switch off, turn the sleeve
of the air compressor hose to the left,
and pull it out o f the tire valve.
21. Install the tire valve cap.
22. Put the emergency flat tire repair kit into the trunk.
23. Start driving immediately to spread the sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50 mph)
or more, the vehicle may vibrate.
NOTE
If the tire is not properly inflated, the
tire pressure monitoring system
warning light will illuminate (page
4-27).
24. After driving the vehicle for about 10
minutes or 5 km (3 miles), connect the
air compressor to th e tire using Step 17
of the procedure, and check the tire
inflation pressure using the tire
pressure gauge on the air compressor.
If the tire inflation pressure is lower
than the specifie d tire inflation
pressure, turn the air compressor on
and wait until it reaches the specified
tire inflation pressure.
WARNING
If the tire inflation pressure has
decreased below 130 kPa (1.3 kgf/cm
2
or bar, 18.9 psi), stop driving and
contact an Authorized Mazda Dealer:
The repair using the emergency flat tire
repair kit was not successful.
If you see a decrease in the tire inflation
pressure, even if Steps 17 to 24 of the
procedure are performed repeatedly,
stop driving:
Contact an Authorized Mazda Dealer.
CAUTION
Before checking the tire inflation
pressure using the tire pressure gauge,
turn the air compressor switch off.
If Trouble Arises
Flat Tire
7-15
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Overheating
If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on, the
vehicle loses power, or you hear a loud
knocking or pinging noise, the engine is
probably too hot.
WARNING
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on:

1. Drive safely to the side of the road and park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is escaping from the engine
compartment.

If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
If Trouble Arises
Overheating
7-27
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

If a Warning Light Turns On or Flashes
If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, however if the light does not t urn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
The details for some warnings can be viewed on the center displa y.
1. If the warning light is turned on, select the
icon on the home screen to display the
application screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warni ng to view the warning details.
▼Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on, the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
Signal War n i n g
Brake System Warning
Light This warning has the
following functions:
Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied with th e ignition switched to
START or ON. It turns off when the parking brake is fully relea sed.
Low brake fluid level warning
If the brake warning light remains illuminated even though the parking brake is re‐
leased, the brake fluid may be l ow or there could be a problem with the brake system.
Park the vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
WARNING
Do not drive with the brake system warning light illuminated. Contact an Authorized
Mazda Dealer to have the brakes inspected as soon as possible:
Driving with the brake system warning light illuminated is dangerous. It indicates that
your brakes may not work at all or that they could completely fail at any time. If this
light remains illuminated, after checking that the parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the braking may diminish so you may need to depress
the brake pedal more st rongly than normal to stop the vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

SignalWarning
Electronic Brake Force
Distribution System Warning If the electronic brake force di
stribution control unit determines that some compo‐
nents are operating incorrectly, the control unit may illuminate the brake system
warning light and the ABS warni ng light simultaneously. The problem is likely to be
the electronic brake force distribution system.
WARNING
Do not drive with both the ABS warning light and brake warning light illuminated.
Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as
soon as possible:
Driving when the brake system warning li ght and ABS warning light are illuminated
simultaneously is dangerous.
When both lights are illuminate d, the rear wheels could lock more quickly in an emer‐
gency stop than under normal circumstances.
Charging System Warn‐ ing Indication/Warning Light If the warning light illuminates while driving, it indicates a
malfunction of the alter‐
nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Co nsult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.
Engine Oil Warning Light This warning light indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is
low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way o n level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain b ack into the oil pan.
3. Inspect the engine oil level (p age 6-24). If it's low, add the appropriate amount of
engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-34
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

6. Pull out the cap and open the trunk lid.After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.

CAUTION
Do not pull the screw when pulling the cap.
Otherwise, the screw may fall off and
become lost.
Hardtop model
CAUTION
Do not touch the linkage and gears. If
sharp edges and gears are touched, it could
cause injury.
Roof operates electrically
1. Remove the antenna if it is installed.Refer to Antenna on page 5-17.
2. Start the engine.
3. Continue pressing the retractable hardtop switch in the open direction
until the rear roof is completely open.
Refer to Opening the Roof on page
3-44.
Multi-information
display indication
NOTE
Stop operating the switch before the
front roof opens. If the switch is
continuously pressed, the front roof
opens and the following procedures
cannot be performed.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-53
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

4. Switch the ignition OFF.
5. Remove the fasteners on the right sideof the vehicle.

6. Push the stopper rubber through thecover on the right side of the vehicle
while slightly lifting the cover up.

Cover
Stopper Rubber
7. Lift up the cover from the outside of
the vehicle.

8. Insert your hand beneath the liftedcover and loosen the cap screws until
they spin freely.

NOTE
At this point, do not pull out the cap. If
the cap is pulled ou t, the trunk lock
will release but the rear roof will not
operate electrically.
9. Start the engine.
10. Continue pressing the retractable
hardtop switch in the close direction
until the rear roof is completely closed.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-54
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
