Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle hood.
Otherwise, you could dent the vehicle.
 Do not use automatic car washing
machines and car washing devices using
high water pressure.
 Make sure that the fuel-filler lid is closed
and lock the doors. Otherwise, the
fuel-filler lid may be forcefully opened by
water pressure causing damage to the
vehicle or fuel-filler lid.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
o c c u r.

Scratches occur on th e paint surface when:
The vehicle is washed without first
rinsing off dirt and other foreign matter.
The vehicle is washed with a rough, dry,
or dirty cloth.
The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
Cleansers or wax containing abrasives
are used.
NOTE
Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
Use plenty of luke warm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
Rub gently when washing or drying the
vehicle.
Take your vehicle only to a car wash
that keeps its brushes well maintained.
Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
 Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may damage the protective
coating; also, cleaners and detergents
may discolor or deteriorate the paint.
Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Maintenance and Care
Appearance Care
6-59
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

CAUTION
Do not drive the vehicle with the roof partially open. The vehicle operation may be
affected
by the wind and could result in an accident.
 Do not perform the procedure in a strong wind as it could cause an unexpected accident.
 Two adults are required to perform the procedure, especially when lifti ng up the front roof.
Do not do it alone so as not to cause injury or vehicle damage.
 Some steps in the procedure require using mult iple tools at the same time and a certain
level of technical expertise. In addition, hold ing your body extended over the car can result
in muscle strains so Mazda recommends having the roof checked at an Authorized Mazda
Dealer.
NOTE
This procedure is for manually closing the roof as an emergency measure. After closing
the roof manually, electric operation is not pos sible until the system is restored by an
Authorized Mazda Dealer.
Using a flashlight will facilitate the procedure.
If Trouble Arises
When the Roof Cannot be Closed
7-58
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

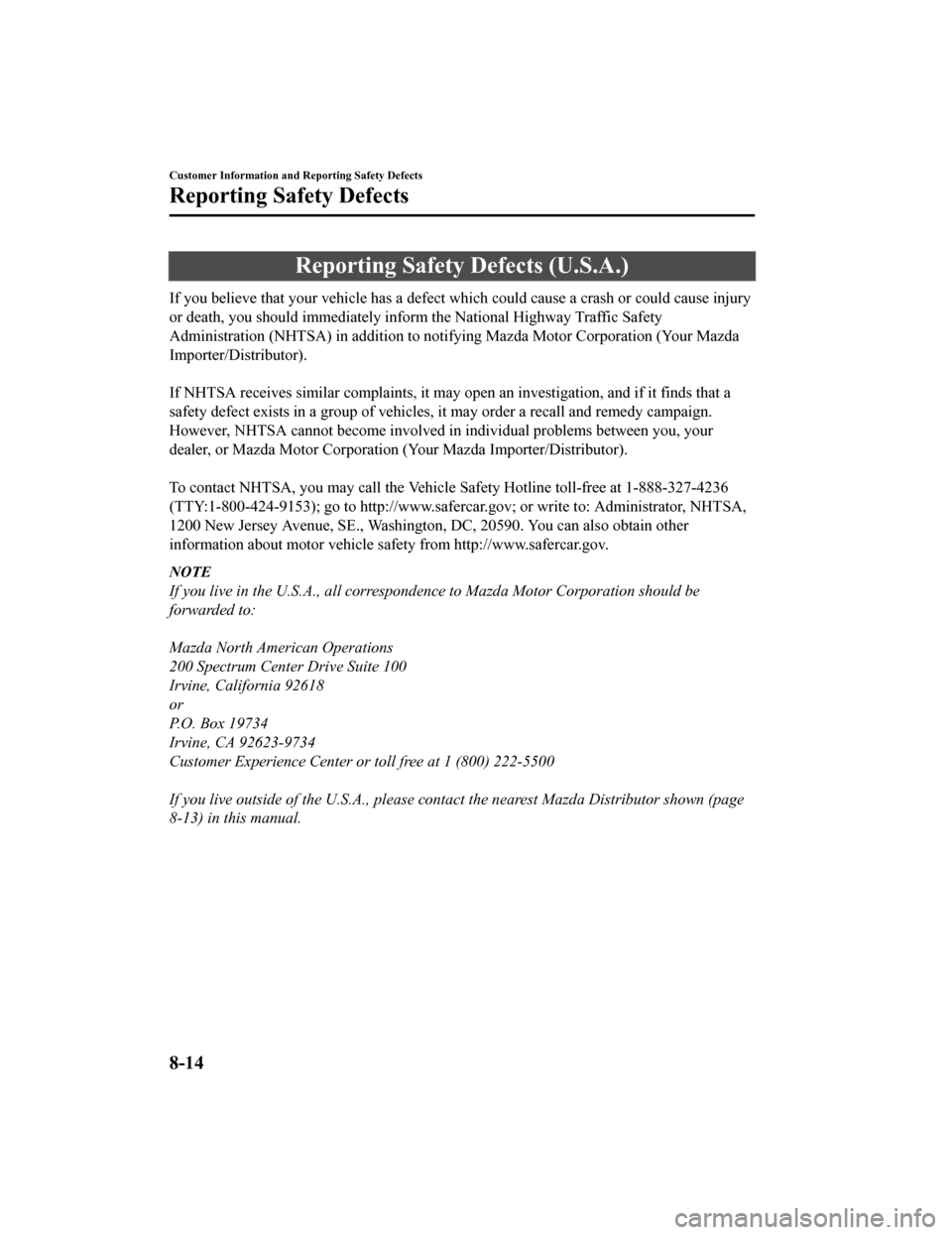

Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could cause injury
or death, you should immediately inform the National Highway Tr affic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Cor poration (Your Mazda
Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigat ion, and if it finds that a
safety defect exists in a group of vehicles, it may order a rec all and remedy campaign.
However, NHTSA cannot become involved in individual problems be tween you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distrib utor).

To contact NHTSA, you may call the Vehicle Safety Hotline toll- free at 1-888-327-4236
(TTY:1-800-424-9153); go to http: //www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., Washington, DC, 20590. You can als o obtain other
information about motor vehicle safety from http://www.safercar .gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:

Mazda North American Operations
200 Spectrum Center Drive Suite 100
Irvine, California 92618
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Experience Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page
8-13) in this manual.
Customer Information and Reporting Safety Defects
Reporting Safety Defects
8-14
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, th ey could affect your vehicle's
performance or safety systems; the Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:
Improperly designed parts or accessories could seriously affect your vehicle's performance or
safety systems. This could cause you to have an accident or increase your chances of injuries
in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems:
Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-bag
(SRS) activation, ABS/TCS/DSC inacti vation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Customer Information and Reporting Safety Defects
Warranty
8-19
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Cell Phones Warning
WARNING
Please comply with the legal regulations concerning the use of communication equipment in
vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver's hands. Use of these devices will
cause the driver to be distracted and could lead to a serious accident. If a passenger is unable
to use the device, pull off the right-of-way to a safe area before use. If use of a cell phone is
necessary despite this warning, use a hands-free system to at least leave the hands free to
drive the vehicle. Never use a cell phone or othe r electrical devices while the vehicle is moving
and, instead, concentrate on the full-time job of driving.
Customer Information and Reporting Safety Defects
Cell Phones
8-20
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Uniform Tire Quality Grading System (UTQGS)
This information relates to the tire grading system developed by the U.S. National Highway
Traffic Safety Administration for grading tires by tread wear, traction, and temperature
performance.
▼Tread Wear
The tread wear grade is a comparative rating based on the wear rate of the tire when tested
under controlled conditions on a specified government test cour se.
For example, a tire graded 150 would wear one-and-a-half times as well on the government
course as a tire graded 100.

The relative performance of tires depends upon the actual condi tions of their use, however,
and may depart significantly from the norm because of variation s in driving habits, service
practices and differences in road characteristics and climate.
▼Traction-AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B, and C. These grades represent the
tire's ability to stop on wet pavement as measured under contro lled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this tire is based on braking (straight ahead) traction tests and
does not include acceleration cornering (turning), hydroplaning, or peak traction
characteristics.
▼Temperature-A, B, C
The temperature grades A (the hi ghest), B, and C, represent the tire's resistance to the
generation of heat and its ability to dissipate heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate and reduce tire
life, and excessive temperatures can lead to sudden tire failure.

Grade C corresponds to a level of performance which all passeng er vehicle tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the minimum required by law.
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
8-23
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

WARNING
Keep your vehicle's tires properly inflated and not overloaded:
Driving with improperly inflated or overl oaded tires is dangerous. Excessive speed,
underinflation, or excessive loading, either separately or in combination, can cause heat
buildup and possible tire failure. The temperatur e grade for this tire is established for a tire
that is properly inflated and not overloaded.

These grades will be added to the sidewalls of passenger vehicl e tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.

The grade of tires available as standard or optional equipment on Mazda vehicles may vary
with respect to grade.

ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND TO
ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.
▼UNIFORM TIRE QUALITY GRADING
Quality grades can be found where applicable on the tire sidewa ll between tread shoulder
and maximum section width.
For example:
TREADWEAR 200 TRACTION AA TEMPERATURE A
UTQGS MARK (example)
Customer Information and Reporting Safety Defects
Uniform Tire Quality Grading System (UTQGS)
8-24
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow a
trailer and doing so will affect the drive system which could result in vehicle damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will provide
maximum return of vehicle design performance. Before loading yo ur vehicle, familiarize
yourself with the following terms for determining your vehicle's weight ratings, from the
vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious consequences
in terms of passenger safety. Too much weight on a vehicle's suspension system can cause
spring or shock absorber failure, brake failu re, handling or steering problems, irregular tire
wear, tire failure or other damage.
Overloading makes a vehicle harder to drive an d control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely, particularly
on steep grades. The load a tire will carry safely is a combination of the size of the tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe th e vehicle's weight ratings from the vehicle's
Safety Certification and Tire and Load Information labels.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-36
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼HomeLink Wireless Control System
CAUTION
HomeLink has been tested and complies with FCC and Industry Canada rules. Changes or
modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the device.
NOTE
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause
undesired operation.
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-45
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

▼Audio System
(U.S.A. and Canada)
FCC ID: NT862932
FCC
This device complies with part 15 of the FCC Rules. Operation i s subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
IC: 3043A-62932
ISED CANADA
This device complies with Industry Canada license-exempt RSS st andard(s). Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Mazda Audio System Customer Service
U.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.mazdausa.com/mazdaconnect
Canada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-47
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
