Emergency Flat TireRepair Kit
The emergency flat tir e repair kit included
with your Mazd a is for a temporary repair
of a slightly damaged flat tire resulting
from running over nails or similar sharp
objects on the road surface.
Perform the emergency flat tire repair
without removing the na il or similar sharp
object which punctured the tire.
NOTE
Your vehicle is not equipped with a spare
tire. In the event of a flat tire, use the
emergency flat tire repair kit to repair the
tire temporarily. When doing the repair,
refer to the instructions included in the
emergency flat tire repair kit. If an
emergency repair was performed on a flat
tire using the emergency flat tire repair kit,
have an Authorized Mazda Dealer, repair
or replace the tire as soon as possible.
▼About the Emergency Flat Tire
Repair Kit

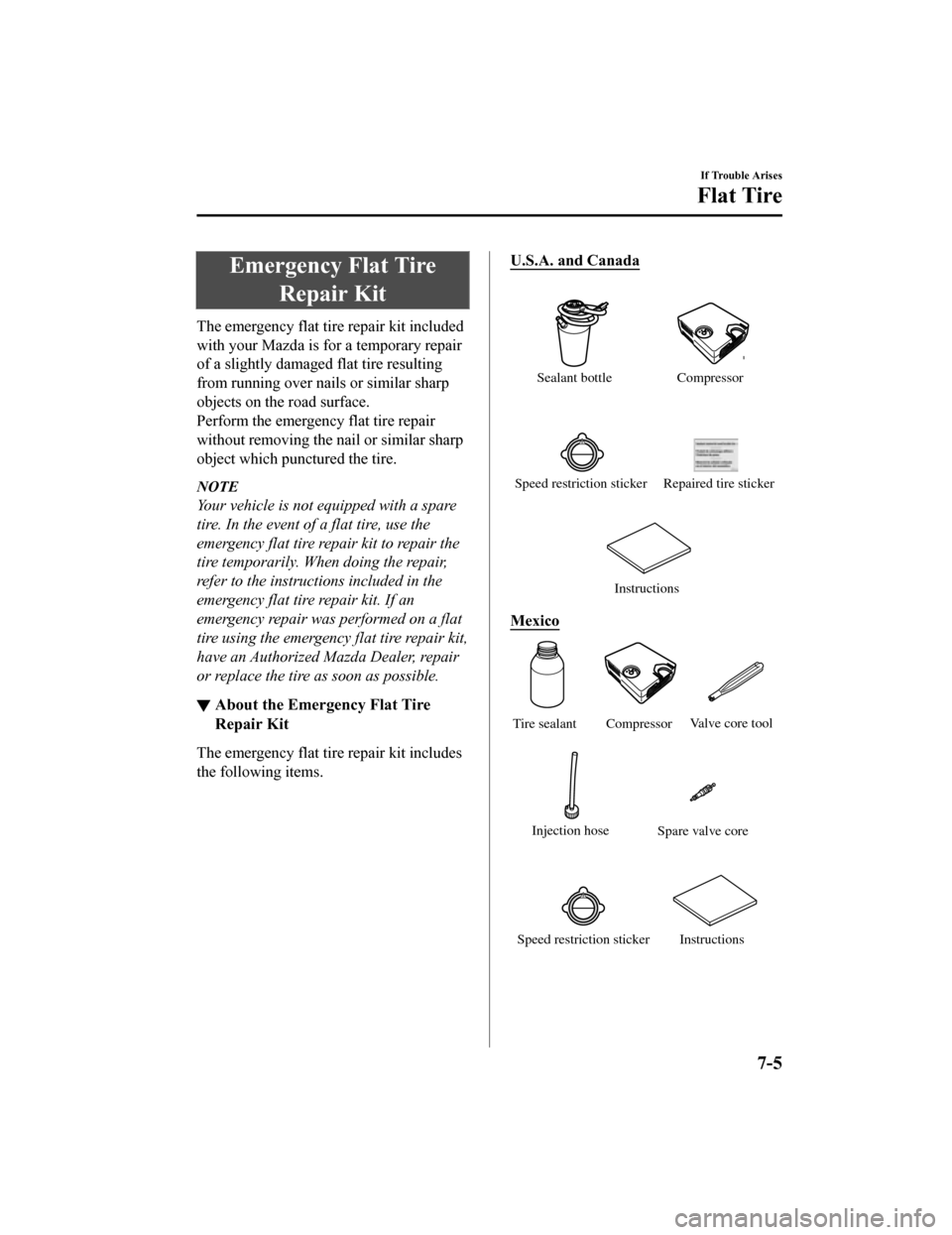

The emergency flat tir e repair kit includes
the following items.
U.S.A. and Canada

Compressor
Sealant bottle
Speed restriction sticker InstructionsRepaired tire sticker
Mexico
Tire sealant
Injection hose Compressor
Valve core tool
Spare valve core
Speed restriction sticker Instructions
If Trouble Arises
Flat Tire
7-5
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

WARNING
Do not allow children to touch the tire
sealant:
Ingestion of tire sealant is dangerous. In
the event tire sealant is accidentally
swallowed, drink large amounts of water
immediately and seek medical
assistance.
 Tire sealant that comes into contact with
the eyes and skin is dangerous. If tire
sealant enters the eyes or contacts the
skin, flush immediately with large
amounts of water and seek medical
assistance.
NOTE
The tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
The emergency flat tire repair kit cannot
be used in the following cases.
Consult an Authorized Mazda Dealer.
The period of effective use for the tire
sealant has expired. (The period of
effectiveness is indicated on the bottle
label.)
The tear or puncture exceeds about 4
mm (0.16 in).
The damage has occurred to an area
of the tire other than the tread.
The vehicle has been driven with
nearly no air remaining in the tire.
The tire has come off the wheel rim.
Damage to the wheel rim has
occurred.
The tire has two or more punctures.

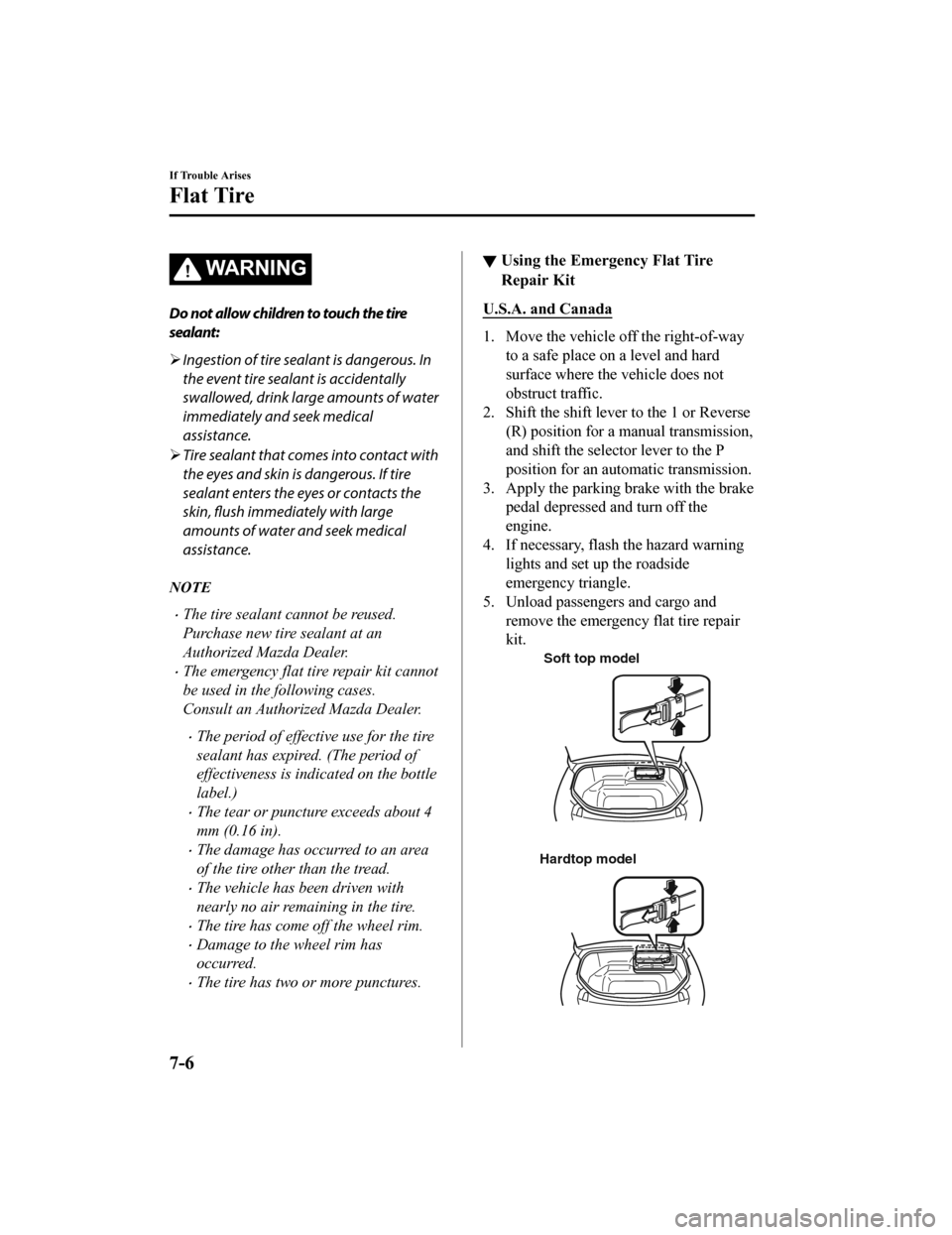

▼Using the Emergency Flat Tire
Repair Kit
U.S.A. and Canada
1. Move the vehicle off the right-of-way
to a safe place on a level and hard
surface where the vehicle does not
obstruct traffic.
2. Shift the shift lever to the 1 or Reverse (R) position for a manual transmission,
and shift the selector lever to the P
position for an automatic transmission.
3. Apply the parking brake with the brake pedal depressed and turn off the
engine.
4. If necessary, flash the hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo and
remove the emergency flat tire repair
kit.
Hardtop modelSoft top model
If Trouble Arises
Flat Tire
7-6
MX-5_8JA4-EA-19K_Edition2
_old 2019-8-29 16:18:06

6. Shake the sealant bottle to mix thecontents. Then extend the injection
hose.
Injection hose
CAUTION
Do not shake the bottle excessively.
Otherwise, the sealant could spray out
of the injection hose, and if the sealant
contacts clothing or other objects, you
may not be able to remove it.
NOTE
The sealant hardens easily and
injecting it will be difficult under cold
weather conditions (0 °C (32 °F) or
below). Warm the sealant inside the
vehicle to facilitate injection.
7. Pull out the air compressor hose and
the air compressor plug from the air
compressor.
Compressor hose
8. Install the air compressor hose whichwas pulled out of the air compressor to
the injection valve of the bottle.
Compressor hose Injection hose
Injection
valve
CAUTION
Make sure that the air compressor
switch is off before inserting the air
compressor hose to the injection valve
of the bottle. If the air compressor hose
is not installed to the injection valve of
the bottle securely, the sealant may
leak.
9. Remove the valve cap from the valve of the flat tire, install the injection hose
to the tire valve, turn the sleeve to the
right, and tighten it.
Valve cap
Valve Injection hose
If Trouble Arises
Flat Tire
7-7
MX-5_8JA4-EA-19K_Edition2
_old 2019-8-29 16:18:06

10. Install the bottle to the air compressorand press it in until the left and right
tabs are engaged securely.
Tabs
11. Insert the air compressor plug into theaccessory socket inside the vehicle and
switch the ignition to ACC.
Refer to Accessory Sockets on page
5-93.
Compressor
Compressor plug
CAUTION
When inserting the air compressor plug
into or removing it from the accessory
socket, make sure that the air
compressor switch is off. When turning
the air compressor on/off, use the air
compressor switch.
12. The sealant is injected into the tire
when the air compressor is switched
on. After the sealant is injected
completely, wait until the tire inflation
pressure increases to the specified tire
inflation pressure.
NOTE
The inflation pressure may increase to
about 300 kPa (3.1 kgf/cm
2, 3 bar, 43.5
psi) temporarily to inject the sealant
through the valve. Normally, the
inflation pressure decreases gradually
and it reaches the actual inflation
pressure after about 30 seconds.
WARNING
Never use the air compressor above 300
kPa (3.1 kgf/cm
2, 3 bar, 43.5 psi):
Using the air compressor at an inflation
pressure above 300 kPa (3.1 kgf/cm
2, 3
bar, 43.5 psi) continuously is
dangerous. If the air compressor
overheats, hot air will be exhausted and
you could get burned.
NOTE
Check the tire inflation pressure
label driver's door frame for the
correct tire inflation pressure.
Do not operate the air compressor
for a continuous 10 minutes or
longer because using it for long
periods could cause a malfunction.
If Trouble Arises
Flat Tire
7-8
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

If the tire inflation pressure does not
increase, repair of the tire is not
possible. If the tire does not reach
the specified tire inflation pressure
within 10 minutes, it may have
received extensive damage. In this
case, the repair using the emergency
flat tire repair kit was not successful.
Contact an Authorized Mazda
Dealer.
13. Adhere the speed restriction sticker to
an area where it can be viewed easily
by the driver.
14. Adhere the repaired tire sticker to thewheel of the flat tire.
WARNING
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel:
Adhering the speed restriction sticker to
the padded area on the steering wheel
is dangerous because the air bag may
not operate (deploy) normally resulting
in serious injury. In addition, do not
adhere the sticker to areas where
warning lights or the speedometer
cannot be viewed.
15. When the tire inflates to the specified tire inflation pressure, turn the air
compressor switch off, turn the sleeve
of the injection hose to the left, and
pull it out of the tire valve.
16. Remove the air compressor hose from
the injection valve of the bottle. After
that, install the injection hose to the
injection valve of the bottle to prevent
leakage of any remaining sealant.
If Trouble Arises
Flat Tire
7-9
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

CAUTION
The remaining sealant in the hose may
spray out when the hose is removed.
Remove the hose carefully because you
may not be able to remove the sealant
contacting clothing or other objects.
17. Install the tire valve cap.
18. Put the emergency flat tire repair kit into the trunk.
19. Start driving immediately to spread the sealant in the tire.
CAUTION
Carefully drive the vehicle at a speed of
80 km/h (50 mph) or less. If the vehicle
is driven at a speed of 80 km/h (50 mph)
or more, the vehicle may vibrate.
NOTE
If the tire is not properly inflated, the
tire pressure monitoring system
warning light will illuminate (page
4-27).
20. After driving the vehicle for about 10 minutes or 5 km (3 miles), connect the
air compressor to the tire using Step 9
of the procedure, and check the tire
inflation pressure using the tire
pressure gauge on th e air compressor.
If the tire inflation pressure is lower
than the specified tire inflation
pressure, turn the air compressor on
and wait until it reaches the specified
tire inflation pressure.
WARNING
If the tire inflation pressure has
decreased below 130 kPa (1.3 kgf/cm
2
or bar, 18.9 psi), stop driving and
contact an Authorized Mazda Dealer:
The repair using the emergency flat tire
repair kit was not successful.
If you see a decrease in the tire inflation
pressure, even if Steps 9 to 20 of the
procedure are performed repeatedly,
stop driving:
Contact an Authorized Mazda Dealer.
CAUTION
Before checking the tire inflation
pressure using the tire pressure gauge,
turn the air compressor switch off.
21. The emergency flat tire repair is completed successfully if the tire
inflation pressure does not decrease.
Carefully drive the vehicle to the
nearest Authorized Mazda Dealer
immediately and have the flat tire
replaced. Replacement with a new tire
is recommended. If the tire is to be
repaired or reused, consult an
Authorized Mazda Dealer.
If Trouble Arises
Flat Tire
7-10
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

NOTE
If an emergency flat tire repair has
been performed using the emergency
flat tire repair kit, Mazda
recommends that the tire be replaced
with a new one as soon as possible.
If the tire is to be repaired or reused,
consult an Authorized Mazda
Dealer.
The wheel can be reused if the
sealant adhering to it is removed.
However, replace the valve with a
new one.
Mexico
1. Move the vehicle off the right-of-way to a safe place on a level and hard
surface where the vehicle does not
obstruct traffic.
2. Shift the shift lever to the 1 or Reverse (R) position for a manual transmission,
and shift the selector lever to the P
position for an auto matic transmission.
3. Apply the parking brake with the brake
pedal depressed and turn off the
engine.
4. If necessary, flash the hazard warning
lights and set up the roadside
emergency triangle.
5. Unload passengers and cargo andremove the emergency flat tire repair
kit.
Hardtop model Soft top model
6. Shake the tire sealant well.
If Trouble Arises
Flat Tire
7-11
MX-5_8JA4-EA-19K_Edition2
_old 2019-8-29 16:18:06

CAUTION
If the bottle is shaken after the injection
hose is screwed on, tire sealant could
spray out from the injection hose. Tire
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
NOTE
The sealant hardens easily and
injecting it will be difficult under cold
weather conditions (0 °C (32 °F) or
below). Warm the sealant inside the
vehicle to facilitate injection.
7. Remove the cap from the bottle. Screw on the injection hose with the bottle's
inner cap left on to break the inner cap.
Cap
Injection hose
Tire sealant
8. Remove the valve cap from the flat tire. Press the back of a valve core tool
to the core of the tire valve and bleed
all the remaining air.
Valve core tool
Valve
Valve cap
CAUTION
If there is air remaining in the tire when
the valve core is removed, the valve
core could fly out. Remove the valve
core carefully.
9. Turn the valve core counterclockwise with the valve core tool and remove
the valve core.
Valve Valve core
NOTE
Store the valve core in a place where it
will not get dirty.
If Trouble Arises
Flat Tire
7-12
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

10. Insert the injection hose into the valve.
ValveInjection hose
11. Hold the bottom of the bottle upright, squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
Valve
12. Pull out the injection hose from thevalve.
NOTE
The tire sealant cannot be reused.
Purchase a new tire sealant kit at an
Authorized Mazda Dealer.
13. Reinsert the valve core into the valve
and turn it clockwise to install it.
Injection hose Valve core
tool
Valve
Valve core
NOTE
Do not throw away the empty tire
sealant bottle after use. Return the
empty tire sealant bottle to an
Authorized Mazda Dealer when
replacing the tire. The empty tire
sealant bottle will need to be used to
extract and dispose of the used sealant
from the tire.
14. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.
Tab
15. Adhere the speed restriction sticker to an area where it can be viewed easily
by the driver.
If Trouble Arises
Flat Tire
7-13
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

WARNING
Do not adhere the speed restriction
sticker to the padded area on the
steering wheel:
Adhering the speed restriction sticker to
the padded area on the steering wheel
is dangerous because the air bag may
not operate (deploy) normally resulting
in serious injury. In addition, do not
adhere the sticker to areas where
warning lights or the speedometer
cannot be viewed.
16. Pull out the air compressor hose and the air compressor plug from the air
compressor.
Compressor hose
17. Install the air compressor hose to thetire valve.
Valve Compressor hose
18. Insert the air compressor plug into the
accessory socket inside the vehicle and
switch the ignition to ACC.
Refer to Accessory Sockets on page
5-93.
Compressor
Compressor plug
CAUTION
When inserting the air compressor plug
into or removing it from the accessory
socket, make sure that the air
compressor switch is off. When turning
the air compressor on/off, use the air
compressor switch.
19. Turn the air compressor switch on and inflate the tire carefully to the correct
inflation pressure.
NOTE
Check the tire inflation pressure
label driver's door frame for the
correct tire inflation pressure.
Do not operate the air compressor
for a continuous 10 minutes or
longer because using it for long
periods could cause a malfunction.
If Trouble Arises
Flat Tire
7-14
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
