MAZDA MODEL MX-5 2020 Owners Manual (in English)

Refer to Closing the Roof on page
3-44.

Multi-information
display indication
11. Switch the ignition OFF.
12. Remove the windblocker.
Windblocker
13. Partially peel back the cover on theright side from th e middle of the
vehicle.

14. Pull out the cap and release the trunk lock.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
CAUTION
Do not pull the screw when pulling the cap.
Otherwise, the screw may fall off and
become lost.
Roof does not op erate electrically
1. Remove the antenna if it is installed. Refer to Antenna on page 5-17.
2. Lift up the rear roof by hand. Refer to When the Roof Cannot be
Closed on page 7-57.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-55
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

3. Remove the fasteners on the right sideof the vehicle.

4. Push the stopper rubber through thecover on the right side of the vehicle
while slightly lifting the cover up.

Cover
Stopper Rubber
5. Lift up the cover from the outside ofthe vehicle.

6. Insert your hand beneath the liftedcover and loosen the cap screws until
they spin freely.

7. Pull out the cap and release the trunklock.

CAUTION
At this point, do not open the trunk. If
the trunk is opened before the rear roof
is completely closed, the trunk may
contact the rear roof and cause
damage and become scratched.
8. Close the rear roof by hand. Refer to When the Roof Cannot be
Closed on page 7-57.
9. Open the trunk lid.
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
If Trouble Arises
When Trunk Lid Cannot be Opened
7-56
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

When the Roof Cannot be Closed
If the roof cannot be closed electrically by pressing the retractable hardtop switch, verify the
roof operation conditions first.
Refer to Operation Conditions on page 3-45.
If the roof cannot be closed even after the operation condition s are all met, have it checked
at an Authorized Mazda Dealer.
If you are unable to have the roof checked at an Authorized Maz da Dealer, the roof can be
closed manually as an emergency measure.
The procedure for manually clo sing the roof is as follows:
1. Opening the rear roof
Release the locks of the rear roof and open it.
2. Closing the front roof
Lift up the front roof and close it.
3. Closing the rear roof
Tie the ropes to the rear roof l inks and close the rear roof.
Front roof Rear roof
Rear roof link
If Trouble Arises
When the Roof Cannot be Closed
7-57
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

CAUTION
Do not drive the vehicle with the roof partially open. The vehicle operation may be
affected
by the wind and could result in an accident.
 Do not perform the procedure in a strong wind as it could cause an unexpected accident.
 Two adults are required to perform the procedure, especially when lifti ng up the front roof.
Do not do it alone so as not to cause injury or vehicle damage.
 Some steps in the procedure require using mult iple tools at the same time and a certain
level of technical expertise. In addition, hold ing your body extended over the car can result
in muscle strains so Mazda recommends having the roof checked at an Authorized Mazda
Dealer.
NOTE
This procedure is for manually closing the roof as an emergency measure. After closing
the roof manually, electric operation is not pos sible until the system is restored by an
Authorized Mazda Dealer.
Using a flashlight will facilitate the procedure.
If Trouble Arises
When the Roof Cannot be Closed
7-58
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

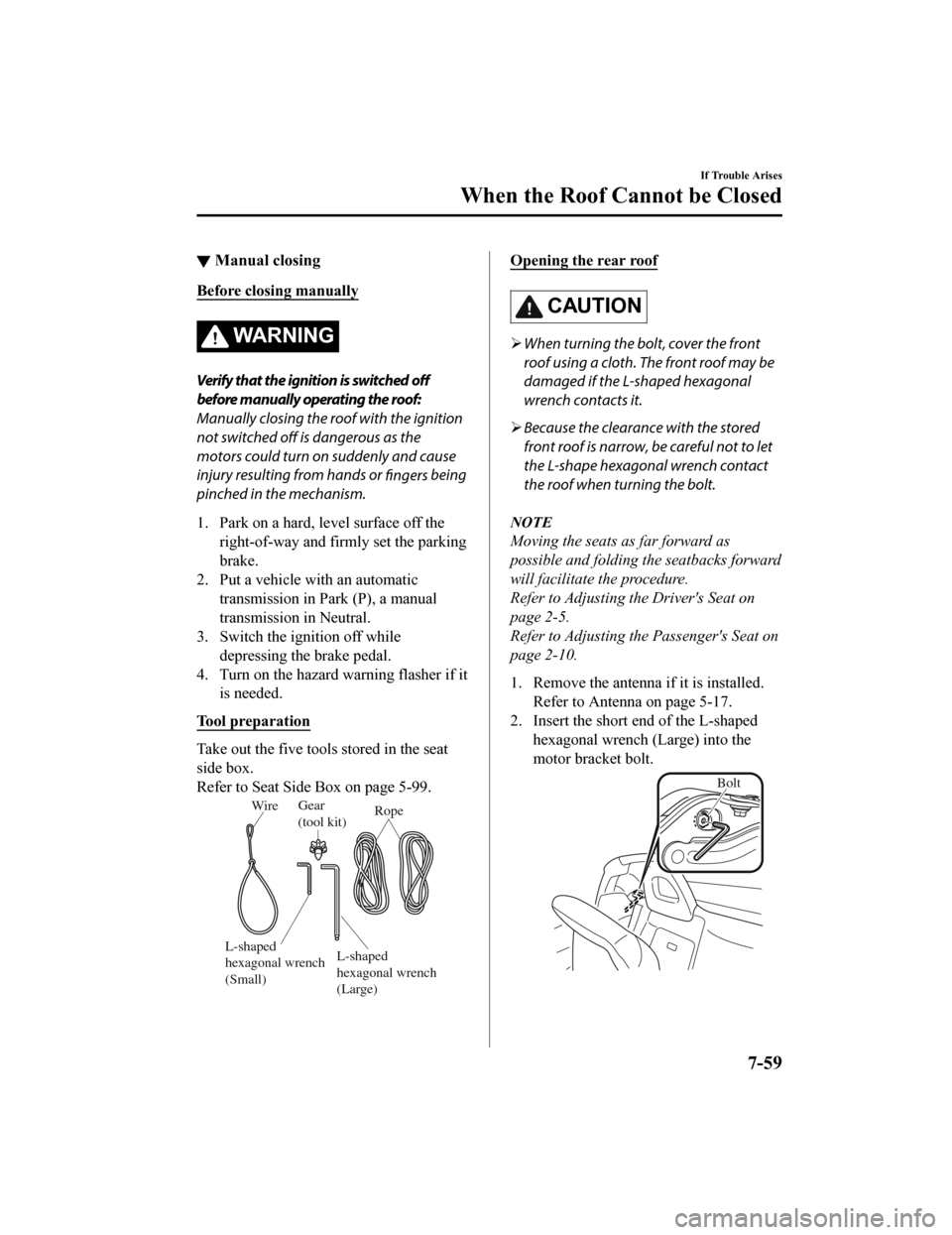

▼Manual closing
Before closing manually
WARNING
Verify that the ignition is switched off
before manually operating the roof:
Manually closing the roof with the ignition
not switched off is dangerous as the
motors could turn on suddenly and cause
injury resulting from hands or fingers being
pinched in the mechanism.
1. Park on a hard, le vel surface off the
right-of-way and firm ly set the parking
brake.
2. Put a vehicle with an automatic transmission in Park (P), a manual
transmission in Neutral.
3. Switch the ignition off while
depressing the brake pedal.
4. Turn on the hazard w arning flasher if it
is needed.
Tool preparation
Take out the five tools stored in the seat
side box.
Refer to Seat Side Box on page 5-99.
Wire Gear
(tool kit) Rope
L-shaped
hexagonal wrench
(Small) L-shaped
hexagonal wrench
(Lar
ge)
Opening the rear roof
CAUTION
When turning the bolt, cover the front
roof using a cloth. The front roof may be
damaged if the L-shaped hexagonal
wrench contacts it.
 Because the clearance with the stored
front roof is narrow, be careful not to let
the L-shape hexagonal wrench contact
the roof when turning the bolt.
NOTE
Moving the seats as far forward as
possible and folding the seatbacks forward
will facilitate the procedure.
Refer to Adjusting the Driver's Seat on
page 2-5.
Refer to Adjusting the Passenger's Seat on
page 2-10.
1. Remove the antenna if it is installed.
Refer to Antenna on page 5-17.
2. Insert the short end of the L-shaped hexagonal wrench (Large) into the
motor bracket bolt.
Bolt
If Trouble Arises
When the Roof Cannot be Closed
7-59
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

NOTE
If it is difficult to see the bolt, remove
the windblocker and identify the bolt
from the center of the vehicle.
Windblocker
3. Turn the L-shaped hexagonal wrench(Large) counterclockwise to loosen the
bolt slightly.
4. Remove the L-shaped hexagonalwrench (Large) once from the bolt,
then insert the long end of the wrench
into the bolt.
NOTE
The tip of the long end of the L-shaped
hexagonal wrench can be used at an
angle. Moving the wrench upward
slightly will increase the clearance
between the rear roof and the stored
front roof and facilitate the procedure.
5. Turn the L-shaped hexagonal wrench (Large) counterclockwise 13 times or
more while pressing the wrench
against the bolt.
NOTE
The bolt cannot be removed
completely.
If it is hard to turn the bolt, repeat
Step 3 a few times.
6. Hook the wire to the link pin shown in the figure.
If Trouble Arises
When the Roof Cannot be Closed
7-60
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

7. While one person pushes the rear roofdown, another person pulls the wire
until a latch sound is heard and the rear
roof unlocks.
Lock
Link Pin
Wire
Unlock
8. Do the same procedure on the other side.
9. While standing on both sides of the
vehicle, lift the rear roof to the position
it stops while keeping the height of its
left and right sides as parallel as
possible.
CAUTION
Do not let go of the rear roof on both
sides until it is fully open. The rear
roof could fall if it is released too soon
and cause injury.
 Do not attempt to forcefully lift the
rear roof. If the rear roof is forcefully
lifted without being unlocked, it
could damage vehicle parts.
 Lift the rear roof with its left and right
height as parallel as possible. If the
rear roof is lifted with the left or right
height slanted, it could deform the
link mechanism.
Closing the front roof
CAUTION
 Some steps in the procedure require
holding your body in a strained position
and if over exerted it could result in
injury.
 Do the procedure being very careful not
to get your hands and fingers caught
while closing the front roof. Otherwise,
your hands or
fingers could be injured.
 Removal of the headliner is included in
the procedure, however, never drive the
vehicle with the headliner removed.
Driving the vehicle with the headliner
removed is prohibited by law. Correctly
perform the procedure while following
the instructions.
If Trouble Arises
When the Roof Cannot be Closed
7-61
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

1. While standing on both sides of thevehicle, hold the front and rear sides of
the front roof and pull the front roof
upward.
2. Switch your hand on the rear side ofthe front roof to the front side and pull
the front roof forward.
3. Stop pulling the fr ont roof before it
completely closes.
NOTE
The next step cannot be done if the
front roof is closed completely.
4. Remove the link covers on the left and right sides by pulling them out by
hand.
Link cover
5. Remove the fasteners and the
headliner.
If Trouble Arises
When the Roof Cannot be Closed
7-62
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

6. Lightly press the front edge of the
front roof from outside of the vehicle
to close the front roof completely.
7. Insert the short end of the hexagonal wrench (Small) into the gear (tool kit)
and assemble.
L-shaped hexagonal
wrench (Small)Gear (tool kit)
8. Insert the point of the gear (tool kit)
into the hole beside the top lock motor
gear with the hexagonal wrench
inserted into the gear tool.
Top lock motor
gear
Gear (tool kit)
CAUTION
Insert the gear (tool kit) securely until it
engages with the top lock motor gear. If
the gear (tool kit) is not inserted
securely, it may come off and be
damaged.
9. Rotate the hexagonal wrench and move the hook in the lock direction so
that there is enough space for the
opening of the headliner to be attached
to the hook.
Unlock
Unlock
LockLock
NOTE
Turning the gear (tool kit) requires
some effort due to motor resistance.
Slowly operate the hexagonal wrench.
If Trouble Arises
When the Roof Cannot be Closed
7-63
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06

10. Insert the hook into the opening of theheadliner.
Hook
Headliner
11. Turn the hexagonal wrench (Small)and gear (tool kit) counterclockwise
and engage the hook with the vehicle
body side.
NOTE
The top lock lever completely engages
with the vehicle body (locked
condition) at the position where the
teeth of the gear (tool kit) contact the
bracket.

Gear (tool kit)
Bracket
12. Lift the rear end of the headliner withit hinged on the opening of the
headliner.
If Trouble Arises
When the Roof Cannot be Closed
7-64
MX-5_8JA4-EA-19K_Edition2 _old 2019-8-29 16:18:06
