Dashboard Overview
Hood release handle
Climate control systemCup holder
Glove box
Shift lever
Parking brake
Audio system
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch Lighting control/Turn signals Instrument cluster
Driver-side air bag
Wiper and washer lever
Ignition switch Ashtray
Center console
Power window
switches
Cruise control switches
Creuise main switch(page 2-16)
(page 5-17)
(page 5-29)
(page 5-13)
(page 5-30) (page 5-31)
(page 5-13)
(page 5-34)
(page 6-10)
(page 5-9)
(page 6-39) (page 3-9)
(page 3-10)
(page 5-2)
(page 6-2) (page 5-5)
(page 6-38) (page 6-38) (page 6-39)
(page 2-16)
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

2-16
Essential Safety Equipment
Form No. 8Q42-EA-01F
SRS Air Bags
Read this owner’s manual carefully to verify what air bags (driver-side air bag, passenger-
side air bag) are equipped in your vehicle.
The supplemental restraint systems (SRS) include 2 air bags.
They are located in:
• The steering wheel
• The passenger side dashboard
In a front-end or near-front end impact, the air bag supplemental restraint systems are
designed to provide only supplemental protection for the driver and passenger. Seat belts
must still be worn.
Without seat belt usage, the air bags cannot provide adequate protection during an
accident. Seat belt usage is necessary to:
• Keep the passenger away from an inflating air bag.
• Reduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
• Reduce the possibility of injuries in frontal collisions that are not severe enough to
activate the air bags.
• Reduce the possibility of being thrown from your vehicle.
• Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts.
• Hold the driver in a position which allows better control of the vehicle.
Small children, those under 18 kg (40 lb), should be protected by a child-restraint system
(page 2-12).
We have provided a deactivation switch that will disable passenger-side air bag inflation.
Do not switch off the passenger-side air bag without reading the "Passenger-Side Air Bag
Deactivation Switch" (page 2-19).
Supplemental Restraint Systems (SRS) Precautions
J07L(02MY).book Page 16 Monday, June 11, 2001 4:52 PM

2-17
Essential Safety Equipment
SRS Air Bags
Form No. 8Q42-EA-01F
Air Bags without Seat Belts:
Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only during a frontal, near-frontal collision of at least moderate
force. Vehicle occupants should always wear seat belts.
Rear-Facing Child-Restraint System:
When a rear-facing child-restraint system is installed on the passenger’s seat and the
passenger-side air bag deactivation switch is not in the OFF position, it is extremely
dangerous. In an accident, the air bag could inflate and cause serious injuries or even
death to the child in the rear-facing child-restraint system. When using a rear-facing
child-restraint system, always set the passenger-side air bag deactivation switch to
OFF position.
Seating Position with Air Bags:
Sitting too close to the air bag storage compartments or placing hands or feet on them
is extremely dangerous. Air bags inflate with great force and speed. Serious injuries
could occur if someone is too close. The driver should always hold onto only the rim
of the steering wheel. The passenger should keep both feet on the floor. Seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
Air Bag Storage Areas:
Attaching an object to an air bag storage area or placing something in front of it is
dangerous. In an accident, the object could interfere with air bag inflation and injure
the occupants.
Always keep the air bag storage areas free of objects.
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel or the dashboard are very hot. You could get burned. Don ’
t touch the
internal components of the air bag storage areas after the bags have inflated.
WARNING
Deploying air bag
J07L(02MY).book Page 17 Monday, June 11, 2001 4:52 PM

2-22
Essential Safety Equipment
SRS Air Bags
Form No. 8Q42-EA-01F
The supplemental restraint systems (SRS) have two basic subsystems:
•The air bag system with inflators and air bags.
• The electric system with crash sensors and diagnostic module.
The air bags are mounted in the following locations: the center of the steering wheel, the
passenger-side of the dashboard. They are out of sight until activated.
The passenger side air bag has a deactivation switch located on the center console
(page 2-19).

How the Air Bags Work
When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the air bags and after the inflation, the air bags quickly
deflate.
The air bags will function only once. After that, the air bags will not work again and
must be replaced.
Only an Authorized Mazda Dealer can replace the systems.
Air Bag System Description
Crash sensor
Inflators and air bags
Crash sensors and diagnostic
module (SAS unit)
J07L(02MY).book Page 22 Monday, June 11, 2001 4:52 PM

2-26
Essential Safety Equipment
SRS Air Bags
Form No. 8Q42-EA-01F
Damaged Air Bag Sensors:
Driving with damaged air bag sensors
is dangerous. A collision, even one
not strong enough to inflate the air
bags, could damage the sensors. If
there was a subsequent collision, a
damaged sensor would not inflate the
air bags. Always have an Authorized
Mazda Dealer inspect the air bag
systems after a collision.
Removing Interior Parts:
Removing any components such as
the front dashboard, the steering
wheel or parts containing air bag
sensors is dangerous. These parts
contain essential air bag parts. The
air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
WARNING
J07L(02MY).book Page 26 Monday, June 11, 2001 4:52 PM

3-2
Knowing Your Mazda
Form No. 8Q42-EA-01F
Doors and Locks
The keys operate all locks.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
ignition key is dangerous. This could
result in someone being badly injured
or even killed. They could play with
power windows or other controls, or
even make the vehicle move. Don’t
leave the keys in your vehicle with
children.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
• When starting the engine, do not let
the following materials touch the
key grip. The engine may not start:

Spare keys.
 Keys for other vehicles equipped
with an immobilizer system.
 Metal objects that touch or pass
through the hole in the key.
WARNING
CAUTION
Key code number plate
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

3-29
Knowing Your Mazda
Security System
Form No. 8Q42-EA-01F

Maintenance
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
NOTE
• If the warning light comes on and
stays on when the ignition switch is
turned to the ON position, the
engine will not start.
• Signals from a TV or radio station,
or from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are
using the proper key and your
engine fails to start, check the
warning light. If it is flashing,
remove the ignition key and wait 2
seconds or more, then reinsert it and
try starting the engine again. If it
doesn
’t start after 3 or more tries,
contact an Authorized Mazda
Dealer.
• If the warning light flashes
continuously while you are driving,
don’
t shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the
engine while the light is flashing
you won ’t be able to restart it.
• To avoid damage to the key, do not:

Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
• When starting the engine, do not let
the following materials touch the
key grip. The engine may not start:

Spare keys.
 Keys for other vehicles equipped
with an immobilizer system.
 Metal objects that touch or pass
through the hole in the key.
CAUTION
J07L(02MY).book Page 29 Monday, June 11, 2001 4:52 PM

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q42-EA-01F

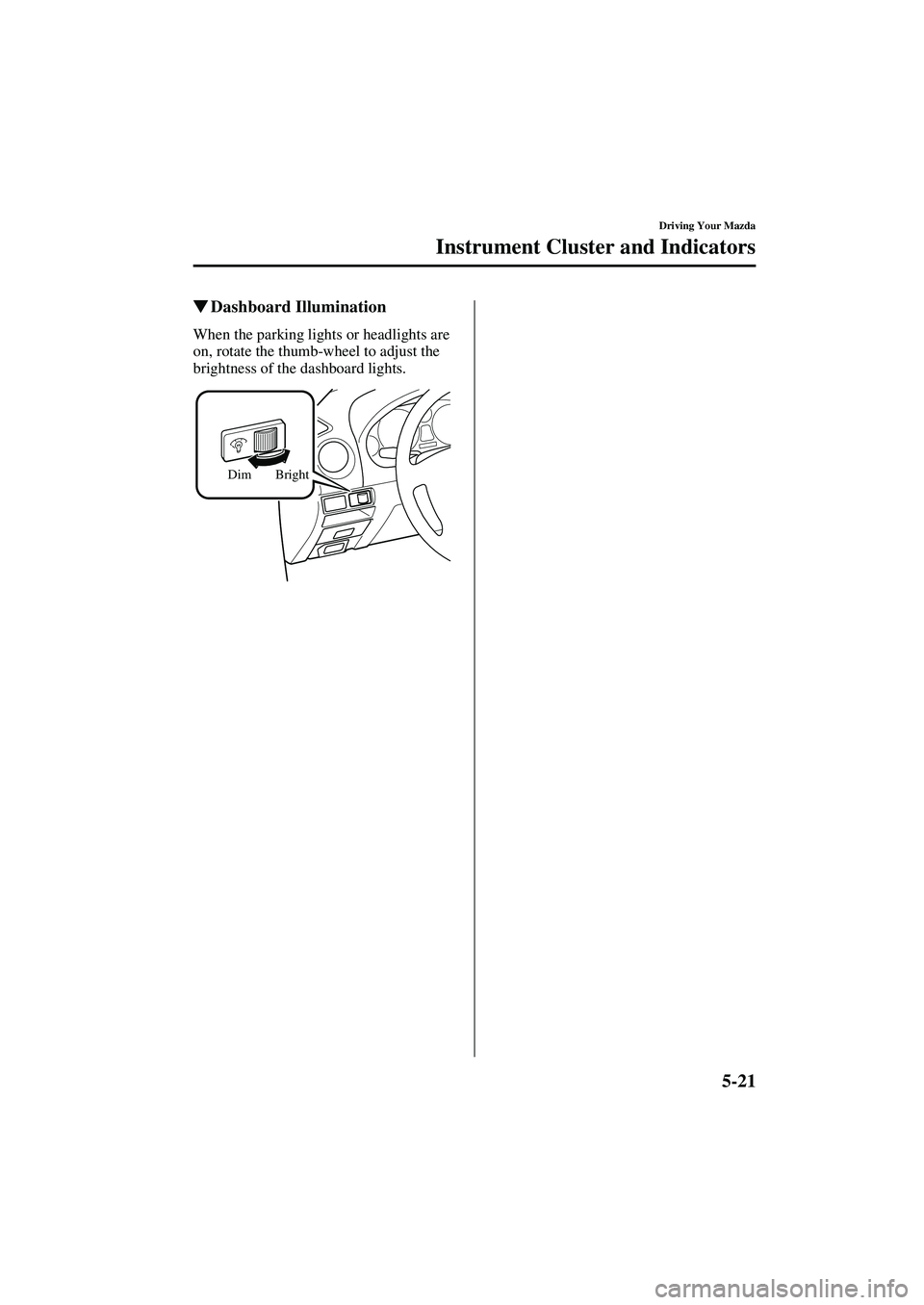

Dashboard Illumination
When the parking lights or headlights are
on, rotate the thumb-wheel to adjust the
brightness of the dashboard lights.
Dim Bright
J07L(02MY).book Page 21 Monday, June 11, 2001 4:52 PM

5-30
Driving Your Mazda
Switches and Controls
Form No. 8Q42-EA-01F

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
—until the
indicator flashes — and hold it there. It
will return to the off position when
released. Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off:
(Type A)
Press the fog light switch again or turn the
headlight switch off.
(Type B)
Press the left part of the fog light switch
or turn the headlight switch off.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Right lane
OFF
Left lanechange change
Left turn
Fog Lights
Type A
Type B
