Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change
—until the
indicator flashes — and hold it there. It
will return to the off position when
released. Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off:
(Type A)
Press the fog light switch again or turn the
headlight switch off.
(Type B)
Press the left part of the fog light switch
or turn the headlight switch off.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Right lane
OFF
Left lanechange change
Left turn
Fog Lights
Type A
Type B
J07L(02MY).book Page 30 Monday, June 11, 2001 4:52 PM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F
Light Bulbs
Front-turn signal lights/Parking lights
Side-marker lights Interior light
Trunk lights/
License plate lights
High-mount brake light
Rear-turn signal lights Brake lights/Taillights Reverse lights
Headlights
J07L(02MY).book Page 31 Monday, June 11, 2001 4:52 PM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F

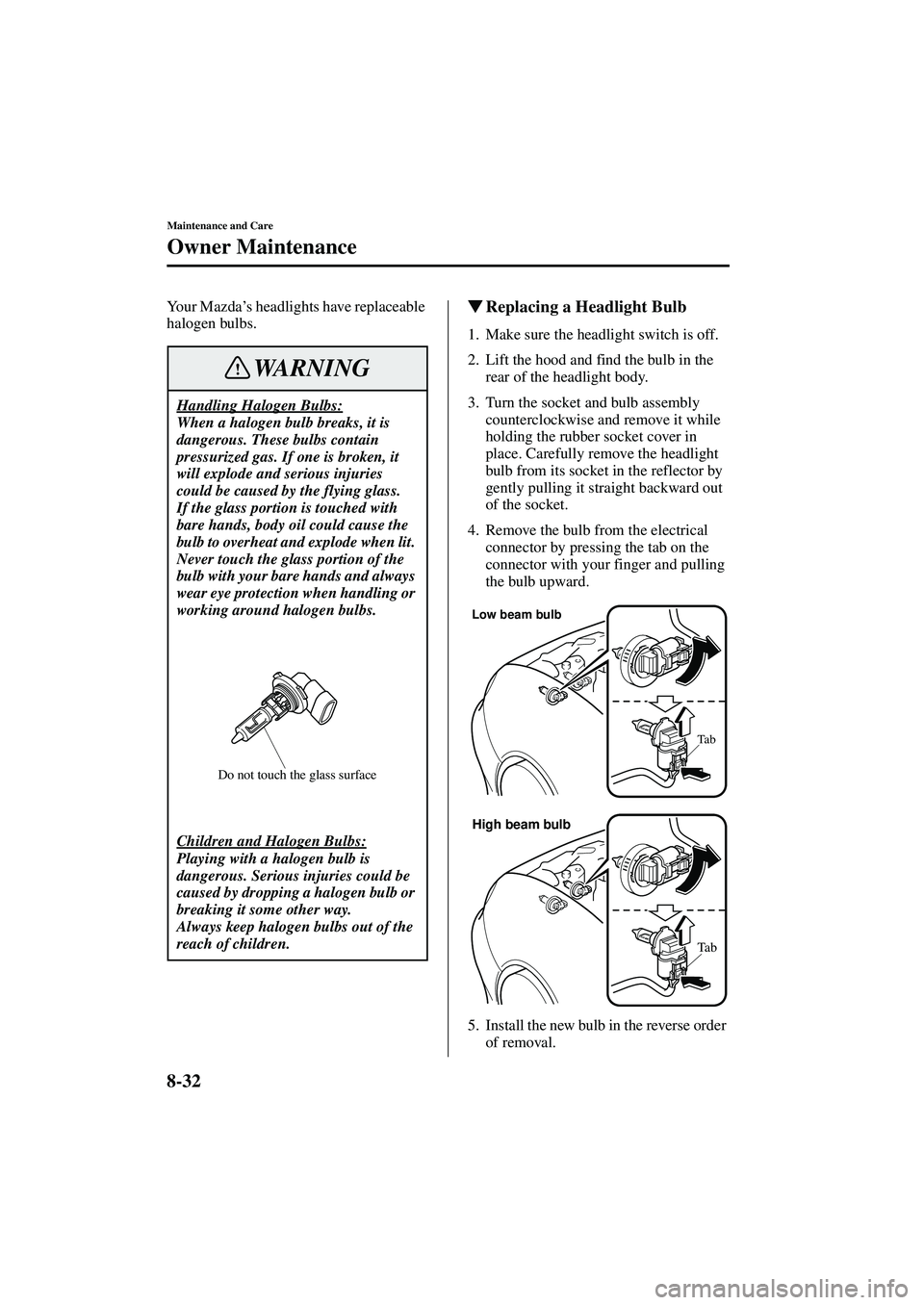

Your Mazda’s headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
1. Make sure the headlight switch is off.
2. Lift the hood and find the bulb in the
rear of the headlight body.
3. Turn the socket and bulb assembly counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Remove the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order of removal.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surface
Ta b
Low beam bulb
High beam bulb
Ta b
J07L(02MY).book Page 32 Monday, June 11, 2001 4:52 PM

10-6
Specifications
Form No. 8Q42-EA-01F

Air Conditioner
Unit: kg (lb)

Light Bulbs

Tires
Unit: kg (lb)
Standard tire
Temporary spare tire
Fuses .........................................................................................................Refer to page 8-37
Gas complies with SAE J639 R134a
Maximum operating charge 0.4 kg (14.1 oz)
Light bulb Wattage
Headlights High beam (HB3)
60
Low beam (HB4) 51
Front turn-signal/Parking lights 27/8
Fog lights 55
Side-marker lights 3.8
Rear turn-signal lights 21
Brake lights/Taillights 21/5
High-mount brake light 21
Reverse lights 21
License plate lights 5
Interior light 8
Tire size Inflation pressure kPa (kgf/cm
2 , psi)
Front Rear
195/50 R15 82V 180 (1.8, 26) 180 (1.8, 26)
205/45 R16 83W
Tire size Inflation pressure kPa (kgf/cm
2 , psi)
T115/70 D14 420 (4.2, 60)
T105/70 D15
