6-12
Interior Comfort
Au di o S ys t em
Form No. 8R09-EA-02G
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Operating Tips for Cassette Tape
Player
Cleaning the cassette tape player
The tape head, capstans, and pinch rollers
will gather oxide residue from cassette
tapes. This can cause weak or wavering
sounds and damage to the cassette tapes
and player. Use a good quality head-
cleaning tape or a liquid cleaner cassette
tape to remove it.
Should the unit not operate normally,
consult an Authorized Mazda Dealer.
Never attempt to repair it or insert a
screwdriver or anything else.
Handling the cassette tape player
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
cassette tape, into the slot.
Station 1
88.1 MHz Station 2
88.3 MHz
J07R_8R09_EA_02G_Edition4.book Page 12 Monday, February 3, 2003 1:16 PM

6-40
Interior Comfort
Interior Equipment
Form No. 8R09-EA-02G

Glove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.

Center Console
To open, pull the release catch.
The center console has a lockable lid,
insert the key into the slot; then turn the
key clockwise to lock, counterclockwise
to unlock.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don
’t leave
combustible materials or objects which
will deform in extreme heat such as
lighters and glasses in the vehicle.
WARNING
CAUTION
Unlock
Lock
UnlockLock
J07R_8R09_EA_02G_Edition4.book Page 40 Monday, February 3, 2003 1:16 PM

7-1
Form No. 8R09-EA-02G
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ........................................................... 7- 2
Parking in an Emergency ......................................................... 7- 2
Flat Tire ........................................................................................ 7- 3
Spare Tire and Tool Storage .................................................... 7- 3
Changing a Flat Tire ................................................................ 7- 5
Overheating ................................................................................. 7-11
Overheating ............................................................................. 7-11
Emergency Starting .................................................................... 7-13
Starting a Flooded Engine ....................................................... 7-13
Jump-Starting .......................................................................... 7-13
Push-Starting ........................................................................... 7-15
Emergency Towing ...................................................................... 7-16
Towing Description ................................................................. 7-16
Tiedown Hooks ........................................................................ 7-17
Recreational Towing ................................................................ 7-17
J07R_8R09_EA_02G_Edition4.book Page 1 Monday, February 3, 2003 1:16 PM

7-2
In Case of an Emergency
Form No. 8R09-EA-02G
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don
’t work when
the hazard warning lights are on.
• Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
J07R_8R09_EA_02G_Edition4.book Page 2 Monday, February 3, 2003 1:16 PM

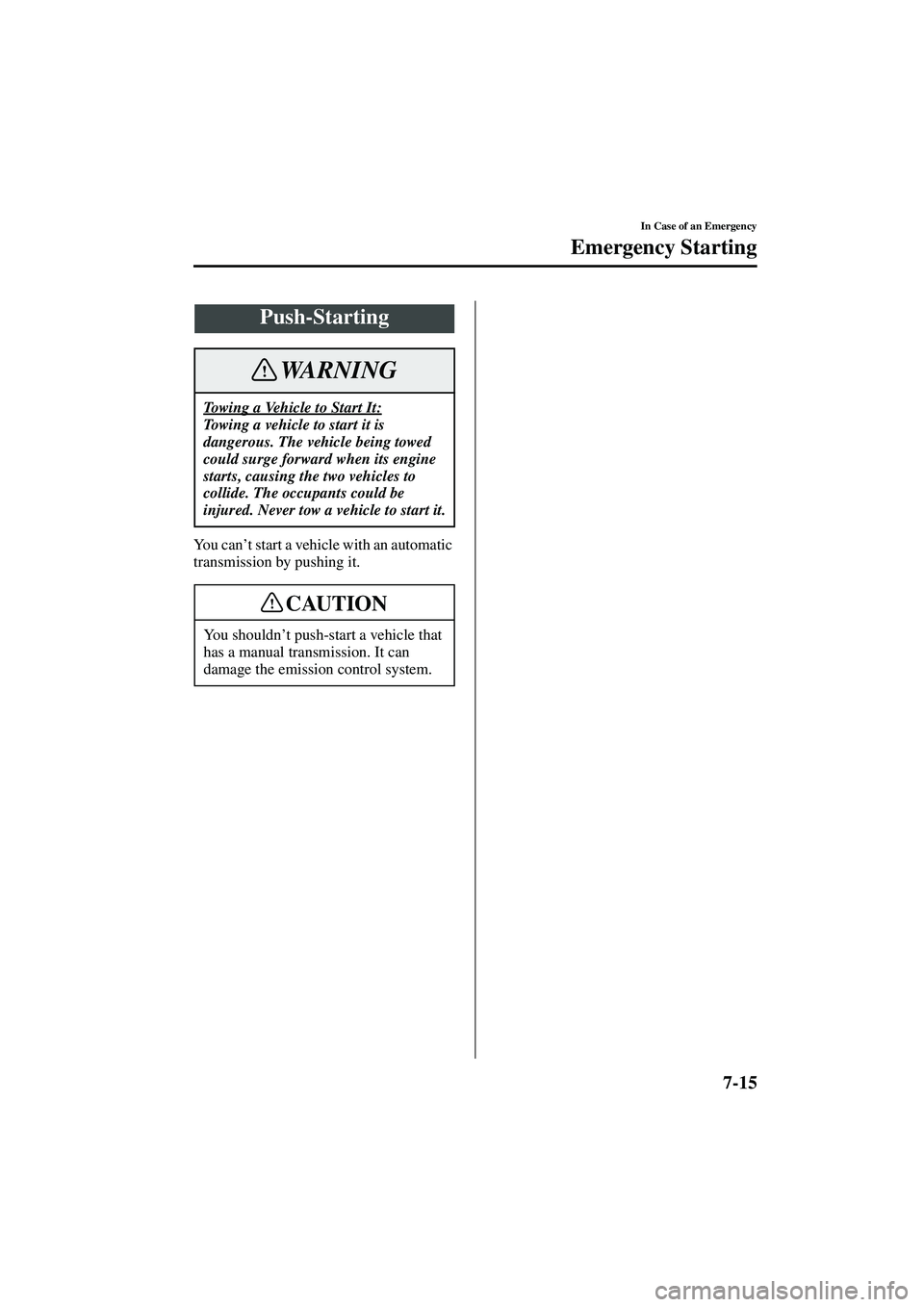

7-15
In Case of an Emergency
Emergency Starting
Form No. 8R09-EA-02G
You can’t start a vehicle with an automatic
transmission by pushing it.
Push-Starting
Towing a Vehicle to Start It:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured. Never tow a vehicle to start it.
You shouldn ’t push-start a vehicle that
has a manual transmission. It can
damage the emission control system.
WARNING
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 15 Monday, February 3, 2003 1:16 PM

7-16
In Case of an Emergency
Form No. 8R09-EA-02G
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
rear wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed forward
with driving wheels on the ground.
This may cause internal damage to the
transmission.
Don ’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 16 Monday, February 3, 2003 1:16 PM

7-17
In Case of an Emergency
Emergency Towing
Form No. 8R09-EA-02G

Tiedown Hooks-Front

Tiedown Hooks-Rear
An example of
“ recreational towing ” is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ” (page 7-16) and
“ Tiedown Hooks ” (page 7-17) and
carefully follow the instructions.
Tiedown Hooks
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing
will damage the bumper.
CAUTION
Recreational Towing
J07R_8R09_EA_02G_Edition4.book Page 17 Monday, February 3, 2003 1:16 PM

8-26
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
4. Carefully insert the new blade rubber.Then install the blade assembly in the
reverse older of removal.
•
Don
’t bend the stiffeners. You need
to use them again.
• If the metal stiffeners are switched,
the blade’
s wiping efficiency could
be reduced.
So don ’t use the driver ’s side metal
stiffeners on the passenger ’s side, or
vice versa.
• Be sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was
in the old blade rubber.
NOTE
Install the blade so that the tabs are
toward the bottom of the wiper arm.
CAUTION
Ta b
Battery
Battery-Related Lead Materials:
Battery posts, terminals and related
accessories contain lead and lead
compounds, chemicals known to the
State of California to cause cancer
and reproductive harm.
Wash hands after handling.
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Children and Batteries:
Allowing children to play near
batteries is dangerous. Battery fluid
could cause serious injuries if it gets
in the eyes or on the skin. Always
keep batteries out of the reach of
children.
NOTE
The battery in this vehicle is unique
and should only be replaced with the
appropriate Mazda battery. For more
details, contact your Authorized
Mazda Dealer.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 26 Monday, February 3, 2003 1:16 PM

11-3
Index
Form No. 8R09-EA-02G
D
Door Locks ......................................... 3-7
Driving In Flooded Area
.................... 4-9
Driving Tips
....................................... 4-6
Automatic transmission
............ 5-13
Break-in period
........................... 4-6
Driving in flooded area
............... 4-9
Hazardous driving
....................... 4-7
Money-saving suggestions
.......... 4-6
Rocking the vehicle
.................... 4-7
Winter driving
............................. 4-8
E
Emergency Starting .......................... 7-13
Flooded engine
.......................... 7-13
Jump-starting
............................ 7-13
Push-starting
............................. 7-15
Emergency Towing
.......................... 7-16
Emission Control System
................... 4-3
Engine Coolant
...................................... 8-15
Exhaust gas
................................. 4-4
Hood release
............................. 3-16
Oil
............................................. 8-13
Overheating
............................... 7-11
Starting
........................................ 5-3
Engine Compartment Overview
...... 8-12
Engine Coolant Overheating
............................... 7-11
Engine Coolant Temperature
Gauge
............................................... 5-19
Exhaust Gas
....................................... 4-4
Exterior Care
.................................... 8-43
F
Flasher Hazard warning
.........................5-35
Headlights
.................................5-30
Flat Tire
..............................................7-3
Changing
.....................................7-5
Spare tire and tool storage
...........7-3
Fluids Classification
.............................10-4
Owner maintenance
...................8-10
Fog Lights
........................................5-31
Foot Brake
..........................................5-4
Fuel Filler lid and cap
.......................3-14
Gauge
........................................5-20
Requirements
..............................4-2
Tank capacity
............................10-5
Fuses
.................................................8-37
Panel description
.......................8-39
Replacement
..............................8-37
G
Gauges ..............................................5-17
Glove Box
........................................6-40
H
Hazard Warning Flasher ...................5-35
Hazardous Driving
.............................4-7
Headlights Control
......................................5-30
Flashing
.....................................5-30
High-low beam
..........................5-30
On reminder
..............................5-30
Hood Release
....................................3-16
Horn
..................................................5-34
J07R_8R09_EA_02G_Edition4.book Page 3 Monday, February 3, 2003 1:16 PM

11-5
Index
Form No. 8R09-EA-02G
R
Rear Window Defroster ................... 5-34
Rearview Mirror
............................... 3-32
Recreational Towing
........................ 7-17
Rocking the Vehicle
........................... 4-7
S
Safety Defects, Reporting ................ 9-14
Seat Belt System 3-point type
................................. 2-7
Automatic locking
...................... 2-6
Emergency locking
..................... 2-6
Extender
.................................... 2-10
Pregnant women
......................... 2-6
Pretensioner and load limiting
.... 2-8
Seat belt precautions
................... 2-4
Warning beep
............................ 2-12
Warning light
............................ 2-11
Seats
................................................... 2-2
Security System Immobilizer system
.................. 3-28
Service Publications
......................... 9-15
Spare Tire and Tool Storage
.............. 7-3
Specifications
................................... 10-4
Speedometer
..................................... 5-18
SRS Air Bags Air bag system description
....... 2-26
Supplemental restraint systems
precautions
................................ 2-20
Warning light
............................ 2-29
Starting the Engine
............................. 5-3
Steering Wheel Horn
.......................................... 5-34
Storage Compartments
..................... 6-40
Center console
.......................... 6-40
Glove box
.................................. 6-40
Mesh pocket
.............................. 6-41
Sunvisors
.......................................... 6-37
T
Tachometer .......................................5-19
Temporary Spare Tire
......................8-30
Tiedown Hook
..........................................7-17
Tires Flat tire
........................................7-3
Inflation pressure
.......................8-28
Replacement
..............................8-29
Rotation
.....................................8-28
Snow tires
....................................4-8
Spare tire and tool storage
...........7-3
Specifications
............................10-6
Tire chains
...................................4-9
Uniform tire quality grading
system (UTQGS)
.......................9-12
Tool
....................................................7-3
Towing Description
................................7-16
Emergency towing
....................7-16
Recreational towing
..................7-17
Trailer towing
............................4-11
Trailer Towing
..................................4-11
Trip Meter
........................................5-18
Trunk Lid
............................................3-9
Trunk Release Handle
......................3-12
Turn and Lane-Change Signals
........5-31
V
Vanity Mirror ...................................6-37
Vehicle Information Labels
..............10-2
J07R_8R09_EA_02G_Edition4.book Page 5 Monday, February 3, 2003 1:16 PM
