MAZDA MODEL MX-5 MIATA 2003 Owner's Manual

2-13
Essential Safety Equipment
Form No. 8R09-EA-02G
Child Restraint
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should use seat belts, both lap and
shoulder. If the shoulder belt crosses the neck or face, move the child closer to the center of
the vehicle .
A rear-facing child-restraint system should NEVER
be used in the front seat because it
would be too close to the air bag.
We have provided a deactivation switch that will disable passenger-side air bag inflation.
Do not switch off the passenger-side air bag without reading the "Passenger-Side Air Bag
Deactivation Switch" (page 2-23).
Child Restraint Precautions
Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 13 Monday, February 3, 2003 1:16 PM

2-14
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
Follow the Manufacturer’s Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer ’s instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH
child-restraint systems.
Holding a Child While the Vehicle is Moving:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces
that could result in serious injury or death to the child, or the child may be slammed
into the adult, injuring the adult. Always secure a child in a proper child-restraint
system.
Rear-Facing Child-Restraint System:
When a rear-facing child-restraint system is installed on the passenger ’s seat and the
passenger-side air bag deactivation switch is not in the OFF position, it is extremely
dangerous. In an accident, the air bag could inflate and cause serious injuries or even
death to the child in the rear-facing child-restraint system. When using a rear-facing
child-restraint system, always set the passenger-side air bag deactivation switch to
OFF position.
WARNING
Deploying air bag
J07R_8R09_EA_02G_Edition4.book Page 14 Monday, February 3, 2003 1:16 PM

2-15
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Child-Restraint Tether:
Using a child-restraint system that requires a tether is dangerous. Your Mazda doesn ’t
have a child-restraint tether. The child-restraint system cannot be properly secured. In
a collision, it could move and cause serious injury or even death to the child or
someone else. Always use a child-restraint system designed for use without a tether.
A seat belt or child-restraint system can become very hot in a closed vehicle during
warm weather. To avoid burning yourself or a child, check them before you or your child
touches them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially
designed LATCH child-restraint systems behind the passenger seat. When using these
anchors to secure a child-restraint system, refer to "LATCH Child-Restraint Systems"
(page 2-18).
WARNING
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 15 Monday, February 3, 2003 1:16 PM

2-16
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
The passenger lap/shoulder belt can easily
be converted into the automatic locking
mode, which must be done to hold the
child-restraint system.
Some child-restraint systems also employ
specially designed LATCH attachments;
refer to "LATCH Child-Restraint
Systems" (page 2-18).
Follow these instructions when installing
a child-restraint system on the passenger’s
seat, unless you are attaching a LATCH-
equipped child-restraint system to the
LATCH lower anchors. Refer to "LATCH
Child-Restraint Systems" (page 2-18).
Before installing a rear-facing child-
restraint system, the passenger-side air
bag must be deactivated (page 2-23). 1. Slide the seat as far back as possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
3. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
4. Push the child-restraint system firmly into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
Installing a Child-
Restraint System
NOTE
Follow the child-restraint system
manufacturer’ s instructions carefully.
If you are not sure whether you have a
LATCH system, check in the child-
restraint system manufacturer ’s
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may not
employ seat belts which are in
automatic locking mode.
NOTE
Before installing a child-restraint
system, refer to "Passenger-Side Air
Bag Deactivation Switch" (page 2-23).
J07R_8R09_EA_02G_Edition4.book Page 16 Monday, February 3, 2003 1:16 PM

2-17
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
NOTE
•Inspect this function before each
use of the child-restraint system.
You should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove
the child-restraint system, be sure
the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
• Follow the child-restraint system
manufacturer’
s instruction carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
J07R_8R09_EA_02G_Edition4.book Page 17 Monday, February 3, 2003 1:16 PM

2-18
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
Your Mazda is equipped with LATCH lower anchors for attachment of specially designed
LATCH child-restraint systems behind the passenger seat. Both anchors must be used,
otherwise the seat will bounce around and put the child in danger.
LATCH Child-Restraint Systems
Manufacturer’s Instructions for Child-Restraint System:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer ’s instructions.
Unsecured Child-Restraint System:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Follow the
child-restraint system manufacturer ’s instructions on belt routing to secure the seat
just as you would with a child in it so that nobody is tempted to put a child in an
improperly secured seat later on. When not in use, remove it from the vehicle or fasten
it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH child-
restraint systems.
LATCH Child-Restraint Systems:
Not following the child-restraint system manufacturer ’s instructions when installing
the child-restraint system is dangerous. If seat belts or a foreign object prevent the
child-restraint system from being securely attached to the LATCH lower anchors and
the child-restraint system is installed improperly, the child-restraint system could
move in a sudden stop or collision causing serious injury or death to the child or other
occupants. When installing the child-restraint system, make sure there are no seat
belts or foreign objects near or around the LATCH lower anchors. Always follow the
child-restraint system manufacturer ’s instructions.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 18 Monday, February 3, 2003 1:16 PM

2-19
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G

LATCH Child-Restraint System
Installation Procedure
Before installing a rear-facing child-
restraint system, the passenger-side air
bag must be deactivated (page 2-23).
1. Slide the seat as far back as possible to
insert the LATCH lower anchors
between the seat bottom and the
seatback.
2. Expand the area between the seat bottom and the seatback slightly to
verify the locations of the LATCH
lower anchors. 3. Secure the child-restraint system using
BOTH LATCH lower anchors,
following the child-restraint system
manufacturer ’s instruction.
NOTE
Before installing a child-restraint
system, refer to "Passenger-Side Air
Bag Deactivation Switch" (page 2-23).
NOTE
The markings above the LATCH lower
anchors indicate the locations of the
LATCH lower anchors for the
attachment of a child-restraint system.
Marking
LATCH
lower anchor
J07R_8R09_EA_02G_Edition4.book Page 19 Monday, February 3, 2003 1:16 PM

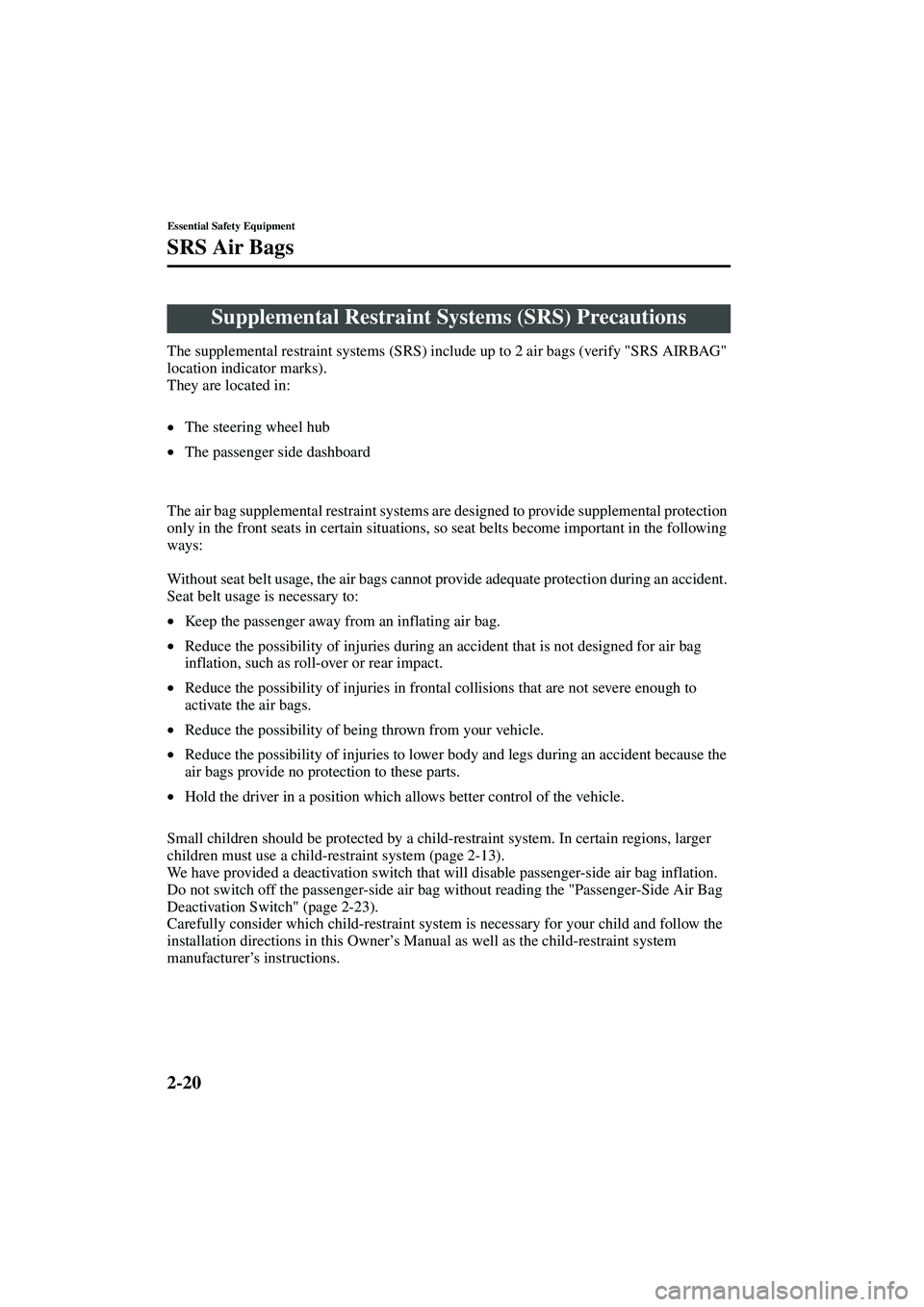

2-20
Essential Safety Equipment
Form No. 8R09-EA-02G
SRS Air Bags
The supplemental restraint systems (SRS) include up to 2 air bags (verify "SRS AIRBAG"
location indicator marks).
They are located in:
•The steering wheel hub
• The passenger side dashboard
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations, so seat belts become important in the following
ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
• Keep the passenger away from an inflating air bag.
• Reduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
• Reduce the possibility of injuries in frontal collisions that are not severe enough to
activate the air bags.
• Reduce the possibility of being thrown from your vehicle.
• Reduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts.
• Hold the driver in a position which allows better control of the vehicle.
Small children should be protected by a child-restraint system. In certain regions, larger
children must use a child-restraint system (page 2-13).
We have provided a deactivation switch that will disable passenger-side air bag inflation.
Do not switch off the passenger-side air bag without reading the "Passenger-Side Air Bag
Deactivation Switch" (page 2-23).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner ’s Manual as well as the child-restraint system
manufacturer’ s instructions.
Supplemental Restraint Systems (SRS) Precautions
J07R_8R09_EA_02G_Edition4.book Page 20 Monday, February 3, 2003 1:16 PM

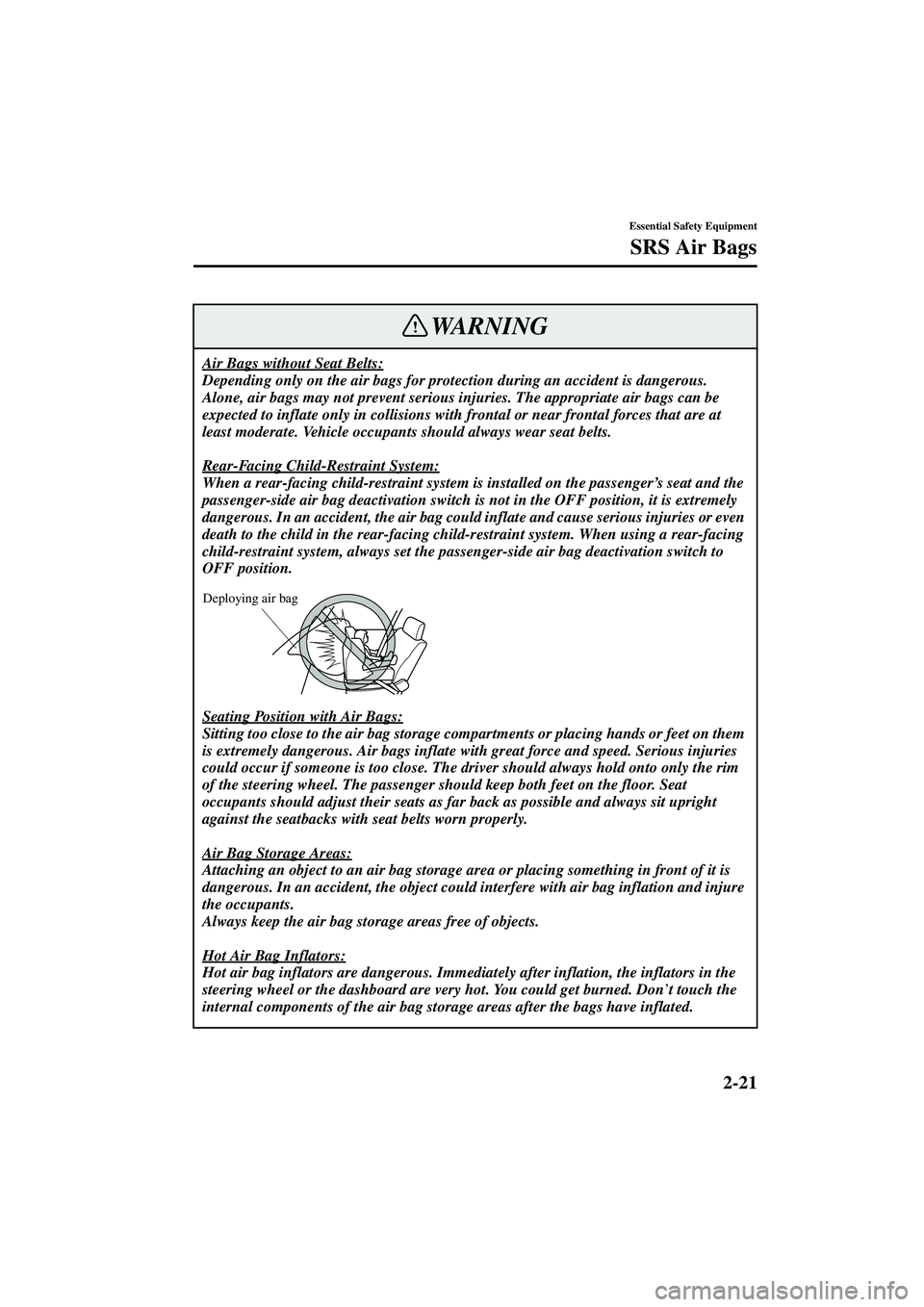

2-21
Essential Safety Equipment
SRS Air Bags
Form No. 8R09-EA-02G
Air Bags without Seat Belts:
Depending only on the air bags for protection during an accident is dangerous.
Alone, air bags may not prevent serious injuries. The appropriate air bags can be
expected to inflate only in collisions with frontal or near frontal forces that are at
least moderate. Vehicle occupants should always wear seat belts.
Rear-Facing Child-Restraint System:
When a rear-facing child-restraint system is installed on the passenger’s seat and the
passenger-side air bag deactivation switch is not in the OFF position, it is extremely
dangerous. In an accident, the air bag could inflate and cause serious injuries or even
death to the child in the rear-facing child-restraint system. When using a rear-facing
child-restraint system, always set the passenger-side air bag deactivation switch to
OFF position.
Seating Position with Air Bags:
Sitting too close to the air bag storage compartments or placing hands or feet on them
is extremely dangerous. Air bags inflate with great force and speed. Serious injuries
could occur if someone is too close. The driver should always hold onto only the rim
of the steering wheel. The passenger should keep both feet on the floor. Seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
Air Bag Storage Areas:
Attaching an object to an air bag storage area or placing something in front of it is
dangerous. In an accident, the object could interfere with air bag inflation and injure
the occupants.
Always keep the air bag storage areas free of objects.
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel or the dashboard are very hot. You could get burned. Don ’
t touch the
internal components of the air bag storage areas after the bags have inflated.
WARNING
Deploying air bag
J07R_8R09_EA_02G_Edition4.book Page 21 Monday, February 3, 2003 1:16 PM

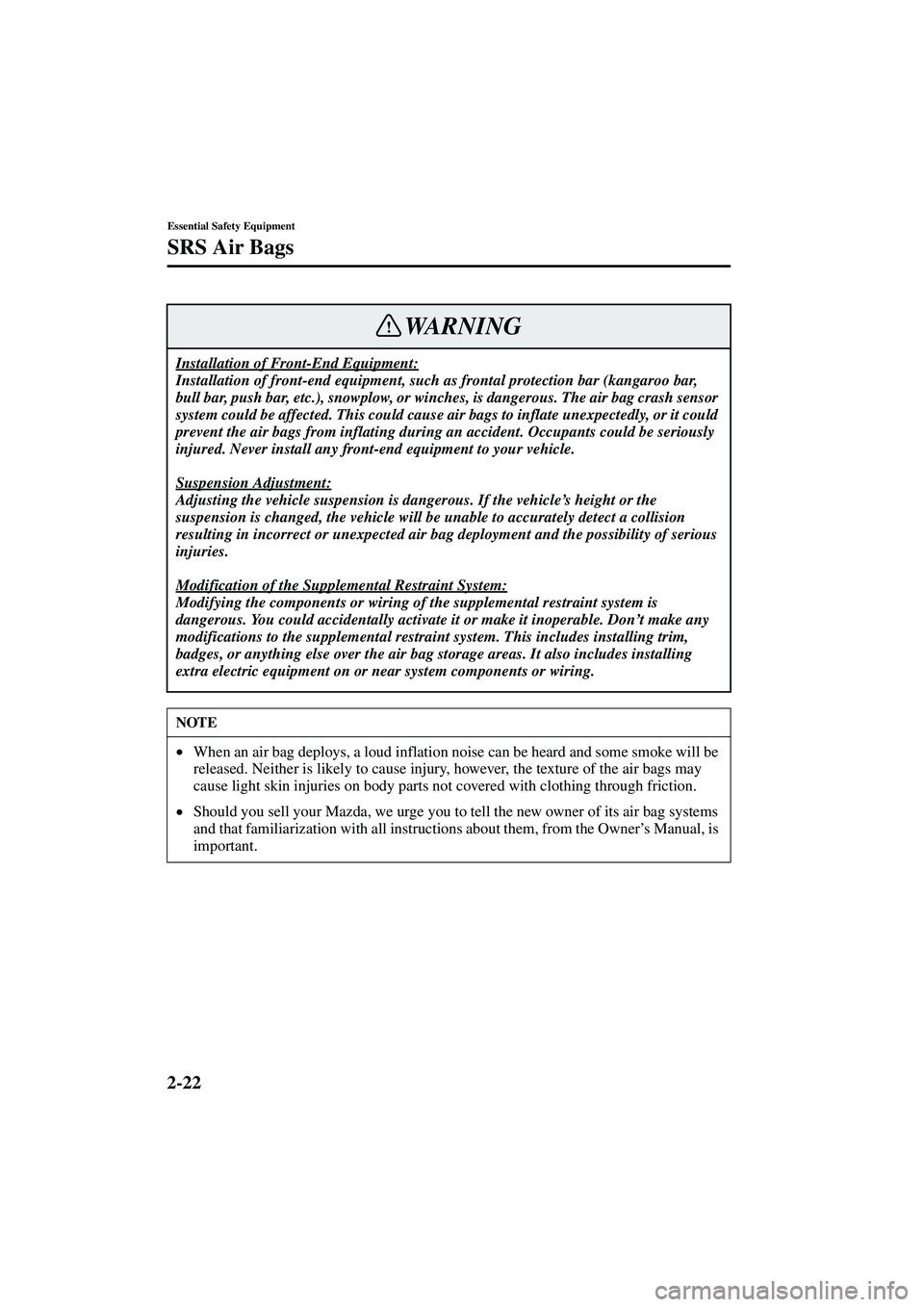

2-22
Essential Safety Equipment
SRS Air Bags
Form No. 8R09-EA-02G
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Occupants could be seriously
injured. Never install any front-end equipment to your vehicle.
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle’s height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don ’t make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag storage areas. It also includes installing
extra electric equipment on or near system components or wiring.
NOTE
• When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may
cause light skin injuries on body parts not covered with clothing through friction.
• Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner
’s Manual, is
important.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 22 Monday, February 3, 2003 1:16 PM
