6-11
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.Operating Tips for Cassette Tape
Player
Cleaning the cassette tape player
The tape head, capstans, and pinch rollers
will gather oxide residue from cassette
tapes. This can cause weak or wavering
sounds and damage to the cassette tapes
and player. Use a good quality head-
cleaning tape or a liquid cleaner cassette
tape to remove it.
Should the unit not operate normally,
consult an Authorized Mazda Dealer.
Never attempt to repair it or insert a
screwdriver or anything else.
Handling the cassette tape player
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
cassette tape, into the slot.
Station 1
88.1 MHz Station 2
88.3 MHz
J07S_8S15-EA-03G_Edition2.book Page 11 Thursday, August 21, 2003 10:04 AM
Page 132 of 280
6-12
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•If the cassette tape is loose, it may
produce poor sound or performance
during playback. Use a pencil or
something similar to remove any slack.
• Only cassette tapes that play no longer
than 90 minutes should be used.
Cassette tape exceeding 90 minutes are
thin and may easily break.
• Do not leave a cassette tape in the tape
player slot when not in use. Remove it
completely to permit the slot door to
close and to protect the mechanism
from dust.
• Store cassette tapes away from extreme
heat, magnetic fields, and direct
sunlight. Protect the exposed cassette
tape from dirt and damage. Store
cassette tapes in their original cases or
other protective cases.
Operating Tips for Mini Disc
(MD) Player
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
MDs, into the slot.
• The MD player has been designed to
play MDs bearing the identification
logo as shown. No other MDs can be
played.
J07S_8S15-EA-03G_Edition2.book Page 12 Thursday, August 21, 2003 10:04 AM
Page 133 of 280
6-13
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•The MD player can also play MDLPs
that have been recorded in MDLP
mode. (MDLPs bearing the
identification logo as shown below).
• When inserting the MD, make sure the
MD label is facing up, and the MD is
oriented to the insertion slot in the
direction of the arrow. If not inserted
correctly, the MD will be ejected, or
may remain stuck in the MD deck.
• Do not touch the internal part of the
MD. If the MD shutter is slid open for
no reason, it may be broken.
• Store MDs in their cases and away
from direct sunlight.
Operating Tips for CD Player/In-
Dash CD Changer
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in the CD
player/changer may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the CD player/In-dash CD
changer
The following precautions should be
observed.
• Do not spill any liquid on the audio
system.
• Do not insert any objects, other than
CDs, into the slot.
J07S_8S15-EA-03G_Edition2.book Page 13 Thursday, August 21, 2003 10:04 AM
Page 134 of 280
6-14
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•The CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.
• Do not use non-conventional discs such
as heart-shaped, octagonal discs, etc.
The CD player/changer could be
damaged.
• A new CD may have rough edges on its
inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player/changer will not play the CD.
Remove the rough edges in advance by
using a ball-point pen or pencil as
shown below. To remove the rough
edges, rub the side of the pen or pencil
against the inner and outer perimeter of
the CD. •
When driving over uneven surfaces, the
sound may jump.
• The CD player/changer has been
designed to play CDs bearing the
identification logo as shown. No other
discs can be played.
• Be sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
• Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label).
J07S_8S15-EA-03G_Edition2.book Page 14 Thursday, August 21, 2003 10:04 AM
Page 135 of 280
6-15
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
•Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
• Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
• CDs, like traditional audio records, are
made of plastic. To avoid warping,
keep the CDs in their cases and do not
store them where they will be exposed
to direct sunlight.
• The CD player/changer ejects the CD if
the CD is inserted upside down. Also
dirty and/or defective CDs may be
ejected.
• 8 cm (3 in) CDs and CD accessories
(e.g. 8 cm disc adapter) cannot be used
in the CD player/changer.
• Do not insert cleaning discs in the CD
player/changer.
• Do not insert any disc with a peel-off
or seal on it.
J07S_8S15-EA-03G_Edition2.book Page 15 Thursday, August 21, 2003 10:04 AM
Page 136 of 280
6-16
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Ty p e A......................................................................................................................... 6-17
Ty p e B .......................................................................................................................... 6-37
Types of the Audio Set
(Some countries.)
J07S_8S15-EA-03G_Edition2.book Page 16 Thursday, August 21, 2003 10:04 AM
Page 137 of 280
6-17
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Power/Volume/Sound Controls ............................................................................................. 6-18
Clock ..................................................................................................................................... 6-22
Operating the Radio ........................................................................................................... .... 6-24
Operating the Cassette Tape Player* ...................................................................................... 6-26
Operating the Mini Disc (MD) Player* ................................................................................. 6-28
Operating the Compact Disc (CD) Player* ........................................................................... 6-30
Operating the In-Dash CD Changer* .................................................................................... 6-32
Error Indications ............................................................................................................. ....... 6-36
Audio Set (Type A)*
CD Player* In-dash CD Changer*
Cassette Tape Player* Mini Disc (MD) Player* Illustration is of a representative audio unit.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 17 Thursday, August 21, 2003 10:04 AM
Page 138 of 280
6-18
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Power/Volume/Sound Controls
Power ON/OFF
Turn the ignition switch to the ACC or
ON position.
Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off. Volume adjustmentTo adjust the volume, turn the power/
volume dial.
Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
Audio sound adjustment
1. Press the audio control dial to select the
function. The selected function will be
indicated.
2. Turn the audio control dial to adjust the selected functions as follows:
Display
Audio control dial
Power/Volume dial
NOTE
To prevent the battery from being
discharged, do not leave the audio
system on for a long period when the
engine is not running.
J07S_8S15-EA-03G_Edition2.book Page 18 Thursday, August 21, 2003 10:04 AM
Page 139 of 280
6-19
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G

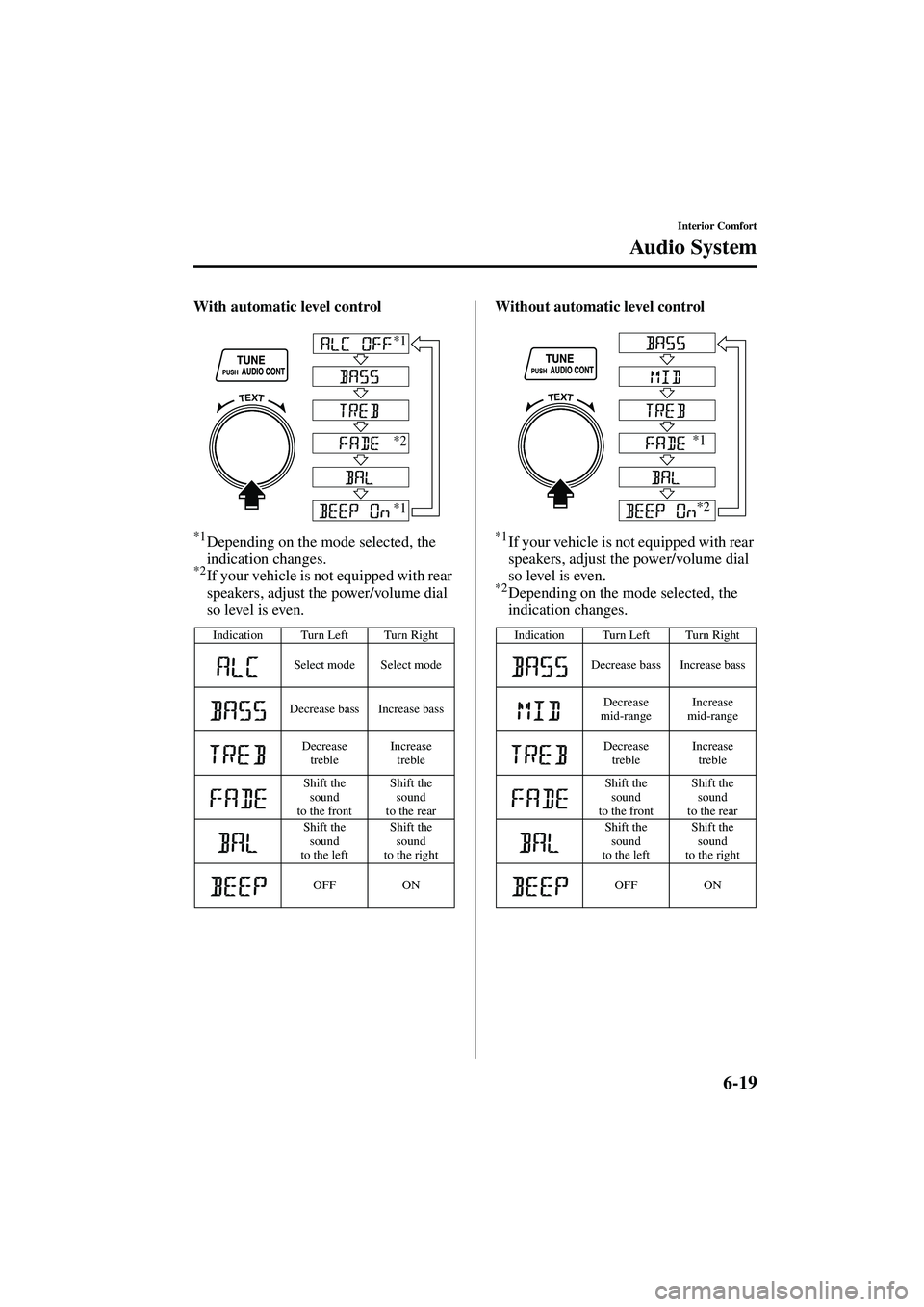

With automatic level control
*1Depending on the mode selected, the
indication changes.
*2If your vehicle is not equipped with rear
speakers, adjust the power/volume dial
so level is even.Without automatic level control
*1If your vehicle is not equipped with rear
speakers, adjust the power/volume dial
so level is even.
*2Depending on the mode selected, the
indication changes.
Indication Turn Left Turn Right
Select mode Select mode
Decrease bass Increase bass Decreasetreble Increase
treble
Shift the sound
to the front Shift the
sound
to the rear
Shift the sound
to the left Shift the
sound
to the right
OFF ON
*1
*1
*2
Indication Turn Left Turn Right
Decrease bass Increase bass
Decrease
mid-range Increase
mid-range
Decrease treble Increase
treble
Shift the sound
to the front Shift the
sound
to the rear
Shift the sound
to the left Shift the
sound
to the right
OFF ON
*1
*2
J07S_8S15-EA-03G_Edition2.book Page 19 Thursday, August 21, 2003 10:04 AM
Page 140 of 280
6-20
Interior Comfort
Au di o S ys t em
Form No. 8S15-EA-03G
Automatic Level Control (ALC)
The automatic level control is a feature
that automatically adjusts audio volume
and sound quality according to the vehicle
speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.
The following seven modes are available.
Select the desired mode according to use.NOTE
About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble and balance, press
the audio control dial for 2 seconds.
The unit will beep and "CLEAR" will
be displayed.
ModeUseVo l u m e
change
ALC does
not operate. No change
Use when the
convertible
top is open.
Three levels
are
available. Minimum
Medium
Maximum
Use when the
convertible
top is
closed.
Three levels
are
available. Minimum
Medium
Maximum
J07S_8S15-EA-03G_Edition2.book Page 20 Thursday, August 21, 2003 10:04 AM
