Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8S15-EA-03G

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-32).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-36).

Seat Belt Warning Beep
If the driver
’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when
any door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when any door is opened.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
Beeps
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM

5-31
Driving Your Mazda
Form No. 8S15-EA-03G
Switches and Controls

Headlights
To turn on the lights, turn the headlight
switch on the end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when any door is opened.

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Switch Position OFF
Headlights Off Off OnTaillights
Parking lights
License lights
Side-marker lights Off On On
NOTE
To prevent discharging the battery,
don't leave the lights on while the
engine is off.
High beam
Low beam
J07S_8S15-EA-03G_Edition2.book Page 31 Thursday, August 21, 2003 10:04 AM

6-62
Interior Comfort
Interior Equipment
Form No. 8S15-EA-03G

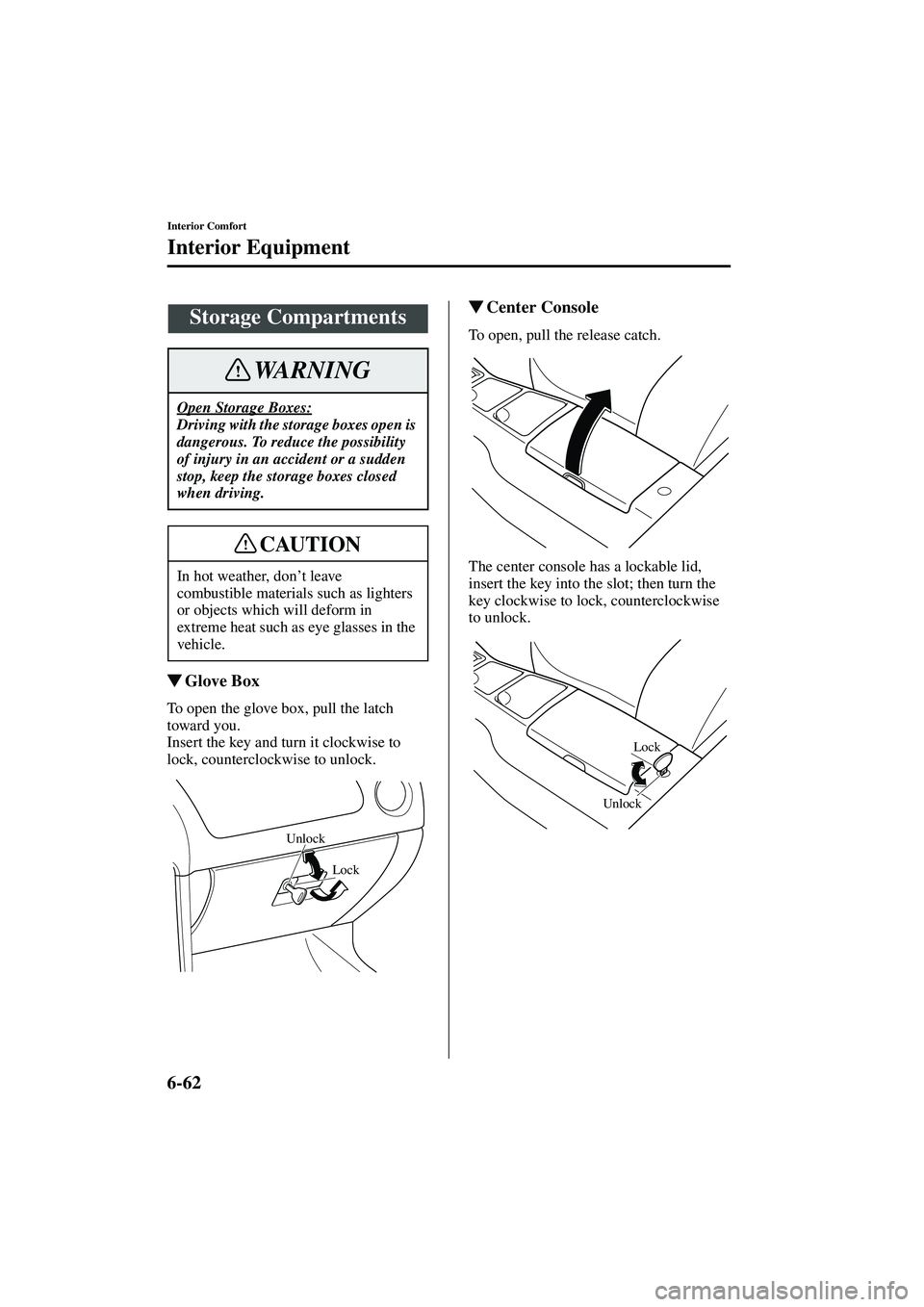

Glove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.

Center Console
To open, pull the release catch.
The center console has a lockable lid,
insert the key into the slot; then turn the
key clockwise to lock, counterclockwise
to unlock.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don
’t leave
combustible materials such as lighters
or objects which will deform in
extreme heat such as eye glasses in the
vehicle.
WARNING
CAUTION
Unlock
Lock
UnlockLock
J07S_8S15-EA-03G_Edition2.book Page 62 Thursday, August 21, 2003 10:04 AM

7-8
In Case of an Emergency
Flat Tire
Form No. 8S15-EA-03G

Locking Lug Nuts*
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’
s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don ’t use a power
impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key, apply pressure, and turn it clockwise.

Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the spare tire.
Antitheft lug nut Special key
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 8 Thursday, August 21, 2003 10:04 AM

7-11
In Case of an Emergency
Form No. 8S15-EA-03G
Overheating
If the temperature gauge indicates
overheating, the vehicle loses power, or
you hear a loud knocking or pinging
noise, the engine is probably too hot.
If the temperature gauge indicates
overheating:1. Drive safely to the side of the road and
park off the right-of-way.
2. Put a vehicle with an automatic transmission in park (P), a manual
transmission in neutral.
Apply the parking brake.
3. Turn off the air conditioner.
4. Check whether coolant or steam is escaping from under the hood or from
the engine compartment.
If steam is coming from the engine
compartment:
Don ’t go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
5. Make sure the cooling fan is operating, then turn off the engine after the
temperature has decreased.
Overheating
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn ’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don ’t remove the
cooling system cap when the engine
and radiator are hot.
Steam from Overheated Engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you. Open the hood
ONLY after steam is no longer
escaping from the engine.
WARNING
If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 11 Thursday, August 21, 2003 10:04 AM

7-13
In Case of an Emergency
Form No. 8S15-EA-03G
Emergency Starting
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
1. Depress the accelerator all the way and hold it there.
2. Turn the ignition switch to the START position and hold it there —for up to 10
seconds. If the engine starts, release the
key and accelerator immediately
because the engine will suddenly rev
up.
3. If the engine fails to start, crank it without using the accelerator —for up
to 10 seconds. The battery is in the trunk.
Jump-starting is dangerous if done
incorrectly. So follow the procedure
carefully. If you feel unsure about jump-
starting, we strongly recommend that you
have a competent service technician do
the work.
Starting a Flooded EngineJump-Starting
Battery-Related Explosion:
Flames and sparks near open battery
cells are dangerous. Hydrogen gas,
produced during normal battery
operation, could ignite and cause the
battery to explode. An exploding
battery can cause serious burns and
injuries. Keep all flames, including
cigarettes, and sparks away from
open battery cells.
Frozen Battery:
Jump-starting a frozen battery is
dangerous. It may rupture or explode,
causing serious injury.
Don
’t jump-start a frozen battery .
Use only a 12 V booster system. You
can damage a 12 V starter, ignition
system, and other electrical parts
beyond repair with a 24 V power
supply (two 12 V batteries in series or
a 24 V motor generator set).
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 13 Thursday, August 21, 2003 10:04 AM

8-11
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn ’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 11 Thursday, August 21, 2003 10:04 AM

8-15
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Check the oil level and fill to the F mark if
necessary.
Oil capacity (General reference only,
refer to Specifications section for
capacities.)
Changing oil filter
Because you need a special tool to
retighten the filter, an Authorized Mazda
Dealer should do the work.

Inspecting Coolant Level
NOTE
• The indicated engine oil capacities
are for general reference purposes
only. When adding or changing oil,
verify the engine oil level with the
oil dipstick.
• Use only specified engine oil (page
10-4).
Engine Coolant
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE
ENGINE IS HOT.
Cooling Fan and Engine
Inspection:
Inspecting the engine with the
ignition switch in the ON position is
dangerous. The cooling fan could
turn on unexpectedly even when the
engine isn ’t running. You could be
seriously injured by the fan. Turn the
ignition switch off and remove the key
from the ignition switch when you
inspect the engine.
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’ t remove the
cooling system cap when the engine
and radiator are hot.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 15 Thursday, August 21, 2003 10:04 AM

8-38
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING
PROTECTED COMPONENT
1 HEAD 40A Headlights, Rear defroster, Auto antenna
2 FUEL INJ 30A Fuel injection
3 MAIN 100A For protection of all circuits
4 IG KEY 60A All ignition related circuits
5 BLOWER 30A Blower motor
6 FAN 30A Cooling fan, Additional fan (air conditioner)
7 BTN 1 30A Taillights, Dashboard illumination
8BTN 2 20A Audio amp
*, Turn signal lights
9 ABS 20A Antilock brake system*
10 STOP15A Brake lights, Horn, Shift lock
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 38 Thursday, August 21, 2003 10:04 AM

11-2
Form No. 8S15-EA-03G
Index
A
Add-On Non-Genuine Parts and
Accessories
...................................... 9-12
Air Bag Systems
.............................. 2-20
Air Filter
.......................................... 8-24
Antenna
.............................................. 6-9
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-8
Appearance Care
.............................. 8-40
Ashtray
............................................. 6-60
Audio System
..................................... 6-9
Audio set
......................... 6-17, 6-37
Operating tips for
audio system
............................... 6-9
Safety certification
.................... 6-58
Automatic Transmission Driving tips
............................... 5-14
Fluid
.......................................... 8-21
Overdrive
.................................. 5-13
Shift-lock override
.................... 5-12
Shift-lock system
...................... 5-12
Transmission ranges
................. 5-11
B
Battery Emergency starting
................... 7-13
Maintenance
............................. 8-27
Specifications
........................... 10-4
Beeps Ignition key reminder
............... 5-30
Lights-on reminder
................... 5-30
Seat belt warning beep
.............. 5-30
Before Starting the Engine
................. 4-5
After getting in
........................... 4-5
Before getting in
......................... 4-5
Body Lubrication
............................. 8-23
B
Brake Fluid
.......................................... 8-18
Brakes Anti-lock brake system
(ABS)
.......................................... 5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-6
Break-In Period
.................................. 4-6
Bulb Replacement
............................ 8-32
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-4
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-13
Center Console
................................. 6-62
Child Restraint Child restraint precautions
........ 2-13
LATCH child-restraint
systems
...................................... 2-18
Cigarette Lighter
.............................. 6-60
Climate Control System
.....................6-2
Gas specification
....................... 10-5
Clutch Fluid
.......................................... 8-19
Convertible Top
............................... 3-18
Cruise Control
.................................. 5-15
Cup Holder
....................................... 6-61
Customer Assistance
.......................... 9-2
J07S_8S15-EA-03G_Edition2.book Page 2 Thursday, August 21, 2003 10:04 AM
