4-6
Before Driving Your Mazda
Form No. 8S15-EA-03G
Driving Tips
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
•Don
’t race the engine.
• Don
’t maintain one constant speed for
long.
• Don
’t drive constantly at full-throttle or
high engine rpm for extended periods
of time.
• Avoid unnecessary hard stops.
• Avoid full-throttle starts. How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•
Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
• Avoid fast starts.
• Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
• Use the air conditioner only when
necessary.
• Slow down on rough roads.
• Keep the tires properly inflated.
• Don
’t carry unnecessary weight.
• Don
’t rest your foot on the brake pedal
while driving.
• Keep the wheels in correct alignment.
• Keep windows closed at high speeds.
• Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Stopping the engine when going down
a hill is dangerous. This causes the
loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident. Never stop the engine when
going down a hill.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 6 Thursday, August 21, 2003 10:04 AM

8-1
Form No. 8S15-EA-03G
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction ................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-7
Owner Maintenance .................................................................... 8-10
Owner Maintenance Schedule ................................................. 8-10
Owner Maintenance Precautions ............................................. 8-11
Engine Compartment Overview .............................................. 8-12
Engine Oil ................................................................................ 8-13
Engine Coolant ........................................................................ 8-15
Brake Fluid .............................................................................. 8-18
Clutch Fluid ............................................................................. 8-19
Power Steering Fluid ............................................................... 8-20
Automatic Transmission Fluid (ATF) ...................................... 8-21
Washer Fluid ............................................................................ 8-22
Body Lubrication ..................................................................... 8-23
Air Filter .................................................................................. 8-24
Wiper Blades ........................................................................... 8-25
Battery ..................................................................................... 8-27
Tires ......................................................................................... 8-28
Light Bulbs .............................................................................. 8-32
Fuses ........................................................................................ 8-36
Appearance Care ......................................................................... 8-40
How to Minimize Environmental Paint Damage ..................... 8-40
Exterior Care ........................................................................... 8-42
Interior Care ............................................................................ 8-47
J07S_8S15-EA-03G_Edition2.book Page 1 Thursday, August 21, 2003 10:04 AM

8-3
Maintenance and Care
Form No. 8S15-EA-03G
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
•Repeated short-distance driving
• Driving in dusty conditions
• Driving with extended use of brakes
• Driving in areas where salt or other corrosive materials are being used
• Driving on rough or muddy roads
• Extended periods of idling or low-speed operation
• Driving for long periods in cold temperatures or extremely humid climates
Scheduled Maintenance (North America)
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
J07S_8S15-EA-03G_Edition2.book Page 3 Thursday, August 21, 2003 10:04 AM

8-14
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
5. Pull it out again and examine the level.It’s OK between L and F.
But if it ’s near or below L, add enough
oil to bring the level to F.
6. Make sure the O-ring is positioned properly before reinserting the
dipstick.
The distance between L and F on the
dipstick represents the following:

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly
—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information. Changing engine oil
1. Warm up the engine for a few minutes
and turn it off. Remove the oil-filler
cap.
2. Remove the drain plug and drain the oil into a suitable container.
3. Replace the drain plug washer after the oil has thoroughly drained.
4. Reinstall the plug tightly.
5. Fill the engine with new oil to the F mark on the dipstick.
6. Securely reinstall the oil-filler cap.
7. Start the engine and inspect around the drain plug for leaks.
8. Turn it off and wait 5 minutes for the oil to return to the oil pan.
Don
’t add engine oil over F. This may
cause engine damage.
L (US qt, Imp qt) 0.8 (0.85, 0.70)
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
CAUTION
WARNING
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don ’t check or
change the engine oil when the
engine is hot.
WARNING
Tighten
Loosen
Drain plug
J07S_8S15-EA-03G_Edition2.book Page 14 Thursday, August 21, 2003 10:04 AM

8-16
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season —and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the FULL and LOW
marks on the coolant reservoir when the
engine is cool.
If it ’s at or near LOW, add enough coolant
to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL.
Do not overfill.
If new coolant is required frequently,
consult an Authorized Mazda Dealer.
Changing Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
For mixture percentage:
Radiator coolant will damage paint.
Rinse it off quickly.
CAUTION
• Use only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant
’s effectiveness.
• Don
’t add only water. Always add a
proper coolant mixture.
• The engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
• DO NOT USE alcohol or methanol
antifreeze. DO NOT MIX alcohol
or methanol with the coolant. This
could damage the cooling system.
• Don
’t use a solution that contains
more than 60 % antifreeze.
This would reduce effectiveness.
Protection Vo l u m e
Antifreeze solution Wa t e r
Above −
16° C (3° F) 35% 65%
Above −
26° C (−
15° F) 45% 55%
Above −
40° C (−
40° F) 55% 45%
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 16 Thursday, August 21, 2003 10:04 AM

8-24
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G

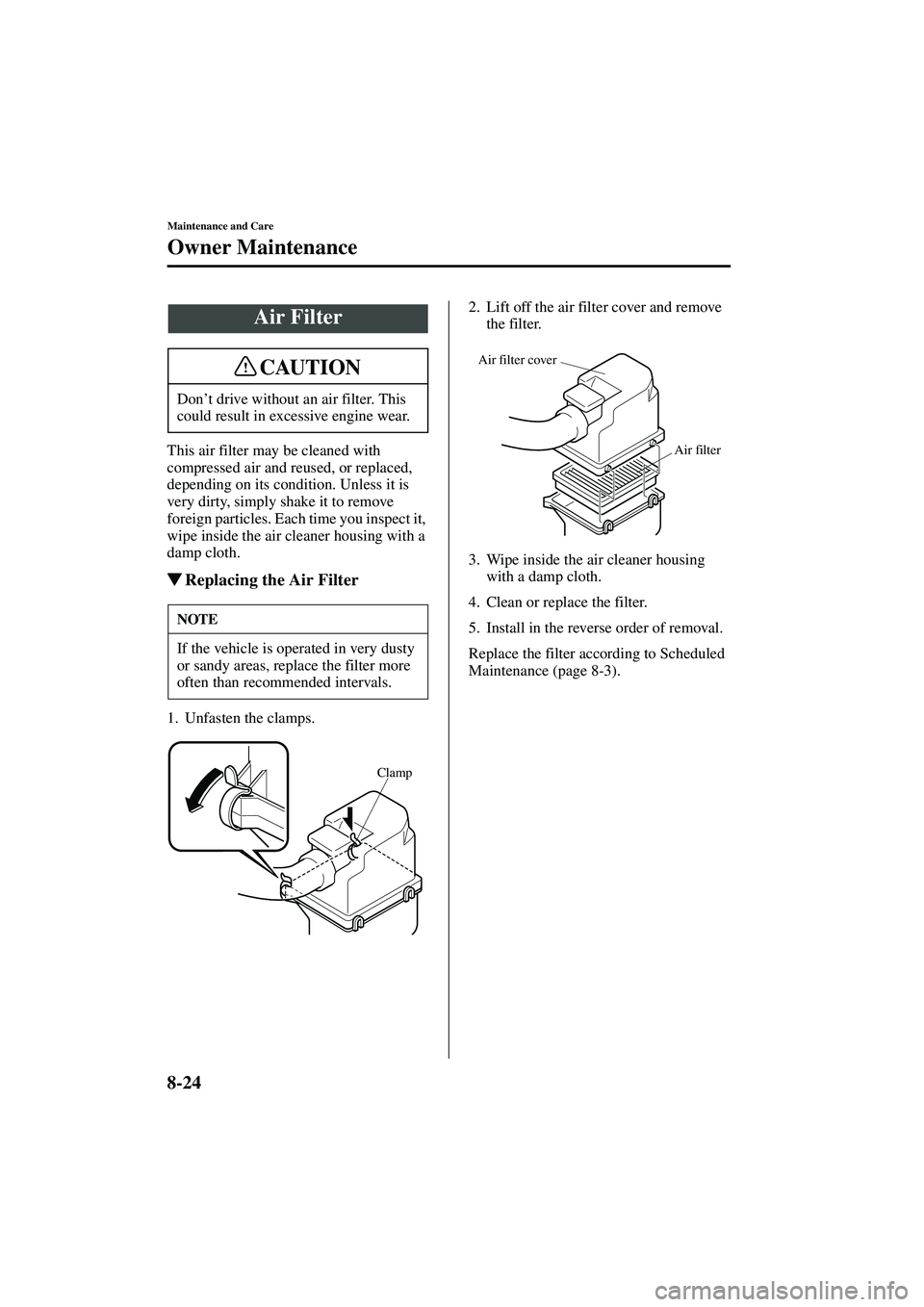

This air filter may be cleaned with
compressed air and reused, or replaced,
depending on its condition. Unless it is
very dirty, simply shake it to remove
foreign particles. Each time you inspect it,
wipe inside the air cleaner housing with a
damp cloth.

Replacing the Air Filter
1. Unfasten the clamps. 2. Lift off the air filter cover and remove
the filter.
3. Wipe inside the air cleaner housing with a damp cloth.
4. Clean or replace the filter.
5. Install in the reverse order of removal.
Replace the filter according to Scheduled
Maintenance (page 8-3).
Air Filter
Don ’t drive without an air filter. This
could result in excessive engine wear.
NOTE
If the vehicle is operated in very dusty
or sandy areas, replace the filter more
often than recommended intervals.
CAUTION
Clamp
Air filter cover
Air filter
J07S_8S15-EA-03G_Edition2.book Page 24 Thursday, August 21, 2003 10:04 AM

8-30
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G

Replacing a Tire
If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.
You should replace it before the band is
across the entire tread.

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it
’s properly
inflated and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2 kgf/
cm
2or bar, 60 psi).
Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.
WARNING
New tread Worn tread
Tread wear indicator
•
Don
’t use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
• The temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
• The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type
of temporary spare (page 8-30).
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 30 Thursday, August 21, 2003 10:04 AM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G

Replacing a Wheel
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
A wrong-sized wheel may adversely
affect:
• Tire fit
• Wheel and bearing life
• Ground clearance
• Snow-chain clearance
• Speedometer calibration
• Headlight aim
• Bumper height
• Limited-Slip Differential System
WARNING
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 31 Thursday, August 21, 2003 10:04 AM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Light Bulbs
Front turn signal lights/
Parking lights
Side-marker lights Overhead light
License plate lights/
Trunk lights
High-mount brake light
Rear turn signal lights Brake lights/Taillights Reverse lights
Headlights
Fog lights*
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 32 Thursday, August 21, 2003 10:04 AM
