6-9
Interior Comfort
Form No. 8S15-EA-03G
Au di o S ys t em

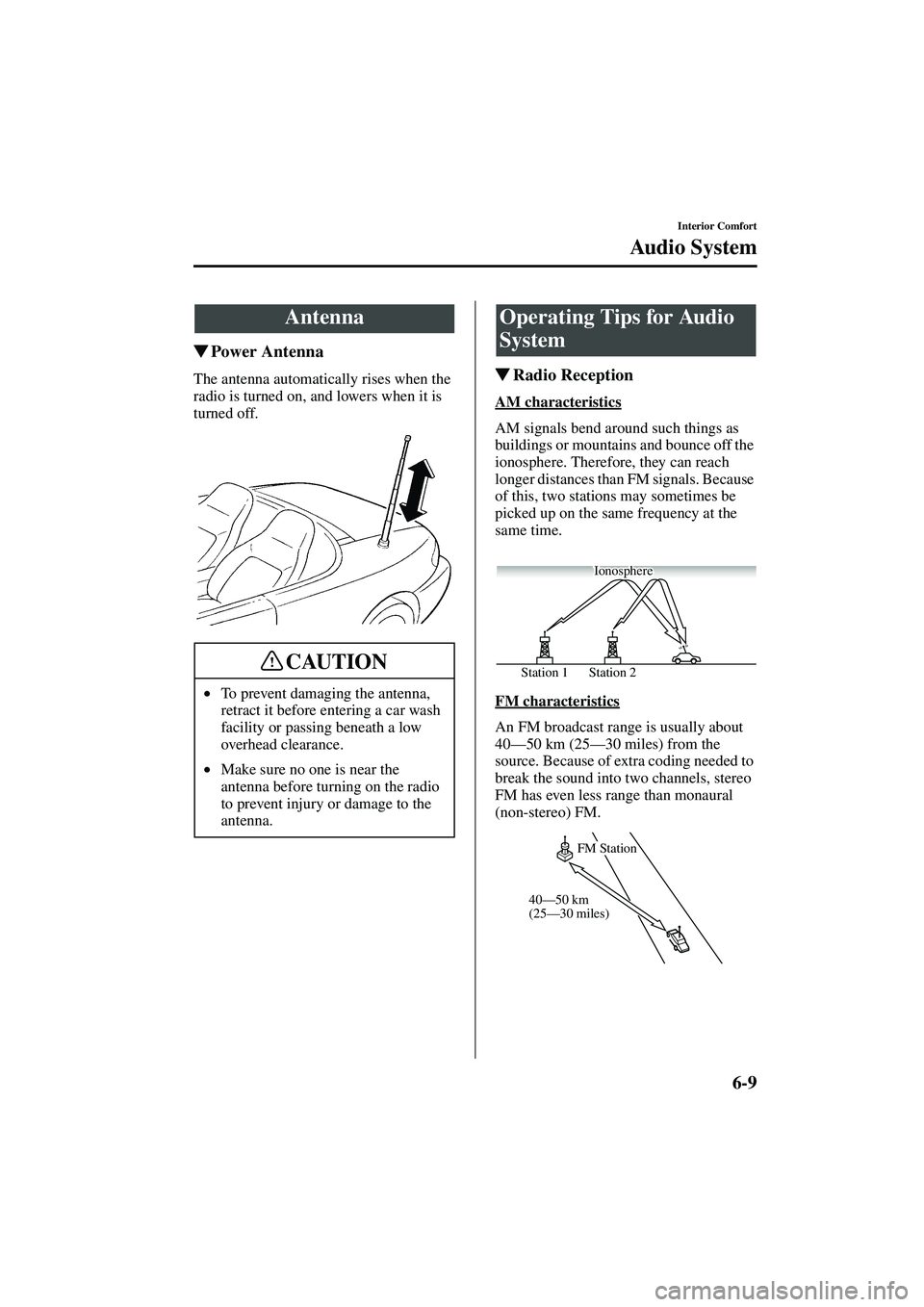

Power Antenna
The antenna automatically rises when the
radio is turned on, and lowers when it is
turned off. Radio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
FM characteristics
An FM broadcast range is usually about
40
— 50 km (25 —30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
Antenna
• To prevent damaging the antenna,
retract it before entering a car wash
facility or passing beneath a low
overhead clearance.
• Make sure no one is near the
antenna before turning on the radio
to prevent injury or damage to the
antenna.
CAUTION
Operating Tips for Audio
System
Ionosphere
Station 1 Station 2
FM Station
40—50 km
(25—30 miles)
J07S_8S15-EA-03G_Edition2.book Page 9 Thursday, August 21, 2003 10:04 AM
Page 241 of 280
8-39
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Fuse panel (Driver’s side)
DESCRIPTION FUSE
RATING PROTECTED
COMPONENT
1 AD FAN 20A Add fan motor,
Magnet clutch
2 HEAD.LH 15A Headlights (LH)
3 HEAD.RH 15A Headlights (RH)
4 —— —
5ST.SIG 7.5A Instrument
cluster, Cruise
control
*
6
—— —
7 CIGAR 20A Cigar lighter
8 RADIO 10A Audio
*
9 F.FOG 15AFog lights*
10 TAIL 15A Taillights, Front
parking lights,
Side-marker
lights
11 ENGINE 15A Engine control
system
12 METER 15A Instrument
cluster
DESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
13 TURN 7.5A Tu r n s ig n a l
lights
14 A/B 10A Supplemental
restraint system,
Antilock brake
system
*
15 WIPER 20A
Windshield
wipers and
washer
16 P.WIND 30A Power windows
17 A/C 7.5A Air conditioner
*
18 HAZARD 10ATu r n s ig n a l
lights
19 D.LOCK 10A Power door
lock
*
20 AUDIO 20A
Audio amp*
21 DEFOG 15A Rear defroster
22 ROOM 10AInterior light,
Auto antenna,
Warning buzzers
