If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
qElectronic Brake Force
Distribution System Warningí
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light and the ABS warning light
on at the same time. The problem is likely
to be an electronic brake force distribution
system.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don't drive with both lights on, have
the vehicle towed to an Authorized
Mazda Dealer to have the brakes
inspected as soon as possible.
qCharging System Warning Light
This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41íSome models.
MX-5_8U35-EA-05F_Edition4 Page177
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (189,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull back to original position for low
beam.
High beam
Low beam
q Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Driving Your Mazda
Switches and Controls
5-53
MX-5_8U35-EA-05F_Edition4 Page189
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (190,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn OFF
Right lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change ―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the front fog lights on, rotate the
fog light switch to the
position.
The headlight switch must be in the
position to turn on the front fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
5-54
Driving Your Mazda
íSome models.
Switches and Controls
MX-5_8U35-EA-05F_Edition4 Page190
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (192,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-22). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster, the indicator light will
illuminate.
Press the switch again to turn it off.
Indicator light
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.
5-56
Driving Your Mazda
Switches and Controls
MX-5_8U35-EA-05F_Edition4 Page192
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (193,1)
Horn
To sound the horn, press around the
mark on the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
six turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
Driving Your Mazda
Switches and Controls
5-57
MX-5_8U35-EA-05F_Edition4 Page193
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (206,1)
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
6-12
Interior Comfort
Audio System
MX-5_8U35-EA-05F_Edition4 Page206
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (235,1)

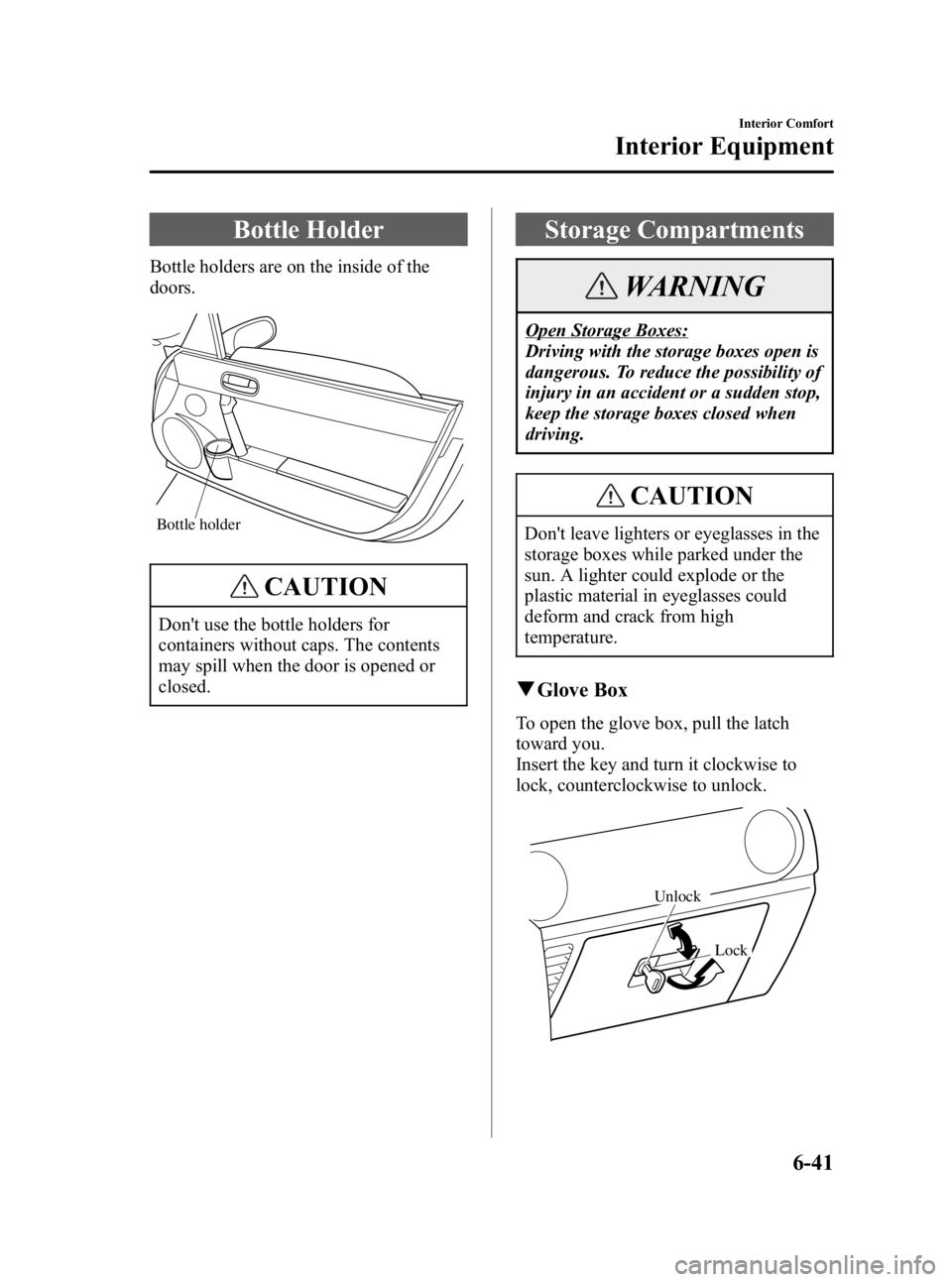

Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
Interior Comfort
Interior Equipment
6-41
MX-5_8U35-EA-05F_Edition4 Page235
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (239,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Flat Tire ..................................................................................... 7-3
Tool Storage .............................................................................. 7-5
Instant Mobility System (IMS) Emergency Flat Tire Repair
Kit
í.......................................................................................... 7-6
Changing a Tire ....................................................................... 7-13
Overheating ................................................................................. 7-19 Overheating ............................................................................. 7-19
Emergency Starting .................................................................... 7-21 Starting a Flooded Engine ....................................................... 7-21
Jump-Starting .......................................................................... 7-22
Push-Starting ........................................................................... 7-26
Emergency Towing ..................................................................... 7-27 Towing Description ................................................................. 7-27
Tiedown Hooks ....................................................................... 7-28
Recreational Towing ............................................................... 7-30
7-1íSome models.
MX-5_8U35-EA-05F_Edition4 Page239
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (240,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
six turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
7-2
In Case of an Emergency
Parking in an Emergency
MX-5_8U35-EA-05F_Edition4 Page240
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (243,1)
Tool Storage
Tools are stored in the locations illustrated in the diagram.
Towing/Tiedown eyelet
Instant Mobility System (IMS) Emergency Flat Tire Repair KitTool bag Jack
Lug wrench
Jack Lever Some models.
In Case of an Emergency
Flat Tire
7-5
MX-5_8U35-EA-05F_Edition4 Page243
Thursday, October 6 2005 11:5 AM
Form No.8U35-EA-05F
