N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
Shifting from N or P:
It's dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.
If the engine is running faster than
idle, don't shift from N or P into a
driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause
transmission damage.
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 6-gear sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the shift lever or steering shift
switches.
Refer to Manual Shift Mode (page 5-14).
qShift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Move the shift lever.
NOTE
lWhen the ignition switch is in the
LOCK position, the shift lever
cannot be shifted from P.
lTo be sure the vehicle is in park, the
ignition key cannot be removed
unless the shift lever is in P.
l(With Advanced Key)
The ignition switch cannot be turned
from the ACC position to the LOCK
position when the shift lever is not in
P.
Driving Your Mazda
Starting and Driving
5-13
MX-5_8U35-EA-05F_Edition4 Page149
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (175,1)
SignalWarning/Indicator Lights Page
Door-Ajar Warning Light 5-44
Automatic Transmission Warning Light5-44
Tire Pressure Monitoring System Warning Light5-45
Flat Tire Warning Light5-46
KEY Warning Light (Red)/KEY Indicator Light (Green)5-46
Security Indicator Light5-48
Headlight High-Beam Indicator Light5-48
Shift Position Indicator Light5-48
TCS/DSC Indicator Light5-49
DSC OFF Indicator Light5-49
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-49
Turn Signal/Hazard Warning Indicator Lights5-50
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-39
MX-5_8U35-EA-05F_Edition4 Page175
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (182,1)
NOTE
lPerform tire pressure adjustment
when the tires are cold. Tire pressure
will vary according to the tire
temperature, therefore let the vehicle
stand for 1 hour or only drive it 1.6
km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold
inflation pressure, the TPMS
warning light/beep may turn on after
the tires cool and pressure drops
below specification.
Also, an illuminated TPMS warning
light, resulting from the tire air
pressure dropping due to cold
ambient temperature, may go out if
the ambient temperature rises. In this
case, it will also be necessary to
adjust the tire air pressures. If the
TPMS warning light illuminates due
to a drop in tire air pressure, make
sure to check and adjust the tire air
pressures.
lAfter adjusting the tire air pressures,
it may require some time for the
TPMS warning light to go out. If the
TPMS warning light remains
illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph)
for 10 minutes, and then verify that it
goes out.
If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture.
Warning light flashes
When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
q Flat Tire Warning Lightí
This warning light illuminates for a few
seconds when the ignition switch is turned
to the ON position.
Warning light illuminates/Warning
beep sounds
If the tire pressures decrease extremely
after the TPMS warning light has
illuminated, or if a tire is punctured, the
flat tire warning light also illuminates, and
a beep sound will be heard for
approximately 30 seconds.
Refer to Vehicle with run-flat tires on
page 7-3.
qKEY Warning Light (Red)/KEY
Indicator Light (Green) (with
Advanced Key)
This indicator has two colors.
KEY Warning Light (Red)
When illuminated
lWhen the ignition switch is turned to
the ON position, it illuminates
momentarily and then goes out.
5-46
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
MX-5_8U35-EA-05F_Edition4 Page182
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (183,1)
lIf any malfunction occurs in the
advanced keyless system, it illuminates
continuously.
WARNING
KEY Warning Light:
If the KEY warning light remains
illuminated, do not continue to drive
using the advanced key system. Park
the vehicle in a safe place and use the
auxiliary key to continue driving the
vehicle. Have the vehicle inspected at
an Authorized Mazda Dealer as soon
as possible.
When flashing
lUnder the following conditions, the
KEY warning light (red) flashes to
inform the driver that the start knob
will not rotate to the ACC position
even if it is pushed in from the LOCK
position.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the start knob has
not been returned to the LOCK
position to notify the driver that the
advanced key has been removed from
the vehicle. It will stop flashing when
the advanced key is back inside the
vehicle.
lThe start knob has not been returned
to the LOCK position, the driver's
door is open, and the advanced key
is removed from the vehicle.
lThe start knob has not been returned
to the LOCK position and all the
doors are closed after removing the
advanced key from the vehicle.
NOTE
The flashing KEY warning light (red)
and the beep sound operate
simultaneously (page 3-21).
KEY Indicator Light (Green)
When illuminated
When the start knob is pushed in from the
LOCK position, the system confirms that
the correct advanced key is inside the
vehicle, the KEY indicator light (green)
illuminates, and the start knob can be
turned to the ACC position (page 3-10).
When flashing
When the advanced key battery power is
low, the KEY indicator light flashes for 30
seconds after the start knob is turned from
the ON position to the ACC or LOCK
position. Replace with a new battery
before the advanced key becomes
unusable (page 3-6).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-47
MX-5_8U35-EA-05F_Edition4 Page183
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (184,1)
NOTE
The advanced key can be set so that the
KEY indicator light (green) does not
flash even if the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-20).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then goes out.
If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qHeadlight High-Beam Indicator
Light
This light indicates one of two things:
lThe high-beam headlights are on.
lThe turn signal lever is in the flash-to-
pass position.
qShift Position Indicator Light
(Automatic Transmission)
This indicates the selected shift position
when the ignition switch is in the ON
position.
Gear position indicator
5-48
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
MX-5_8U35-EA-05F_Edition4 Page184
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (186,1)

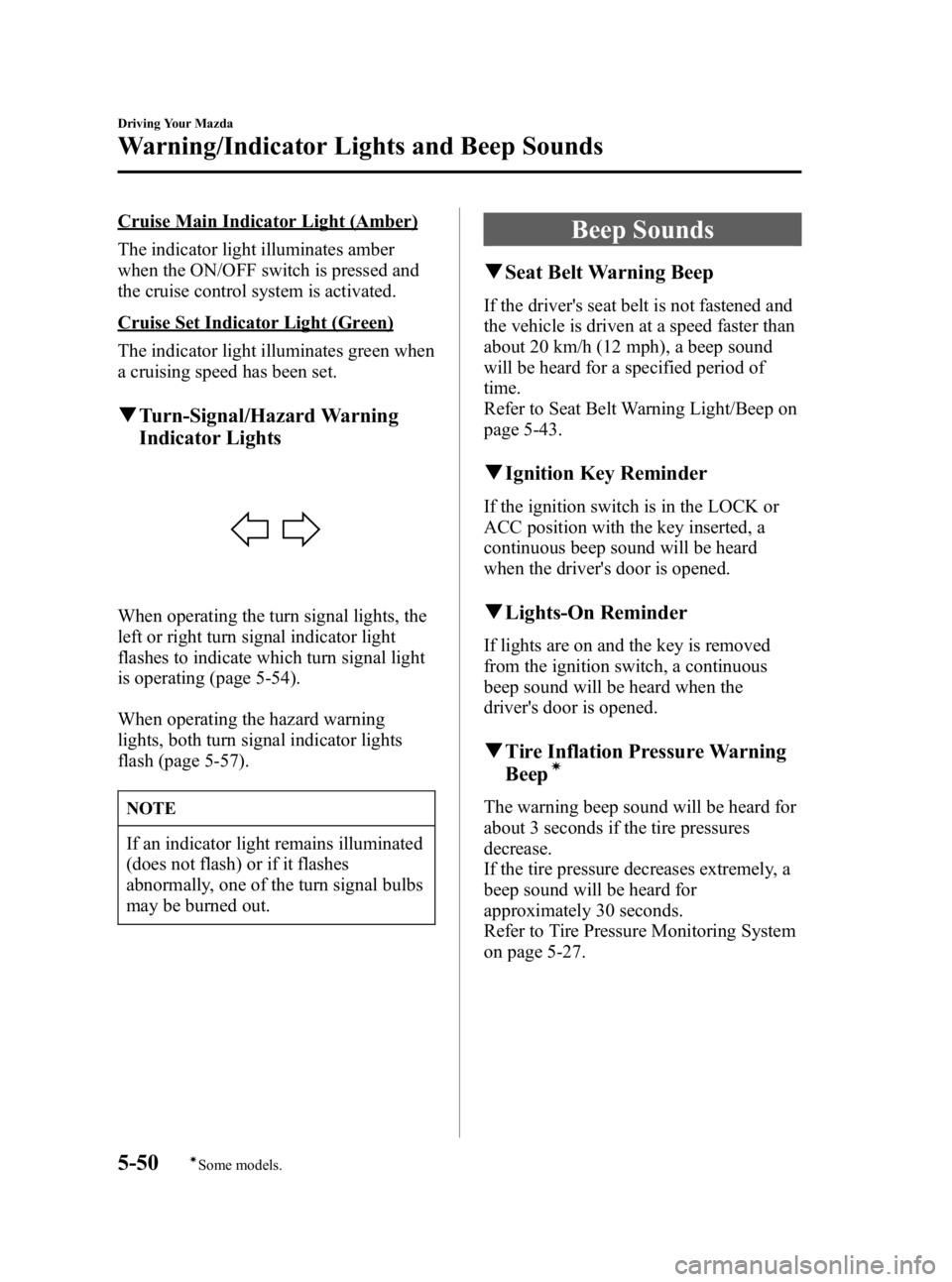

Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the ON/OFF switch is pressed and
the cruise control system is activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qTurn-Signal/Hazard Warning
Indicator Lights
When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-54).
When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-57).
NOTE
If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.
Beep Sounds
qSeat Belt Warning Beep
If the driver's seat belt is not fastened and
the vehicle is driven at a speed faster than
about 20 km/h (12 mph), a beep sound
will be heard for a specified period of
time.
Refer to Seat Belt Warning Light/Beep on
page 5-43.
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.
qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
qTire Inflation Pressure Warning
Beepí
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
If the tire pressure decreases extremely, a
beep sound will be heard for
approximately 30 seconds.
Refer to Tire Pressure Monitoring System
on page 5-27.
5-50
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
MX-5_8U35-EA-05F_Edition4 Page186
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (187,1)
qAdvanced Keyless Warning (with
Advanced Key)
Warning indicators for the advanced key,
such as “the advanced key removed from
vehicle warning ”, use a beep sound and
warning/indicator lights in the instrument
cluster.
Refer to Warning and Beep Sounds on
page 3-18.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-51
MX-5_8U35-EA-05F_Edition4 Page187
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (188,1)
Lighting Control
qHeadlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illumination Off On On
NOTE
To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the brightness
weakens, the bulb-life may be depleted
and a replacement is necessary. Consult
an Authorized Mazda Dealer.
q
Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
5-52
Driving Your Mazda
íSome models.
Switches and Controls
MX-5_8U35-EA-05F_Edition4 Page188
Thursday, October 6 2005 11:3 AM
Form No.8U35-EA-05F

Black plate (235,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
Interior Comfort
Interior Equipment
6-41
MX-5_8U35-EA-05F_Edition4 Page235
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F

Black plate (236,1)
qSeat Side Box
To open, pull the release catch.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Lock
Unlock
qBack Trim Storage Box
Small items can be stored in the back trim
storage box.
With the lid Without the lid
To use the back trim storage box
1. To use the desired storage box, slide
the front seat in front of it all the way
forward.
Refer to Seat Slide on page 2-2.
2. Fold the front seatback forward all the way down.
Refer to Seat Recline on page 2-3. 3. If your vehicle has a lid, pull the latch
to open.
When finished, return the seat to its
original position and secure it. After
returning the seat to its original position,
make sure the seat is secured by
attempting to lightly move it forward and
backward.
CAUTION
Do not store excessive weight in the
back trim storage box as it could be
damaged.
q Mesh Pocket (Passenger Side)í
Maps or pamphlets can be placed in the
mesh pocket.
6-42
Interior Comfort
íSome models.
Interior Equipment
MX-5_8U35-EA-05F_Edition4 Page236
Thursday, October 6 2005 11:4 AM
Form No.8U35-EA-05F
