Black plate (323,1)
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
Center panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels
resulting from the use of a hard brush or
cloth may not be repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of the
rear window. You may damage the rear
window defroster grid.
Maintenance and Care
Appearance Care
8-55íSome models.
MX-5_8U35-EA-05F_Edition4 Page323
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (325,1)
9
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on equipment.
Customer Assistance ............................... 9-2 Customer Assistance (U.S.A.) ............ 9-2
Customer Assistance (Canada) ........... 9-4
Customer Assistance (Puerto Rico) .... 9-7
Mazda Importer/Distributors ................. 9-8 Importer/Distributor ............................ 9-8
Distributor in Each Area ..................... 9-8
Warranty .................................................. 9-9 Warranties for Your Mazda ................. 9-9
Outside the United States and
Canada .............................................. 9-10
Outside the United States .................. 9-11
Outside Canada ................................. 9-12
Registering Your Vehicle in A Foreign
Country (Except United States and
Canada) ............................................. 9-13
Add-On Non-Genuine Parts and
Accessories ....................................... 9-14
Cell Phones ............................................. 9-15 Cell Phones Warning ......................... 9-15
Uniform Tire Quality Grading System
(UTQGS) ................................................ 9-16 Uniform Tire Quality Grading System
(UTQGS) .......................................... 9-16
Tire Information (U.S.A.) ..................... 9-18 Tire Labeling ..................................... 9-18
Location of the Tire Label
(Placard) ............................................ 9-24
Tire Maintenance .............................. 9-27
Vehicle Loading ................................ 9-30
Steps for Determining the Correct Load
Limit: ................................................ 9-37 Reporting Safety Defects ....................... 9-38
Reporting Safety Defects (U.S.A.) .... 9-38
Reporting Safety Defects (Canada) ... 9-39
Service Publications .............................. 9-40 Service Publications .......................... 9-40
9-1
MX-5_8U35-EA-05F_Edition4 Page325
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (351,1)
Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
qTire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire information placard or tire label for optimum service.
qTire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) or sooner if irregular
wear develops. During rotation, inspect them for correct balance.
Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
lIncorrect tire pressure
lImproper wheel alignment
lOut-of-balance wheel
lSevere braking
After rotation, inflate all tire pressures to specification (page 10-6) and inspect the lug nuts
for tightness.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-27
MX-5_8U35-EA-05F_Edition4 Page351
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (364,1)

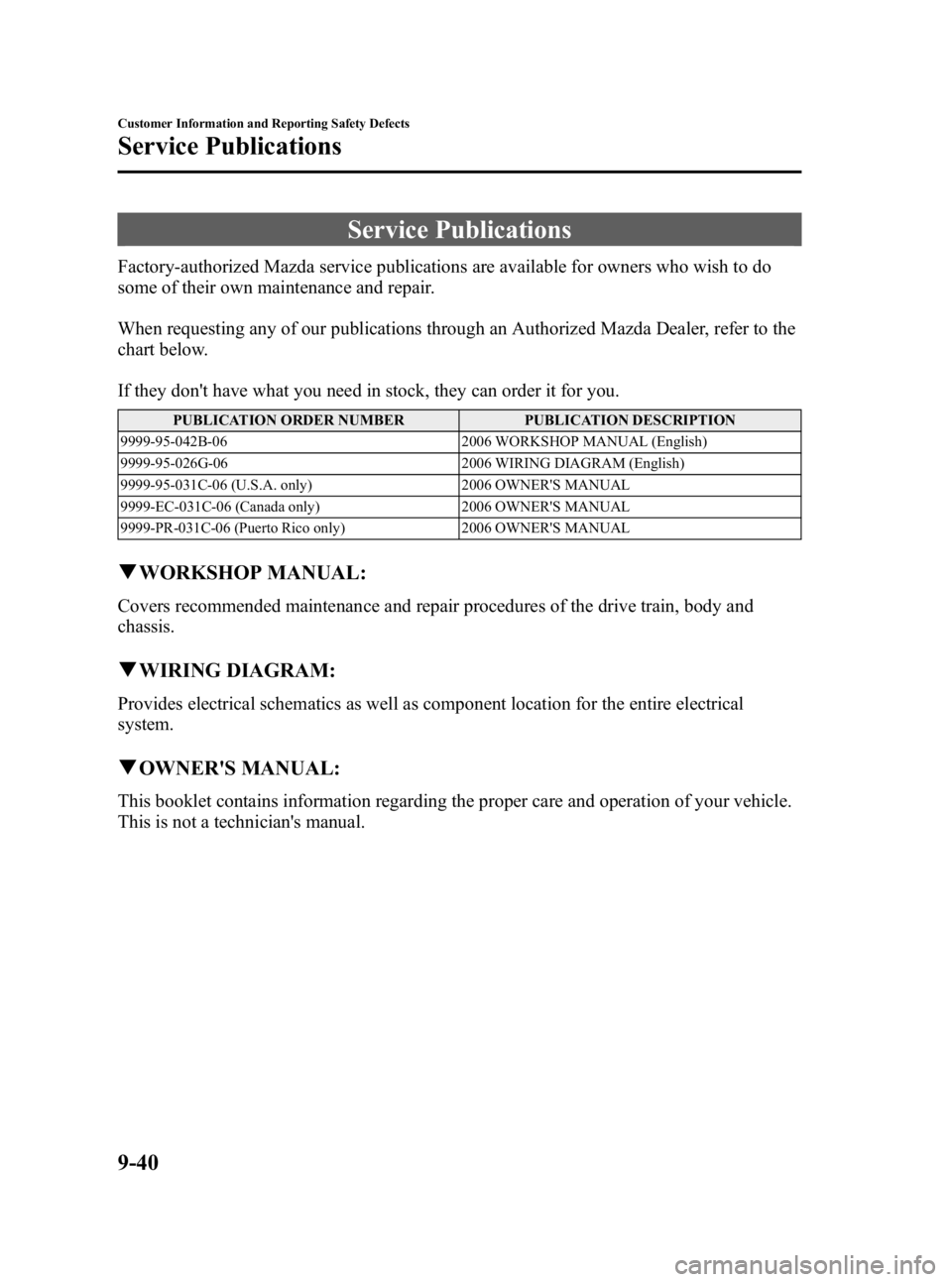

Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-042B-06 2006 WORKSHOP MANUAL (English)
9999-95-026G-06 2006 WIRING DIAGRAM (English)
9999-95-031C-06 (U.S.A. only) 2006 OWNER'S MANUAL
9999-EC-031C-06 (Canada only) 2006 OWNER'S MANUAL
9999-PR-031C-06 (Puerto Rico only) 2006 OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-40
Customer Information and Reporting Safety Defects
Service Publications
MX-5_8U35-EA-05F_Edition4 Page364
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (374,1)
A
Accessory Socket .............................. 6-43
Add-On Non-Genuine Parts and
Accessories ....................................... 9-14
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-16
Locking, unlocking with request
switch ........................................... 3-8
Opening the trunk lid with request
switch ......................................... 3-10
Operation range ............................ 3-7
Remote control function ............. 3-14
Service ......................................... 3-6
Air Bag Systems ............................... 2-26
Air Filter ............................................ 8-24
Antenna ............................................. 6-10
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-48
Audio System ................................... 6-10 Audio control switch .................. 6-36
Audio set .................................... 6-19
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-38
Automatic Transmission Driving tips ................................ 5-18
Manual shift mode ..................... 5-14
Shift-lock system ....................... 5-13
Transmission ranges ................... 5-12
B
BatteryEmergency starting .................... 7-21
Maintenance ............................... 8-27
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Seat belt warning beep ............... 5-50
Tire inflation pressure warning
beep ............................................ 5-50
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-23
Bottle Holder ..................................... 6-41
Brake/Clutch Fluid ........................................... 8-21
Brakes Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-35
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-15
Child Restraint Child restraint precautions ......... 2-15
LATCH child-restraint
systems ....................................... 2-23
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
11-2
Index
MX-5_8U35-EA-05F_Edition4 Page374
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (375,1)
C
Clock ................................................. 6-24
Convertible Top ................................ 3-40
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-40
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-37
Daytime Running Lights ................... 5-53
DefrosterRear window .............................. 5-56
Detachable Hardtop .......................... 3-45
Dimensions ....................................... 10-5
Door Locks ....................................... 3-28
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7 Automatic transmission .............. 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-24
DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-26
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-21Flooded engine ........................... 7-21
Jump-starting .............................. 7-22
Push-starting .............................. 7-26
Emergency Towing ........................... 7-27
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-18
Exhaust gas .................................. 4-5
Hood release .............................. 3-38
Oil .............................................. 8-15
Overheating ................................ 7-19
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-14
Engine Coolant Overheating ................................ 7-19
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-50
F
Flasher Hazard warning .......................... 5-57
Headlights .................................. 5-52
Flat Tire ............................................... 7-3 Changing .................................... 7-13
Instant Mobility System
(IMS) Emergency Flat Tire Repair
Kit ................................................ 7-6
Tool storage .................................. 7-5
Fluids Classification .............................. 10-4
Owner maintenance .................... 8-11
Fog Lights ......................................... 5-54
Foot Brake .......................................... 5-5
Fuel Filler lid and cap ........................ 3-37
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
MX-5_8U35-EA-05F_Edition4 Page375
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F

Black plate (376,1)
F
Fuses ................................................. 8-43Panel description ........................ 8-45
Replacement ............................... 8-43
G
Glove Box ............................... 6-41, 6-42
H
Hazard Warning Flasher .................... 5-57
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-52
Flashing ...................................... 5-53
High-low beam .......................... 5-53
On reminder ............................... 5-52
Hood Release .................................... 3-38
Horn .................................................. 5-57
I
Ignition
Keys ........................................... 3-22
Switch .......................................... 5-2
Immobilizer System
(with Advanced Key) ........................ 3-53
Immobilizer System
(without Advanced Key) ................... 3-56
Indicator Lights ................................. 5-38 Cruise ......................................... 5-49
DSC OFF .................................... 5-49
Headlight high-beam .................. 5-48
Security ...................................... 5-48
Shift position .............................. 5-48
TCS/DSC ................................... 5-49
Turn-signal/hazard warning ....... 5-50
Inside Trunk Release Lever ............... 3-34
I
Instrument Cluster ............................. 5-33
Interior Care ...................................... 8-54
Interior Lights ................................... 6-39
J
Jump-Starting .................................... 7-22
K
Keyless Entry System ....................... 3-23
Keys .................................................. 3-22
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-54
Light Bulbs Replacement ............................... 8-35
Specifications ............................. 10-6
Lighting Control ............................... 5-52
Lubricant Quality .............................. 10-4
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-12
Owner maintenance schedule ..... 8-11
Scheduled ..................................... 8-3
Manual Transmission Operation ......... 5-9 Recommendations for shifting.... 5-10
Mesh Pocket ..................................... 6-42
Mirrors Outside mirrors .......................... 3-61
Rearview mirror ......................... 3-62
Money-Saving Suggestions ................ 4-7
11-4
Index
MX-5_8U35-EA-05F_Edition4 Page376
Thursday, October 6 2005 11:6 AM
Form No.8U35-EA-05F
