Page 9 of 378
Black plate (9,1)
Power door lock switch ..................................................................................... page 3-29
Outside mirror switch ........................................................................................ page 3-61
DSC OFF switch ............................................................................................... page 5-24
Passenger airbag deactivation switch ................................................................ page 2-30
Dashboard illumination ..................................................................................... page 5-37
Lighting control/Turn signals ............................................................................ page 5-52
Instrument cluster .............................................................................................. page 5-33
Air bags ............................................................................................................. page 2-26
Wiper and washer lever ..................................................................................... page 5-55
Cruise control switches ...................................................................................... page 5-19
Hazard warning flasher switch .......................................................................... page 5-57
Climate control system ........................................................................................ page 6-2
Audio system ..................................................................................................... page 6-10
Parking brake ....................................................................................................... page 5-5
Power window switches .................................................................................... page 3-36
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Accessory socket ............................................................................................... page 6-43
Ignition switch ..................................................................................................... page 5-2
Tilt wheel release lever ...................................................................................... page 3-61
Audio control switch ......................................................................................... page 6-36
Fog light switch ................................................................................................. page 5-54
Hood release handle .......................................................................................... page 3-38
Trunk release button .......................................................................................... page 3-31
Fuse box ............................................................................................................ page 8-43
Seat belt ............................................................................................................... page 2-5
Seats ..................................................................................................................... page 2-2
Convertible top unlock lever .............................................................................. page 3-43
Sunvisor ............................................................................................................. page 6-39
Rearview mirror ................................................................................................. page 3-62
Interior light ....................................................................................................... page 6-39
Vanity mirror ...................................................................................................... page 6-39
Glove box .......................................................................................................... page 6-41
Mesh Pocket ...................................................................................................... page 6-42
Cup holder ......................................................................................................... page 6-40
Bottle Holder ..................................................................................................... page 6-41
Remote fuel-filler lid release ............................................................................. page 3-37
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
MX-5_8U35-EA-05F_Edition4 Page9
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

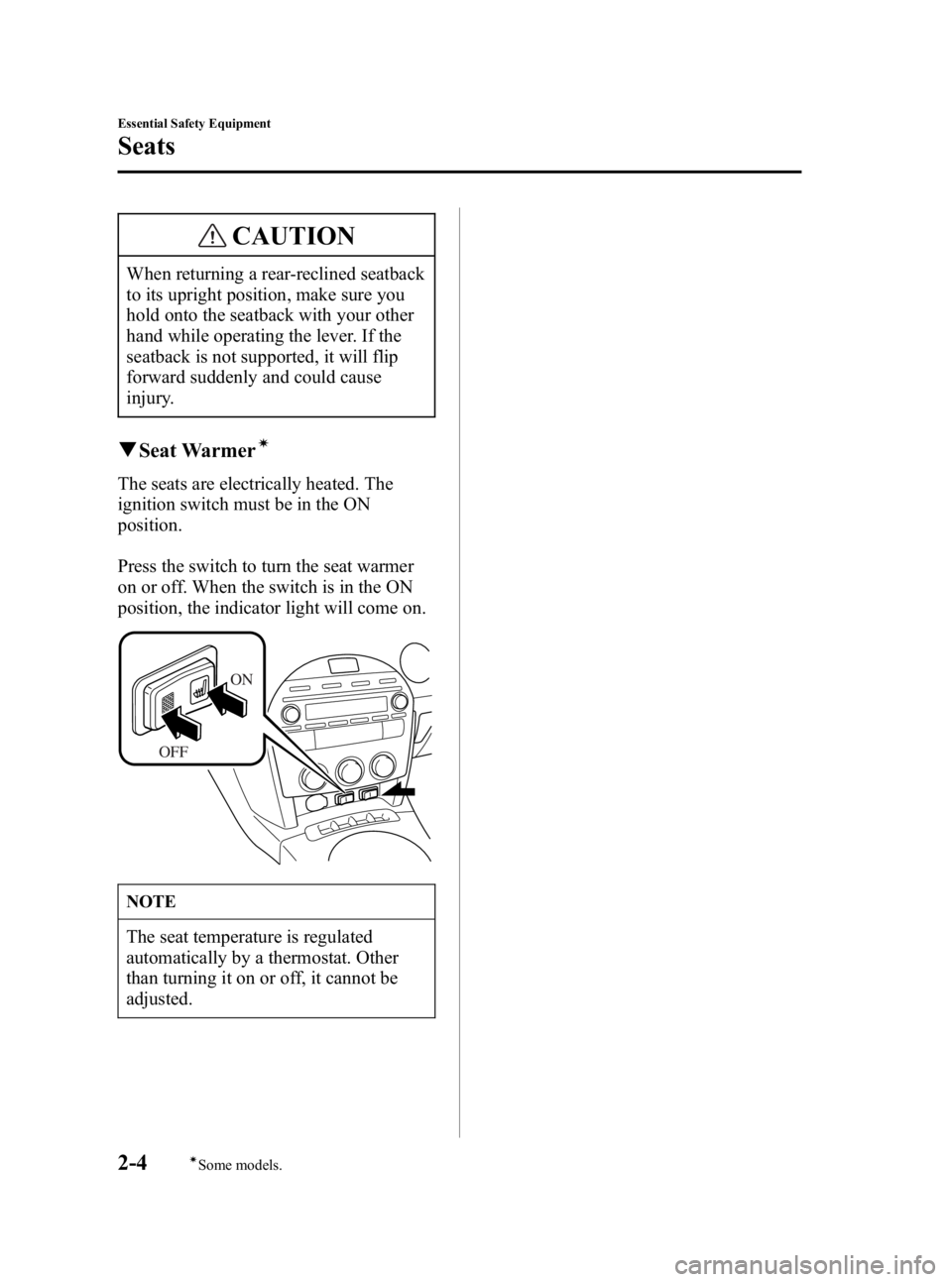

Page 16 of 378
Black plate (16,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qSeat Warmerí
The seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
2-4
Essential Safety Equipment
íSome models.
Seats
MX-5_8U35-EA-05F_Edition4 Page16
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 23 of 378
Black plate (23,1)
WARNING
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the pretensioner system
gets on the skin or in the eyes, wash
it off as soon as possible.
qAir Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death. Never tamper
with the systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
Essential Safety Equipment
Seat Belt Systems
2-11
MX-5_8U35-EA-05F_Edition4 Page23
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 25 of 378
Black plate (25,1)
Seat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition switch is turned to the ON
position.
Conditions of operation
ConditionResult
The driver's seat belt is not
fastened when the ignition
switch is turned to the ON
position. The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated. The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
switch is turned to the ON
position. The warning light will
not illuminate and the
beep sound will not be
heard.
q
Belt Minder
NOTE
The belt minder can be deactivated.
Consult an Authorized Mazda Dealer to
deactivate and restore the seat belt
minder.
Driver's seat
The belt minder is a supplemental
warning to the seat belt warning function.
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the warning light/beep
operates to give you further reminders
according to the chart below.
Condition Vehicle speed
Between 0 ―20
km/h
(0 ― 12 mph) 20 km/h
(12 mph) or more
Seat belt
Indicator
Beep
: Fastened: Unfastened: Illuminated: Flashing: Beep
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the
seatbelt is fastened or the beep sound
period has passed.
Essential Safety Equipment
Seat Belt Systems
2-13
MX-5_8U35-EA-05F_Edition4 Page25
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F

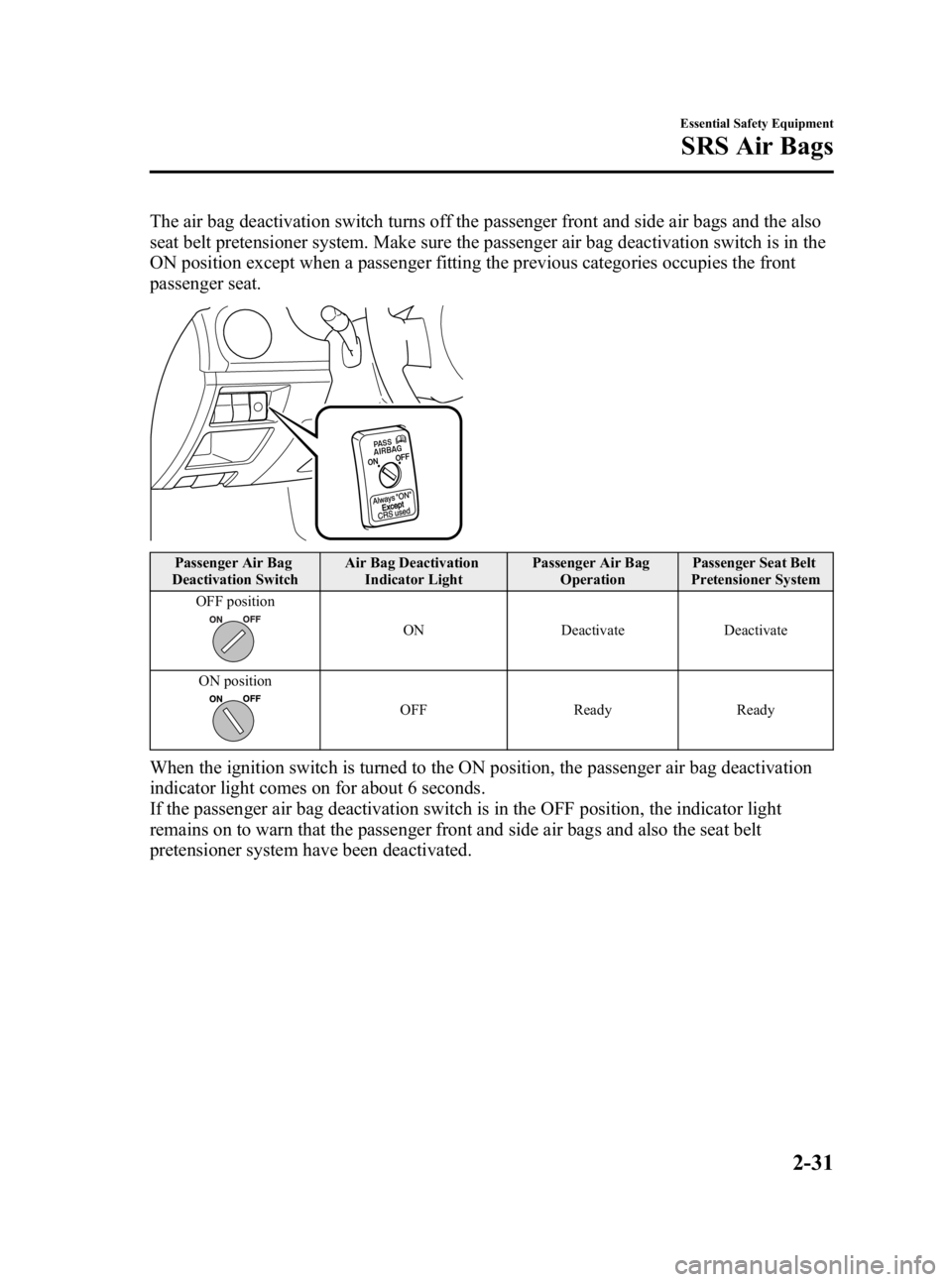

Page 43 of 378
Black plate (43,1)
The air bag deactivation switch turns off the passenger front and side air bags and the also
seat belt pretensioner system. Make sure the passenger air bag deactivation switch is in the
ON position except when a passenger fitting the previous categories occupies the front
passenger seat.
Passenger Air Bag
Deactivation Switch Air Bag Deactivation
Indicator Light Passenger Air Bag
Operation Passenger Seat Belt
Pretensioner System
OFF position
ON Deactivate Deactivate
ON position
OFF ReadyReady
When the ignition switch is turned to the ON position, the passenger air bag deactivation
indicator light comes on for about 6 seconds.
If the passenger air bag deactivation switch is in the OFF position, the indicator light
remains on to warn that the passenger front and side air bags and also the seat belt
pretensioner system have been deactivated.
Essential Safety Equipment
SRS Air Bags
2-31
MX-5_8U35-EA-05F_Edition4 Page43
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 44 of 378
Black plate (44,1)
In addition to using the key to deactivate the passenger front and side air bags and the also
seat belt pretensioner system, the passenger front and side air bags and the also seat belt
pretensioner system is also deactivated and the passenger air bag deactivation indicator
light is illuminated automatically when the total seated weight on the passenger seat is less
than 30 kg (66 lb).
NOTE
Have the passenger air bag deactivation switch inspected by an Authorized Mazda
Dealer if any of these conditions occur:
lThe indicator light does not illuminate for about 6 seconds when the ignition switch is
turned to the ON position.
lThe indicator light does not remain on when the ignition switch is in the ON position
and the passenger air bag deactivation switch is in the OFF position.
lThe indicator remains on when the ignition switch is in the ON position and the
passenger air bag deactivation switch is in the ON position.
qTo Deactivate the Passenger Air Bag
Before driving, always confirm that the passenger air bag deactivation switch is in the
appropriate position according to your requirements (page 2-30).
WARNING
Do not leave the Key in the Passenger Air Bag Deactivation Switch:
Unintentional deactivation of the passenger air bag is dangerous. In an accident, the
passenger will not be properly protected. Serious injuries or even death could occur.
To avoid unintentional deactivation, always use the same key to operate the passenger
air bag deactivation switch and the ignition switch, that way you won't leave the key in
the passenger air bag deactivation switch.
2-32
Essential Safety Equipment
SRS Air Bags
MX-5_8U35-EA-05F_Edition4 Page44
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 45 of 378
Black plate (45,1)
1. Insert the key into the passenger air bag deactivation switch and turn the key clockwiseuntil the key points to OFF.
2. Remove the key.
3. Make sure the air bag deactivation indicator light remains illuminated when the ignitionis in the ON position.
The passenger front and side air bags and also the seat belt pretensioner system will remain
deactivated until the passenger air bag deactivation switch is turned to the ON position.
q To Ready the Passenger Air Bag
Before driving, always confirm that the passenger air bag deactivation switch is in the
appropriate position according to your requirements (page 2-30).
1. Insert the key into the passenger air bag deactivation switch and turn the key
counterclockwise until the key points to ON.
2. Remove the key.
3. Make sure the air bag deactivation indicator light turns off after the ignition switch isturned to the ON position.
Essential Safety Equipment
SRS Air Bags
2-33
MX-5_8U35-EA-05F_Edition4 Page45
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 51 of 378
Black plate (51,1)
If the passenger weight sensors are normal, the indicator light illuminates when the ignition
switch is turned to the ON position. After about 6 seconds it goes out.
The passenger air bag deactivation indicator light illuminates or is off under the following conditions:Total seated weight on the passenger seat Passenger air bag
deactivation indicator light Passenger front and side
air bags Passenger seat belt
pretensioner system
Empty (Not occupied)
*OFF OFFOFF
Less than approx. 30 kg
(66 lb) ON
OFFOFF
Approx. 42 kg (93 lb) or
more OFF
ONON
If the passenger air bag has been deactivated using the key, the passenger air bag deactivation indicator light will
remain illuminated as long you leave the passenger air bag turned off, and the chart above no longer applies.
Refer to Passenger air bag deactivation switch on page 2-30.
* If the passenger seat belt is buckled, the passenger air bag deactivation indicator light illuminates, however this does not indicate a malfunction.
If the passenger air bag deactivation indicator light does not illuminate when the ignition
switch is turned to the ON position and does not illuminate as indicated in the above chart,
do not allow a child to sit in the passenger seat and consult an Authorized Mazda Dealer as
soon as possible. The system may not work properly in an accident. You must deactivate
the passenger air bag using the key (page 2-30) and consult an Authorized Mazda Dealer.
WARNING
Decreasing the Total Seated Weight on the Passenger Seat:
When an adult or large child sits on the passenger seat, decreasing the total seated
weight on the passenger seat from the total seated weight of approximately 42 kg (93
lb) required for air bag deployment is dangerous. The passenger seat weight sensors
will detect the reduced total seated weight condition and the passenger front and side
air bags and seat belt pretensioner system will not deploy during an accident. The
passenger will not have the supplementary protection of the air bag, which could
result in serious injury. Decreasing the total seated weight on the passenger seat from
the total seated weight of approximately 42 kg (93 lb) could result in an air bag not
deploying under the following conditions, for example:
lLuggage or other items placed under the passenger seat or between the passenger
seat and center console that push up the passenger seat bottom.
lThe passenger seat occupant sits in a manner such that the occupant's entire
weight is not placed on the seat sitting too close to the door.
lAny accessories which might decrease the total seated weight on the passenger seat
are attached to the passenger seat.
The passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the passenger seat is close to 30 kg (66 lb) and
they will reactivate before the weight exceeds 42 kg (93 lb).
Essential Safety Equipment
SRS Air Bags
2-39
MX-5_8U35-EA-05F_Edition4 Page51
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 57 of 378
Black plate (57,1)
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lCrash sensor
lAir bag modules
lSide crash sensorsí
lSeat belt pretensioners
lRelated wiring
lFront passenger air bag deactivation
switch
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
q Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is normal, the warning light illuminates
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out. A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death. Never tamper
with the systems and always have an
Authorized Mazda Dealer perform all
servicing and repairs.
q
Maintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
Essential Safety Equipment
SRS Air Bags
2-45íSome models.
MX-5_8U35-EA-05F_Edition4 Page57
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
Page 58 of 378
Black plate (58,1)
lPassenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart or when you
manually deactivate the passenger air
bag with the key.
For more details about passenger air
bag deactivation, refer to:
lPassenger seat weight sensors (page
2-37)
lPassenger air bag deactivation
switch (page 2-30)
WARNING
Damaged Air Bag/Seat Belt
Pretensioner System Components:
Expended or damaged air bag or seat
belt pretensioner units must be
replaced after any collision which
caused them to deploy or damage
them. Only a trained Authorized
Mazda Dealer can fully evaluate these
systems to see that they will work in
the next accident. Driving with an
expended or damaged air bag or
pretensioner units will provide you
reduced protection in the next accident
and you could be injured or killed.
Removing Interior Parts:
Removing any components such as the
seats(if side air bags are equipped),
dashboard, the steering wheel or parts
containing air bag parts or sensors is
dangerous. These parts contain
essential air bag components. The air
bag could accidentally activate and
cause serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
WARNING
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.) ”
(page 9-2).
2-46
Essential Safety Equipment
SRS Air Bags
MX-5_8U35-EA-05F_Edition4 Page58
Thursday, October 6 2005 11:2 AM
Form No.8U35-EA-05F
