MAZDA MODEL MX-5 MIATA 2008 User Guide

Black plate (11,1)
Trunk lid ............................................................................................................ page 3-29
Rear window defroster ....................................................................................... page 5-58
Antenna ............................................................................................................... page 6-9
Doors and keys .................................................................................................. page 3-27
Outside mirror .................................................................................................... page 3-74
Tires ................................................................................................................... page 8-33
Light bulbs ......................................................................................................... page 8-37
Hood .................................................................................................................. page 3-37
Windshield wiper blades .................................................................................... page 8-28
Convertible top (Soft top) .................................................................................. page 3-39
Detachable hardtop ............................................................................................ page 3-44
Convertible top (Power retractable hardtop) ...................................................... page 3-52
Power windows ................................................................................................. page 3-33
Fuel-filler lid ...................................................................................................... page 3-36
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
MX-5_8X49-EA-07F_Edition5 Page11
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (12,1)
1-6
MX-5_8X49-EA-07F_Edition5 Page12
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2Seats .......................................................................................... 2-2
Seat Belt Systems .......................................................................... 2-5 Seat Belt Precautions ................................................................ 2-5
Seat Belt .................................................................................... 2-9
Seat Belt Pretensioner and Load Limiting Systems ................ 2-11
Seat Belt Extender ................................................................... 2-13
Seat Belt Warning Light/Beep ................................................ 2-15
Child Restraint ............................................................................ 2-17 Child Restraint Precautions ..................................................... 2-17
Installing a Child-Restraint System ......................................... 2-22
LATCH Child-Restraint System ............................................. 2-25
SRS Air Bags ............................................................................... 2-28 Supplemental Restraint Systems (SRS) Precautions ............... 2-28
Passenger Air Bag Deactivation Switch .................................. 2-32
Supplemental Restraint System Components ......................... 2-36
How the Air Bags Work .......................................................... 2-38
2-1
MX-5_8X49-EA-07F_Edition5 Page13
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (14,1)
Seats
WARNING
Do not modify or replace the front
seats:Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats: Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place: Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
q Seat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
2-2
Essential Safety Equipment
Seats
MX-5_8X49-EA-07F_Edition5 Page14
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (15,1)
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:If your vehicle is equipped with
passenger seat weight sensors,
sitting in the passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the passenger
sensing system. As a result the
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
Do not drive with the seatback
unlocked: The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place. To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
Essential Safety Equipment
Seats
2-3
MX-5_8X49-EA-07F_Edition5 Page15
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (16,1)
qHeight Adjustment (Driver's Seat)í
By moving the seat lever up or down, the
seat bottom height can be adjusted.
Up
Down
q Seat Warmerí
The seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
NOTE
The seat temperature is regulated
automatically by a thermostat. Other than
turning it on or off, it cannot be adjusted.
2-4
Essential Safety Equipment
íSome models.
Seats
MX-5_8X49-EA-07F_Edition5 Page16
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (17,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passenger always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the passenger's seat lap/shoulder belt retractors operate in two modes: emergency
locking mode, and for child-restraint systems, automatic locking mode.
Your vehicle is equipped with LATCH lower anchors for securing the LATCH child-
restraint system in the passenger seat but there is no child-restraint tether available. As
there is no rear seat on this vehicle, the preferred location for children, following the
manufacturer's instructions on the LATCH child restraint-system and this owner's manual is
important (page 2-25).
Essential Safety Equipment
Seat Belt Systems
2-5
MX-5_8X49-EA-07F_Edition5 Page17
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (18,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts: Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time: Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt: Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended: If the air bags deploy the corresponding pretensioner(s) may also deploy at the same
time. While it is safer to use a crash-used seat belt that was used in an accident than
no seat belt at all, using a seat belt with an expended pretensioner or load limiter
loaded reduces the safety available to you. Like the air bags, the seat belt
pretensioners will only function once. After they are expended, they will not function
again and must be replaced immediately. If the seat belt pretensioners are not
replaced, the risk of injury in a collision will increase. Always have an Authorized
Mazda Dealer inspect the seat belt pretensioners and air bags after any collision.
Expended seat belt pretensioners and air bags must be replaced after any collision
which caused them to deploy. Additionally, the load limiter will only limit loads on
the chest once in a collision and this is another reason to have the seat belts
inspected.
2-6
Essential Safety Equipment
Seat Belt Systems
MX-5_8X49-EA-07F_Edition5 Page18
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (19,1)
CAUTION
Belt retraction may become difficult if the belts and seat belt guides are soiled, so try
to keep them clean. For more details about cleaning the seat belts, refer to“Cleaning
the Lap/Shoulder Belt Webbing ”(page 8-57).
Seat belt guide
q Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
Essential Safety Equipment
Seat Belt Systems
2-7
MX-5_8X49-EA-07F_Edition5 Page19
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F

Black plate (20,1)

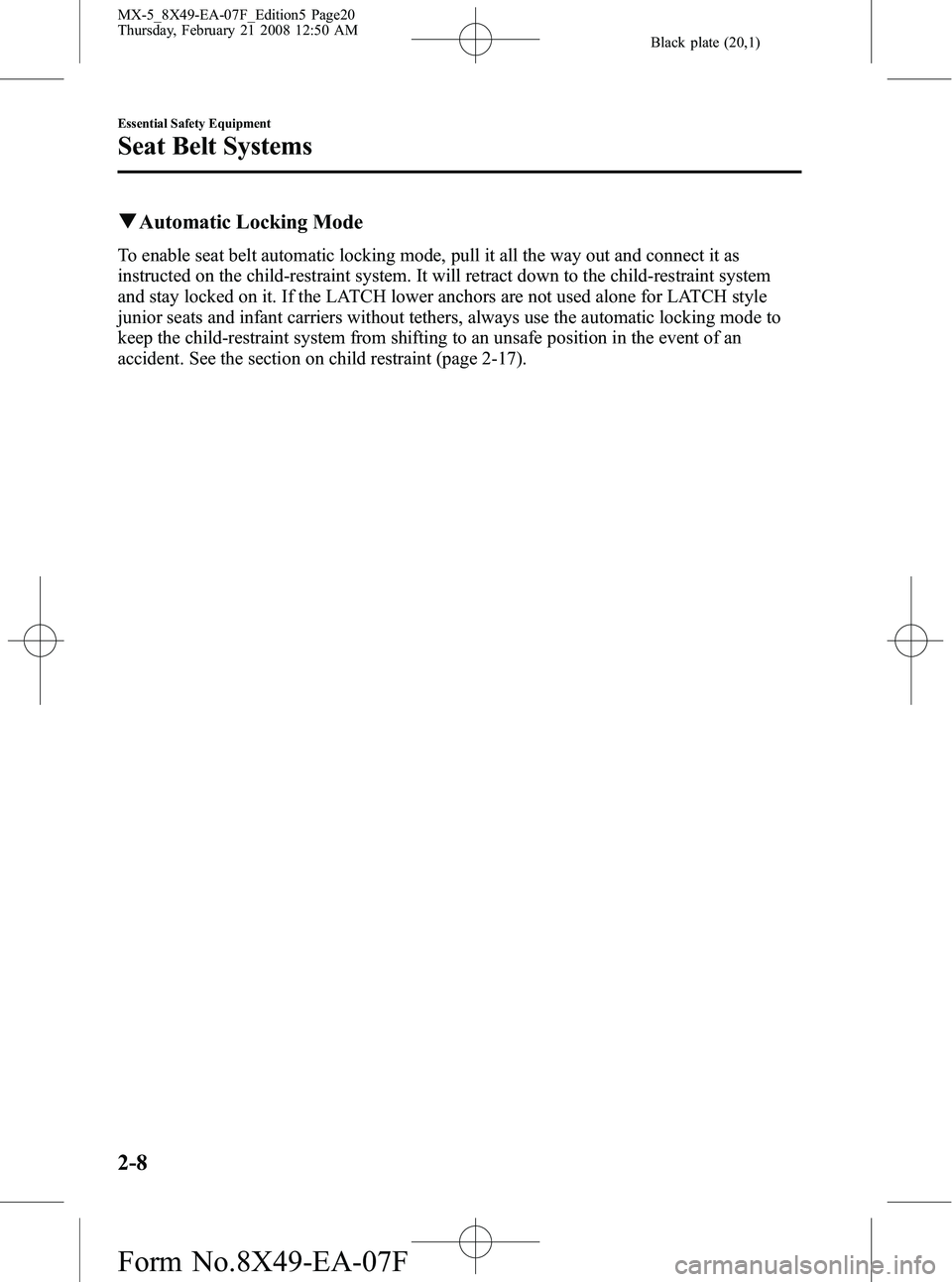

qAutomatic Locking Mode
To enable seat belt automatic locking mode, pull it all the way out and connect it as
instructed on the child-restraint system. It will retract down to the child-restraint system
and stay locked on it. If the LATCH lower anchors are not used alone for LATCH style
junior seats and infant carriers without tethers, always use the automatic locking mode to
keep the child-restraint system from shifting to an unsafe position in the event of an
accident. See the section on child restraint (page 2-17).
2-8
Essential Safety Equipment
Seat Belt Systems
MX-5_8X49-EA-07F_Edition5 Page20
Thursday, February 21 2008 12:50 AM
Form No.8X49-EA-07F
