Vehicle Loading
WARNING
Do not tow a trailer with this vehicle:Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle, to keep your loaded
vehicle weight within its design rating capability. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading your vehicle,
familiarize yourself with the following terms for determining your vehicle's weight ratings,
from the vehicle's Safety Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle: Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-35
MX-5_8CC1-EA-11F_Edition2 Page431
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 432 of 456
Black plate (432,1)
Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.
Vehicle Curb Weightis the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.
PAYLOAD
Payload is the combination weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE
COMBINATION WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER
EXCEED XXX kg or XXX lbs” for your maximum payload. The payload listed on the tire
label is the maximum payload for the vehicle as built by the assembly plant. If any
aftermarket or dealer installed equipment has been installed on the vehicle, the weight of
the equipment must be subtracted from the payload listed on the tire label in order to be
accurate.
9-36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
MX-5_8CC1-EA-11F_Edition2 Page432
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 433 of 456
Black plate (433,1)
SAMPLE
CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed ”value on the tire
label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-37
MX-5_8CC1-EA-11F_Edition2 Page433
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 434 of 456
Black plate (434,1)
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg
(849 lbs) for the“combination weight of occupants and cargo should never exceed ”:
The cargo weight limit with one occupant is 385 kg (849 lbs) _
68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) _
(68 × 2) kg ( (150 × 2)
lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
GVW (Gross Vehicle Weight) is the Vehicle Curb Weightcargopassengers.
GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.
9-38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
MX-5_8CC1-EA-11F_Edition2 Page434
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 435 of 456
Black plate (435,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-39
MX-5_8CC1-EA-11F_Edition2 Page435
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 436 of 456
Black plate (436,1)

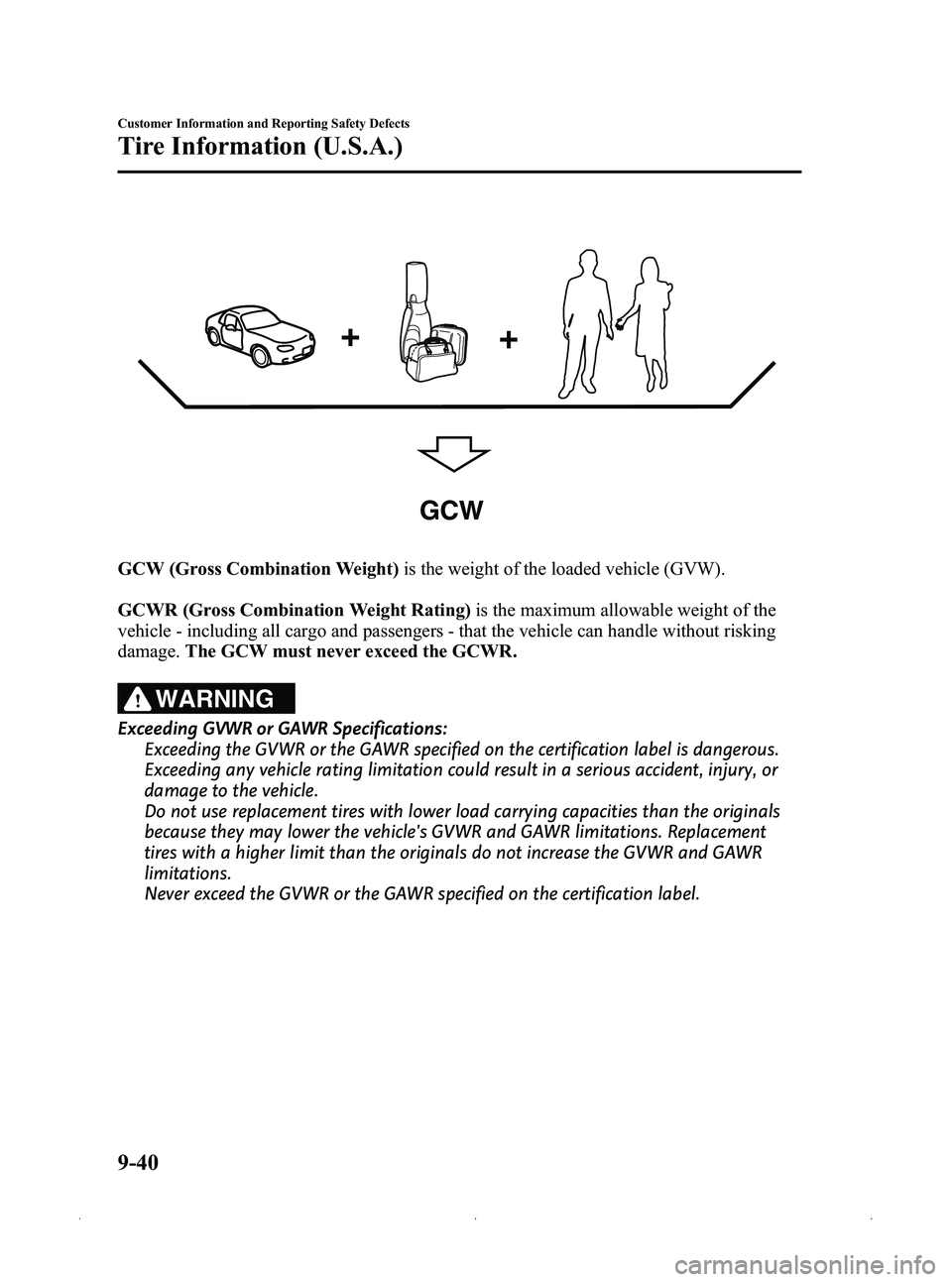

GCW
GCW (Gross Combination Weight)is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.
WARNING
Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
9-40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
MX-5_8CC1-EA-11F_Edition2 Page436
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 437 of 456
Black plate (437,1)
Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs ”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load
capacity. For example, if the “XXX ”amount equals 1400 lbs. and there
will be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 _
750 (5 × 150) = 650
lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-41
MX-5_8CC1-EA-11F_Edition2 Page437
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 438 of 456
Black plate (438,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY:1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC,
20590. You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
or
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-12) in
this booklet.
9-42
Customer Information and Reporting Safety Defects
Reporting Safety Defects
MX-5_8CC1-EA-11F_Edition2 Page438
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 439 of 456
Black plate (439,1)

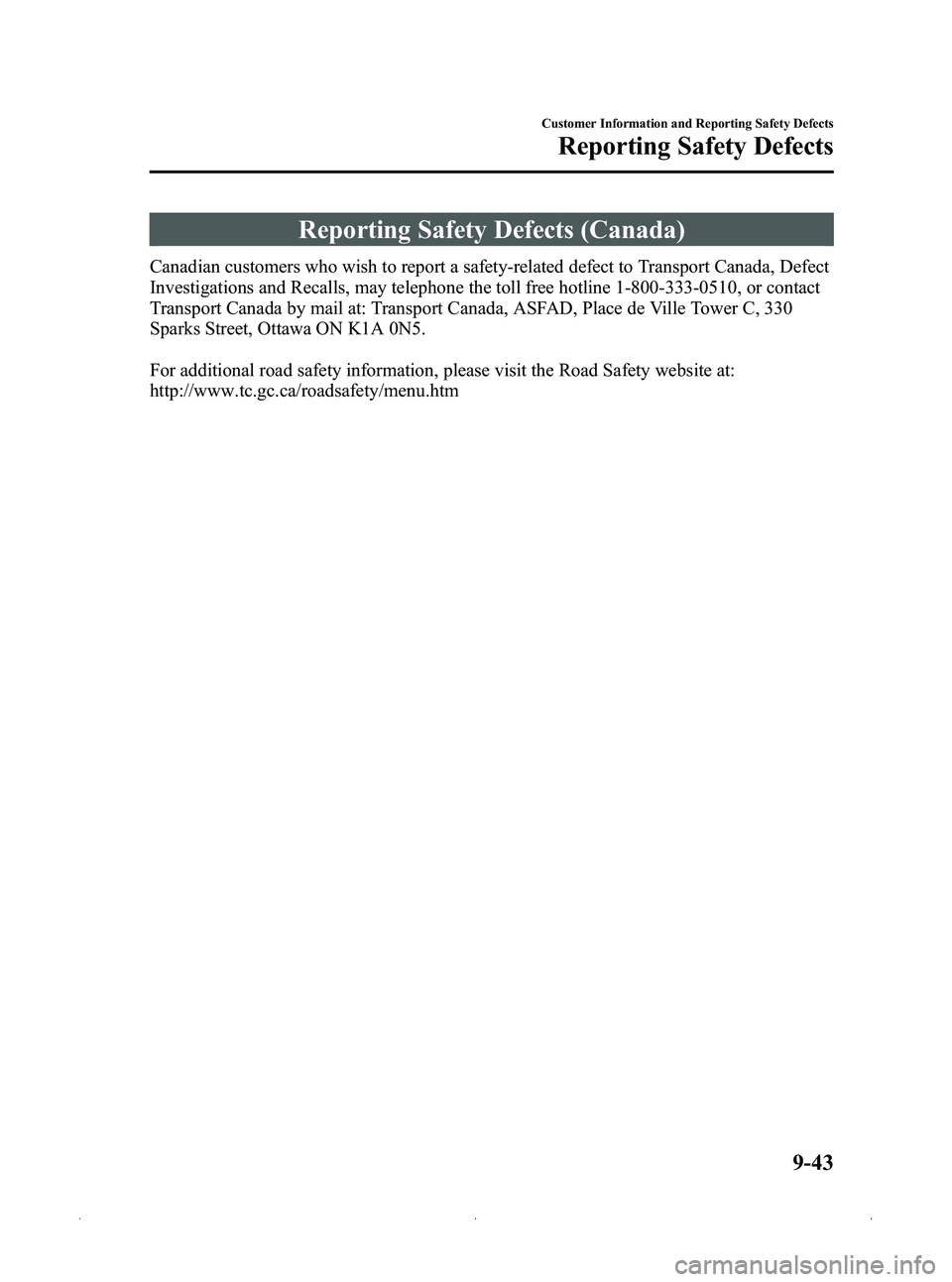

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-43
MX-5_8CC1-EA-11F_Edition2 Page439
Monday, July 18 2011 10:9 AM
Form No.8CC1-EA-11F
Page 440 of 456
Black plate (440,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-042B-12 2012 WORKSHOP MANUAL (English)
9999-MX-042B-12 2012 WORKSHOP MANUAL (Spanish)
9999-95-026G-12 2012 WIRING DIAGRAM (English)
9999-MX-026G-12 2012 WIRING DIAGRAM (Spanish)
9999-95-031C-12 (U.S.A. only) 2012 OWNER'S MANUAL
9999-EC-031C-12 (Canada only) 2012 OWNER'S MANUAL
9999-PR-031C-12 (Puerto Rico, Mexico only) 2012 OWNER'S MANUAL
9999-95-MODL-12 2012 SERVICE HIGHLIGHTS
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
