MAZDA MODEL MX-5 MIATA 2018 Owner's Guide

(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the passenger seat at any time.

Before installing child-restraint system on the passenger seat, move the passenger seat as far
back as possible:
In a collision, the force of a deploying air bag could cause serious injury or death to the child.
Seating a child in a child-restraint system on the passenger seat is dangerous under certain
conditions (With Passenger Occupant Classification System):
Your vehicle is equipped with passenger occupant classification sensor. Even with the
passenger occupant classification sensor, if you must use the passenger seat to seat a child,
using a child-restraint system on the passenger seat under the following conditions increases
the danger of the passenger air bag deploying and could result in serious injury or death to
the child.
 The passenger air bag deactivation indicator ligh t does not illuminate when seating a child
in the child-restraint system.
 Luggage or other items are placed on the seat with the child in the child-restraint system.
 The seat is washed.
 Liquids are spilled on the seat.
 The passenger seat is moved backward, pushing into luggage or other items placed behind
it.
 Luggage or other items are placed between the passenger seat and driver seat.
 An electric device is put on the passenger's seat.
Essential Safety Equipment
Child Restraint
2-17
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

An additional electrical device , such as a seat warmer is installed to the surface of the
passenger seat.
Do not allow a child or anyone to lean over or against the side window of a vehicle with side
air bags:
It is dangerous to allow anyone to lean over or against the side window, the area of the
passenger seat from which the side air bags depl oy, even if a child-restraint system is used.
The impact of inflation from a side air bag co uld cause serious injury or death to an out of
position child. Furthermore, leaning over or ag ainst the door could block the side air bags and
eliminate the advantages of su pplemental protection. Because the side air bag deploys from
the outboard shoulder of the seat, do not allow the child to lean over or against the side
window, even if the child is seated in a child-restraint system.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Never use one belt for more than one person at a
time and always operate the vehicle with each occupant properly restrained.
Always use a child-restraint system designed for use without a tether or the LATCH lower
anchor:
Using a child-restraint system that requires a tether or the LATCH lower anchor is dangerous.
Your Mazda does not have a child-restraint tether or the LATCH lower anchor. The
child-restraint system cannot be properly secured . In a collision, it could move and injure
other occupants as well as result in serious injuries or death to the child.
CAUTION
A seat belt or child-restraint system can beco me very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
Essential Safety Equipment
Child Restraint
2-18
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Child-Restraint System Installation
▼Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Mexico)
Child-restraint systems are clas
sified into the following 5 groups according to the UNECE
44 regulation.
Group Age Weight
0 Up to about 9 months old Up to 10 kg (up to 22 lb)
0
Up to about 2 years old Up to 13 kg (up to 29 lb)
1 About 8 months to 4 years old 9 kg ― 18 kg (20 lb ― 40 lb)
2 About 3 to 7 years old 15 kg ― 25 kg (33 lb ― 55 lb)
3 About 6 to 12 years old 22 kg ― 36 kg (48 lb ― 79 lb)
(Except Mexico)
Please comply with the legal regulations concerning the use of child-restraint systems in
your country.
▼ Child-Restraint System Types
In this owner's manual, explanation of
child-restraint systems is provided for the
following three types of popular
child-restraint systems: infant seat, child
seat, booster seat.
NOTE
Installation position is determined by
the type of child-restraint system.
Always read the manufacturer's
instructions and this owner's manual
carefully.
Due to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint systems
may not fit all seating positions. Before
purchasing a child-restraint system, it
should be tested in
the specific vehicle
seating position (or positions) where it
is intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
different one that will.
Essential Safety Equipment
Child Restraint
2-19
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

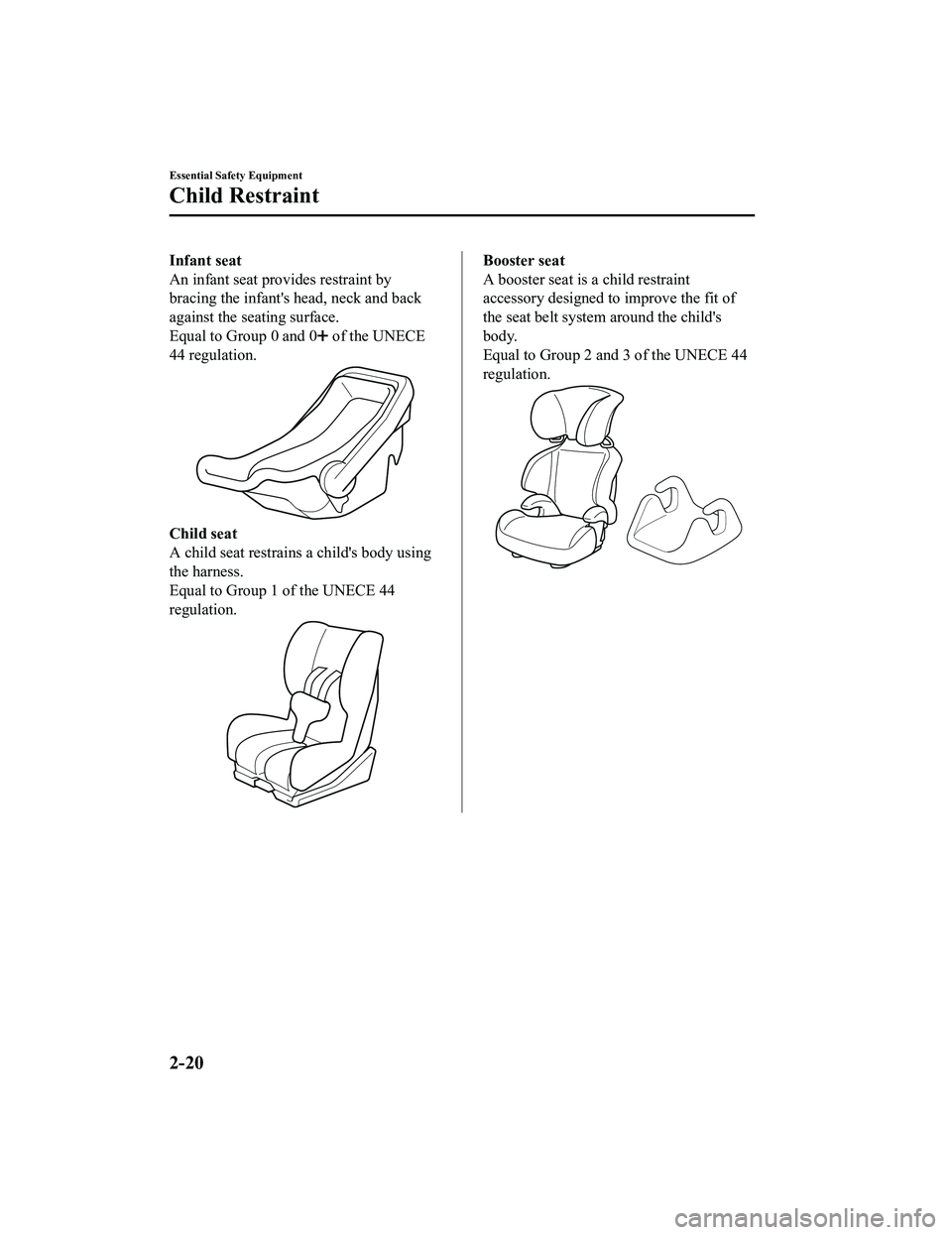

Infant seat
An infant seat provides restraint by
bracing the infant's head, neck and back
against the seating surface.
Equal to Group 0 and 0
of the UNECE
44 regulation.
Child seat
A child seat restrains a child's body using
the harness.
Equal to Group 1 of the UNECE 44
regulation.
Booster seat
A booster seat is a child restraint
accessory designed to improve the fit of
the seat belt system around the child's
body.
Equal to Group 2 and 3 of the UNECE 44
regulation.
Essential Safety Equipment
Child Restraint
2-20
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Child-Restraint System Suitability for Various Seat
Positions Table
(Mexico)
Provided information in the table shows your child-restraint sy stem suitability for various
seating position. For installation suitability of other manufac turer child-restraint system,
carefully consult the manufacturer's instructions which accompany the child-restraint system.
LATCH lower anchor-secured child-restraint systems
When installing a child-restraint system to the passenger seat, refer to the child-restraint sys-
tem manufacturer's instructions.
Mass group Size Class Fixture Seat Positions
Vehicle LATCH positions Passenger seat
Carrycot FI
SO /L 1 X
GI SO /L 2 X
(1) X
GROUP 0 Up to 10 kg (up to 22 lb) EI
SO /R 1 X
(1) X
GROUP 0
Up to 13 kg (up to 29 lb) EISO/R1 X
DI SO /R 2 X
CI SO /R 3 X
(1) X
GROUP 1 9 kg ― 18 kg (20 lb ― 40 lb) DI
SO /R 2 X
CI SO /R 3 X
BI SO /F 2 X
B1 ISO/F2X X
AI SO /F 3 X
(1) X
GROUP 2 15 kg ― 25 kg (33 lb ― 55 lb) (1)
X
GROUP 3 22 kg ― 36 kg (48 lb ― 79 lb) (1)
X
(1) For the CRS which do not carry the ISO/XX size class identi fication (A to G), for the applicable mass group,
the car manufacturer shall indicat e the vehicle specific LATCH child-restraint system(s) recommended for each
position.
Key of letters to be inserted in the above table:
These LATCH CRS are those of the “specific vehicle”, “restricted” or “semi-universal” categories.
X = LATCH position not suitable for LATCH child-restraint systems in this mass group and/or this size class.
Essential Safety Equipment
Child Restraint
2-21
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

i-Size child-restraint systems
An i-Size child-restraint system can be installed to the specified seat as follows:
Passenger seat
i-Size child-restraint systems X
Key of letters to be inserted in the above table:
X = Seating position not suitable for i-Size “universal” child-restraint systems.
NOTE
An i-Size child-restraint system refers to a ch ild-restraint system which has acquired i-Size
category certification for the UNECE 129 regulation.
Seat belt-secured child-restraint systems
System group Age group Weight group Child-restraint
system type Passenger seat
GROUP 0 Up to about 9
months old Up to 10 kg (up
to 22 lb) Infant seat X
GROUP 0
Up to about 2 years old Up to 13 kg (up
to 29 lb) Infant seat X
GROUP 1 About 8 months
to 4 years old 9 kg ― 18 kg (20
lb ― 40 lb) Child seat L
GROUP 2 About 3 to 7
years old 15 kg― 25 kg
(33 lb ― 55 lb) Booster seat L
GROUP 3 About 6 to 12
years old 22 kg ― 36 kg
(48 lb ― 79 lb) Booster seat L
Key of letters to be inserted in the above table:
L = For the child rest
raint systems categorized in this weight group, consult an Authorized Mazda Dealer.
Regarding child-restraint systems which can be installed, refer to the accessories catalog.
X = Seat position not suitable for children in this mass group.
(Refer to the “Accessories Catalog” for installing a Mazda genu ine child-restraint system.)
(Except Mexico)
Please comply with the legal regulations concerning the use of child-restraint systems in
your country.
Essential Safety Equipment
Child Restraint
2-22
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Installing Child-RestraintSystems
The passenger lap/shoulder belt can easily
be converted into the automatic locking
mode, which must be done to hold the
child-restraint system.
NOTE
To check if your seats have side air
bags:
Mazda vehicles equipped with side air
bag will have an embossed "SRS
AIRBAG" marking on the outboard
shoulder of the seats.
Follow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-restraint
system, it may not employ seat belts
which are in automatic locking mode,
however if it uses an upper tether, it may
not be mounted properly in this vehicle
as there is no safe way to anchor the
tether. Confirm whether the
child-restraint system can be used with
seat belts by reading the child-restraint
system manufacturer's instructions.
WA R N I N G
Do not allow a child or anyone to lean over
or against the side window of a vehicle
with side air bags:
It is dangerous to allow anyone to lean
over or against the side window, the area
of the passenger seat from which the side
air bags deploy, even if a child-restraint
system is used. The impact of inflation from
a side air bag could cause serious injury or
death to an out of position child.
Furthermore, leaning over or against the
door could block the side air bags and
eliminate the advantages of supplemental
protection. Because the side air bag
deploys from the outboard shoulder of the
seat, do not allow the child to lean over or
against the side window, even if the child is
seated in a child-restraint system.
CAUTION
When moving the seats forward and
rearward, make sure you hold onto the
seatback with your hand while operating. If
the seatback is not he ld, the seat will move
suddenly and could cause injury.
Passenger's Seat Child-Restraint
System Installation (With Passenger
Occupant Classification System)
1. Make sure the ignition is switched off.
Essential Safety Equipment
Child Restraint
2-23
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

2. Slide the seat as far back as possible.
3. Place the child-res traint system on the
seat without putting your weight on the
seat and secure the child-restraint
system with the lap portion of the lap/
shoulder belt. See the manufacturer's
instructions on the child-restraint
system for belt routing instructions.
4. To get the retractor into the automatic
locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
5. Push the child-restraint system firmly
into the vehicle sea t. Be sure the belt
retracts as snugly as possible. A
clicking noise from the retractor will
be heard during retraction if the system
is in automatic lo cking mode. If the
belt does not lock the seat down tight,
repeat the previous step and also this
one.
NOTE
Inspect this function before each use
of the child-restraint system. You
should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove the
child-restraint system, be sure the
belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
6. Seat your child safely in the child-restraint system and secure the
child according to the instructions
from the child-restraint system
manufacturer.
7. Switch the ignition ON and make sure the passenger air bag deactivation
indicator light illuminates after
installing a child-restraint system on
the passenger seat.
If the passenger a ir bag deactivation
indicator light does not illuminate,
remove the child-restraint system,
switch the ignition to OFF, and then
re-install the chil d-restraint system
(page 2-40).

Essential Safety Equipment
Child Restraint
2-24
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

WA R N I N G
Do not seat a child in a child-restraint
system on the passenger seat if the
passenger air bag deactivation indicator
light does not illuminate (With Passenger
Occupant Classification System):
Seating a child in a child-restraint system
installed on the passenger seat with the
passenger air bag deactivation indicator
light not illuminated is dangerous. If this
indicator light does not illuminate, this
means that the passenger front and side air
bags, and seat belt pretensioner are ready
for deployment. If an accident were to
deploy an air bag, a child in a
child-restraint system sitting in the
passenger seat could be seriously injured or
killed. If the indicator light does not
illuminate after seating a child in a
child-restraint system on the passenger
seat consult an Authorized Mazda Dealer
as soon as possible.
Essential Safety Equipment
Child Restraint
2-25
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags.
Please verify which kinds of air bags are equipped on your vehi cle by locating the
“SRS AIRBAG” loca tion indicators. These indicators are visible in the area where the air
bags are installed.
The air bags are installed in the following locations:

The steering wheel h ub (driver air bag)
The passenger dashboard (passenger air bag)
The outboard sides of the seatbacks (side air bags)
The air bag supplemental restraint systems are designed to prov ide supplemental protection
in certain situations so seat bel ts are always important in the following ways:

Without seat belt usage, the air bags cannot provide adequate p rotection during an accident.
Seat belt usage is necessary to:
Keep the occupant from being thrown into an inflating air bag.
Reduce the possibility of injuries during an accident that is n ot designed for air bag
inflation, such as roll-over or rear impact.
Reduce the possibility of injuries in frontal, near frontal or side collisions that are not
severe enough to activate the air bags.
Reduce the possibility of being thrown from your vehicle.
Reduce the possibility of injurie s to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
Hold the driver in a position wh ich allows better control of the vehicle.

Essential Safety Equipment
SRS Air Bags
2-26
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
